Disc Mill Dealers

• Features: Higher throughput with higher energy efficiency, Efficient development of new formulations,Cleaner process control.
• Material Grade: S.S.304

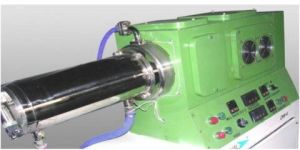

Disc Horizontal Mills is a liquid grinding machine for closed contunuous production. The machine is easy to dooperation, good reliabiity an full specification. It is amost widely used liquid grinding machine in the market with mature performance nad structure. The machine uses dual-end mechanical seal with closed seld-lubricatesystem with good reliabiliyt and dureability. The machinne is also with, temperture, pressure monitor and rpotection to ensure the quality of the finished product. It is with the advatages such as high grinding efficiency, good grinding finesness, wide application and good anti-abrasivesnessetc. Technical Parameter: Model Power supply Power (kw) Speed Volume (L) Materials Capacity (L) Medium Size (mm) Zirconia Weight (kg) PVG-SWS-5 440V 50HZ 5.5 1440 5 SS304 Alloy 120-480 0.6-1.8 65 CZS80 YSZ 550 PVG-SWS-15 440V 50HZ 11 1440 15 SS304 Alloy 120-600 0.6-1.8 65 CZS80 YSZ 800 PVG-SWS-20 440V 50HZ 15 1440 20 SS304 Alloy 120-720 0.6-1.8 65 CZS80 YSZ 900 PVG-SWS-30 440V 50HZ 22 1440 30 SS304 Alloy 120-720 0.6-1.8 65 CZS80 YSZ 1100 PVG-SWS-50 440V 50HZ 30 960 50 SS304 Alloy 160-1000 0.6-1.8 65 CZS80 YSZ 1500 PVG-SWS-60 440V 50HZ 37 960 60 SS304 Alloy 200-1000 0.6-1.8 65 CZS80 YSZ 1600 PVG-SWS-100 440V 50HZ 75 960 100 SS304 Alloy 300-1500 0.6-1.8 65 CZS80 YSZ 1600

• Application: Industrial
• Weight: 1000-2000kg
• Color: Available in Many Colors
• Voltage: 220V
• Automatic Grade: Automatic
• Power: 10-15kw
• Driven Type: Electric
• Warranty: 2years

MPS Roller Disc Coal Mill is an advanced technology that is widely used for pulverized coal preparation system used in metallurgical, chemical industry, electric power, building materials, and environmental protection industries. Our MPS Roller Disc Coal Mill is known for its durability and robust construction. Clients can avail MPS Roller Disc Coal Mill at affordable rates from us.

• Feed size*: < 15 mm
• Final fineness*: < 40 um

No grinder can beat the speed of a vibratory disc mill when it comes to preparing samples for spectral analyses. The retsch rs 200 with its powerful stabilized plane drive achieves grind sizes between 40 and 100 microns within seconds and with excellent reproducibility. The powerful instrument runs steadily and smoothly, even with heavy grinding sets and at maximum speed. Thanks to grinding sets in various materials and sizes, this mill can be used for a wide range of sample materials.

• Size: 18" (450 mm) , 24" (600 mm)

The objective of the milling process is to provide complete separation of component parts of the steeped corn kernels. After steeping, the grains are coarsely ground of pulp with water in coarse grinding attrition mill in preparation for de-germination. Grinder has one stationary and one rotating disc. The gap between the plates can be adjusted to give the most germs free with minimum breakage with quick release spring mechanism for easy retraction attached with rotational shaft to prevent accidental damage to grinding plate due to any metallic foreign particles.

We are actively engaged in manufacturing and supplying a comprehensive array of disc mill machine. Features: low, medium to high capacity. Two units can be given in one line to increase the output. Comparatively low energy consumption. Complete system i.e. Automatic production. Compact design space saving design. Economical efficient design.

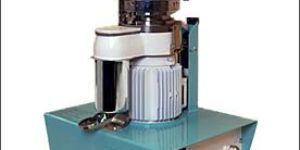

Bühler offers the ideal standard component for optimal preparation of all common laboratory analyses: the laboratory disk mill dlfu can reduce any malt variety as well as unmalted grains. This is an especially useful tool for breweries in preparing the product for the most common analyses in the laboratory.

We are offering disc type colloid mill.disc type colloid mill that is a high speed grinding and mixing machine. The disc type colloid mills offered by us are precisely engineered in compliance with the exacting market standards and requirements. This range of disc type colloid mill has attained the reputation of being the best in market and is available at reasonable rates. advantages interchangeable grinding elements like stainless steel grinding discsconsists of hopper lid impeller body water jacket, exhaust exit, spindle assembly rotor & adjuster of the gap between the two grinding colloid milladjustment of less than 2.55/100mm (1/1000°) per one revolution can be obtained in the gap between the two grinding colloid mill, while in operationrotor is equipped with kicker plate as a discharging tool for processing high viscosity raw materialused for grinding of super fine particles, corpus cling and high blending applications pharmaceuticalscosmeticsfood stuffschemicalspaintsvarnishespigmentsdyeingresinspencils greases news-paper printing inks shoe polishes graphite

• Features: Easy handling, Highest product quality at exact reproducibility, Flexible work with short preparation times, Abrasion-proof wear parts of different materials.
• Operation Mode: Semi-Automatic
• Power Rating: 6-10 HP
• Capacity (ton per day): 40 to 100

• MODEL: PDM – 300

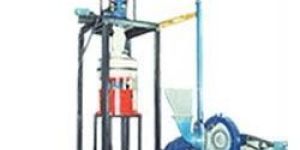

Premium Disc Mills are rugged Construction. The main body is made of C.I Welded Steel. The FRONT DOOR, which is having SERRETED GRINDING DISC, can be easily opened and hence making conveniently for Cleaning. The door is hinged for ease of operation. The material is fed with either vibratory Feeder Screen feeder through Feeding hopper. The material is pulverised between TWO SERRETED hardened Discs. The gape between TWO plates can be adjusted by outside from outside. The ground material can be conveyed by blower through cyclone collector, which is installed with Rotary Air Lock Valve on Gyro Screen, which Screens the material and coarse material in REFED into DISCMILL for further grinding. The FINE and acceptable material is collected in DRUMSBags. Complete System is installed on Steel Frame.

• Power: 220V
• Dimensions: 104 cm. (height) x 80 cm. (width) x 60 cm. (depth)

The acoustic insulation lining the inside helps to achieve a low noise level during the milling process, avoiding thus the exposure of the user to noise.The fixing system of the milling jars, as well as the interlocking system of the door preventing it from opening until the engine is completely still, make of this mill a highly safe unit.The frequency converter in the mill, apart from allowing adjusting the speed of the engine to the most appropriate for each type of sample, enables the unit to reach the working speed as well as go to zero speed using an acceleration or deceleration ramp, avoiding the unit from vibrating in the starting up and stopping process.The grinding of the sample is made inside the jar with the initial hitting of the discs and the subsequent friction resulting between the discs and the jar. The milling times are really short.

• Features: Effectiveness, Compatible, Best grade materials, Sturdy construction and long functional life.

• Features: Longer service life, High performance, Ruggedness

Grinding is done by heavy impact and friction. Sample is kept in the annular space between the bowl, ring and the hammer. A cover is kept on the top of the bowl then the bowl is clamped on vibratory platform and subjected to heavy vibrations. The vibratory platform imparts the kinetic energy to the ring and the hammer. Most suitable for 'XRF' sample preparation. Feed Material Material having medium to substantially high hardness and brittleness like Bauxite, Bakelite, Concrete, Geological Ores, Ferroalloys, Quartz, Glass, Granite, Silicates, Cement Clinker, Slag, Coal, Coke, Corundum etc.

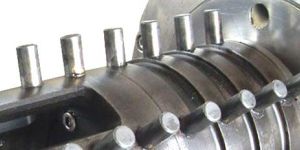

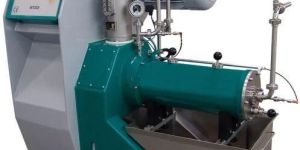

Owing to our rich industrial experience and sophisticated manufacturing unit, we design a qualitative assortment of MARSHAL Horizontal Disc Mills in various sizes and specifications. Our Horizontal Disc Mills are ideally constructed to provide mill & disperse pigment particles into paint or ink media giving excellent coloristic properties & particle size. They are user friendly and equipped with numerous safety oriented mechanism makes it useful in rugged performance on shop floor. We are a renowned Horizontal Disc Mill Manufacturer, Exporter and Supplier from Gujarat, India. Buy them from us at reasonable prices.   Features Higher throughput with higher energy efficiency Can even grind up to sub-micron level Double acting mechanical seal Easy Material handling - reduces labor cost Unique centrifugal bead separation system Narrow Particle size distribution Grinding Media: 0.6 mm - 2 mm can be used Applications Liquid Inks Solvent / Water base Dispersion Agro Chemicals Pharmaceutical formulations Paints Sizes Available 4 Litres 10 Litres 30 Litres 50 Litres
