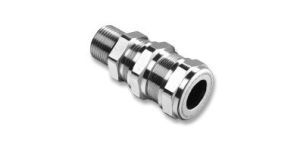

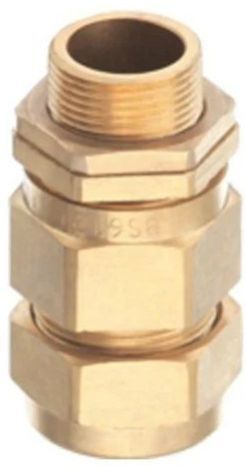

Double Compression Cable Gland Dealers

• Temperature Range: -40° C to + 100° C Neoprene Sealing Ring

These Glands are produced in accordance to EN 60079-0:2009EN 60079-1:2007 EN 60079-7:2007EN 60079-31:2009

We are offering double compression gland. A cable gland (in the u.s. More often known as a cable connector or fitting) is a device designed to attach and secure the end of a cable to the equipment. a cable gland provides strain-relief and connects by a means suitable for the type and description of cable for which it is designed—including provision for making electrical connection to the armour or braid and lead or aluminium sheath of the cable, if any. Cable glands may also be used for sealing cables passing through bulkheads or gland plates. Cable glands are mechanical cable entry devices and can be constructed from metallic or non-metallic materials. They are used throughout a number of industries in conjunction with cable and wiring used in electrical instrumentation and automation systems. Cable glands may be used on all types of electrical power, control, instrumentation, data and telecommunications cables. They are used as a sealing and termination device to ensure that the characteristics of the enclosure.

We are manufacturer & exporter of all types of brass electrical components.

• Size: 20-40mm, 40-60mm
• Material: Brass
• Feature: Durable, Easy To Fit, Fine Finished, Good Quality, Heat Resistance
• Finishing: Polished
• Country of Origin: India
• Brand Name: Swastik
• Tolerance: ±5%

Application Flame Proof Double Compression Glands Are Generally Used In Flammable Gas / Vapors Area (For Gas Group I, IIA & IIB) As Well As In Normal Climatic Conditions Also Which Are Weather Proof, Water Proof And Dust Proof (IP-66) Which Can Be Used In Hazardous Climatic Condition. Also When Protected By PVC Shrouds It Can Be Used In Corrosive Atmosphere. These Glands Are Available In Different Sizes And Are Suitable For All Cables Upto 1000 Sq. Mm. And Control Cables Upto 61 Cores. AccessoriesPVC Shroud, Earth Tag, Stopping Plug, Reducer, Adaptor, Etc. Are Available With Specified Dimensions In Accordance To The Gland Separately.Fitting Sequence Insert Part No. 9, 8 & 7 respectively on the Outer Sheath of the cable before exposing the Armour. After removing Outer Sheath of the cable, Insert Part No. 6 over the Exposed Armour. Size Armour length, Lift Armour & Insert Part No. 5 under the Armour, Taper Part Facing Inward Side, Squeeze Part No. 5 by pushing Part No. 6 towards it. Insert Part No. 4 & 3 on Inner Sheath, than tight Part No. 3 with Part No. 7 & Tight Part No. 9 with Part No. 7. Finally apply the full fitted Gland in the Enclosure with the entry thread provided, if the Enclosure does not have threaded entry than tight the Gland with

• Brand Name: ROSTER™
• Price: Approx. Rs 40 / Piece(s)
• Standard: BS 6121

The high-strength Roster Double Compression Cable Gland offered by us are popular cabling accessories in the commercial and residential sectors. Though predominantly used indoors, these products if sheathed in PVC can be used for outdoor cabling as well. These products are widely appreciated for their dimensional accuracy and ability to endure adverse climate. We offer these products at competitive market rates.   Specifications : Application : Weather Proof Double Compression Glands are weather proof and dust proof (IP-66) which can be used in normal climatic condition. Also when protected by PVC shrouds it can be used in corrosive atmosphere. Accessories : PVC Shroud, Earth Tag, Stopping Plug, Reducer, Adaptor, etc. are available with specified dimensions in accordance to the Gland separately.

We are offering weatherproof type double compression cable gland (indoor gland for single wire armored cable). Material: brass (is-319) standard plating: nickle plated standard (tin/cadmium/chrome also available) sealing rubber ring: nitrile / neoprene gland standard: bs 6121 protection class: ip 67 as per is 13947 application: generally for outdoor / indoor use for armoured& unarmoured.

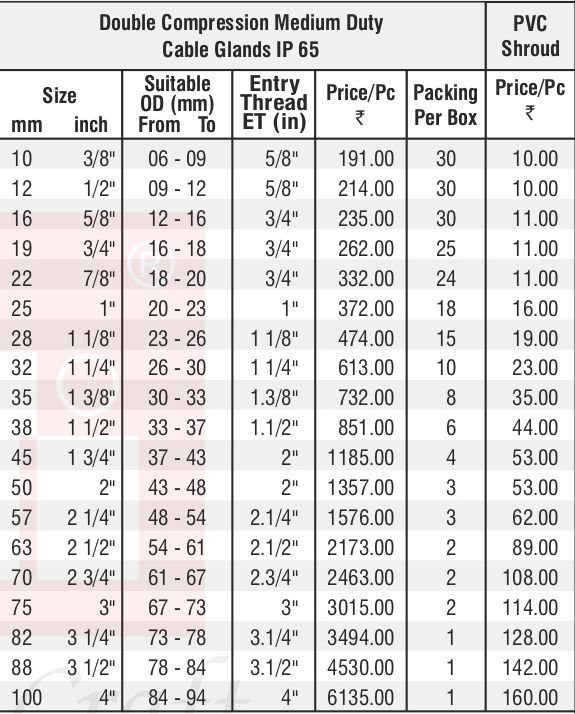

We offer Weatherproof Double Compression Glands. The company is engaged in the process of making available a high quality of Weatherproof Double Compression Cable Gland. Our range of double compression cable glands is designed to be durable, efficient, and low on maintenance requirements. These Weatherproof Double Compression Cable Glands are sourced from the best quality of raw materials, for the maximum client satisfaction.Qmm & core mm inch 1.5 x 2 10 38 1.5 x 2 12 12 2.5 x 2 16 58 1.5 x 4-5-6-7 2.5 x 4 19 34 4 x 3-4-6 22 78 2.5 x 7-10-12 10 x 4 25 1 16 x 3-4 28 1.18 25 x 3.12 - 4 35 x 3.12- 4 32 1.14 50 x 3.12 - 4 35 1.38 70 x 3.3.12 3 x 95 38 1.12

• Type: Cable Gland
• Material: Stainless Steel
• Color: silver
• Condition: New
• Finishing: Polished
• Feature: Easy To Fit, Fine Finished, Good Quality, Light Weight, Rust Resistance

From Ernakulam India), we are providing a lot of products having quality and cost-effective prices. Restricting to the pre-defined quality parameters, we make sure that the offered array of products is as per the stated norms. Double Compression Cable Glands are used to prevent the cables from the hazardous situations like bad weather, flames, dust, rain etc.

Gland Size 12 mm IP Rating IP33 Material Brass Brand cosmos Country of Origin Made in India We are engaged in offering commresion gland to our clients. Our range of all products is widely appreciated by our clients.

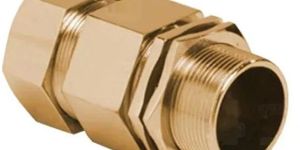

The company is a prominent Manufacturer, Exporter and Supplier of Double Compression Brass Cable Glands. The Double Compression Brass Cable Glands, offered by us, are available in different sizes and are suitable for all cables up to 1000 sq. mm. and control cables up to 61 cores. Our Double Compression Brass Cable Glands are weather and dust proof. Also, when Double Compression Brass Cable Glands are protected by PVC shrouds, it can be used in corrosive atmosphere.Features Sturdy construction Durable Anti-corrosive

Double Compression Brass Cable Glands of brass rodscastings and are machined accurately to the required sizes. These are nickel plated to avoid corrosion whilst storage and use.
