Double Ended Load Cell Dealers

• Power Source: Elecrtric
• Application: Industrial Use

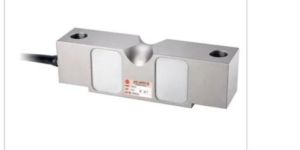

Available as single or double ended shear beam (the latter being more common in weigh­bridges), this type of load cell can offer slightly lower profile and less sensitivity to side-loads, but often with poorer sealing (potted) and corrosion resistance (alloy steel). These load cells are more advantageous in silo vessel weighing where rigid connections and head-room constraints are an issue as compared to a vehicle weigh­bridge where sealing and protection are very important.

Weigh Bridge. Truck, Track and Hopper Weighing. Tensil Testing.

Double ended shear beam type of load cell can be found.

• Material: Stainless Steel
• Color: Silver
• Power Source: Elecrtric
• Automation Grade: Automatic
• Application: Industrial Use
• Type: Double Ended Load Cell
• Country of Origin: India
• Brand Name: Thames
• Model: VC 3500
• Capacity: 2- 200 Ton
• Ingress Protection: IP68
• Load Cell Certifications: ATEX, OIML
• Output Sensitivity(FS): 2.0 +/- 0.1 mV/V
• Combined Error: <= +/- 0.03
• Accuracy Class: OIML R60 C3
• Recommended Excitation Voltage: 5 to 15V DC
• Insulation resistance at 50V DC: >= 5000 M Ohm
• Cable Length: 20 Meter

With the help of our experienced engineers, we have been able to design and develop Double Ended Shear Beam Load Cells. The offered load cells are constructed with nickel plated alloy steel in conformation with the industry standards. Our products are widely used in areas where shock, ruggedness and over loading situations exist. Customers can avail these products from us at market-leading prices within the stipulated time-period.

• Type: Double Ended Load Cell
• Material: Alloy Steel
• Color: Available in Many Colors
• Application: Industrial Use
• Power Source: Elecrtric
• Output: 2mv

We conduct diverse quality tests in order to ensure that our entire range is free from defects. Our company is ranked among responsive and responsible Suppliers of Ball Type Double Ended Shear Beam Load cell, engaged in catering to buyers across varied markets. Our double-ended shear beam load sells are suitable for truck scales, railway scales, blending scales, etc.

• Brand Name: Flintec
• Type: Double Ended Shear Beam
• Material: Stainless Steel
• Application: Automobiles Test Facilities
• Model: SB8
• Capacity: 10 Kg- 500 Kg
• Ingress Protection: IP68
• Features: Hermetically sealed, Current Calibrated, High Accuracy & Precision
• Load Cell Certifications: OIML, NTEP
• Output Sensitivity(FS): 2.0 +/- 0.1 mV/V
• Combined Error: < +/- 0.0200
• Creep Error (30 minutes): < +/- 0.0166
• Accuracy Class: OIML R60 C3
• Temperature Effect on Zero: < +/- 0.0140
• Temperature Effect on Output: < +/- 0.0100
• Zero balance: +/- 5% FS
• Maximum Safe Overload: 200% FS
• Ultimate Safe Overload: 300% FS
• Recommended Excitation Voltage: 5 to 15V DC
• Maximum Excitation Voltage: 15V DC
• Input Resistance: 380 +/- 10 Ohm
• Output Resistance: 350 +/- 3 Ohm
• Insulation resistance at 50V DC: >= 1000 M Ohm
• Compensated Temperature Range: -10 to +40 Deg C
• Operating Temperatue Range: -35 to +65 Deg C
• Load Cell Intervals (nLC)/Divisions: 3000
• Cable Length: 3 Meter

we offer double ended shear beam load cell. model information : double ended shear beam load cell, shear beam load cell, load cell manufacturer india double ended shear beam load cell features: o 10 tf to 100 tf capacity o low profile design o electroless nickel plated high alloy tool steel construction o complete environmental protection o weigh module-available optionally for call mounting

Double Ended Shear Beam loadcells are designed for central mounting and loading on either side. This type of configuration ensures that the output of the loadcell is not affected by lateral loads. It is very rugged and is IP 68 protected. It is widely used for lorry weigh bridges (truck scales) and for silo weighing applications and where there is movement inside or outside the vessel like batching cars etc.

double ended load cell Double Ended Shear Beam Load cell unique bridge structure load cell with cup and steel ball mounting. Self-resetting and centering. Widely used in truck scales, railroad scales, hopper scales and various other special scales.

Weitex loadcells are ideal for all industrial weighing applications. Due to their utmost reliability, compact and robust, hermetically sealed construction, they are widely installed in weighbridges, hoppers, bunkers, tanks and cranes. Unique Mounting Mechanism.Better Accuracy and repeatability.Sealed to IP68 Standards.Easy access for installation and maintenance.

The Double Ended Shear Beam load cell, is readily capable for tough environments associated with Truck scales. Its construction of high alloy tool steel provides optimum protection under impact loading and adverse conditions. The cell is environmentally protected with waterproof seal and is electro-less nickel-plated to assure resistance against corrosion.We offer high quality Double Ended Shear Beam Load cell is readily capable for tough environments associated with truck scales. Its construction is of high alloy tool steel provides optimum protection under impact loading and adverse conditions.

• Brand Name: Zemic
• Type: Double Ended Shear Beam
• Material: Stainless Steel
• Application: Tank & Vessel Weighing
• Model: B9C
• Capacity: 10 Ton
• Ingress Protection: IP67
• Features: Hermetically sealed, High Accuracy & Precision
• Load Cell Certifications: NTEP, ATEX
• Output Sensitivity(FS): 3.0 +/- 0.003 mV/V
• Combined Error: <= +/- 0.035
• Creep Error (30 minutes): <= +/- 0.016
• Accuracy Class: OIML R60 C3
• Temperature Effect on Zero: <= +/- 0.016
• Temperature Effect on Output: <= +/- 0.011
• Zero balance: +/- 1% FS
• Maximum Safe Overload: 150% FS
• Ultimate Safe Overload: 300% FS
• Recommended Excitation Voltage: 5 to 12V DC
• Maximum Excitation Voltage: 18V DC
• Input Resistance: 700 +/- 7 Ohm
• Output Resistance: 703 +/- 4 Ohm
• Insulation resistance at 50V DC: >= 5000 M Ohm
• Compensated Temperature Range: -10 to +40 Deg C
• Operating Temperatue Range: -35 to +65 Deg C
• Load Cell Intervals (nLC)/Divisions: 3000
• Cable Length: 9 Meter

Model 70310 – Double ended shear beam Load Cell is ideally Suited for truck, Track, Tank and hopper weighing applications. From it’s nickel exterior protection to it’s triple-seal gage area, this cell is designed to withstand the rigorous of harsh environmental conditions. The cell is compatible with the “Unlink” suspension system and is a direct replacement for the 65058. FEATURES:    5Tfto 100Tf Capacities Triples Sealing Electroless Nickel Plated   APPLICATINS:    Truck, Tank and Hopper Weighing Tensile Testing Weighbridge Standard Capacities (Tf.) - 5, 10, 15, 20, 30, 40, 50, 75, 100 Excitation Voltage - 10 VDC – Maximum 15 VDC Nominal Output - 3.0 mV/V Non – Linearity - < +/- 0.025 % FSO (Full Scale Output) Hysteresis - < +/- 0.02 % FSO Non- Repeatability - < +/- 0.01 % FSO Creep (30 Minutes) - < +/- 0.03 % FSO Zero Balance - +/- 1.0 % FSO Input Resistance - 770 +/- 20.0 Ohms Output Resistance - 700 +/- 7.0 Ohms Insulation Resistance - > 1000 Mega Ohms at 50 VDC Safe Overload - 150 % of Rated Capacity Ultimate Overload - 300 % of Rated Capacity Allowable Side Load - 50% of Rated Capacity Side Load Discrimination - 500:1 Temperature - 0-60° C Compensated Range - < 0.0015% FSO/ °C Temperature Effect on Zero - < 0.0020% FSO/ °C Deflection -

• Model: 70310

70310 is double ended shear beam load cell. This suits to truck,track,tank and hopper weighing. This cell is designed to withstand rigorous shock loads privailing in heavy duty weighments.

• Type: Double Ended Share Beam Load cell
• Brand Name: Verious
• Material: Alloy steel
• Application: Weighbridge, weighiment, tank weighing etc
• Application: industrial
• Item: load cell
• Country of Origin: Ahmedabad

Double Ended Shear Load Cell We hold expertise in offering a wide range of Double Ended Shear Beam Load Cell. Features: In-built Lightning Protection Low Profile design Low Deflection & Creep Excellent Overload Capability Standardized output for terminal Multi-Transducer Application Optional : Explosion Proof Version Suitable for Optional Group I,IIA,IIB,IIC & meets Temperature Class T4
