Double Stage Vacuum Pump Dealers

• MOC-SS.304/SS.316/C.I/PB: VACUUM-720 MM HG

We are manufacturer of single double stage water ring type vacuum pump.

• Brand Name: MAXIMA
• Number Of Stages: Double Stage
• Phase: 3 PHASE
• Max Flow Rate: 100000lph
• Model Name/Number: MVC
• Usage/Application: Industrial

• Power: 1/4 HP
• Flow Rate: 1.5 CFM
• Dimensions: 308 x 124 x 228
• Weight: 6.5 Kg
• Condition: New
• Power Source: Electric
• Application: Industrial
• Finish: Polished

Vacuum Pump Motor driven, oil sealed pump mounted on heavy base. It is driven by V belt at speed up to 400 RPM. Choice of single and double stage available creating Ultimate vacuum of 0.01 mm of Hg column and 0.0 mm of Hg column respectively. The pump is to work on 220V AC 50 Hz single phase Capacity Motor.

• Material: Cast Iron
• Driven Type: Electric
• Operating Type: Semi Automatic
• Usage: Laboratory
• Fuel Type: Liquid Fuels
• Specialities: High Performance
• Type: Double Stage Vacuum Pumps
• Phase: Single Phase
• Warranty: 1 Year
• Overall Weight: 20-300kg
• Number Of Stages: Double Stage

• Country of Origin: India
• Brand Name: Value
• Material: Stainless Steel
• Dimension: 308X124X224 mm
• Weight: 7.5 Kg
• Frequency: 50-60 Hz
• Oil Capacity: 200 ml

Two Stage Vacuum Pump develop maximum vacuum of 720 mm Hg, when sealing water temperature is 30°C (755 mm Hg barometric pressure & suction temperature of 30°C) and achieve a vacuum of up to 740 mm of Hg, when sealing water temperature of 15°C to 18°C.Due to its latest technology and design,it so happen that a smaller model may requir as compare to single stage Vacuum pump.

Our products are kept under safe conditions in our well-maintained warehouse. The facility is installed with all required amenities and supervised by experts for safe storage. We have a wide supply chain network that enables us to make delivery of consignments within the stipulated time.

• Country of Origin: India
• Type: Automatic
• Brand Name: Sarvovac
• Phase: Single Phase
• Number Of Stages: Double Stage
• Power: 0.5 HP
• Voltage: 220 V
• Mounting: Bench-top
• Weight: 35 KG

• Type: Double Stage Vacuum Pump
• Driven Type: Electric
• Pressure: High Pressure, Low Pressure
• Weight: 20-300kg
• Application: Industrial
• Automatic Grade: Manual
• Certifications: ISO 9001:2008
• Condtions: New

We are the main supplier of this product.

• Flow Rate: 10 M3
• Type: Oil Lubricant Vacuum Pumps,Oil Lubricant Vacuum Pumps
• Brand Name: Ingersoll Rand
• Certification: ISO 9001:2008 Certified
• Material: Metal
• Operating Type: Automatic
• Is It Variable Speed: Yes,Yes
• Warranty: 1 Year
• Phase: Three Phase
• Mounting Type: Bench Top
• Number Of Stages: Double Stage,Double Stage
• Corrosion Resistance: No
• Driven Type: Electric,Electric
• Specialities: Durable, Rust Proof, High Performance, Easy To Operate
• Packaging Type: Corrugated Boxes,Corrugated Box
• Usage: Agrictulture, Automotive, Marine, Laboratory, All
• Overall Weight: 20-300kg
• Power: >5 HP
• Pressure: High Pressure,High Pressure
• Cooling System: Air Cooled
• Country of Origin: India,Made in India
• Certifications: ISO 9001:2008
• Condtions: New
• Minimum Order Quantity: 1 Piece
• Frequency: 50 Hz
• Condition: New
• Number of Stage: Double Stage
• Power Source: Electric
• FREQUENCY: 50 HZ
• Number of stage: Single And Double Satge

• PE45LEE4PRS: 110/115VAC - 50/60 Hz, single port
• PE45YEE4PRS: 110/115VAC - 50/60 Hz, single port, plug
• PE45YEE4CPRS: 110/115VAC - 50/60 Hz, single port, plug, with cooling option
• PE45YEE4CMPRS: 110/115VAC - 50/60 Hz, 4 port, plug, with cooling option
• PE45YEE4MPRS: 110/115VAC - 50/60 Hz, 4 port, plug
• PE45LEE4CPRS: 110/115VAC - 50/60 Hz, single port, with cooling option
• PE45LEE4CMPRS: 110/115VAC - 50/60 Hz, 4 port, with cooling option
• PE45LEE4MPRS: 110/115VAC - 50/60 Hz, 4 port
• PE45PEE4PRS: 220/230VAC - 50/60 Hz, single port
• PE45PEE4CPRS: 220/230VAC - 50/60 Hz, single port, with cooling option
• PE45PEE4CMPRS: 220/230VAC - 50/60 Hz, 4 port, with cooling option
• PE45PEE4MPRS: 220/230VAC - 50/60 Hz, 4 port

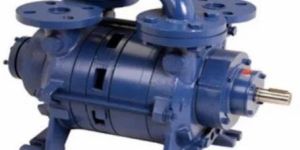

SHENOVAC Water-ring Vacuum Compressor (Liquid Ring) Pumps are of rotating positive displacement Pumps. These pumps are not only used as Vacuum Pumps but can also be used as Compressors too. The Pump compresses gas by rotating a vaned impeller which is mounted eccentrically to the axis of the Pump casing. Sealing water forms a moving cylindrical ring against the inside of the casing. This creates a series of seals between the impeller vanes and liquid ring. Gases drawn into the Pump through an inlet port get trapped in the impeller cells, are compressed and goes to the second stage where they get compressed again, due to reduced volume caused by the rotation of the impeller, are discharged through exhaust port. Further, the process will allow the pump to automatically invent the quantity of liquid that will be discharged through exhaust port thereby removing the heat of compression from the Pump.The Main Casing and almost all the components of the Pumps are made from Cast Iron except the shaft and impeller. However, to meet specific applications, we can offer the Pumps & their components with special materials like SS-304/SS-316 on request.SHENOVAC Water-ring Vacuum Compressor (Liquid Ring) Pumps are available in Double Stage. The Double stage pumps are much better choice if we handle solvents at higher vacuum level at 720 mmHg subject to provision of the sealant water level is below 30 deg C & pressure at the site is 760mm Hg. The technology in Double Stage Water-ring Vacuum Compressor is designed to operate at vacuum levels upto 720 mmHg. Salient Features & Advantages Trouble/Maintenance free performance Prompt after sales service Manufacturing with High Quality material & Study construction Affordable costs Vibration free & Low Noise High Suction Capacity & Oil free compressed air Almost all gases & vapours can be pumped and the pumped gases can be saturated with vapour Advanced design & technology in manufacturing process Available as per specifications within a short span of period. Ready availability of spare parts Applications SHENOVAC offers a wide range of Water-ring Vacuum Compressor (Liquid Ring) Pumps, having a capacity from 81 m3/Hr to 1080 m3/Hr (For details, please refer to our catalogue). These Pumps are ideally suited for Solvent (vapour) recovery, Breweries & Distilleries, Pharmaceuticals, Chemical, Plastic, Metallurgical, Power Plants, Furnaces, Cement, Fertilizer, Tiles & Ceramics Industries, Garment & Textiles, etc. The Pumps are also suitable for host of various other applications such as, Extrusion, Dehydration, Vacuum Impregnation, Conveying, Priming, Filtration & Sterilization purposes etc.

• Number Of Stages: Double Stage
• Capacity: 80 m3/Hr to 500 m3/Hr
• Drive: Direct Coupled

As a trusted name, we always make sure that our products are properly packed and remain free from damage during transit. For this, we have hired an adroit team of experts having immense experience in packaging. We have a skilled team of quality experts that stringently checks each and every product at different stages.

Sealing water forms a ring which circulates concentrically within the axis of the casing. Process Gases drawn in through the Suction Port get trapped in the Impeller Cells, are compressed & travels to the second stage where they get compressed further and are discharged through the Exhaust port. The sealing water which forms the liquid ring is supplied at a pressure equal to the Discharge Pressure of the pump, which allows the pump to automatically make up the amount of liquid which is discharged through the Exhaust Port, therefore removing the Heat of Compression from the Pump.

In response to the over whelming demand received from the market, PROMIVAC has come forth with a Double Stage version of their vastly patronized Water-ring type Vacuum Pump. Each and every pump of this new series very successfully and effectively takes care of its respective job and hence as usual is held in similar high esteem the 'PROMIVAC' logo has already earned.PROMIVAC Double Stage Water-ring Vacuum Pumps are of Positive Displacement Type wherein the Impeller is mounted Eccentrically to the axis of the Pump Casing. Sealing water forms a ring which circulates concentrically within the axis of the casing. Process Gases drawn in through the Suction Port get trapped in the Impeller Cells, are compressed & travels to the second stage where they get compressed further and are discharged through the Exhaust port. The sealing water which forms the liquid ring is supplied at a pressure equal to the Discharge Pressure of the pump, which allows the pump to automatically make up the amount of liquid which is discharged through the Exhaust Port, therefore removing the Heat of Compression from the Pump.These can create Vacuum up to 720 mm Hg provided that the temperature of the sealant water is below 30 °C & barometric pressure at site is 760 mm Hg.Generally the Main Casing & almost all the components are made from CI except the Shaft & Impeller which is of SS-304/SS-316. However, the pumps are also offered in various combinations of resistant materials for specific applications.PromivacApplicationsThese models are quite versatile and find their applications in Pharmaceutical, Chemical, Petro-chemical & Food Processing Industries, Breweries & Distilleries, Confectionery, Plastic, Textiles, Garment & Leather Processing Industries, Paper & Sugar Mills, Power Plants, Furnaces, Tiles & Ceramics Industries, Cement & Fertilizer Plants, Metallurgical Laboratories and is suitable for host of other Vacuum Applications like Vacuum Conveying, Packaging, Extrusion, Priming, Dehydration, Filtration & Sterilizing etc.PromivacSpecificationsModel No.     Motor hpReqd.     Pump Speed in rpm     Free Air Diplacement in m3/hr     Sealing Water Reqd. in lpmPVW-50 T     5     1450     81     7PVW-100 T     7.5     1450     160     9PVW-150 T     10     1450     220     14PVW-200 T     15     1450     330     20PVW-250 T     20     1450     440     24PVW-275 T     25     1450     580     30PVW-300 T     30     1450     725     40PVW-400 T     40     1450     1080     50PHDPL

Highly Compact in design and so simple at the same time. Most reliable and efficient performer. An indispensible equipment for Scientific Labs, R&D centers, Pilot Plants and host of industrial units where it is used for vacuum loading and lifting. Available in single as well as in double stage.
