Dowty Seals Dealers

dowty bonded seals Vast range of bonded seals according to British Imperial ISO1179-1173 German or New PM1000 PM3000 Metric French Metric to ISO R261 BS3643 standard are available in Standard design or self centralizing designs in polymers like Nitrile HNBR Viton Silicone EPDM Neoprene.

Vast range of bonded seals according to British Imperial ISO1179-1173 German or New PM1000 PM3000 Metric French Metric to ISO R261 BS3643 standard are available in Standard design or self centralizing designs in polymers like Nitrile HNBR Viton Silicone EPDM Neoprene.

We are offering dowty bonded seals. the bonded seal was originally designed to replace copper type washers in high-pressure systems. The bonded seal comprises a metal washer and an elastomeric ring bonded inside the diameter. The metal washer prevents over-compression and limits deformation of the elastomeric ring. Advantages reliable low and high pressure sealing high and low temperature capabilities bolt torque is reduced with no loss of tightening load materials elastomer component is available in nbr 70 (standard) and (special order materials) nbr 90, fkm (viton ®) 70 & 75 shore a, epdm 75 shore a washer component is carbon steel, zincyellow zinc plated or stainless steel (on request).

• Size: 10inch, 2inch, 4inch, 6inch, 8inch
• Type: Dowty Seals
• Material: Metal, Neoprene Rubber
• Shape: Round
• Application: Industrial
• Color: Black, Blue
• Condition: New

we deal in high quality dowty seal. Dowty seal available from 1/8 bsp to 2 bsp. Millimeter sizes are also available.

• Size: Available In Different Sizes
• Material: Rubber
• Shape: Round
• Thickness: 20-30mm
• Application: Industrial
• Color: Black
• Feature: Fine Finish, Good Quality, Robust Construction

• Size: Available in many sizes
• Material: Metal
• Shape: Round
• Thickness: 10-20mm
• Application: Industrial
• Color: Black
• Feature: Easy To Install

Dowty Seals are perfect solutions for bolt thread sealing. These are made available in two forms which includes elastomers and metals. These provide both low and high pressure sealing. The metal washer prevents compression and extrusion. It is used for overhead installation. It is applicable in all threaded bolts. Applications:   Bonded / dowty seals are cost effective solution for bolt / thread sealing Versatile, applicable to all threaded bolts, studs and clearance holes Sealing washers are available for metric, whitworth and BSP threads bonded / dowty seals are available in a large range of elastomers and metals available Wide temperature range Reliable high and low pressure sealing Metal washer prevents over compression and extrusion Usable for overhead installation Can be automatically installed Seals to plane surfaces with no housing for the sealing lip Visible from the outside No sweating Bonded / dowty seals are re usable Metal washer with vulcanised sealing body of rubber for sealing of bolt heads and flanges Bonded / dowty seals are available in all european thread size

• Shape: Round
• Material: MS
• Size: 1/8" BSP - 3" BSP
• Color: Black
• Usage/Application: Hydraulic
• Temperature Range: 60 degree
• Working Pressure: 6000 psi

• Size: 10inch, 4inch, 6inch, 8inch
• Material: Metal
• Shape: Round
• Thickness: 20-30mm
• Application: Industrial
• Feature: Accurate Dimension, Fine Finish, Robust Construction

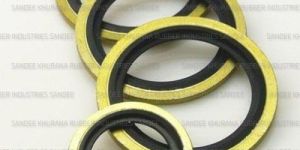

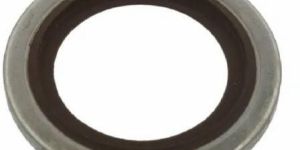

A bonded seal is a type of washer used to provide a seal around a screw or bolt. Originally made by Dowty Group, they are also known as Dowty seals or Dowty washers.Now widely manufactured, they are available in a range of standard sizes and materials. A bonded seal consists of an outer annular ring of a hard material, typically steel, and an inner annular ring of an elastomeric material that acts as a gasket.

The Bonded Seal (Dowty) comprises of standard combination of a carbon steel (mild steel) annulus cold-rolled, square or rectangular in section, to which an elastomeric ring (Nitrile 90 IRHD) of trapezoidal section is bonded. The dowty Seal was developed to replace copper type washers in high pressure hydraulic and pneumatic threaded connections. The standard product is supplemented by a range of self-centring Bonded Seals (Dowty) that eliminate the possibility of leakage due to offset during assembly. Custom designs can also be accommodated to suit application requirements.

• Size: 10inch, 2inch, 4inch, 8inch
• Material: Aluminum, Metal, Neoprene Rubber, Nitrile Rubber, Rubber
• Shape: Round
• Thickness: 10-20mm, 20-30mm, 30-40mm, 40-50mm
• Application: Industrial
• Color: Black, Golden, Grey
• Condition: New, Used
• Feature: Accurate Dimension, Easy To Install, Fine Finish, Good Quality, Heat Resistant, Robust Construction, Unbreakable

Dowty seal is often used as bolt seals in hydraulic equipment, today bonded seals (commonly known as Dowty Seals) are finding usage in many and varied applications throughout industry. All size ranges and material combinations are available. This same basic concept can be used to produce customised shapes for specific applications in any of the combinations of rubber to metal or plastic bonding. Advantages: – Cost effective solution for bolt/thread sealing– Versatile, applicable to all threaded bolts, studs and clearance holes– Large range of elastomers and metals available– Wide temperature range– Reliable high and low pressure sealing– Metal washer prevents over compression and extrusion– Usable for overhead installation– Can be automatically installed– Seals to plane surfaces with no housing for the sealing lip– Visible from the outside– Re usable– Metal washer with vulcanised sealing body of rubber for sealing of bolt heads and flanges

we at vardhman bearingss veer enterprises are engaged in offering a comprehensive range of Industrial Rubber Products. These products are at par with the standards of ASTM, BS, DIN and IS. Owing to the optimum quality. Our products are widely used in Pharmaceutical, Food, Automotive, Chemical and Engineering Related Industries. For the maximum convenience of our clients, we also provide customized services & packaging for these products as per the specifications given by our clients.

• Shape: Ring Shape
• Material: Stainless Steel
• Thickness: 5 mm
• Brand: HSS
• Diameter: 60 mm
• Packaging Type: Box
