Draught Gauge Dealers

We have carved a niche as one of the most staggering Draught Gauge Exporters from India. The materials i.e. fabricated steel stove enameled black, used in the manufacturing of the Edgewise Draught Gauge are of optimum quality that ensures high durability and resistivity to various unfavorable conditions. Additionally, the unmatched quality and accurate result has also played an important role in the enhancement of the demand in worldwide market. Customers are also eased with the availability of the customized Industrial Draught Gauge as per the specifications provided.

 Reliable and Economical Design As per IS 3624 of 1987 Nominal Sizes : 150 X 78 & 200 x 104 mm     Applications :  Draught gauges are used to measure the very low pressure of gas. They are an indispensable instrument for heat management including the control of boiler pressures and venting operation in the flue and the improvements of combustion efficiency. Usable as a Pressure gauge for instrument rooms

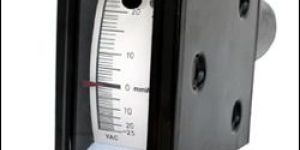

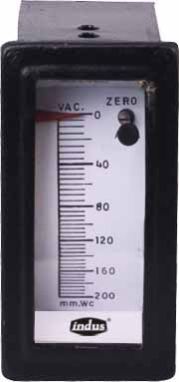

Edgewise DRAUGHT GAUGES We specialize in the production and export of draught gauge. It is used in different industries and is available with us in standard as well as customized options, as per our clients’ specifications. Edgewise vertical shaped draught gauges are designed for measuring low/very low pressures & vacuum. Our range of draught gauges starts from Min 0-50(-25 to +25) MMWC. Technical Specification – Dial Size 166 x 48 mm, 200 x 104 mm , 150 x 78mm Scale Range 0â€Â¦ all measuring units to scale low vacuum, pressure Accuracy ±1.6% of FSD Case & Ring AISI 304 SS, Black powder coated Joints Tig Argon Arc Welding Wetted parts AISI 316 SS Movement AISI 304 SS Enclosure Pressed steel weather-proof to IP-65, of self enameled Grey finish. Mounting Flush panel with back entry Connection size ¼ ², 1/2 NPT (M) compression fitting type Standard fitment External zero adjustment Dial Black graduation of white background Window Acrylic Pointer Aluminium Black coloured externally zero adjustable Gasket Neoprene

• Range –: 0-6000mm wc/ Compound -50 to +50
• Dial Size(in mm) –: Horizontal/Vertical
• Movement –: Brass (IS 319/89)

By using high-quality assurance and latest machinery, Our supplied product is designed as per latest prevailing market trends.

• Dial Size: 5" (125 mm)
• Accuracy: ± 1% of F S D
• Sensing element: AISI 316 SS Capsule
• Movement material: AISI 304 SS
• Enclosure: Pressed Steel weather-proof to IP-65, stove enamelled Grey finish
• Mounting: Flush panel with back entry
• Connection size: ¼" BSP (M) compression fitting type
• Panel cutout: 166 x 48 mm
• Range : Pressure range of 0 mm WC to 400 mm WC

• Connection: New
• Material: Steel
• Dial Size: 1.5 inch / 40 mm
• Pressure Range: -1 to 0 Bar(-15 to 0 psi)
• Use: Pharmaceutical Industries
