Draw Bench Machine Dealers

electric draw bench 150x150 electric draw bench-300x300

Our exclusive plethora of Draw Bench Machine is very efficient in working. Durable machines are acknowledged for consistent working with heavy load. These bench machines are made by our professionals employing premium grade metal which is recommended by experts. Besides this, we are offering all our draw bench machines to consumers in safe packing to avoid damage.

• Application: Industrial
• Power: 3-6kw
• Driven Type: Electric
• Automation Grade: Semi Automatic
• Feature: Low Maintenance
• Finish: Coated

• Country of Origin: India
• Application: Draw Bench
• Weight: 4000-5000kg
• Color: Grey
• Condition: New
• Driven Type: Mechanical
• Automation Grade: Semi Automatic
• Brand Name: GS

Heavy duty and super quality Bar Drawing Machine/ Draw Bench Machine available in all size capacity from 03 mm to 100 mm and length as per customer requirements   Our machines are known for Low Maintenance, Heavy duty, Robust Construction and build quality.

• Shipping Volume: 8 m3,10 m3
• Dimensions: Two cases of size: 5.0 x 1.0 x 0.7 m each,Two cases of size: 5.0 x 1.1 x 0.8 m each

The Bar Drawing Machines are suitable for drawing round bars, sectional bars, re-bars, ribbed bars, reinforcement bars, tubes, etc. Machine supplied with Single Rod Holding Device, Gearbox, Bull Gear, Pinion Gear and Chain Link.

• Application: Such As Changing The Shape Of The Metal Without Applying Heat
• Voltage: 380v
• Inlet Diameter: 0.5-1.0mm
• Brand Name: TSAI
• Outlet Diameter: 0.15-0.35mm
• Power Consumption: 34kw

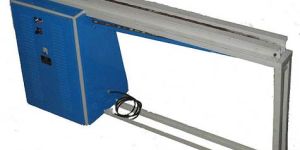

Manually Operated Motorised Draw Bench Machine suitable for wire and pipe drawing operations. This is an excellent quality heavy duty five feet length motorized gear box driven draw bench.   This machine is ideal to draw soldered hollow tubes of copper, gold and silver as well as to draw wire to obtain precise diameter wire.   It is equipped with heavy duty chain and is fitted with single phase AC drive electricals for longer life and maintenance free operation.  The machine uses standard diamond and carbide drawing dies. It is fitted with electrical control panel complete with speed controller and light indicators. It also fitted with both voltage and currrent drawing meter to show excess currrent draw in case of excessive load due to hard jobs to prevent damage to the machine.   This machine is widely used by manufacturers of hand made gold and silver chains and bracelets. This machine helps in obtaining a solid copper base Gold cover wire by winding and drawing through this machine a solid copper wire surrounded by suitable width gold strip. The solid wire obtained through this machine is then used to make various size and shape of Links used in bracelet making and then the inside copper is removed and hollow light weight gold bracelet is obtained.    The machine is also equipped with finely designed self adjusting job holding vice to grip the wire or tube for proper holding. The machine is sturdy and easy to use.

• Country of Origin: India
• Type: Draw Benching Machine
• Application: Draw Bench, BRIGHT BAR MACHINERY
• Weight: 2000-3000kg
• Color: Green
• Condition: New
• Driven Type: Electric, Mechanical
• Automation Grade: Semi Automatic
• Brand Name: PMT
• After-Sales Service Provided: Chargeable

Keen on procurement of Draw Bench Machine? We are one of the well known Draw Bench Machine Suppliers Our warehouse is installed with advanced machines and all required amenities ensuring safe storage of diverse kinds of products requiring different storage temperatures and conditions.

This is a manually Operated Motorised Draw Bench Machine suitable for Gold wire and hollow pipe drawing operations. This is an excellent quality heavy duty five feet length motorized draw bench. This machine is ideal to draw soldered hollow tubes of copper, gold and silver. It is equipped with heavy duty chain and is fitted with single phase AC drive electricals for longer life and maintenance free operation. The machine uses standard diamond and carbide drawing dies. It is fitted with electrical control panel complete with speed controller and light indicators. It also fitted with both voltage and currrent drawing meter to show excess currrent draw in case of excessive load due to hard jobs to prevent damage to the machine. The machine is sturdy in built and easy to use. We also offer gold hollow tube making machine with welding attachment as well as precision strip cutting machine. Kindly ask for details.

• Model Number: 16.0552
• Jewelry Tools & Equipments Type: Other
• Place of Origin: India
• Brand Name: Eagle

The length of the machine will be of 30 ft. approx. The gear box will have four speed change system having casehardened gears. The machine will be proved with drawing carriages fro single drawing. Carriage and die head block for double drawing will have extra price.   ength of The Machine : The length of the machine will be of 30 ft. approx. Construction of The Frame : The Frame of the machine will be of channels and the chain on the upper and lower side will be supported by channels. Gear Box :The gear box will have four speed change system having casehardened gears. Drawing Carriages & Die Block :The machine will be proved with drawing carriages fro single drawing. Carriage and die head block for double drawing will have extra price. Carriages Back Mechanism :An Automatic Carriage back mechanism will be provided with the machine.

We are Believed as the Foremost Hydraulic Draw Benches Manufacturer and amongst the Renowned Suppliers from India. We Offer Unmatched Quality Tube Draw Bench that is Largely Used in Various Industries for Desired Industrial Applications. Equipped with Complete Drive Along with Trolley Operating Bench These Draw Benches are Used for Heavy Pipes and Tubes. These Benches have a Robust Construction; Smooth Running High Productivity Capacity, Less Down Etc Which Makes Them Highly Demanded. Available At the Most Reasonable Price, These Benches have Easy Accessibility. in Itl Draw Benches the Draw is Completely Central, I.e. Force is Applied in the Drawing Center, and the Drawing Elements Which are Pre-tensioned, with the Result that Point Breakage is Virtually Eliminated. Combining Maximum Possible Drawing Speeds with High Return Speeds, this Draw Bench Concept Provides a Cold Working System with Particulalry High Efficiency. construction : heavy Duty Roller Chains, with Cables for Return Travel, are Used for all Drawing Materials. the Draw Chains Combine with the Return Cables and the Carriage to Form One Closed System Which is Tensioned At all Times. the Drive is A.c. Motor with Variable Frequency Arrangement and Coupled to 2 Stage Helical Reduction Gear Box. the Output of Gear Box is Drive to the Pinion of Bull Gear Which is Turs Revolves Sprocket Wheel and Transmits Power At Maximum Efficiency and Takes Care of Misalignments. unique Features : robust Cnstruction smooth Running centralised Pull to Avoid Bending high Production Capacity. less Man Power Requirement. less Down Time specification : itl Makes Draw Benches from 5 Ton Capacity to 100 Ton Capacity with Customers Specific Requirements and Maintaining High Productivity.

• Surface Finishing: Polished
• Feature: Rustproof
• Appearance: Antique

Draw benches are available for single or double rod process simultaneously. Features Main Shaft is mounted in the Bearing. Gear coupling are used to connect drive elements like main shaft, Gear Box Shaft, and Motor Shaft. Main Chain, hook and Sprocket are hardened. Idler drum for chain Tensioning. Trolley return by Wire rope and pulley arrangement or sprocket driven roller chain. Spherical die holder with 4 points leveling.

• Country of Origin: India
• Application: Draw Bench
• Weight: 4000-5000kg
• Voltage: 440V
• Condition: New
• Driven Type: Electric
• Warranty: 1yrs
• Automation Grade: Semi Automatic
• Brand Name: MK Enterprises

• Country of Origin: India
• Type: Draw Benching Machine
• Certification: ISO 9001:2008
• Application: Draw Bench
• Brand Name: JANVIK
• After-Sales Service Provided: 6 MONTHS

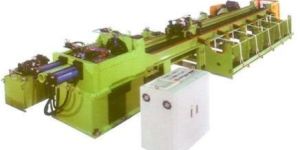

Single/Double/Triple Automatic Feed Type   GMT offers Single/Triple tube type draw benches with automatic operations, designed for high yield, perfect quality and precise applications.   Features   Heavy duty, high reduction gear box Carriage driven by Duplex/ Triplex type double sprocket & chain having rupture strength 6 times of the draw force. Spherical die holder for self alignment. Round tooth type pneumatic clamps to avoid tube slippage. Fully guided carriage with automatic fast return. DC Regenerative Drive for power saving. Automatic tube feeding mechanism. Motorized rotating / indexing type back bench with automatic plug positioning device to minimize handling time. Automatic tube discharge at front frame.

Draw Benches - New Draw Cell   A new drawing machine with toothed rack drive has been designed and built for the drawing of steel tubes up to 140 mm diameter. The single 1200 kN draw bench is working with drawing speeds of up to 80 meters per minutes, drawing length max 20 meters. The installation is equipped with tube separation, prebench as lifting table, draw bench with toothed rack drive, motoric adjustment of mandrel rod counterbearing, die stand with suction device, tube brake, high-performance sampling saw, scrap trough and trough for finished material.

• Automation Grade: Semi-Automatic
• Country of Origin: Made in India
• Power Consumption: 10 HP
• Speed: 1440 RPM
• Material: Mild Steel
