DSL System Dealers

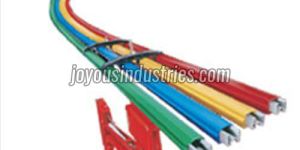

This is newly developed dsl system by SILVERLINE. This is a single pole system. Copper strips of high conductivity are used as conductors for high performance. We recommend this for medium size factories installing smaller capacity cranes requiring not more than 140amps. This system is very easy to install and being joint less has less failure rate. Wear and tare is also less which improves life of current collectors' at least by 50%. Smooth running of the DSL ensures best performance of control panels with VVF drives.

We have a team of professionals who keep their vigil eyes on the entire lot that is stored in the warehouse. This unit keeps the lot free from the factors like duct, rain, sunlight, etc. In order to deliver the best in class finished products, we make use of quality-tested raw material and modern work methods. Also, we make sure that the material is sourced from the reliable places only.

• Color: Red, Yellow, Blue & Green
• Usage/Application: EOT Cranes, Hoists, Monorail Transfer Cars, Electric trolleys, Bus trucking, Amusement Parks.
• Current Range: 60A,100A,125Amps in G.I & 160A,250A,315,Amps in Copper.
• Temperature: -30 Degree C + 55 Degree C (Standard Insulation)
• Conductor Bar Joint: PIN type joint
• Conductor Bar Material: G.I (Galvanized Steel) and Copper
• Spares / Components: Supplied for all models of SAFELINE Insulated DSL Conductor Bus bar
• Voltage Grade (A): 600
• Support Spacing (mm): 1125
• Bar Length(mm): 4500
• Outside Dimensions (mm): 20 ?? 22
• Permissible Ambient Temperature: -30°C + 55°C (Standard Insulation).

We are authorized distributor of safetrack dsl system manufactured by ms. Susheel engineering corporation mumbai. Safetrack insulated conductors are designed in accordance to international regulations for multitude of power supply applications. These conductors are compact, insulated, easy to install, in horizontal or vertical configuration. They require much less space compared to conventional bare conductor systems. Factory made curved conductors available are: galvanised iron conductor – rated 100 a 125 a copper conductor – rated 250a315a s.s. Conductor rated 40a features: conforms to ip 21 standard compact pin joint 40 – 315 a rating in g.i. cu. S.s. Suitable for indoor outdoor installation standard length 4 mtr. Insulated conductors are designed in accordance to international regulations for multitude of power supply applications.

• Color: Red, blue, green
• Packaging Type: Corrugated Box
• Application: Industrial
• Conductors Make: GI/Copper
• Features: Optimum Performance, Durability, Dimensional Accuracy, Trouble Free Working
• Length: 4.5 Mtr.

• Material: Alloy Steel
• Temperature: 70-80 Degree C
• Application: Industrial Use
• Frequency: 50 Hz
• Power Source: Electric
• Warranty: 1 Year

• Brand Name: SNS / SASE
• Material: Aluminium
• Voltage: 660V
• Packaging Type: Corrugated Box
• Current: 120A

With our expertise in the industry, we are engaged in offering the best range of DSL Busbar System at very affordable rates. We understand that the superior grade raw material is essential for the development of high quality products. And, for maintaining these standards, we have adopted several quality measures for ensuring the quality.

We offer high quality Shrouded dsl power feeding busbar system for cranes & hoists. The options are GI Aluminium Copper Rating : 60 A. To 250 Amp.

• Brand Name: Top Crane
• Color: RYBG
• Voltage: 440 V
• Application: EOT Crane
• Current: 125 A
• No. of Conductors: 4
• Material: Galvanized Iron
• Model Number: Sl2-125A
• Temperature: 70C
• Frequency: 50 HZ
• Length: 4.5mtr

We design and manufacture Angle Iron type DSL system for cranes and undertake installation of the same as well.

• Color: Red, Yellow, Blue, Green
• Usage: EOT Crane
• Size: 4.5 Mtr Length

G.I, ALUMINUM & COPPER BUSBAR WITH AL ACCESSROIES FOR EOT CRANE

• Type: DSL Power
• Color: Red, blue, green, etc.
• Condition: New
• Application: Industrial
• Performance: Optimum
• Maintenance: Low

Customers should not worry about the security of their payments with us as we follow secured Online and Offline Payment Processing. If you want to purchase quality with quantity, we are the name to be reckoned with! We are affianced in making available dsl system. We are renowned for providing eminent quality DSL Busbar System in various materials like copper, GI, aluminium etc.
