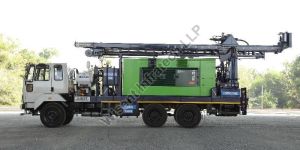

DTH Drilling Rig Dealers

• Brand Name: KLR
• Driven Type: Hydraulic
• Condition: Nwe
• Application: Heavy Constructional Drilling Work
• Certification: CE ISI
• Feature: High Performance
• Type: DTH Cum Rotary Drilling Rig
• Country of Origin: India

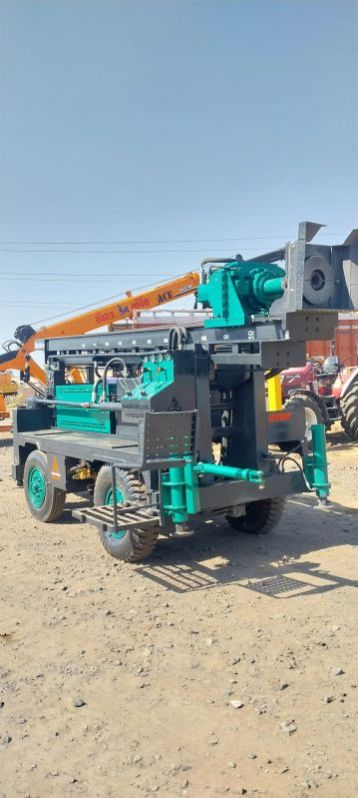

The comprehensive range of Portable Water Well Drilling Rigs and Water Drilling Rigs of KLR DTHR-100 Portable offered by KLR are manufactured using high grade raw material, so that the end product is defect free. Appreciated for their excellent functionality, the rigs can also be altered to drill horizontal bores up to 100 feet. The unit is equipped with compressors, hydraulic system, and rotary head to ensure high speed and efficient performance.

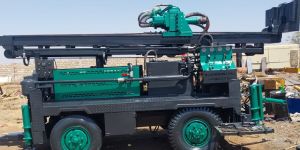

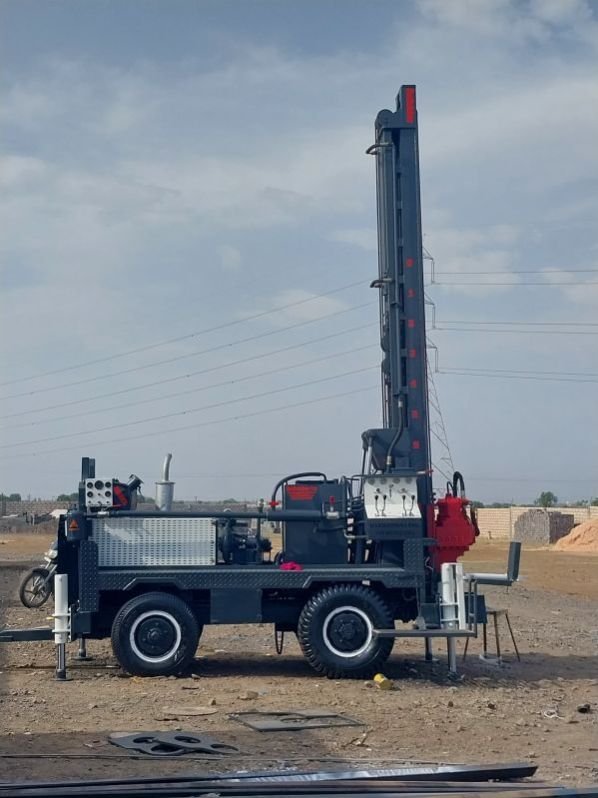

• Type: Rotary Drilling Rig, Trolley Mounted
• Application: Heavy Constructional Drilling Work
• Certification: ISO 9001:2008
• Weight: 100-1000kg
• Color: Black, Blue, Brown, Grey, Light Green, Light White
• Condition: Nwe
• Automatic Grade: Semi Automatic
• Driven Type: Hydraulic
• Feature: Easy To Operate, High Performance, High Strength, Highly Durable
• Drilling depth: 400-500feet
• Hole Diameter: 100-200mm
• Brand Name: PRL
• Diameter: 6" DTH / 8" ROTARY
• Application: Water well Drilling Rig
• Power Type: Hydraulic
• Model: PDTHR-100
• DTH Drilling Diameter: 152 mm-203mm (6”-8”)
• DTH Drilling depth: 100 m (330’)
• Rotary Drilling Diameter: 165 mm-203mm (6.5”-8”)
• Rotary Drilling Depth: 100 m (330’)
• Trolley: Four Wheel Trolley for Mounting Rig, Deck Engine and Mud Pump.
• Capacity: 6000 kgf
• No. of Wheel and Axle: 4 X 2 with Towing Arrangement
• Brake: Drum Brake with Air Operated
• Mounting Structure: Electrically Welded Steel Structure Fitted to the Trolley Body.

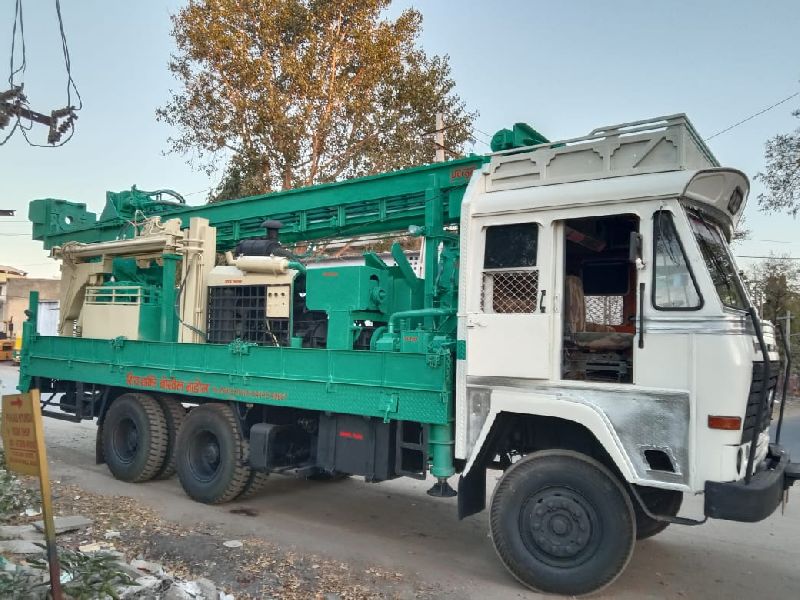

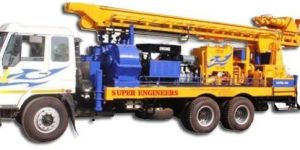

We are engaged in manufacturing, exporting, and supplying an exemplary gamut of DTH Cum Rotary Drill Rigs. They are made from supreme raw material and are hydraulically operated. DTH Cum Rotary Drill Rigs are designed to handle air water drilling applications. They are capable of drilling in different formations from medium to hard rock up to a depth of 150 meters (450ft.). Further, DTH Cum Rotary Drill Rigs are offered by us in varied specifications in order to meet the diverse demands of customers.

• Type: Heavy Duty
• Certification: ISI Certified
• Application: DTH Rig Machine
• Color: Brown
• Size: Standard
• Surface: Polished

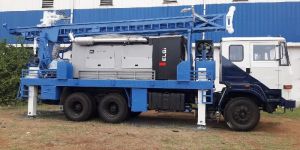

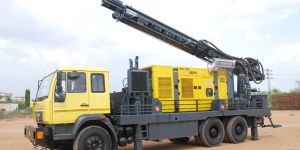

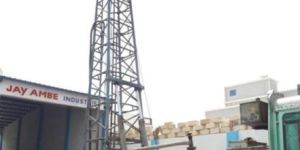

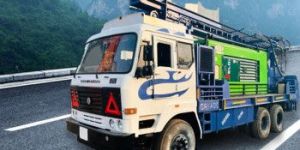

• Type: Truck Mounted Drill Rig
• Condition: Used
• Automatic Grade: Semi Automatic
• Driven Type: Hydraulic
• Drilling depth: 1000-1200feet
• Hole Diameter: 200-300mm
• Application: water well

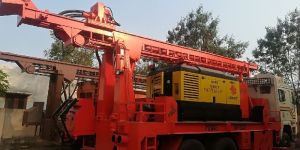

• Product Name: PDTH-300(Refurbished) Truck Mounted DTH Drilling Rig

Manufacture and Supply PHEL Make PDTH-300 REFURBISHED Truck Mounted hydraulically operated DTH drilling rig capable of drilling dia 8” by DTH up to the depth of 300 meters. · Sturdy structural channel mast with 15 feet rod handling capacity. · Rotary Head gear box with mud swivel arrangement. · Feed cylinder DIA 140x100x2350mm · Jack cylinder DIA 100x70x610mm · Mast rising cylinder DIA 125x100x800mm · Break out wrench cylinder DIA 80X50x300mm · Airline lubricator · RHGB with Motor · Prime mover through PTO arrangement.   Carrier Truck: Refurbished · TATA 6x4. Compressor: Refurbished · Make : ELGI · Maximum Air Flow: 1000CFM. · Maximum Rated Pressure: 275 PSI Drill rods, Digger Hammer Assembly, DTH Button Bits, and RIG operating accessories.

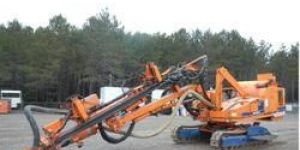

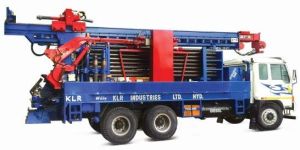

• Application: Mines
• Finishing: Color Coated
• Automatic Grade: Automatic
• Warranty: 1 Yr
• Drilling depth: 10-50 Mtr
• Power Source: Hydraulic

• Capacity: DTH - 1500
• Drill Size Min. - Max: 8 to 10 Inch
• Max. Depth: 450 mtr
• Pull Down: 6900 Kgf
• Pull Back: 14100 Kgf
• Hoisting Speed: 35 mtr/min
• Mast Length: 8620mm
• Rotary Head Drive Length: 6950mm
• Centric Opening: 270mm
• Compressor: 1100 CFM/300 PSI
• Max Pressure: 250 Kgf/cm2
• Capacity: 550 Ltr
• Prime Mover Rated Capacity: 98ps@1500 Rpm
• Carrier Wt: 163psi@2600 Rpm
• Road handling Capacity: Up to 6 mtr
• Road head Torque/Rotation Speed: 280 Kg-m,0-100 Rpm
• Water Injection: 50 Ltr / Min
• Pump Flow Pressure: 40 kg/cm
• MRC: 100x800 - 1 No

• Country of Origin: India
• Type: Water Well Drilling Rigs
• Color: Yellow
• Feature: Sturdy Construction, Highly Durable, High Strength, High Performance, Easy To Operate
• Condition: New
• Automatic Grade: Semi Automatic
• Brand Name: Uthara

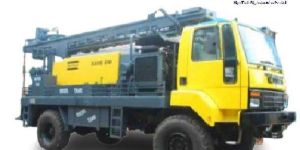

Water Well Drilling Rigs  UTHARA DTH-150  TECHNICAL SPECIFICATIONS:   Model UTHARA DTH-150 Application Water Well Capacity Dia4 1/2"(114.5mm) Depth 150 Meters Pull Up Load • 7300 Kgf Pull Down • 4300 Kgf Torque 2800 Nm Mounting of Rig : 4x4 Truck (Optional: 4x2 Truck) Injection Pump : 56 Ipm @ 30 Bar Power : Separate On Board Engine (Optional: Same Truck Engine) Compressor : 600 cfm @ 200psi

• Brand Name: R.K.AGRO
• Power Source: Pneumatic
• Country of Origin: Made in India
• Model Name/Number: 00012
• Drilling Rig Type: Slim Hole Drilling Rig
• Size: 3000 fit
• Capacity: 3000 fit
• Drilling Depth: 3000FIT
• Hole Diameter: 200-400 mm

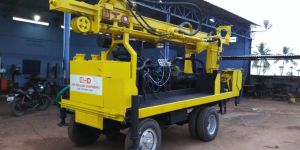

EHD Trolley 650   Diameter 6"dia bore holes Depth 150 mtr Application Piling/Water Well Drilling Rig Formation Soft/hard Prime Mover Power source for hydraulic from suitable diesel deck engine Mounting The rig unit is mounted on a suitable single axle trolley Mast Light Duty channel structure Max capacity – 8 tons (17600 lbs) Height – 3mtr(10 ft) Rod handling capacity -1.5mtr(5ft) PULL UP SPEED 6.5 mtr/min (23 ft/min) PULL UP FORCE 4600 kg PULL DOWN FORCE 2750 kg PULL DOWN SPEED 10.5 mtr/min (4.5ft/min) Hydraulic System 140 kg /cm2 (2000 psi) Jacks Four Hydraulic Jacks Compressor Suitable compressor

• Color: red
• Color: red
• Color: red

• Application: Heavy Constructional Drilling Work
• Feature: Easy To Operate, High Strength, Highly Durable
• Warranty: 2 years

• Hole Diameter: 304mm
• Country of Origin: Made in India

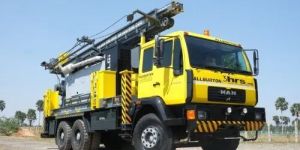

• Brand: ALLBURTON
• Drill Rod Handling: 4.5m
• Pull Down: 9,500 Kgf
• Hoisting Speed: 35 Mtr/Minute
• Drilling Method: DTH With Mud Rotary
• Maximum Drill Depth: 990 Feet
• Stabilizing Cylinders 4 No's Bore: 125mm
• Stabilizing Cylinders 4 No's Stroke: 610mm
• Mast Raising Cylinder 2 No's Bore: 100mm
• Mast Raising Cylinder 2 No's Stroke: 800mm
• Feed Cylinder: 2350mm
• Breakout Wrench: 80mm
• Derrick / Tower Assembly Length: 354 Inch
• Derrick Type: Sturdy Structural Channel Type
• Rotary Head Travel: 7050 mm
• Centralized Opening: 356 mm
• Rotary Head: Down The Hole With Mud Swivel
• Torque: 600 Kg-M
• Rotation Speed: 100 Rpm
• Feed System Pull Back: 12,500 Kgf
• Max Flow: 1039 LPM
• Max Pressure: 43.75 kg/cm2
• Prime Mover: Truck / Track / Skid
• Gross Vehicle Weight: 25 MT
• Pressure PSI/Bar: 300Psi/21 Bar
• Flow Rate CFM: 1100 CFM

• Country of Origin: Made in India
• Features: Durable,Simple to use,Light weight
• Usage/Application: bore hole drilling rig
• Brand: Dhiraj Rigs
• Automation Grade: Manual
• Machine Type: Tubewell Boring Machine
• material: cast iron
