Dual Source Energy Meter Dealers

EM 9024 is a new approach in the Field of EB/DG Energy Measurement. Separate Energy and Run hour measurement is made for both EB/DG. Communication is provided for monitoring of data's through MODBUS RTU Protocol.   features True RMS measurement 3 or 2 Element measurement Confirms IS14697 for Accuracy Class 1 Programmable PT/CT Primary Direct reading without multiplication factor Low PT, CT burden. (Less than 0.2 VA) Energy storage in EERAM Auto scaling from Kilo to Mega Reverse indication for proper connection Measures 4 quadrant power and records import energy Digital Calibration by software Quick & easy to install Replace 2 Nos. energy meter in the panel Only one potential free contact is required to differentiate EB/DG Displays kW, kWh & Run hour Separate kWh and Run hour registers are provided for EB/DG EB/DG selection displayed by LED kWh range 9999999.9 kWh(LT), 99999999kWh(HT) Run hour range 9999.59 hours

• Phase: Single
• Brand: Elmeasure
• Voltage: 300V
• Type: Digital
• Weight: 295g
• Operating Temperature: 65 Degree C
• Color: Grey
• Model Name/Number: LG+5220
• Usage/Application: Industrial
• Current: 4A
• Screen Size: 4x8cm
• Accuracy Class: Class 1

If looking for a compact, user-friendly and energy-efficient Meter that generates effective value measuring, then our Three Phase Dual Source Energy Meter (PEM-4135) fits the bill. It is compliant to the international quality norms. Get it from us in different specifications at cost-effective prices. We are bracketed amongst the noteworthy Manufacturers, Suppliers and Exporters of Three Phase Dual Source Energy Meter in India and abroad.Features: Displays Active Energy (kWh), PF, Active Power (kW), Voltage (Line to Line &Line to Neutral), Current, Frequency. CT Primary range 1A to 50kA programmable. CT Secondary range 0.5A to 5A programmable. PT Primary range 50V to 500kV AC programmable. PT Secondary range 50V to 500V AC programmable. Load hour for secondary source(DG) Smart voltage sensing(AC & DC)of secondary source Metering Standard- IEC 62053-21/22.

• Model Number: LG+5220
• Accuracy Class: 0.5/1.0

• Feature: Accuracy class 1.0 Compact flush panel mounting,Ultra bright 8 digit LED Display 0.36” with auto scaling capability,Optional EB/DG dual source input

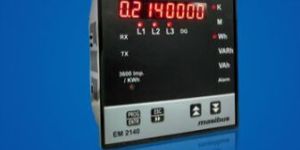

Masibus EM 2140 Dual Source Energy Meter is an easy-to-use, low cost electrical Energy meter that offers all the basic measurement capabilities required for monitoring an electrical installation. EM 2140 Dual Source Energy Meter has 8 digit bright 0.36” LED display for superior readability in poor lighting conditions. LED indication has been provided for phase reversal as well as for all time healthy phase indication. EM 2140 is available in flush panel mount enclosure having front panel keys for easy set up. EM 2140 Dual Source Energy Meter has Class 1.0 accuracy as per IS 13779IEC 6205321. It has EBDG dual source energy measurement option for measurement of energy through Electricity Board or Diesel Generator. EM 2140 Dual Source Energy Meter provides energy measurement along with ON hour & RUN (Load) Hour, thus helping to measure and control energy cost.Meter stores energy and programmed parameters into its non-volatile Permanent memory.

• Display Type: Digital
• Body Material: Plastic
• Power Source: Electric
• Warranty: 1Year
• Brand Name: Invendis

Invendis ET4031 P & E with Serial Communication, Class 0.5, 85 - 270V AC/DC, 415 V, 3 Phase, 5A, 3 R 3 DIGIT 0.56", Dual MeteringkW,kWh Eb, kWh Dg, Protocol Maodbus as per Scnider Register Mapping (obsolete) Configuration : 1/3 Phase, 3 Element; 3 / 4 Wire (Note Order code) Input V Nominal : 415 V LT or 110 V through PT (line to line)                                            Computation : True RMS for all Power & Energy Parameters Accuracy : ± (0.5% of FS + 0.5% of Rdg + 1 digit) ± 0.2% for Frequency ± 1.0% of FS for Current                                                                                                                              Isolation : 2000 V AC for one minute Safety : Measurement Category III, Pollution Degree 2 as per EN61010-1 First Edition                                      Frequency : 0.1 Hz Power : autoscaling depending on input Power Factor : 0.01 Energy : 1 kWH upto 866 kW 10 kWH above 866 kW

Dual Source Energy Meter (EB & Genset). The Meter records the Energy count, run hr, on hr, interruptions & stores the old Energy separately for both the sources with 2 separate displays for EB & Genset. CTPT primary programmable. Optional MODBUS (RS485) & pulse op

We make sure that the offered lot complies with the stated quality norms, thus check the product quality on several stages. As we promise to offer quality approved products to the clients, we make use of only high-grade raw materials selected from one of the best sources present in the market.

We are an ISO 9001-2008 certified company that is an established Manufacturer and Supplier of Dual Source Energy Meter from Haryana, India. The Dual Source Energy Meter offered by us can precisely measure dual power source like EB and DG, making them useful in various industrial sectors. Our energy meter is a rage all over India for its robust design and excellent performance. Clients can contact us for delivering bulk orders of Dual Source Energy Meter all over the country.Features : High overload Two alarm output Robust steel base Low power consumption Direct connect operation Effective value measuring Multi function LCD Kwh Meter

• Size: 96mm x 96mm x 45mm
• Auxiliary: 90V to 275V AC/DC.
• Accuracy: 1.0% of FSD

Display: 2*8 digits seven segment LE, display with. Simultaneous display of EB & DG Energy Parameters: EB kWh, DG kWh, DG SENSING: 230V (port isolated). Programmable CT primary from 1A to 9999A with password protection.

• Feature: Delta/STAR/2Ph, PT/ CT primary & Secondary,Wh/Vah Billing options Etc.

India’s most sold Dual Source Energy Meter for Utility & Generator Monitoring – LED Display type DESCRIPTION:- Accuracy Class 1.0, 0.5 as per IEC 62052-11 IEC 62053-22 G Smart Sensor indicator for Generator running mode Monitors electrical parameters : Voltage, Amps, F, PF, WVA Monitors Integrated Parameters : WhVah Utility & Generator seperately Monitors Runhours & On hours Utility & Generator Seperately, Interrupts Demand Monitoring Color coded analog load bar indicators CT Reversal : Auto correction of energy integration in Star (WYE) mode User programmable

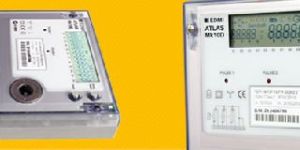

Built on the advanced Atlas metering platform, the Mk10D is a variant of the reliable Mk10. The Mk10D adds a 100Amp relay integrated into the meter, which allows disconnection or reconnection of electrical services remotely.AMI Ready Disconnect Relay Large Data Storage Large LCD Display Upgradeable Prepayment Anti Tamper

• Dimension: 96x96x57 mm
• Auxiliary Supply: Universal Auxiliary(90-300V AC) Supply (Other supply voltages on demand)
• Accuracy: Class 1.0 or Class 0.5
• Standard: IEC62053-21/22
• Inputs: Voltage (upto 500V) Current Secondary(5A)
• Panel Cutout: 92mm x 92mm
• Standards for enclosure: IP-20(Back), IP-65(Front)

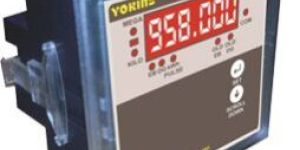

Multi Parameter Dual Source YI-537 Parameter displayed : Active Energy(Wh), Pf, Active Power(kW), Voltage(Line to Line & Line to Neutral), Current, Frequency.     Features: -    Microcontroller based meters with low VA burden. -    6 digit seven segment display. -    CT primary range 1A to 50kA AC programmable. -    CT Secondary range 0.5A to 5A - AC programmable . -    PT primary range 50V to 500kV AC programmable. -    PT Secondary 50V to 500V AC programmable. -    Password protected. -    True RMS measurement of parameters. -    Auto scaling of parameter values. -    Auto/Manual scrolling of parameters. -    Three switches for easy onsite programming. -    Touch proof voltage & current terminals. -    Compact size and light weight. -    ABS dust-proof rugged casing. -    Load hour for secondary source(DG) are displayed in dual energy meter. -    Smart Voltage sensing(AC & DC)of secondary source in dual energy meter. -    Watt Hour displayed with Kilo and Mega indication. Optional - RS-485 standard, communication capability using modbus RTU protocol- Relay Output.

Dual Source Energy Meter with bright red LED Display of four rows, communication port optional.7 segment LED display Site Programmable CT & PT Ratio True RMS Measurement Password protection Optional Features: RS485 computer interface 60A direct current(external CT Module available) Harmonic measurement (total and individual) Auto ranging Universal auxiliary supply

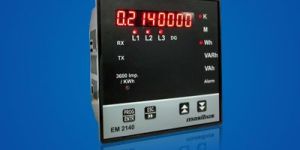

Masibus EM 2140 Dual Source Energy Meter is an easy-to-use, low cost electrical Energy meter that offers all the basic measurement capabilities required for monitoring an electrical installation. EM 2140 Dual Source Energy Meter has 8 digit bright 0.36� LED display for superior readability in poor lighting conditions. LED indication has been provided for phase reversal as well as for all time healthy phase indication. EM 2140 is available in flush panel mount enclosure having front panel keys for easy set up. EM 2140 Dual Source Energy Meter has Class 1.0 accuracy as per IS 13779IEC 6205321. The CTPT ratio and installation type is site selectable, making the meter possible to be used in various types of three phase installations. More than a basic metering, it optionally provides RS485 port with ModbusRTU protocol & also Relay Pulse output. It has EBDG dual source energy measurement option for measurement of energy through Electricity Board or Diesel Generator. EM 2140 Dual Source Energy Meter provides energy measurement along with ON hour & RUN (Load) Hour, thus helping to measure and control energy cost.Meter stores energy and programmed parameters into its non-volatile Permanent memory. Features of Dual Source Energy Meter Accuracy class 1.0 Compact flush panel mounting Field programmable CTPT ratio

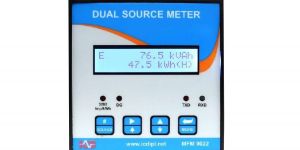

This panel meter is designed for dual source energy measurement. It serves as a replacement for two separate energy meters, necessary for metering applications with dual energy sources. Features: LCD display Class 1 accuracy ACDC auxiliary supply RS 485 communication Password protected CTPT value programming Separate registers available for measurement of utility power and generator power Dimensions: 96 L x 96 B x 105 D mm

• Brand: Secure
• Model Name/Number: Spirint 350
• Usage/Application: Industrial
• Phase: Three Phase
• Automation Grade: Automatic

• Weight: 350gms. (app.)
• Dimension: (96 x 96 x 48) mm

Meter measures Active, Reactive, Apparent energy on 3 phase 4 wire system, Separate register for EB and DG to store MD, KWh, KVAh, KVArh (import lagand import lead), Shows separate running hours for DG and EB Powers, Parameters can be viewed through 7 segment LED (3 row), Soft Keys are provided to stop, scroll, edit and to view the parameters, Power Line Communication can be done using RS485 communication with MODBUS RTU,

It replaces 2 energy meters recording data from different sources of energy. Relay output option available for prepaid metering based on set value with individual load hours for both energy sources. Individual load hours for both energy sources.

• Fast Transient: 4kV IEC 61000-4-4

Two Energy Registers (U and G) separately record consumption based on a Control Signal for Dual Source energy billing. G.Sense indication glows when the generator source is detected by G Smart Sensor Auto Scaling kWh, MWh Unique 8 segment 3 line LED display Tenant can pay accurate energy bill as per G usage instead of monthly maintenance, %A Full scale Load bar.

ELMEASURE MODEL NOS. : LG +5220 , LG +3220 , LG +5120L   Salient Features : • Directly replaces 2 energy meters • Sensing dual source through 240V connection • Dual row display switches based on the source • Displays basic and most of the power parameters   • Optional digital output separately for EB or DG parameters   Applications : • To measure dual power source • Dual source energy billing   • Industries, residential, commercial buildings • Generator & control panels

Available in 4 row Tiny master and single row little genius series. 2 row 6 digits display with simultaneous display of two sources of energy.Directly replaces 2 nos of energy meters.Requires only potential free contact from AMF or 240V.

• Voltage: 90V to 275V AC/DC
• Size: 96mm x 96mm x 45mm.
• Accuracy: 1.0% of FSD
• Panel cutout size: 92mm x 92mm
• Auxiliary: 90V to 275V AC/DC
