Dual Trace Oscilloscope Dealers

Salient Features 20MHz at 5mV, for each channel. X-Y operation at 5 mV sensitivity. 200 mV peak-to-peak calibrator. Dual triggering, component testing facility & trace rotation.

We are offering 20mhz dual trace oscilloscope. Features band widthâ â : dc ~ 20mhz rise timeâ â :17.5ns deflection factorâ â :5mvdivä± 5vdiv 10 steps in 1,2,5 sequence vertical modeâ â : ch1,ch2,alt,chop,add sweep timeâ â :0.2usdivä± 0.2sdiv 19 steps in 1,2,5 sequence

• Operating Mode: : MONO (CH1) Dual (Alt or Chop) ADD & X-Y
• Band Width: : DC to 20 MHz (-3db)
• Rise Time: : 18 nSec Approx.
• Accuracy: : 3% in vertical deflection system
• Deflection Coefficient: : 5mV/Div to 20V/Div in 1,2,4 Sequence
• Input Impedance: : 1 Mega Ohms / 40 PF Approx
• Input Coupling: : AC / DC / Ground
• Maximum Input Voltage: : 400V (DC + AC Peak)
• Time Coefficient: : 0.2 Sec/Div to 0.2mSec/Div in 1, 2, 5 sequence in 19 calibrated steps with 5% accurac

• Max Input Voltage: 500 V (d.c.+ peak a.c.)
• Accuracy: ±3%

Oscilloscope Dual Trace Time Base : 18 calibrated steps 0.5 μscm to 0.2scm,with magnifier x5 to 100 nscm with variable control to 40 nscm, 2mV per cm sensitivity A high performance oscilloscope with wide vertical bandwidth and time-base speed range.

DC-20 MHz DUAL TRACE OSCILLOSCOPE FEATURES: 20MHz/40MHz High sensitivity 1mV/div. Expanded vertical sensitivity to 10V ALT Triggering Function. Z-axis input, Ch1 output. Encoder for sweep & vertical sensitivity switch. 10 times sweep magnification. TV synchronization, X-Y mode. Triggering level lock function, automatic synchronize function. Build-in 6 digit frequency counter.(BF Model)

• Deflection Factor: 5 mV/div-10V x div x5
• Sweep Mode: Auto, Trigger,Single Time

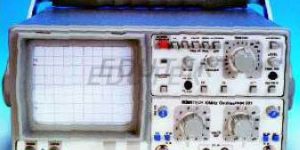

OSCILLOSCOPE DUAL TRACE It is a 20 MHz Dual Channel Oscilloscope ideal for proffectionals as well as students undergoing technical studies. It is rugged,light weight instrument that features a bright, sharply defined trace on a 80 by 100 mm cathode ray tube.The internal trigger signal is ac coupled. An external triggering signal or an external Z-axis modulation signal can be applied via a front panel or rear panel connector and the source selector switch. The horizontal system provides calibration sweep speeds from 0.2s to 0.1 Micro S division. for greater measurement accuracy a x5 magnifier circuit extends the maximum sweep speed to 20 ns per division.SPECIAL FEATURES Syncronisation of the signals from the two channels can be identified by a red LED marked as READY present on the right hand side top on the front panel

The 25 MHz oscilloscope are dual-channel oscilloscope with maximum sensitivity of 5mV/DIV. The time base provides a maximum sweep time of 0.2 uS/DIV. when magnified by 10, the sweep speed is 20nS/DIV. Each of these oscilloscope employs a 6-inch rectangular type cathode-ray tube with red internal graticule. These oscilloscope are sturdy, easy to operate and exhibits high operational reliability.

• Model Name: 3706C
• Brand Name: Aplap
• Usage: Industrial
• Minimum Order Quantity: 1 Set

• maximum sweep time: 0.2 mS/DIV
• sweep speed: 20nS/DIV

These 20MHz Oscilloscope are dual- channel oscilloscope with maximum sensitivity of 1 mVDIV. The time base provides a maximum sweep time of 0.2 mSDIV. When magnified by 10, the sweep speed is 20nSDIV. These oscilloscope employ a 6-inch rectangular type TOSHIBA cathode-ray tube with red internal graticule. These oscilloscopes are sturdy, easy to operate and exhibit high operational reliability.

We are offering dc - 20 mhz dual trace oscilloscope. Dc - 20mhz dual trace oscilloscope specification features: * * * * * * * 20mhz expanded vertical sensitivity to 10v alt triggering function. Encoder for sweep & vertical sensitivity switch. 10 times sweep magnification. Tv synchronization, x-y mode. Triggering level lock function, automatic synchronize function
