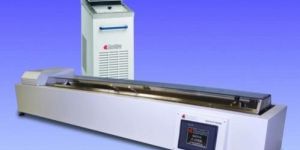

Ductility Testing Machine
30,000 - 80,000 Per Piece
1 Piece (MOQ)
AT- 231 Ductility Test Apparatus As Per IS 1208–1958 electrically operated, Inner Chamber made up of Stainless Steel fitted with pump for circulation of water 230V AC Single Phase.
Ductility Testing Machine
Get Price Quote
We offer Ductility Testing Machine to our clients which is used in inflexible pavement Construction. Ductility is defined as distance in cms to which a standard briquette of bitumen can be stretched before the thread breaks. The briquette is stretched at a rate of 50mmminute ±25mm per minute at a temperature of 27ºC ± 0.5ºC. The main motto of our organization to provide international quality products to our clients For this we have set up a quality checking unit that helps us to follow stringent quality checking norms.
Best Deals from Ductility Testing Machine
Ductility Testing Apparatus
1 - 10 Per Piece
1 piece (MOQ)
IS 1208-1058, ASTM D 113, IP32, 55, AASHTO T 51 Designed to test three specimens simultaneously. The machine consists of a carriage moving over a lead screw. An electric motor driven reduction gear unit ensures smooth constant speed and continuous operation. The entire assembly is mounted with a stainless steel lined water bath completely encased in metal bound hardwood. It is equipped with an electric pump circulator and heater. The temperature is controlled thermostatically. Two rates of travel i.e. 50 mm/min and 10 mm/min are provided. Suitable for operation on 230 V, 50 Hz, Single Phase, A.C. supply. Complete With: MSI 4025-A Ductility Mould, with Base Plate 3 Nos. MSI 4025-B Thermometer IP 38° C, Range: 23° C to 27° C
Ductility Testing Machine
Get Price Quote
1 Piece (MOQ)
Ductility Testing Machine
Get Price Quote
The Ductility Testing Machine, offered by us is important bitumen testing equipment that is an electrically operated machine, which is designed to test three specimens simultaneously. We manufacture Ductility Testing Machines using excellent raw materials to ensure good functionality and durability. Ductility Testing Machine is used for determining ductility of shaped asphalt/cement or semi-solid bitumen. Components The machine consists of a moving carriage that moves over a lead screw. An electric motor driven reduction gear ascertains trouble-free and constant speed enabling continuous operation. The whole assembly is mounted by a stainless steel water bath completely enclosed in a metal housing having glass wool insulation. It is equipped with an electric pump circulator and a heater. Herein, the temperature is controlled thermostatically. The machine is fitted with three ductility molds and has two rates of travel; 10 mm & 50 mm.
Ductility Testing Machine
Get Price Quote
Our Ductility Testing Machine is available with refrigeration system and micro-processor based digital temperature controller. Ductility Testing Machine features built-in refrigeration system that works at below ambient temperature. The Machine will operate at 27°C with control accuracy of ± 0.5°C as per the requirement of IS. It features a built-in refrigeration system that operates at below ambient temperature of up to 10°C in tropical conditions. Ductility Testing Machine consists of water bath with a heater and a circulating pump in order to maintain uniform temperature of water. The temperature is controlled by using dual display microprocessor based auto-tuning PID Digital Temp. Indicator cum controller. Ductility Testing Machine features control switches for stirrer, motor, heater and indicator lamps on the water bath. The machine is completed with three briquette molds and one base plate.
Ductility Testing Machine
Get Price Quote
With refrigeration system and micro-processor based digital temperature controller. Ductility is defined as distance in cms to which a standard briquette of bitumen can be stretched before the thread breaks. The briquette is stretched at a rate of 50 mmmin.± 2.5mm per minute at a temperature of 27°C ± 0.5°C. The Machine is having built in refrigeration system to work a below ambient temperature up to 10°C in tropical conditions. The Machine will operate at 27°C with control accuracy of ± 0.5°C as per the requirement of IS. The apparatus consists of water bath with a heater, and a circulating pump to maintain uniform water temperature. One half of the briquette moulds is fixed in a fixed plate in the water bath, the other half of the briquette mould is fixed to a carrier which slides over a rotating threaded shaft with a clutch, The motor and gears to rotate the shaft are housed in a cabinet fixed above the other end of the bath. A pointer fixed to the carrier moves over. a scale graduated from 0-100 cm x 1mm fixed on the bath with "0" (Zero) of the scale towards the fixed plates side. The rotating shaft has 2 speeds of travel for the bracket, 5 cmmin.and 1cmmin. selected by a clutch. Water bath inside is of stainless steel with insulation and water drain cock . A heater with is fitted inside the water bath. The Temp. is controlled by dual display Microprocessor based Auto Tuning PID Digital Temp. indicator cum controller. Control switches for motor, stirrer, heater and indicator lamps are fixed at a convenient place on the water bath. Complete with three briqutte moulds and one base plate, All supply single phase. As per IS 1208.
Ductility Testing Machine
70,000 Per Piece
10 Piece (MOQ)
Ductility Testing Machine
56,000 Per Piece
Ductility Testing Machine
Get Price Quote
Product Description This is used for determining the ductility of bituminous materials by measuring the elongation before breaking when two ends of a briquette specimen are pulled apart at a speed of 50mm/min + 2.5mm/min at temperature of 270C + 0.50C. GENERAL DESCRIPTION & SPECIFICATIONS: The Machine consist of the following : 1. Stainless steel bath 2. Temperature controller (Thermostatic/Digital) 3. Immersion electric heater 4. Constant speed Pump cum stirrer 5. Carriage holding up to three standard briquette moulds 6. Electric motor with gear mechanism 7. Stainless steel scale and pointer 8. Control Panel The apparatus consists of water bath with a thermostatic heater and a circulating pump to maintain uniform water temperature. One half of the briquette moulds is fixed in a fixed plate in the water bath, the other half of the briquette mould is fixed to a carrier which slides over a rotating threaded shaft with a clutch. The motor and gears to rotate the shaft are housed in a cabinet fixed above the other end of the both. A pointer fixed to the carrier moves over. a scale graduated from 0-110 cm x 1mm fixed on the bath with “0” (Zero) of the scale towards the fixed plates side. The rotating shaft has 2 speeds of travel for the bracket, 5 cm/min. and 1cm/min. selected by a clutch. Water bath inside is of Stainless steel with insulation and a water drain. A heater with thermostatic control is fitted. inside the water bath. Control switches for motor, stirrer, heater and indicator lamps are fitted to a control panel located at a convenient place on the water bath. Complete with three briquette moulds and one base plate. Working on 230 Volts, single phase, 50 cycles, AC. OPTIONAL FITTINGS AT EXTRA COST 1. Digital Temperature indicator cum controller (in place of Thermostatic control) 2. Digital display for Elongation 3. The more advanced model with refrigeration system which ensures better temperature control in tropical conditions. The Machine is mounted on a steel stand with refrigeration unit at its base. 4. Base Plate for mould. 5. Mould for elastic recovery.
Ductility Testing Machine
Get Price Quote
At Central Scientific Instruments Co., we bring forth Ductility Testing Machine which can accurately test three specimens simultaneously. Our Ductility Testing Machine comprises of a carriage moving over a lead screw. In this equipment the entire assembly is mounted with a copper lined water bath completely encased in metal lined hardwood. Our expert and experienced workforce is equipped to bring to you an assorted range of Ductility Testing Machine at very competitive market rates. Technical details Temperature is controlled thermostaticallyTwo rates of travel i .e. 5cm/min. and 1cm.min.Suitable operation on 220V, 50Hz.Single Phase.A.C. supplySupplied with 3 Nos. of ductility mould complete with base plate Attributes Corrosion resistantHigh qualityDurableEnduring
Ductility Testing Machine
Get Price Quote
Ductility Testing Machine : Ductility Testing Machine is defined as distance in cms to which a standard briquette of bitumen can be stretched before the thread breaks. The briquette is stretched at a rate of 50 mm/min. +/-2.5 mm per minute at a temperature of 27 deg.C +/-0.5 deg C. The apparatus consists of water bath with a thermostatic heater, and a circulating pump to maintain uniform water temperature . one half of the briquette molds is fixed in a fixed plate in the water bath, the other half of the briquette mold is fixed to a carrier which slides over a rotating threaded shaft with a clutch, The motor and gears to rotate the shaft are housed in a cabinet fixed above the other end of the bath. A pointer fixed to the carrier moves over. a scale graduated from 0-100 cm x 1 mm fixed on the bath with "0" (Zero) of the scale towards the fixed plates side. The rotating shaft has 2 speeds of travel for the bracket, 5 cm/min. and 1 cm/min. selected by a clutch. Water bath inside is of stainless steel with insulation and water drain cock . A heater with thermostatic control is fitted inside the water bath. Control switches for motor, stirrer, heater and indicator lamps are fixed at a convenient place on the water bath. Complete with three briquette molds and one base plate.
Ductility Testing Machine
60,000 Per Piece
1 Piece(s) (MOQ)
Ductility Testing Apparatus Salient Features The Machine consist of the following : Stainless steel bath Temperature controller (ThermostaticDigital) Immersion electric heater Constant speed Pump cum stirrer Carriage holding up to three standard briquette moulds Electric motor with gear mechanism Stainless steel scale and pointer Control Panel Accessories : 1. Thermometer IP 38 C, range 23ºC to 27ºC. 2. Briquette mould with base-plate. Taag: Ductility Testing Apparatus Manufacture in Chennai, Ductility Testing Apparatus Dealer in Chennai
Ductility Testing Machine
Get Price Quote
Ductility Testing Machine, offered by us, consists of both inlet and outlet taps. Fixed and movable brackets of our Ductility Testing Machine are so positioned that specimen is submerged in water. The rates of pull varies from 50 mm/min to 10 mm/min. A clutch arrangement of our Ductility Testing Machine is made to stop the movement of the movable bracket when rupture of the specimen is noticed. It is suitable for operation on 230 volts, 50 cycles, single phase and A.C. supply. Our Ductility Testing Machine comes with three moulds and plates that are mounted on the apparatus but without thermometer.
Ductility Testing Machine
125,000 - 325,000 Per Piece
1 NOS (MOQ)
Ductility Testing Machine
Get Price Quote
We are capable of catering to the customers situated anywhere and we are located in Delhi(India). We are specialist in making available Ductility testing machine in a wide spectrum of grades and specifications. Ductility testing machine The equipment consists of the following replaceable parts Ductility mould, with base plate.3 no. Details : Two rates travel 50mm/min. and 10mm/min. Electric pump circulator Heater 220v,50hz,single phase ac supply
Ductility Testing Machine
Get Price Quote
Electrically operated and designed to test three specimens simultaneously. The machine consists of a carriage moving over a lead screw. An electric motor driven reduction gear unit ensures smooth constant speed and continuous operation. The entire assembly is mounted with a copper lined water bath completely encased in metal bound hardwood. It is equipped with an electric pump circulator and heater. The temperature is controlled thermostatically. Two rates of travel i.e. 5 cm/min and 1 cm/min are provided. Suitable for operation on 230 V, 50 Hz, Single Phase, AC supply. Meets: - IS: 1208, ASTM D113, AASHO T 51, BS: 710, Complete with 1. Ductility Mould, with Base Plate - 3Nos. 2. Thermometer IP 38C, Range: 23° C to 27° C We offer the following type for the ductility also. Ductility Testing Machine, electrically Operated Digital indicator is provided for temp. indication. Ductility Testing Machine, electrically Operated It is fitted with refrigerated compressor and working temperature range 10 -30 Deg. C. Meets: - IS-15462 Ductility Testing Machine, electrically Operated, (Auto reverse facility) D.C. direct drive motor maintains constant speed, entirely vibration-free. Speeds of 1 or 5cm per minute are selected via lever shift on mechanical gearbox. Single brass lead screw mounted above water level prevents agitation of water and premature rupture of specimens. Meets: - IS-15462 Extra Accessories Ductility Mould Brass plate Ductility Mould Aluminum plate Elastic recovery mould Brass plate
Ductility Testing Machine
28,500 Per Piece
Ductility Testing Machine : Alpha Chem is manufactures,exporter & suppliers Ductility Testing Machine. Ductility Testing Machine : Ductility Testing Machine is defined as distance in cms to which a standard briquette of bitumen can be stretched before the thread breaks. The briquette is stretched at a rate of 50 mm/min. +/-2.5 mm per minute at a temperature of 27 deg.C +/-0.5 deg C. The apparatus consists of water bath with a thermostatic heater, and a circulating pump to maintain uniform water temperature . one half of the briquette molds is fixed in a fixed plate in the water bath, the other half of the briquette mold is fixed to a carrier which slides over a rotating threaded shaft with a clutch, The motor and gears to rotate the shaft are housed in a cabinet fixed above the other end of the bath. A pointer fixed to the carrier moves over. a scale graduated from 0-100 cm x 1 mm fixed on the bath with "0" (Zero) of the scale towards the fixed plates side. The rotating shaft has 2 speeds of travel for the bracket, 5 cm/min. and 1 cm/min. selected by a clutch. Water bath inside is of stainless steel with insulation and water drain cock . A heater with thermostatic control is fitted inside the water bath. Control switches for motor, stirrer, heater and indicator lamps are fixed at a convenient place on the water bath. Complete with three briquette molds and one base plate.
Ductility Testing Machine
28,000 Per Piece
Ductility Testing Machine
Get Price Quote
1 Piece (MOQ)
Determining of asphalt, cut bitumen and blown type bitumen.It consists of a bath thermostatically controlled with inlet and outlet taps. Fixed and movable brackets are soPositioned that specimen is submerged in water throughout. The rates of pull of 50 mm/min. and 10 mm/min. are incorporated. A clutch arrangement is made to stop the movement of the movable bracket when rupture of the specimen is noticed. Suitable for operation on 230 volts, 50 cycles, single phase, A.C. supply. Complete with three moulds and plates supplied mounted on the apparatus but without thermometer.
Ductility Testing Machine
Get Price Quote
We introduce you Ductility Testing Machine, which are used to perform the ductility tests on bituminous material. These consist of a water bath with a thermostatic heater and a circulating pump to maintain uniform water temperature. It is performed to regulate the ductility of : Asphalt bitumenFluxed native asphalt cut bitumenBlown type bitumen
Ductility Testing Machine
Get Price Quote
Ductility testing machine, Used for determining the ductility of asphalted bitumen and fluxed native asphalt cutback bitumen and blown type bitumen. The apparatus consists of a Water Bath having inner chamber made of Aluminium and fitted with heater and a circulating pump to maintain uniform temperature. Temperature is controlled by a Thermostat Digital Temperature controller cum Indicator.
Ductility Testing Machine
Get Price Quote
Ductility Testing Machine
Get Price Quote
The ductility of bitumen is expressed as the distance in centimetres to which a standard briquette can be elongated before the thread thus formed breaks under specified conditions. A molten bitumen sample is poured into a standard mould, allowed to cool to room temperature and then placed in a water bath so that the briquette can be brought to test temperature before mounting in the testing machine.
Ductility Testing Machine
Get Price Quote
Ductility Testing Apparatus as per IS:1208 & IP: 32: The apparatus consists of a Water bath with a thermostatic heater, and a circulating pump to maintain uniform water temperature. One half of the briquette moulds is fixed on a fixed plate in the water bath, the other half of the briquette mould is fixed to a carrier which slides over a rotating threaded shaft with a clutch. The motor and gears to rotate the shaft are housed in cabinet fixed above the other end of the bath. A pointer fixed to the carrier moves over a scale graduated from 0-110cmx1mm fixed on the bath with zero of the scale towards the fixed plate slide. The rotating shaft has 2 speeds of travel for the bracket, 5cm / min and 1 cm/ min selected by a clutch. Water bath inside is aluminium, it is an insulated water bath. Water is provided with a drain. A heater with thermostatic control is fixed inside the water bath. Control switches for motor, stirrer, heater and indicator lamps are fixed at a convenient place on the water bath complete with three briquette moulds and one base plate, all made of brass. Operates on 230 Volts A.C. Single phase complete with following Accessories : Thermometer IP 38C, Range 23°C to 27°C and Ductility mould with base plate.
Ductility Testing Machine
Get Price Quote
Ductility Testing Machine, Electrically Operated, Digital (AIM 565) Ref Stds: IS 1208 ASTM D113 AASHTO T 51 Bituminous surfaces exposed to varying temperature conditions undergo expansion & contraction.So an important characteristic of the binder is its ductility & the degree of ductility has an effect on the cracking bituminous surface due to traffic stress.The ductility of bitumen is expressed as the distance in centimetres to which a standard briquette can be elongated before the thread thus formed breaks under specified conditions. Application Ductility Industry Civil Infrastructure Asphalt / Petroleum/ Bitumen Testing Dams & Tunnels Real Estate Roads, Highways & Bridges Traffic Monitoring Education Building Technology Civil Department Geotechnical Science Colleges Traffic & Transportation Roads, Highways & Bridges
Ductility Testing Machine
Get Price Quote
Testing Machine: The machine has two rate of travel, namely 5 cms per minute and 1 cm per minute. A clutch arrangement is provided by which the movement of the movable bracket can be arrested or restarted without switching off the motor. A scale on the top edge of the bath makes it easy for the operator to observe the progress of the test. Machine accommodates three individual specimens. A quick release mechanism permits the operator to move the carriage to any desired position on the track. An automatic cut off prevents over runs. Immersion heater also provided. A three wire cord with plug is furnished with the bath. The control panel is recessed. Controls consist of a temperature, an on-offline switch which controls all power to the bath, and pilot light which indicates when the heater is energized. Operation on 230 volts, single phase, 50 cycles, A.C. supply.
Ductility Testing Machine
Get Price Quote
We are offering ductility testing machine.the apparatus consists of a water bath having inner chamber made of aluminium and fitted with heater and a circulating pump to maintain uniform temperature. Temperature is controlled by a thermostat / digital temperature controller cum indicator. one half of the briquette moulds is fixed on a fixed plate in the water bath and other half of the briquette mould is fixed to a carrier, which slides over a rotating threaded shaft with a clutch. the motor and gears to rotate the shaft are housed in a cabinet fixed above the other end of the water bath. A pointer is fixed to the carrier moves over a scale graduated from 0 – 100 cm x 1 mm fixed on the bath with “0” (zero) of the scale towards the fixed plate side. The rotating shaft has two speeds of travel for the bracket, 50 mm / min and 10 mm / min, which can be selected by a clutch. Complete with three briquette moulds and one base plate, all made of brass. Suitable to operate on 230 volts, 50 cycles, single phase and ac supply. the heating of bath will be controlled by digital temperature controller. The temperature will be indicated on the controller itself. Thermometer will not be required. Complete with test report and instructions manual.
Ductility Testing Machine
Get Price Quote
We deal in offering Ductility Testing Machine which is used to determine the ductility of asphalt and bitumen. Ductility is basically known as distance (cms.) to which a standard lump of bitumen can be stretched before the thread breaks. Our Ductility Testing Machine works when one half of the lump moulds is placed on a fixed plate in the water bath, and the other half of the lump mould is placed to a carrier which slips when the threaded shaft is rotated with a clutch and are housed in a cabinet fixed above the other end of the bath. A pointer that is fixed to the carrier moves over a scale ranging from 0-110 cm x 1 mm fixed on the bath with â0â (Zero) of the scale towards the fixed plates side. The rotating shaft has 2 speeds of travel for the bracket, 5 cm/min and 1 cm/min. selected by a clutch. The insulated Water bath which is inside the machine is made up of aluminium and Stainless Steel, is provided with a drain. Also, a heater with thermostatic control is fixed inside the water bath. Control switches for motor pump heater and indicator lamps are fixed at a convenient place on the water bath. Consists ofWater bathThermostatic heaterCirculating pumpThreaded shaft Operates on230V A.C.Supply single phase
Ductility Testing Machine
Get Price Quote
General Descripation & Specifications The Machine consist of the following : Stainless steel bath Temperature controller (ThermostaticDigital) Immersion electric heater Constant speed Pump cum stirrer Carriage holding up to three standard briquette moulds Electric motor with gear mechanism Stainless steel scale and pointer Control Panel
