Durometers Dealers

Specially designed Stands are used to improve the accuracy and reproducibility of both analog and digital durometer hardness tester readings by ensuring that the presser foot is exactly parallel to the specimen table. Any analog or digital durometer can be mounted on an applicable operating stand. The operating stand is primarily intended for use on a test specimen with parallel sides. Irregularly shaped objects may be tested in a nest or a fixture to make the given surface parallel to the durometer presser foot. ASTM D 2240 specifies three categories of operating stands:  Type 1 are basic, manual operating stands. Type 2 is stands capable of controlling the rate of descent. Type 3 are hydraulically, pneumatically or electromechanical driven. Stands that fall into all three categories. For assistance in selecting the proper operating stand to fit your durometer.

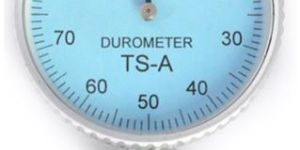

Shore Durometer is one of the modern non-destructive testing instruments for measuring the hardness value of different materials at the workshops and laboratories. This device can be used at the radio instruments industry, mechanical engineering and other areas of modern industry.Shore Durometer NOVOTEST TS-A corresponds to the following standards: ISO-7619 and ISO-868, DIN53505, ASTM D2240 and JIS K7215.Soft plastic, printed circuit boards, glass, elastomers, fibers, soft rubber, leather, resin, wax, neoprin, butyl, silicone, vinyl are typical testing objects of Shore Durometer. The principle of determining the hardness value of materials is based on the calculation the value of material’s resistance to the penetration of the indenter with a preset load.Advantages Shore Durometer NOVOTEST TS-A is produced in two versions, A and D. Shore Durometer A is designed for testing the following materials: soft rubber, elastomers, silicone, neoprin, vinyl, butyl, nitrile, soft plastics, leather, wax, etc. Shore Durometer D is designed for testing products from rubber, resin, glass, PCB, fibers, plastics, etc.

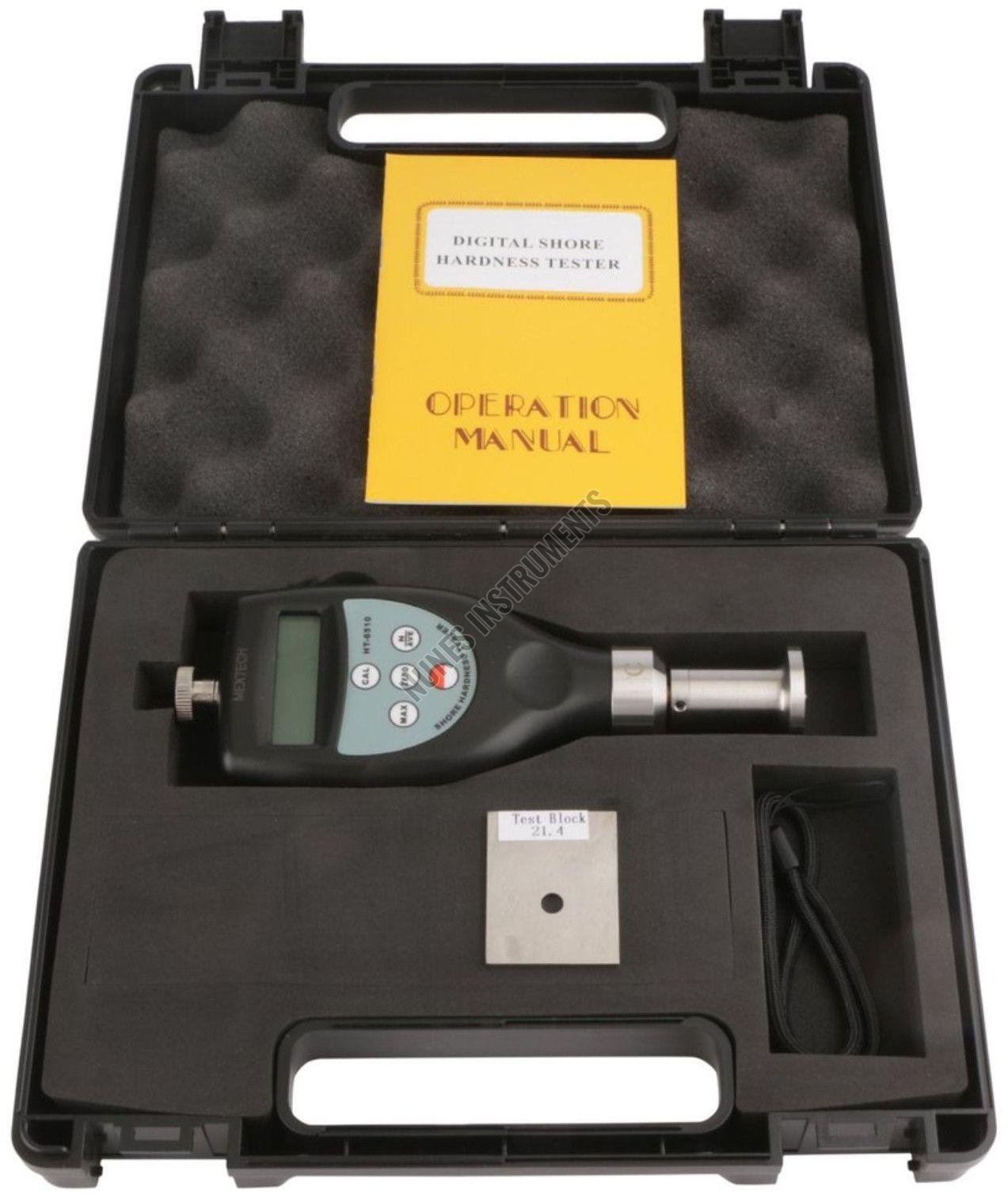

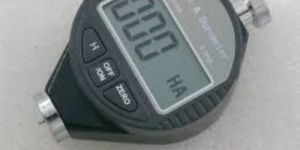

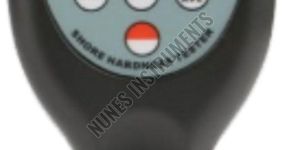

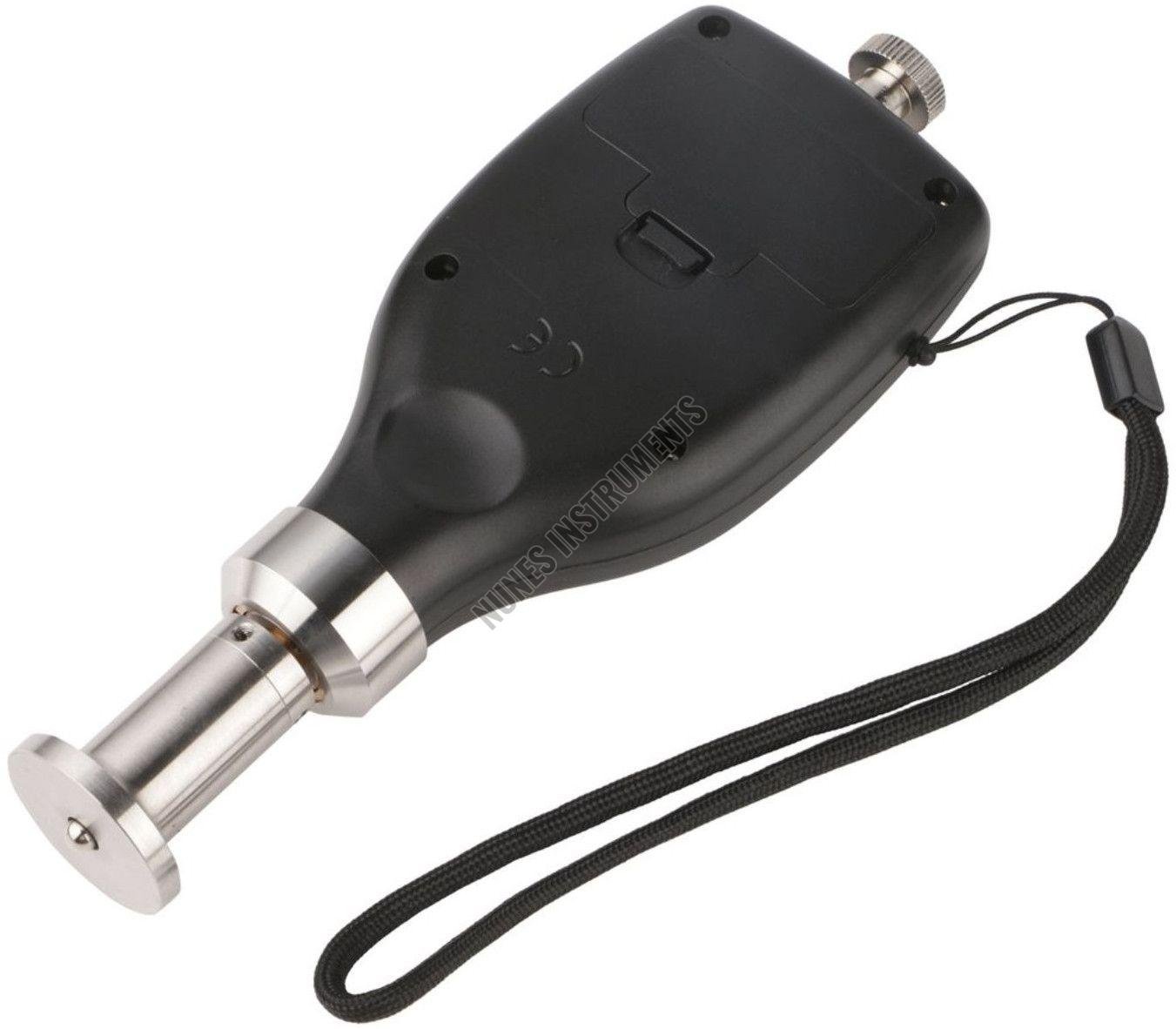

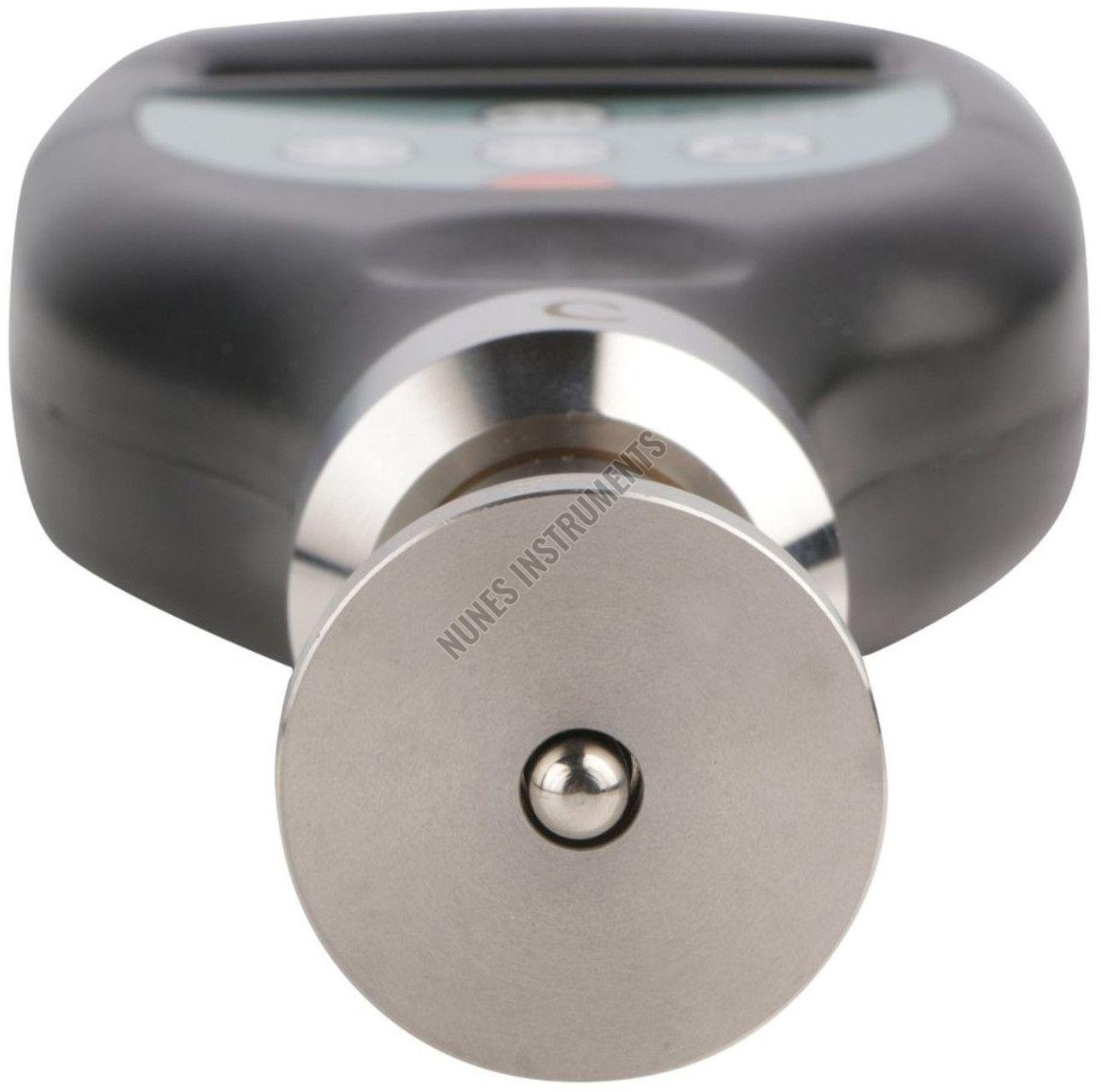

   product name  digital shore durometer      model  7005a-a  7005a-c  7005a-d      test range  0-100ha  0-100hc  0-100hd    available test range  10-90ha  10-90hc  10-90hd    indenter shape  flat cone point(0.79mm) 35°included angle  2.5mm spherical  sharp cone point (sr0.1mm) 30°included angle    resolution  0.5ha  0.5hc  0.5hd    power supply  runs on by one 1.5v cell battery    statistics  avg. Shore value, min-max    accuracy  ＜ 1%h    weight  0.5 kg    operating temperature  0~40°c    dimensions  162x65x28mm

• Dimension: 115*60*25(mm)

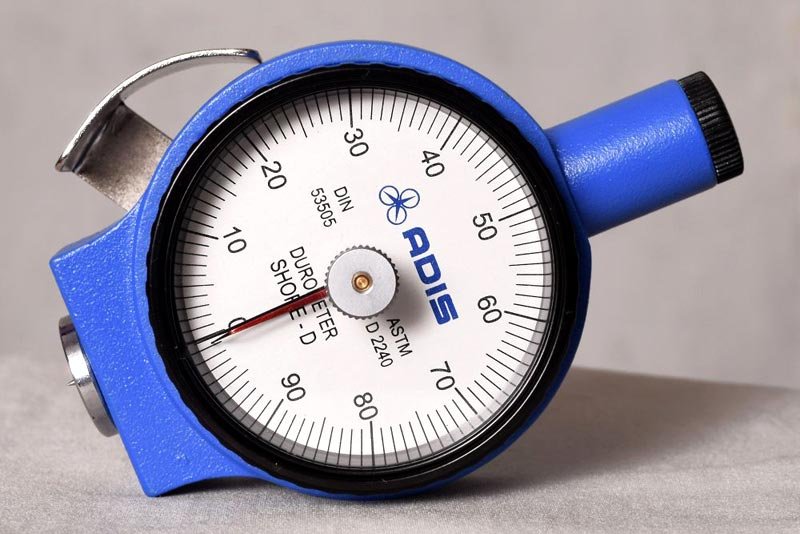

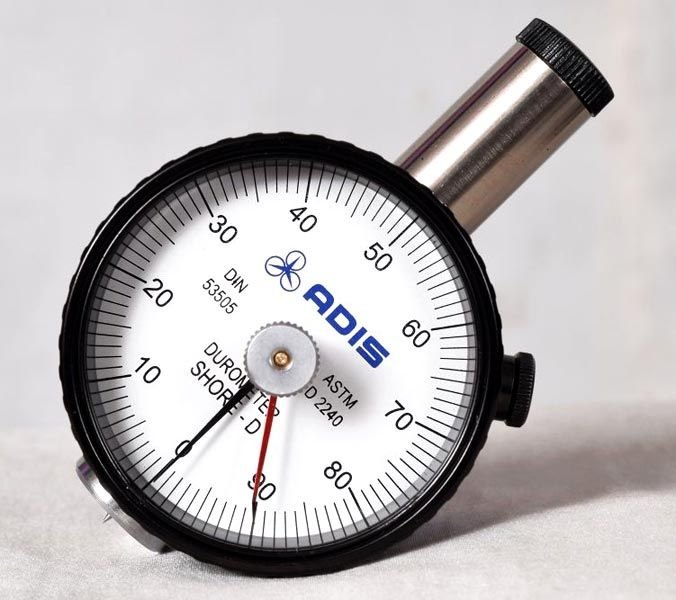

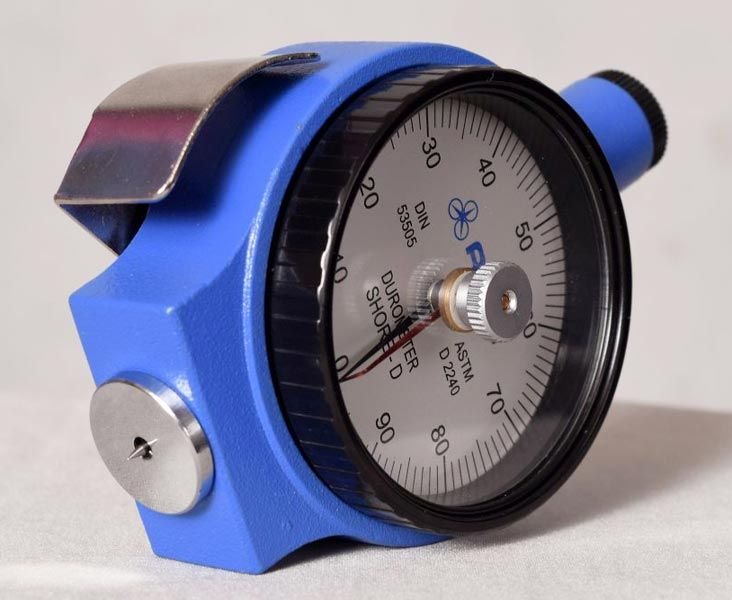

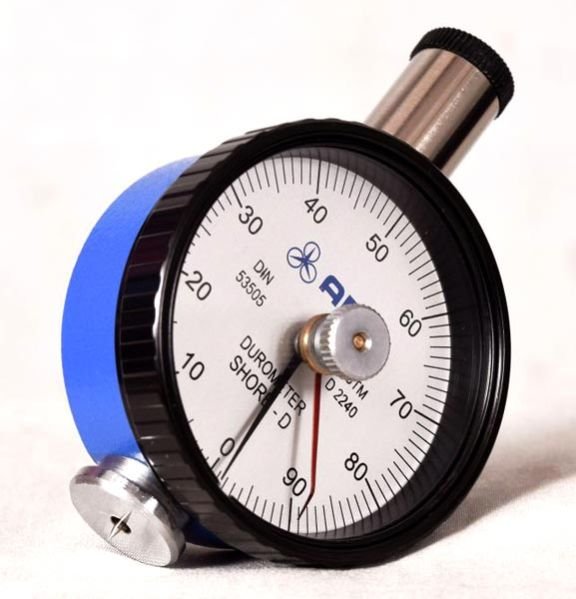

SHORE D Durometer is engaged in producing and providing a wide range of Measuring Instruments that are available in varied sizes, shapes and specification to suits the various requirements of our valued customers. These are perfectly designed as per the various industrial requirements.

• Type: Durometers
• Certification: ISI Certified, ISO 9001:2008 Certified
• Feature: Easy To Use, Proper Working, Superior Finish
• Condition: New
• Warranty: Lifetime Buyback Warranty
• Country of Origin: India

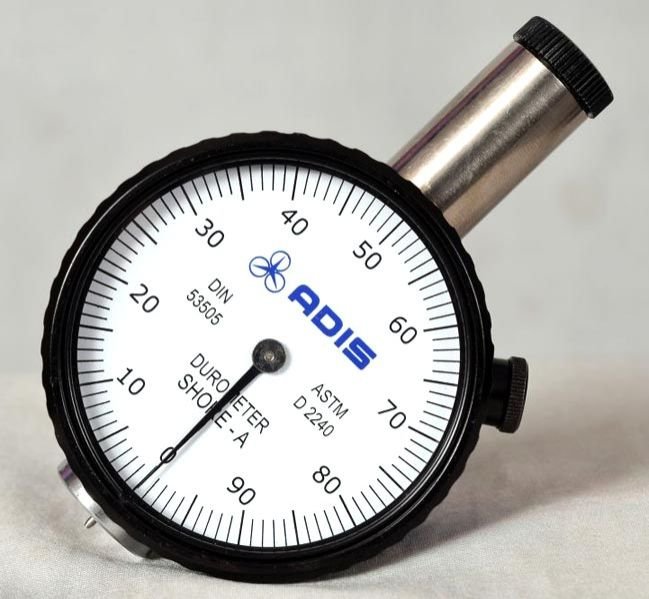

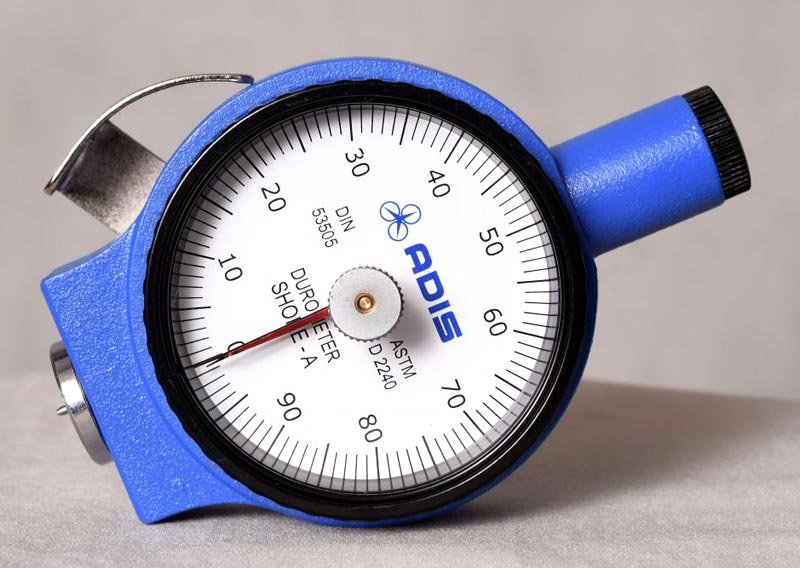

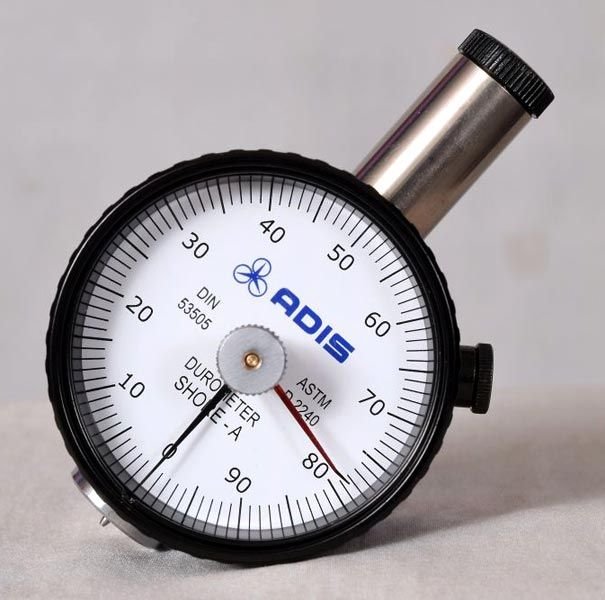

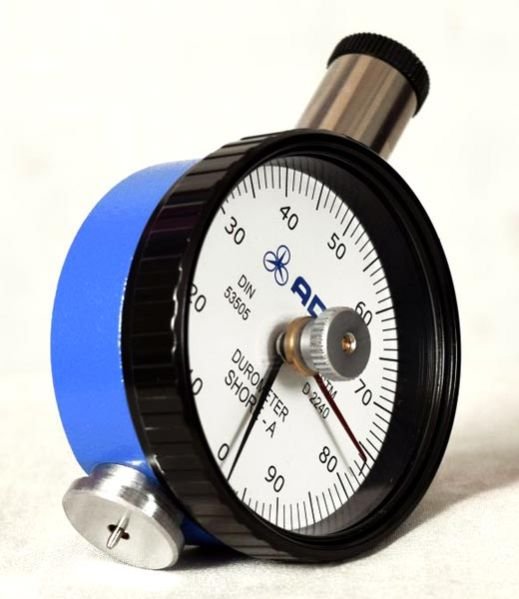

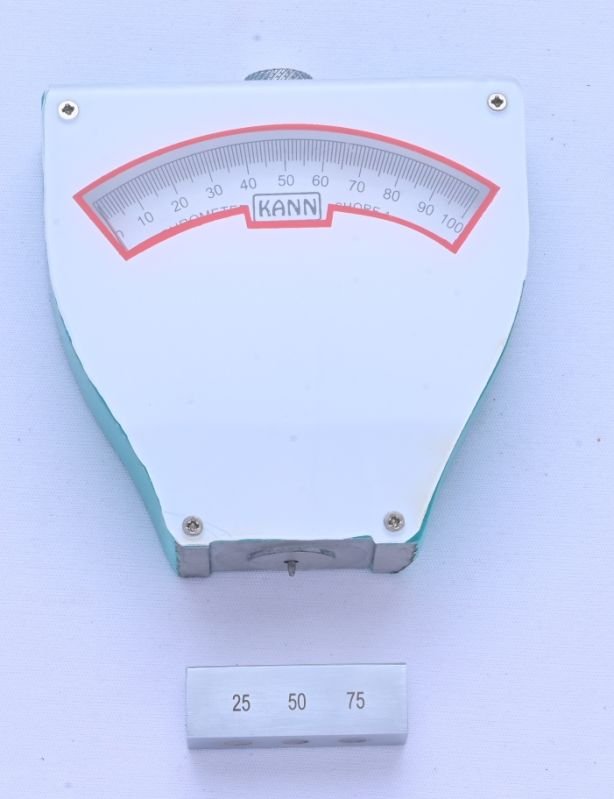

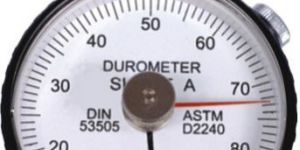

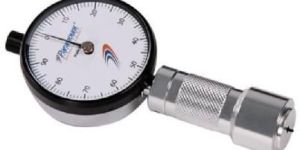

The Shore Hardness is defined as the resistance to penetration by an indentor of specified shape under a defined load. Shore Hardness tester are used for testing Vulcanized Rubber, Plastic, Ebonite, Fibre and all other soft and Hard Elastomers Paramount Shore A Durameter is an advanced model equipment which is widely used in various industries for determining the hardness and durability of rubber elastomers, neoprene, silicone, vinyl, soft plastics, felt, leather and similar material. It can be used as portable instruments and together with our test stands as bench-top units. Analog durometers have a round, clearly arranged and antiglare scale. The scale's graduation is 0 – 100 shore, divided in 100 units. The most important advantage of these handy analog durometers is the absolute precise indication of their measured values,

• Recommended Tesing Range: 10-90 HD
• Shore D Range: 0-100 HD
• Shore A Range: 0-100 HA
• Measuring Range: 0-100
• Accuracy: 0.1 HRA
• Weight: 170g

Durometer Technical Information The principle used to measure hardness is based on measuring the resistance force of the penetration of a pin into the test material under a known spring load. The amount of penetration (max. 2.54 mm / 0.1 in.) is converted to hardness reading on a scale with 100 units. Whenever possible, a Durometer measurement should be taken at least 12 mm (approx. 0.500") in from the edge of a sample, as the hardness characteristic of any sample tends to change at the edges. Whenever possible, the thickness of a sample should exceed 6 mm (approx. 0.250"). If the sample is thinner then this, then the sample can be backed with a sample of the same material to increase the thickness. Test Coupons or test blocks (rubber or plastic) should not be used for calibration verification. As all samples are subject to characteristic changes over time along with temperature and lighting conditions, the rated Shore value when supplied as new can and will vary with age. Proper calibration verification requires independent confirmation of the internal spring forces along with the verification of the pin displacement vs. the indicated value on the scale. As per the ASTM D2240 Standard, readings below 10 and above 90 are not to be considered reliable and should be discarded. Therefore, it is important to select the approapriate Scale that will provide results between 10-90 units. Frequently Asked Questions "My durometer rests below zero, is it out of calibration?" This is a common question asked by durometer users. The answer to the question, in most cases, is no. This is because the gauges are made in accordance with ASTM D2240 Standard, which states that some durometers have a preload of 56g at a zero reading. Therefore, a durometer giving a less-than-zero reading at rest is not out of calibration.

• Color: Black
• Material: PVC
• Mat Size: 2 Feet x 3 Feet,2 Feet x 4 Feet,2 Feet x 5 Feet,3 Feet x 5 Feet,3 Feet x 6 Feet
• Wash Care: Handwash
• Shape: Rectangular
• Brand: Duro Active

Durometer Hardness Tester with extra bottom designed for error free reading and provides limit point for maximum pressing on the specimen. Most suitable hardness tester for Tyres & Tubes and similar type of varous rubber parts.

We are among the prominent industry players, engaged in distributingFoam Durometers, which is extensively used for detecting the hardness of sponge, plastic and rubber. The offered durometer is compact in size and provides with accurate measurements. Being equipped with a large dial and clear markings, it is comfortable to be read. Our sophisticated facilities have enabled us to manage bulk orders conveniently. Features: Cost-effective Tensile strength Low maintenance

• Brand: Insize
• Display Type: Analog
• Weight: 160g
• Measuring Range: 10-90HA
• Product Code: ISH-SA
• Dimensions: 115x60x25mm
• Indenter Protrusion: 2.5mm
• Graduation: 1HA
•  :

• Display Type: 4 Digit LCD
• Dimensions: 87 x 56 x 25 mm
• Weight: 136g
• Measuring Range: 0-100HA
• Graduation: 0.1

• Net weight: 0.5kgs
• Tip dimension: 0.79mm;
• Test range: 0-100 HA;

SHORE Durometer is engaged in producing and providing a wide range of Measuring Instruments that are available in varied sizes, shapes and specification to suits the various requirements of our valued customers. These are perfectly designed as per the various industrial requirements.SpecificationHigh resolution; With facility, easy to operate; Use by handy or by test stand(HLX-AC);  Available test range: 10-90 HA ; Dimension: 115*60*25(mm); -Stroke: 2.5 mm;

• Application: Rubber, Elastomers and Plastic samples.

The Newage® HP Series hand held durometers are ideal for hand held hardness testing of rubber, elastomers and plastic samples. In addition to determining hardness, we also offer models for determining density and elasticity. These precision instruments conform to ASTM D2240. HP durometers are available for A, B, C, D, DO, O and OO scales. HP durometers have a frictionless movement ensuring precision hardness measurement and a circular frustrum cone indenter. A peak indicator is standard on all HP durometers with all measurement indicated on a scale from 0 to 100. Features & Benefits Meets ASTM D2240 Models for Hardness, Density and Elasticity Scales: A, B, C, D, DO, O and OO 1- and 2-point Resolutions Die Cast Aluminum Housing Bavarian Precision Spring Movement Includes Test Block and Carrying Case NIST Certificate of Calibration

A very useful tool for all Engineers & Engineering works. Available in Various range, type and sizes.Application: Natural Rubber, Hard Elastomer, Soft Elastomer, Plastic, etc..

A range of colors are available in the PVC trim range with and wihtout sponge Rubber bonding. Co-extruded profiles with flexible segmented steel core. Push -On trim seals. Versatile and Durable.
