Earth Switch Dealers

• Switch Type: Rocking Type
• Current Rating: 10 KA
• Brand Name: SSI INDIA
• Power/Voltage: 11 KV
• Housing Material: Porcelain

• Current Rating (Amps): 6-100
• Max Voltage: 10
• Phase: Three Phase
• Feature: Weatherproof, Waterproof

• Switch Type: Weatherproof
• Current Rating: 400 & 630A
• Brand Name: Raychem
• Housing Material: Porcelain
• Max. Voltage: 10
• Phase: Three-Phase

• Features: Compact design,Minimum maintenance requirement, Manually operated from inside the vehicle, Interlocking with KEY arrangement for safe operation, Ensure high Electrical and Mechanical Endurance.
• Type: STUS 04251
• Test Specification: CLW Spec. No. CLW/ES/3/0010
• Rated Voltage: 25kV
• Rated Current: 400A
• Poles: Two
• Control: Manually operated with operating handle.
• Mounting position: Roof of Locomotive
• Safety Interlocking: Safety Interlocking with 3 keys (1 Blue + 2 Yellow)

• Switch Type: Weatherproof, Waterproof
• Phase: Three-Phase
• Max. Voltage: 10

• Features: Compact design, Minimum maintenace requirement, Manually operted from inside the vehicle, Interlocking with KEY arrangement for safe operation, Ensure high Electrical and Mechanical Endurance.

• Rated voltage: 12KV
• Short circuit current: 25 KA for 3 seconds
• Impulse voltage: 75 KV BIL / 95 KV BIL
• Insulation Level: 12/28/75KV! 12/36/95 1KV
• Making current capacity: 62.5 KA peak.
• Overall dimensions: 480mm x 3 50mm x 2 70mm
• Mounting dimensions: 450mm x 290mm
• Mounting holes: Suitable for 10/12 mm Bolts.
• Item Code: ESMG102

• Item Code: SPKN123
• Payment Terms: T/T (Bank Transfer)

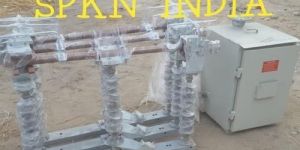

• Brand Name: SPKN INDIA
• Current Rating: 1250 Amps
• Power/Voltage: 33 kv
• Switch Type: Weatherproof

The Disconnector may be provided with built on earthing switches on either left hand side or right hand side or on both side as per customer requirement. Maintenance earthing switch can also be provided.

• Features: Enhanced durability , Strong design , Intricately finished.

• Current Rating (In Amps): 630 Amps
• Power/Voltage: 33 V
• Application: High Voltage

• Features: durable, dimensionally accurate, finely finished

Features Designed and verified according to IEC / IS standards Air insulated off- load isolator & earth switch Motorised / manual operated versions Quick make and break mechanism Single and double spring mechanism High operating reliability with robust construction High dynamic and thermal strength Rotary front drive mechanism Simple maintenance and inspection Operational Features An integral interlocked earth switch 2NO+2NC advanced auxiliary contacts for interlocking with upstream circuit breaker Fitted with castle key interlock Safety Fully type tested according to IEC 62271-102 Provide interlock between isolator and front door to protect personnel against electric arc blast. Provide interlock between isolator and earth switch to prevent from inadvertent operation.

• Item Code: 1011KV
• Payment Terms: L/C (Letter of Credit)/T/T (Bank Transfer)
• Current Rating (Amps): 400 & 630A
• Color: Black
• Condition: New
• Packaging Type: Box
• Warranty:  1-year
• Model Number: VE-Mn-11k400A
• Phase: 1,2&3
•  Weight (Gra: 15 Gram

The Infinity collection of switches rewrites the rules of design, making your home stand out from the pack. Created using earthen materials, these switches are innovatively designed to enhance user experience and a design you proudly want to own! The entire surface of the ‘Infinity Switch’ is touch sensitive, creating a seamless user experience. One of the finest in our collection this is a material palette that shall never fail to impress people.
