Elastomeric Bearings Dealers

• Material: IRon

Elastomeric bearings are used for bridges. It supports the super structure to divert the load through it and minimizes the damage which may be caused in concrete structure.

• Brand Name: OWN
• Material: ELASTOMER
• Color: BLACK
• Capacity: CUSTOMIZED
• Usage/Application: Bridge
• Compression Set Temperature: -60 DEGREE TO +60 DEGREE

The Elastomeric Bridge Bearings, developed by us, are reinforced bearing manufactured from synthetic chloroprene rubber (CR) or natural rubber (NR). These bearings can absorb vertical loads, horizontal movements and rotations around all axes. We are one of the most prominent Govt Approved Elastomeric Bridge Bearings Manufacturers, based in India. We use well proven production processes as recommended by IRC part II and by International codes that allow to use only high quality raw materials. Thereby, we can guarantee a long life-span without the need for maintenance. Our technically advanced bearings comprise of vulcanised elastomeric sheets that are reinforced by two or more Steel Sheets. The vulcanised reinforcing layers of highly tensile steel sheeting fully encompasses in Elastomer, which ensure absolute complete freedom from maintenance and corrosion. Application Elastomeric bearings are used mainly for bridges and buildings. Elastomeric bearings can absorb horizontal movements in every direction and rotational movements around every axis through elastic deformation, thereby allowing forces to be transferred safely from one component to another.

Elastomeric bearings:-   Bears Vertical Load. Allows movement in all directions by shear deflection. Allows Rotation in all direction by angular deformation.

• Material: Rubber
• Usage: Industrial
• Packaging Type: Packet
• Specialities: Fine Finish

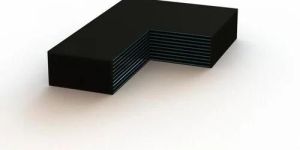

Elastomeric Bridge Bearings are designed to transform the movement and rotation of bridge structure into elasticity and minimizes the secondary stress generated in bridge because of the layered rubber sheets reinforced by metal plates. These bearings are designed to accommodate vertical, longitudinal, horizontal and transverse loads movements and rotation of the superstructure caused by thermal effect, traffic loads, structural load, wind load, seismic load. These bearings effectively release the stress on the bridge and have excellent rotation in all the directions and movements. Elastomeric Bridge Bearings with simple reinforcement are made up of multiple elastomer layers separated by reinforcing steel plates moulded on the actual layers, and can be manufactured in a rectangular or circular shape to meet individual engineering requirements.

• Material: Rubber
• Color: Black
• Finishing: Coated
• Bore Size: 0-8mm
• Usage: Bridge Use
• Specialities: Fine Finish
• Brand Name: Deevin

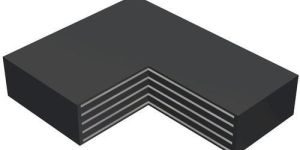

Elastomeric Bearings support simultaneous load and deformation in any direction. Horizontal movements up to approximately one half of the rubber thickness and Rotations are allowed by the flexibility of rubber Depends upon the load capacity, Elastomeric bearing divides into two categories Plain Elastomeric and Laminated Elastomeric as shown for your reference. Steel plates are bonded to the rubber through a vulcanization process and have the main scope to increase the resistance of the bearings to vertical loads.

Elastomeric bearings are elastomers manufactured from synthetic and natural rubber. These bridge bearings support both translational and rotational movements through elastomer deformation. Elastomeric bearings can carry large loads and prevent lateral bulging of the elastomers. The number of elastomer pads needed for the construction depends on the type of reinforcement used for the bridge. For instance, steel reinforces elastomeric bearings are the strongest, and plain elastomeric pads are the weakest. One of the best things about Elastomeric bridge bearings is that they are neither expensive nor require any maintenance after installation

Our packaging experts look after the ideal packaging of the product so that it reached the buyer in uncompromised state. Also, we make sure that the packaging material is of premium quality. As a respectable firm, headquartered in Delhi(India), we are making available top-of-the-line quality products in the market.

• Type of Bearing: cubic elastomeric bearing of required size
• Dimension: as required
• Usage/Application: bridge

• Country of Origin: India
• Type: Elastomeric Bearings
• Color: Black

RDSO/MORTH Approved

KANTAFLEX TM Elastomeric Bridge Bearings are designed to transform the movement and rotation of bridge structure into elasticity and minimizes the secondary stress generated in bridge because of the layered rubber sheets reinforced by metal plates. These bearings are designed to accommodate vertical, longitudinal, horizontal and transverse loads movements and rotation of the superstructure caused by thermal effect, traffic loads, structural load, wind load, seismic load etc. These bearings effectively release the stress on the bridge and have excellent rotation in all the directions and movements. The inserted metal plates restrict the rubber expansion on the sides and improve the resistance to load on the bridge as the elasticity of rubber absorbs shock well and lengthens the natural period of stress. Another advantage is the robustness and corrosion free nature of these products, ease and convenience of installation, long service life and customized size to suit the bridge design.

• Specialities: Long service life , Customized size , Easy installation .
• Design Load: 10 Mpa
• Shear Modulus: 0.9 +/- 0.18 Mpa
• Adhesion Strength: 7 kN/m
• Max Ash Content: 5%
• Max Change in Hardness: (+)5 IRHD
• Max Change in Tensile Strength: (-) 15 %

• Tensile Strength: 17MPa
• Color: Black
• Country of Origin: Made in India
• Usage/Application: Bridge Bearing
• Type of Bearing: Bridge Bearing
• Surface Finishing: Smooth

We are offering elastomet elastomeric bearing. Metco industries introduced fully moulded reinforced elastomeric bearing for bridges in india under the brand name of 'elastomet', manufactured from imported chloroprene rubber (e.g. Neoprene wrt of du pont, bayprene110 of bayers etc.). Elastomet bearings are manufactured through controlled quality procedures and conform to irc 83 (part iii), 1987 mort&h's specifications and other international codes specifications. The following types of ' elastomet' bearings are available for different applications : normal bearing pads - reinforced unreinforced. bearings with positive metallic attachments or dowel pins and dowel caps for anchoring and stabilising high horizontal force. vertical stopper bearings with attachments. selastomet - bearings with sliding component consisting of ptfe to stainless steel or stainless steel to stainles steel interface. elastomeric bearings with seismic restraincrs

Elastomeric Bearings: Also known as Neoprene bearings, these are used as load bearing pads in bridges, aqueducts, chimneys, nuclear domes, jetties, water tanks, industrial structures, building and machine foundations etc.   POT CUM PTFE Bearings: Sliding bearings are generally used where larger structural movements are anticipated or when the horizontal movement is accommodated with a minimum stress transmitted to the structure. There are a variety of sliding bearings that can be combined to give a complete support. The basic element of the sliding bearing is a PTFE sheet (Polytetrafluoroethylene) confined to the base material (which is generally mild steel) by the process of bonding. A polished stainless steel plate welded to the underside of the top plate sides over the PTFE sheet, such units in different combinations are commonly used in bridges, viaducts, and a wide variety of other structures.
