Electro Magnetic Chuck Dealers

• Type: Magnetic Chucks
• Shape: Round
• Application: Industrial Use
• Voltage: 110V, 220V
• Power: 1-2kw, 2-3kw
• Power Source: Electric
• Warranty: 1year
• Surface: Polished

Model No. : UL-815 The Electro Permanent Magnetic Chuck For Grinding UL is known for its efficiency as well as long life. Available at the best prices, the Electro Permanent Magnetic Chuck For Grinding UL is made using high quality components using the best techniques. The company ensures the timely delivery of the Electro Permanent Magnetic Chuck For Grinding UL. Features Continuous Electricity is not required and 100% safe in use. Power for all poles transferred to ring/plates to hold the job firmly. Assembled with power full magnets and can take heavy cut. Poles individually magnetized for full loading power. Applications Use is vertical and horizontals grinding machines. Radial movement of location blocks will help to position and secure work pieces. This is also necessary for wheel clearance.

Ours is a quality-driven organization that is engaged in offering only high-quality products. Thus, we use superior grade raw materials for the fabrication of our entire range. Striving hard to deliver the exceptional product range that includes electro magnetic chucks, we are a prominent supplier in the market.

• Country of Origin: India
• Type: Electromagnetic
• Material: Aluminium, Stainless Steel
• Certification: CE Certified
• Application: Industrial
• Color: Grey
• Size: Standard

Productivity #Accuracy #Reliability:   Reinforced Electro permanent systems with extremely High magnetic power. Absolute safety against Power or Cable Fault. Cold operating ensures Ultra Precision machining. An enormous Reduction in clamping and setup times. Customized solutions to suit your requirement.     #Simpler #Safer #Super Electro Permanent Magnetic [EPM] Chuck Combines the clamping force of high quality Permanent Magnets with the advantage of switching facilities an Electrical Devices is thereby providing in piratical applications all the prerequisites for precision, safety and ease of operation. A totally original and unique Electro Permanent system is controlled electronically and the clamping zone comprises of a series pf alternate poles. An electric impulse of very high magnitude but of a very short as the chuck is switched ON with the job completing the magnetic circuit the magnets work at BH. Rem & hence is able to provide a magnetic energy perfectly suitable for heavy cuts and thrusts during Grinding, Planning and Milling operations. With these properties we can provide you performance results which has so far been unobtainable from conventional permanent magnetic chucks and hardly obtained in best electromagnetic chucks available.   Dimensional Stability The solid construction of the EPM chuck eliminates mechanical distortion and unlike electromagnetic chucks there is in heat generation hence the chuck when once attached to the machine bed will be as geometrically stable as the machine itself providing working surface with uniform holding power required of precision machining. The chuck is entirely static and hence it is not subject to mechanical wear.   Total Security The Electronic Control unit is specially designed for Easy and Safe operation of Electro Permanent Magnetic Chucks. Power circuit is controlled by Thrusters and is operated by Remote Control. The switching On/Off of the chuck is done by means of Illuminated push-buttons. The Power consumption is considerably reduced saving almost 98% of precious energy, as only a current pulse for few seconds is required to switch the chuck on and off. Hence the running and maintains cost of the EPM chucks are virtually nonexistent. When in operation the chuck is entirely isolated & independent of power supply. This gives total security against POWER FAILURE and eliminates any risk of accidental release of work piece.   Wide Range EPM chucks are available in Grinder series and Milling series in sizes from 200 mm to 1500mm in length and 150 to 400mm in width having longitudinal or transverse poles. Large Magnetic area can be arranged by multiple mounting of chucks which can be operated by a single controller. Special designed to suit yiour particular applications. They are supplied in full working order complete with side plates and power supply cable.   FEATURES   No electricity required to keep the chuck ON. All Metal Top Plate of Brass and Steel lamination provides full active area. Variable power makes it possible to adjust the magnetic force. It drastically reduces the loading, unloading the work pieces. Hold all type and sizes of work pieces. No heat built up, no deformation provides high precession accuracy.     APPLICATION   For grinding application of all sizes of jobs. These chucks are suitable for horizontal spindle surface grinding machines as the main cutting thrust is towards the length of the chuck, poles at right angle of the wheel give more gripping of the job.     GENERAL APPLICATION   These chucks are also available in long pole design. Large area can be arranged by multiple mounting of chucks side by side which can be operated by a single controller. Special purpose chucks can also be designed to suit particular applications. Pole pitch of 2mm (1.5+0.5) can be made at extra cost.

We are offering fine pole rectangular electro magnetic chuck. Application of cross pole series these electro magnetic chuck are suited for a wide range of work pieces. For grinding application of small to big size components. Application of long pole series since it produces stale attractive force in the lengthwise direction, it is possible to move the work piece along the belt while maintaining the attractive force. The plate design makes it easy to design and locate fixtures correctly for effective holding of intricately shaped work pieces. The operating voltage is 110 vdc upto 12103.18, beyond that 220 vdc. Electro magnetic chuck can be designed for other operating voltages. Long pole electro magnetic chucks are also made, the ordering series for the same is 12104. Features electro magnetic chuck with all metal brass and steel laminated top plate. High resistance to coolant corrosion. Electro magnetic chuck has high mechanical rigidity and proven robustness. Electro magnetic chuck is guaranteed water proof. Electro magnetic chucks have a multi energized magnetic circuit, consisting of a number of adjacent, reversed coils making up a magnetizing core which is small pole pitch. The multitude of exciting windings increases dissipation of electrical energy which becomes magnetic energy, while limiting both temperature rise caused by joule effect and distortion of the chuck. Top plate of electro magnetic chuck is machinable upto 8 mm. Electro magnetic chuck can be easily fitted to the surface grinder.

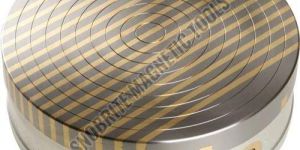

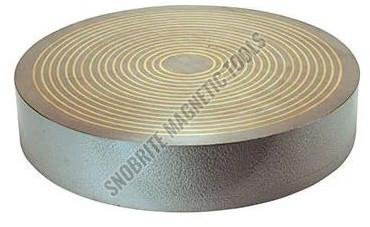

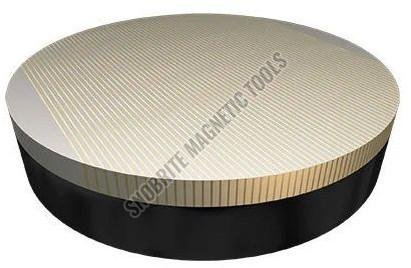

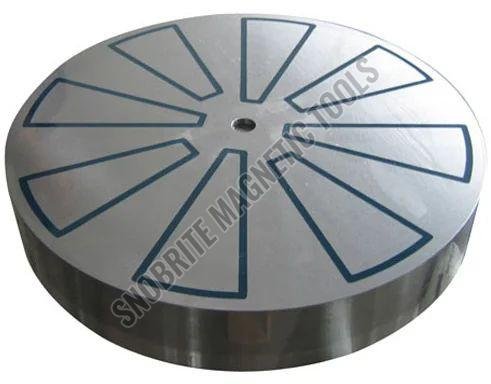

With firm commitment to quality, we are presenting for our clients a quality array of Circular Electro Magnetic Chucks. Useful for holding onto a difficult or heavy part, this magnetic chuck is manufactured with quality material in accordance to the quality norms. The offered magnetic chuck is checked on several parameters by our quality controllers in order to deliver a flawless range to our patrons. Features: High durability, Excellent finish, Temperature resistance, Holding device for Rotary surface grinding and also for Lathe & cylindrical grinding machines, Assembled with powerful Magnets

• Size: 450 x 150 x 100

"CRYSTAL" Brand Electromagnetic Chucks are designed to give strong magnetic field to hold the work piece rigidly. The material removal capacity of "Crystal" Brand Electromagnetic chick is much more. It generates low hear and economical for power consumption, Electromagnetic Chucks are very efficient since the work can be loaded unloaded just by switching operations. All " Crystal" brand electromagnetic chucks are tested for Insulation test, High voltage test, Resistant to earth terminal test, Demagnetizing test, Operating test and Waterproof test. Demagnetizing switch is provided as an additional accessory which helps for removing work piece efficiently without damaging the chuck surface. Variable control unit is available as an optional accessory which allows variable magnetic force. Which is useful to minimize distortion,warpage while grinding of thin and add shape jobs. With minimum current relay circuit it is possible to automise grinding process by interlocking the chuck with machine tool. Due to the fine pitch it is useful for holding thin and small workpiece.

There is no risk,when power fails. The de-magnetization cycle of Electoperm Magnetic chuck eliminates possible residual magnetism in the workpiece,therefore easy release for high alloy steel parats. They are designed for heavy operation such as milling cut of 3 to 6 mm depth at recommended speed & feed.

• Brand Name: HELIX

We are offering electro magnetic chuck. Ideal for heavy duty grinding, drilling, edm operation

Offers electro magnetic chuck with all metal brass and steel laminated top plate. high resistance to coolant corrosion. electro magnetic chuck has high mechanical rigidity and proven robustness. electro magnetic chuck is guaranteed water proof. electro magnetic chucks have a multi energized magnetic circuit, consisting of a number of adjacent, reversed coils making up a magnetizing core which is small pole pitch. the multitude of exciting windings increases dissipation of electrical energy which becomes magnetic energy, while limiting both temperature rise caused by joule effect and distortion of the chuck. top plate of electro magnetic chuck is machinable up to 8 mm. electro magnetic chuck can be easily fitted to the surface grinder.

Magnetic Chuck in Machine Tool Industry. This Chuck is known for its outstanding performance and reliability. It is mainly used for surface grinding machine. Varied types of magnetic chucks can be availed from us biz.

• Size: 1000/1000/100
• Brand Name: RELAIBLE
• Magnet Grade: N52
