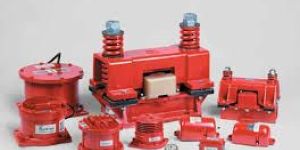

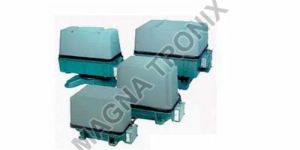

Electromagnetic Vibrator Dealers

• Type: Electromagnetic Vibrator
• Application: Industrial
• Material: Mild Steel
• Power Source: Electric

We, at Star Trace Pvt Ltd, offer Electromagnetic Vibrators which is an economical means of keeping up the flow of bulk materials from bins, hoppers and chutes. Our Electromagnetic Vibrators come with an easily adjustable control which offers flexibility and assures most favorable flow for the type of material being handled. Additionally, Electromagnetic Vibrators can be operated endlessly or intermittently depending upon the exact requirements. To assure the highest standard of quality, our Electromagnetic Vibrators are well tested and adjusted for best performance. Most models of these Electromagnetic Vibrators come standard with totally enclosed, dust-tight and water-proof construction. As these Electromagnetic Vibrators have no rotating or sliding parts, they are almost maintenance-free. Why Our Electromagnetic Vibrators? Electromagnetic designIdeal for continuous or intermittent operationAdjustable controlUrethane encapsulated magnet assembliesSimple design, durable, rugged constructionNo rotating or sliding parts; maintenance-freeProvides protection from moisture and other contaminantsNo need for manual labor to unclog bins or to keep material flowingVaries vibration force with simple turn of control knobPrevents wire degradationProductivity enhancing performanceSafe, reliable performance for years of serviceAccommodates your specific applicationWide range of sizesLow noise models availableQuiet, reliable operation

• Type: Industrial Vibrating Machine
• Certification: BUI
• Weight: 40-50kg
• Color: Blue
• Voltage: 440V
• Condition: New
• Automatic Grade: Semi Automatic
• Power: 9-12kw
• Driven Type: Electric
• Warranty: 5years
• Country of Origin: India
• Brand Name: BUI
• Application: 9-12kw
• Frequency: 9-12kw
• After-Sales Service Provided: 9-12kw
• Capacity(t/h): 9-12kw
• Vibrating Amplitude: 9-12kw
• Product: ELECTRO MAGNETIC PULSATING VIBRATOR

We manufacture Electromagnetic Bin Vibrators that works on the principle of electromagnetism. A coil carrying conductor is powered using half wave current. This is used to create vibration. The unit is tuned for resonance and draws very little power and hence very efficient. The vibration can be varied using a variac or electronic controller that is designed and supplied by us. Features of MCI make Electromagnetic Bin Vibrator:1) Rugged dust proof construction2) Low Power Consumption3) Low Maintenance4) Easy Installation Our Bin Vibrators are installed in various locations in India and abroad.

• Feature: Easy Operation, Fine Finished, Good Quality
• Type: Electromagnetic Vibrator
• Country of Origin: India

Our electromagnetic impact type vibrator consists of the main body which houses a coil, that is fed with pulsating currents which later sets in the vibration. In a pulsating vibrator, the amplitude of the vibration can be controlled by a controller that sets the input voltage. Salient Features: ·       High strength, concentrated deep magnetic field·       Endless cleated belt·       Operates in hazardous environments·       Adjustable magnetic strength Applications: ·       For inclined discharge chutes to produce an easy flow·       For rectangular or cylindrical bins with center discharge·       For effective packing of fluffy and difficult-to-handle powder in the chemical and pharmaceutical industry·       For proper flow of material in a conical-shaped hopper

• Type: Electromagnetic Vibrator
• Material: Steel
• Application: Industrial
• Feature: Easy Operation
• Voltage: 220 V
• Frequency: 50 Hz
• Material: Steel
• Power Source: Electric
• Warranty: 6 Months
• Automation Grade: Automatic
• Country of Origin: India

Star Trace Electro Magnetic vibrators are connected to an a. c. supply system with protective conductor by means of a power unit. Power unit are required for the operation of the vibratory units at the prescribed oscillation frequency and for the continuous and practically powerless open or closed loop control of the oscillation amplitude, and hence of the delivery flow. A complete range of modules ensures a great variety of applications, e.g. closed - loop control of the oscillation amplitude, controlled mill feeding, the integration of conveyor units in super systems controlled by a process computer.   Technical Data: The power units can be connected to supply systems with all the usual system voltages. Non- standard versions are available.

Electromagnetic Vibrators manufactured using premium quality raw material at an economical rates. These Vibrators can be operated continuously or intermittently depending upon the specific requirements of the clients. These magnetic vibrators are apt for plastics, chemicals, coal, limestone glass, abrasives and other type of powders.Intensity of vibration can be controlled using a controller Various standard Models available based on power rating

• Model Name/Number: BSP-O-VI-VPC
• Usage/Application: For industrial vibration
• Current: 5 amp

• Supply : 230 / 41 5 VAC 2 phase 50 Hz:
• Current : 3/6/10/15/30 Amp:
• Voltage setting : Via potentiometer / 4 to 20 mA control signal:
• Retransmission O/p : 4 to 20 ma for PLC:

for bowl liner feeders new advance version (cvcf) constant voltage, constant frequency controllers for smooth vibration and constant feed rate irrespective of change in supply voltage and frequency for genset application..

• Warranty: 1 year
• Weight: 14kgs
• Condition: New
• After-sales Service Provided: No overseas service provided
• Place of Origin: Tamil Nadu, India
• fuction: mutual feeding
• Power(W): 40w
• Dimension(L*W*H): 12" * 8" * 11"
• Capacity(t/h): 0.1-6t/h
• Certification: nil
• Port: chennai

• Material: MS
• Power Source: Electric
• Voltage: 240 V
• Country of Origin: Made in India
• Brand Name: Flextool Equipment
• Usage/Application: Industrial
• Power Consumption: 300 W
• Phase: Single

• Approx. Net Weight, Controller: 15 Kgs
• Vibrations per minute: 3000

he tyco electromagnetic vibrator provides effective and economical method of maintaining free flow of stubborn materials from bins and hoppers and through chutes. the electromagnetic vibrators, where the amplitude may be adjusted from full vibration to a fine tremor, keeps the particles agitated in a free flowing state. Each vibrator is furnished with a controller having an operating switch, which set up a flow pattern of powerful pulsating vibrations. the electromagnetic design of tyco vibrators eliminates mechanical and pneumatic parts - bearings, belts, chains, valves, hose or motor. These are built for trouble free duty with a minimum of maintenance.

• Feature: High tensile strength,Precision engineered,Corrosion resistance
• Type: Semi-Automatic
• Material: MS
• Capacity: 50-5000kg
• Input Value: 100W-1500W
• Brand: Force Magnetics
• Digit Display Size: Single Display

We bring forth our vast industrial experience and expertise in this business, involved in offering high quality range of Electromagnetic Vibrator.

The electromagnetic impact type vibrator consists of main body which houses the coil. The coil is fed with pulsating current that sets in the vibration. The amplitude of vibration can be controlled by controlling the input voltage. The vibrators are easy to install and use and need no maintenance. The intensity of vibration can be varied if needed by providing regulator in the control panel. Most ideal for declogging of hoppers and chutes Used for conveying products which will not normally move on slope.   Applications :     Vibrators are used in various industries ...... For inclined discharge chutes to produce an easy flow. For rectanguler or cylindrical bin with centre discharge. For effective packing of fluffy and difficult to handle powder in chemical and pharmacuetical industry. For proper flow of material in conical shaped hopper.

Electromagnetic Vibrators are an important part of EMI large program of drive units, a program which also covers unbalance vibrators and exciters. For decades, EMI Electromagnetic Vibrators have stood their test in practice. They are in infinitely adjustable in a simple way during operation.EMI offer a complete series of electromagnetic vibrators foe vibrating frequencies of 25 Hz, 30 Hz, 50Hz, 60 HzThe great Variety of electromagnetic vibrators placed at user’s disposal, enables him to choose the unit most suited for the equipment to be vibrated.Electromagnetic vibrators are manufactured for voltage up to 660 V. On demand, they are also available with special protection (x) sG4   —Type of Construction:—Electromagnetic vibrators are of a robust design, suited for most rough service conditions. They can be very easily installed.Electromagnetic vibrators do not need any maintenance.Vibrators of same power and various frequencies are interchangeable because their dimensions and fixations are identical.Lifting ‘lugs make their transportation easy. The erection personnel does not have to remove the vibrator hoods. —-Technical Data:—-Electromagnetic vibrators are designed for continuous full-load operation (100% running time). They correspond to the Standards OF IS, and have the insulation Class H.Electromagnetic vibrators are supplied with enclosure IP 55/65 according to requirement.   —————Control and Regulating Units—————- 1.Automatic voltage compensation:Voltage fluctuation of up to +/- 10% are compensated automatically. Thus keeping the feed rate constant.2.Line arized stroke characteristics:The unit uses the total bandwidth of the set point adjustment , as the stroke is linearized.3.Protection with actual value failure:The Electromagnetic vibrator is protected against hammering whenever the actual value fails.4.Analog output signal for process control purpose:An analog output signal allows for monitoring of actual value and stroke.5.Operation signal by contact assembly for external processing control6.Easy maintenance:Diagnostic connector and a LED display for voltage and controller release.7.Free selection of set point signal:Our control units can work with 4 alternative set point signals without any supplementary module.The set point signals can be 0-10 V, 0-20 mA, 4-20 mA and the potentiometer. 8.Output frequency:You can use the control unit for output frequencies of 60 Hz, 50 Hz, 30 Hz or 25 Hz.9.Supply Voltage:Supply voltages from 200 V up to 500 V with the usual grading are allowed.10.Electric safety: The units provide optimum electric safety and protection IP55/ IP-65.On demand, We also supply special supplementary modules for monitoring.The code letters used in the type code represent t he following functions and units.THYRISTOR CONTROL TYPE KThe feed-rate can be adjusted infinitely during operation by means of a potentiometer. Voltage fluctuations are compensated and have no influence on the preset stroke.THRYSTOR CONTROL TYPE Y.In addition to the K-type functions with this type of regulation changes in load to the machine are taken into account. A stroke sensor mounted at the feeder permanently checks the effective amplitude and compares it with the preset value.

Electromagnetic Vibrators, Magnetic Pulley, Magnetic Drum Separator

Electromagnetic Vibrator, gold plated jewellery sets, Mesh Pallet

Our Electromagnetic Vibrators have become an inevitable part of industries for smooth flow of materials. Adjustable amplitude of vibration makes our Electromagnetic Vibrators suitable for all types of goods. The electromagnetic feature eliminates mechanical parts and makes the process fully automated. These Electromagnetic Vibrators are the most effective and economical method for damage-proof flow of materials. Applications : To increase the screen capacityTo eliminate air pockets and voids on formsTo increase the weight content of containers Specifications ModelTrough Size in mmCapacity (100 Lbs/cu. ft) 1600 Cu.Ft. Thickness of Hopper MetalPower ConsumptionApprox. Wt. of Vibrator NormalMax.Watt.Amps.VIV013 Cu : Ft1.5 mm3 mm801.57.5 kgs.VIV0240 Cu : Ft3 mm5 mm120325 kgs. Note : To get maximum results the vibrators should be installed as near as possible to the point where the material likely to build up.To select on appropriate model the following factors should be taken into account.Weight of the material to be vibrated.Percentage of moisture contents.Thickness of hopper chute or form
