Electromagnetic Yoke Dealers

• Material: Mild Steel
• Input Voltage: 220V
• Frequency: 50 Hz
• Measurement Range: 300 mm
• Operating Temperature: 60 Degree C.
• Distance Across The Poles: 2 inch
• Lifting capacity: 5.5 kg
• Usage/Application: Industrial

• Brand Name: Kirti NDT

Magnetic AC/DC Yoke use for Magnetic Particle Testing Product Details: Delivers AC/HWDC For Surface and Sub-Surface Flaw Detection  Handy and Light Weight  *Safe for operator  Strong and Rugged Construction  Sensitive for Subsurface Crack

Model: EF-1Y & EF-2Y Features Articulating & double jointed legs for good contact Light weight, strong & rugged. Complies various International Standard

• Brand Name: Vibrant
• Material: SS
• Power Source: Electric
• Country of Origin: Made in India
• Model Name/Number: VNSPL/YOKE

• Voltage: 220 V
• Color: Black
• Country of Origin: Made in India
• Features: Portable and light weight
• Phase: 1 phase

DC Magnetising Yoke operated on rechargeable battery. No mains supply required, Portable yoke for Magnetic Particle Inspection, EF- 1 Y – Magetic Particle Inspection Battery Powered Yoke, can be used for in-plant structures as well as fleld work, Battery pack housed in case with shoulder strap, battery charger & yoke carrying bag are provided.

Magnetic Particle Inspection (MPI) Yokes are portable, economical and highly reliable for detection of surface flaws in steel and iron components.AC Magnetic Particle Inspection Yoke is the new generation of light weight, ergonomically designed yokes that improve job performance and productivity by reducing operator arm and wrist fatigue when testing in tight, confined and overhead areas.

We are offering electro magnetic yoke. Most useful for testing turbine blades during maintenanceshut down. For weld testing in large pipe welding or construction fabrication. For testing crankshafts gears or similar critical components of automobiles. For local spot testing in large fabrication jobs, castings etc. Usage before x ray to rectify the defects and save cost. Features powerful and suitable for detecting hairline surface and sub-surface cracks. Can de-magnetise the jobarea after completion of tests. Quick changeover from ac to hwdc magnetising field with easy push switch. Hwdc field is regulated. Flexible pole legs easily adapt to the shape of the job surface for better magnetisation and effective testing. Adjustable leg covering inspection area upto 300mm.

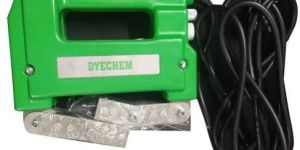

• Brand Name: DYECHEM
• Country of Origin: Made in India
• Model Name/Number: DCY-01
• Automation Grade: Manual
• Usage/Application: Crack Testing
• Power Supply V: 230 V
• Weight Lifting Capacity AC: 4.5 Kg
• Weight Lifting Capacity in HWDC: App 27 Kg
• Light Weight Yoke Capacity: App. 3.5 Kg

We provide electromagnetic yoke used in all leading industries. This is manufactured from premium quality raw material procured from reliable vendors. Based on electromagnetism theory, this device is used for lifting lightweight requirements. These are offered at affordable prices, with sturdy construction and easy operation system. Furthermore, we provide customization service as per the specifications of our clients.

• Weight: 2.3Kg
• Power: AC240V 50Hz
• Model Name/Number: BW-MY3/240
• Centre pole distance: 145mm
• Dimension: 182mm (l) x 230mm (h) x 45mm (w)
• Current: 2.8A
• Maximum pole distance: 210mm
• Magnetising Power: 240V: 50Hz: 5,240AT
• Power Cable Length: 4m
• Lifting Power: 5.44Kg
• Duty Cycle: 60 second on and 30 second off
• Minimum pole distance: 75mm
• Brand: Baugh & Wheedon

• Voltage: 110-230 V
• Power Source: AC and DC
• Cord Length: 3 Meter
• Measuring Range: 10mm
• Wattage: 3 W

• Brand Name: East West Engineering & Electronic Private Limited
• Color: black
• Power Source: 110 Volts AC or 48 V / 12 V DC
• Feature: Battery operated power supply & built in charging system
• Features: The Yokes have articulated legs and flexible poles to fit on odd shape object. All circuitry is built in the handle for easy operation. No separate power supply.
• Dimension: standard
• Usage/Application: industrial

This NDE method is accomplished by inducing a magnetic field in a ferromagnetic material and then dusting the surface with iron particles (either dry or suspended in liquid). Surface and near-surface flaws produce magnetic poles or distort the magnetic field in such a way that the iron particles are attracted and concentrated. This produces a visible indication of defect on the surface of the material. The images below demonstrate a component before and after inspection using dry magnetic particles. We are conducting dry wet, visible fluorescent magnetic particle examination by yokeprod method for materials and weld joints during fabrications and in service for wide range of industries like steel plant, cement mills, nuclear power plant, petrochemical and fabrication shops.

• Weight: 3 kg

Exceeds specific lift weight requirements.Suitable to use in in all type of industries.Strong and rugged construction.Safe for operators.Exceeds specific lift weight requirements.

• Brand Name: Supermag
• Frequency: 50/60 Hz
• Voltage: 110 / 220 V
• Measurement Range: 0 to 300 mm
• Operating Temperature: 40 to 60 Degree C.
• Usage/Application: Industrial
• Yoke Weight: 3.5 kg
• Lifting capacity: 5 Kg

Authorized Dyeglo Brand Electromagnetic Yoke,Providing you the best range of Electromagnetic Yoke with effective & timely delivery.Leveraging on our extensive market knowledge, we are providing a high quality range of Electromagnetic Yoke.
