Extensometer Dealers

• Certification: IS:12872:2011 & ISO 9513:1999, ASTME-83
• Measuring Range (Extension): 0-3 mm, 0-5 mm
• Least Count: 0.001 mm, 0.010 mm
• Guage Length (Adjustable): 30 mm to 120 mm. 200 mm, 300 mm adjustable up to 600 mm with suitable specimen holding brackets
• Thickness or diameter of specimen: 1 mm to 50 mm round & flat Bars
• Use: Used for measuring young's modules, proof stress or yield stress

Details The Mechanical Exensometer, Model EM-1 is manufactured as per IS:12872:2011 & ISO 9513:1999, ASTME-83 in class 1 accuracy. This equipment is basically used with Universal Testing Machines for tension test, It is used for measuring young's modules, proof stress or yield stress.

• Type: extensometer
• Material: Glass, Stainless Steel
• Color: Silver
• Application: Industrial Use
• Width: 10-20mm20-30mm
• Temperature Range: 10-50C
• Display: Analog, Digital

Conforming to international quality management systems, our product range is of unparalleled value. As a reliable name, we ensure that payment procedures remain secured with us. For this, we issue invoice to the customers stating the products, quantities and agreed prices.

This is for determining the lateral extension of 15cms dia x 30cm high cement concrete cylinders while testing them under compression. Salient Features Specifications : The unit consists of two movable frames pivoted at one end. The extensometer is fixed to the specimen with the help of tightening screws. The lateral extension is indicated on a dial gauge of 0.002mm x 12mm travel. The extension is magnified 2.5 times and the dial gauge readings are to be divided by 2.5 to get the exact readings. A spacer strip is provided to initially set the dial gauge, and can be removed after initial setting. Supplied in a wooden carrying case.

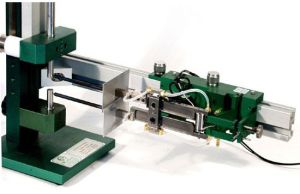

Temperature range up to 12000C Full range of gage lenths from 10mm to 50mm Travel ranges from 5% to 50% of gage length Self supporting Ideal for tensile & low cycle fatigue applications

We provide our valued clients Extensometer that consists of two movable frames both pivoted at one end. Measuring Range - 0 to 3mm Least Count - 1100 mm Guage Length (Adjustable) - 30 to 120 mm Thickness or diameter of specimen - 1 to 40 mm Dimensions - B x D x H - 120 x 50 x 150 mm Approx. Net Weight - 0.3 kg Approx.

• Tape length: 30 m or 50 m
• Item Code: EDS-80
• Precision in measurement of change: ± 0.2 mm
• LCD resolution: 0.01 mm
• Coefficient of linear expansion: 11 ppm/° C (6.1 ppm/° F)

• Brand Name: Vertex
• Accuracy Class: 0.5/1%
• Body Material: Aluminum
• Measuring Range: 10mm & 25mm
• Input Resistance: 350 ohms
• Reference Excitation voltage: 10 V DC

This is equipment is used to determination of lateral extension of 150mm dia. X 300 mm high cement concrete cylinders while testing them in compression The equipment consists of the following replaceable part · Two movable frame pivoted at one end · Dial gauge 0.001 x 25 mm

• Brand Name: Ratnakar
• Application: Industrial
• Frequency: 50 hz
• Item Code: REM-1

We offer our client an excellent quality range of Mechanical Extensometer, which are manufactured from high grade quality raw materials. These Mechanical Extensometer can be customized as per our precious customers specifications. These Mechanical Extensometer are widely known for its durability and quality. Our Mechanical Extensometer can be availed at industrial leading price

This is for determining the lateral extension of 15 cm dia. x 30cm high cement concrete cylinders while testing them under compression. The unit consists of two movable frames pivoted at one end. The extensometer is fixed to the specimen with the help of tightening screws. The lateral extension is indicated on a dial gauge of .002mm x 12mm travel. The extension is magnified 2.5 times and the dial gauge readings are to be divided by 2.5 to get the exact read-ings. A spacer strip is provided to initially set the dial gauge, and can be removed after initial setting. Supplied in a wooden carrying case.

• Model –: EM-1

We provide our valued clients mechanical/electronic Extensometer.   We provide our valued clients Extensometer that consists of two movable frames both pivoted at one end. Measuring Range - 0 to 3mm Least Count - 1/100 mm Guage Length (Adjustable) - 30 to 120 mm Thickness or diameter of specimen - 1 to 40 mm Dimensions - B x D x H - 120 x 50 x 150 mm Approx. Net Weight - 0.3 kg Approx.

• Material: Metal
• Feature: Durable
• Use: Textile
• Finishing: Polished
• Warranty: 1 Year
• Weight: 10-15kg

This is for the determination of lateral extension of 150 mm dia x 300 mm high cement concrete cylinders while testing them under compression. The extensometer consists of two movable frames pivoted at one end. A dial gauge measures the lateral extension, and a removable spacer strip is for the initial setting of the dial gauge. Mounting of extensometer on the specimen is with the help of screws. Supplied complete, with a dial gauge 0.002 mm x 5 mm. For determination of the change in size of a concrete or cement sample, brought about by a change in moisture content, following apparatus have been designed. Tests can be performed on freshly made specimens or specimens from existing structures.

• Type: Extensometer
• Material: Stainless Steel
• Certification: CE Certified
• Application: Industrial Use
• Color: Available In Many Colors
• Width: 10-20mm20-30mm
• Temperature Range: 10-50C

The SIS-7000 Series Borehole Extensometer Electrical/Mechanical (E/M), single or Multi-Point Borehole Extensometers are used to accurately measure longitudinal displacement in rock masses or concrete boreholes. It is particularly useful for distinguishing deep seated movements from surface spelling, which is of value in assessing the need for or determining the efficiency of a rock bolting system. The rugged low cost rod extensometer is designed to be easily installed in difficult locations.

• Brand Name: Krutam
• Item Code: FXT-3
• Measuring Range: 0 - 3 mm
• Least Count: 0.01 mm
• Gauge Length Adjustable From: 30 - 120 mm ( 30 - 70 mm can also be given )
• Specimen Size: Round 1 to 20 mm or flat upto 20 x 20 mm

Our company is engaged in offering Strain Gauge type Electronic Extensometer for the evaluation of 0.2% proof stress. We also manufacture Electronic Extensometer to comply with ASTM E-83 B2 Class and provide you with 0.1 micron (0.0001 mm) resolution and NABL calibration certificate. Features : Complied as per ASTM- E83- B2 Class Electronic Extensometer For 204060100 Ton Capacities Model : TECSOL-EEXT02-ASTM - E83- B2 ClassType : Strain gaugeGauge Length : 25, 50mmMaximum Extension : 2.2mmResolution : 0.1 micron (0.0001 mm).To be removed before specimen breakage

• Application: Industrial, Commercial
• Least Count of Measurement: 0.01 mm
• Maximum Elongation: Up to 3 mm
• Gauge Length: 30 mm to 120 mm
• Round Specimens Diameter: 1 mm to 20 mm
• Flat Specimen: 1 mm to 20 mm

• Measuring Range (Extension): 0-2 mm
• Least Count: 0.001 mm
• Guage Length (Adjustable): 25, 30, 45 & 50 mm
• Thickness or diameter of specimen: 1 to 20 mm
• Excitation: + 5 VDC
• Out put (Approx): 20 mV full scale

Mechanical & Electronic Mechanical Extensometer (Model : EM-1 & EE-2)   Mechanical Extensometer (Model : EM-1)   It is essential to measure the elongation of test specimen under load, to have it's mechanical properties. FIE Extensometer Model EM-1 is intended to serve the above purpose.   So that the knife edges bite the specimen to avoid any slip. The upper edges are adjustable to provide different guages lengths for measurement. As deformation takes place the lower knife edges transfer the movement to the dial guages and the deformation of specimen is shown on dials, so that the change in length of specimen by 1/100mm, equals to one division of the graduation on dial.     Technical Data: 1) Measuring Range 0 to 3 mm 2) Least Count 1/100 mm 3) Guage Length (Adjustable) 30 to 120 mm 4) Thickness or diameter of specimen 1 to 20 mm 5) Dimensions - B x D x H 120 x 50 x 150 mm Approx. 6) Net Weight 0.3 kg Approx.   • Due to constant R & D, specifications and features are subject to change without notice.• The diamensions given above are approximate.     Electronic Mechanical Extensometer (Model:EE-2)   • The electronic exensometer, Model EE-2 is manufactured as per IS:12872:1990 & ISO 9513:1989 in class 1 accuracy.• This equipment is basically used with Universal Testing Machines for tension test, It is used for measuring young's modules, proof stress or yield stress.• EE-2 extensometer requires electronic signal conditioning PCB to interface it with UTM electronic panel.   Optional Accessories : • EE-2 with guage length 25.4, 62.5, 70 & 80 mm.• Specimen thickness or dia 4 to 40 mm & 4 to 50 mm.
