Fixed Bed Reactor Dealers

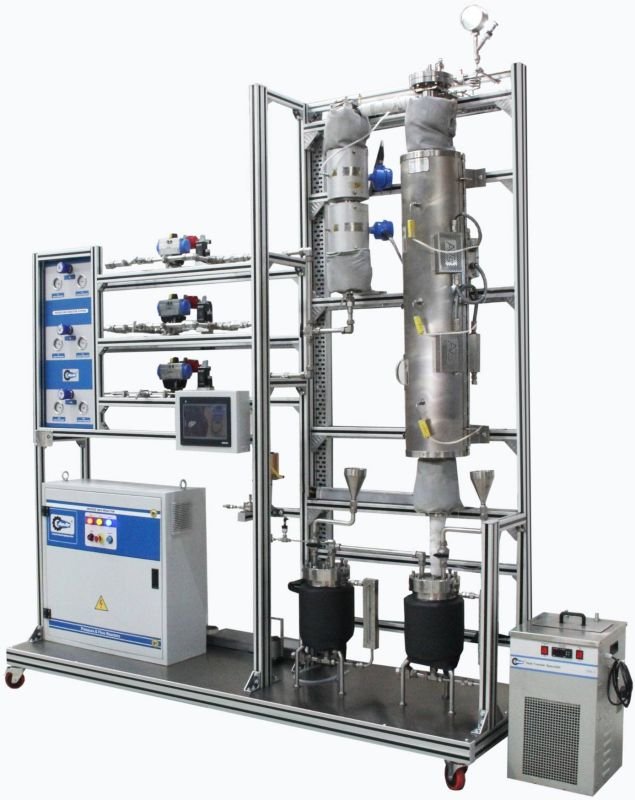

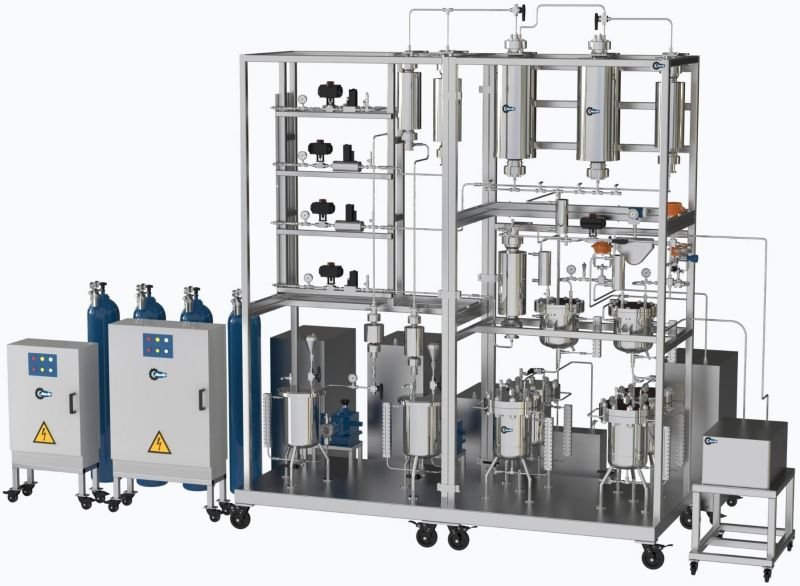

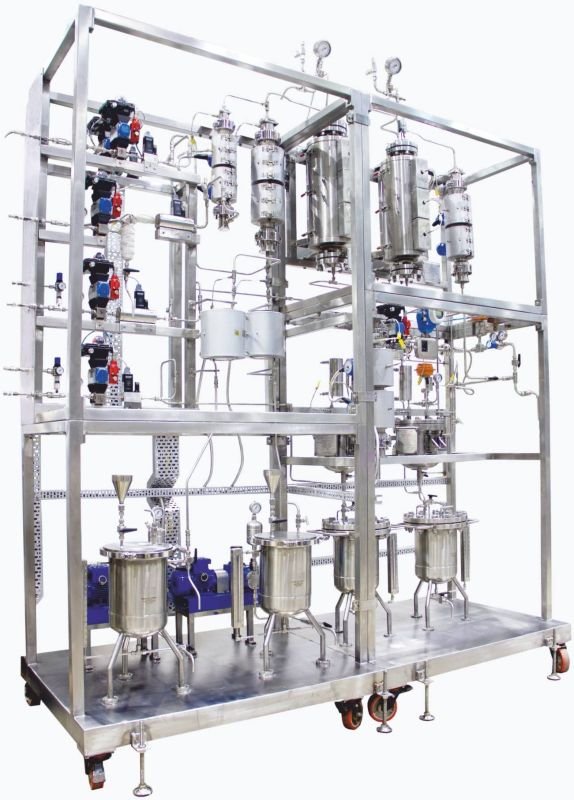

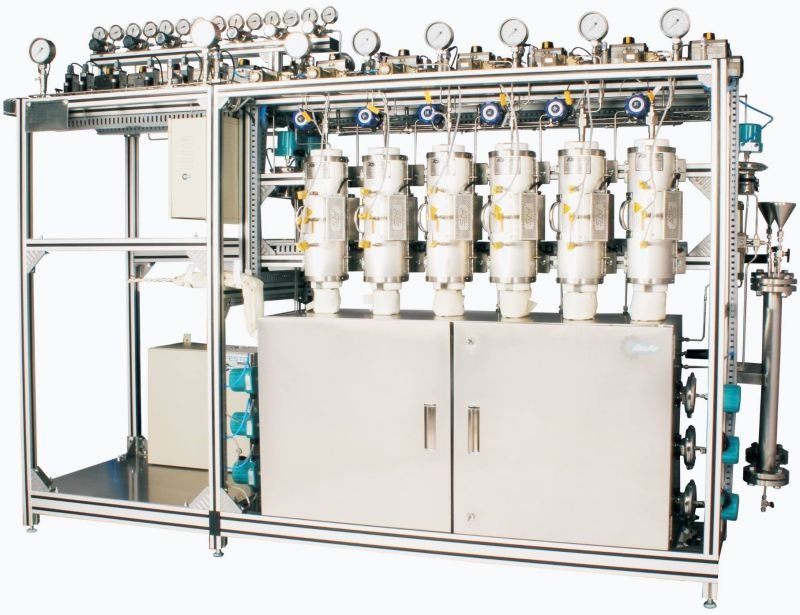

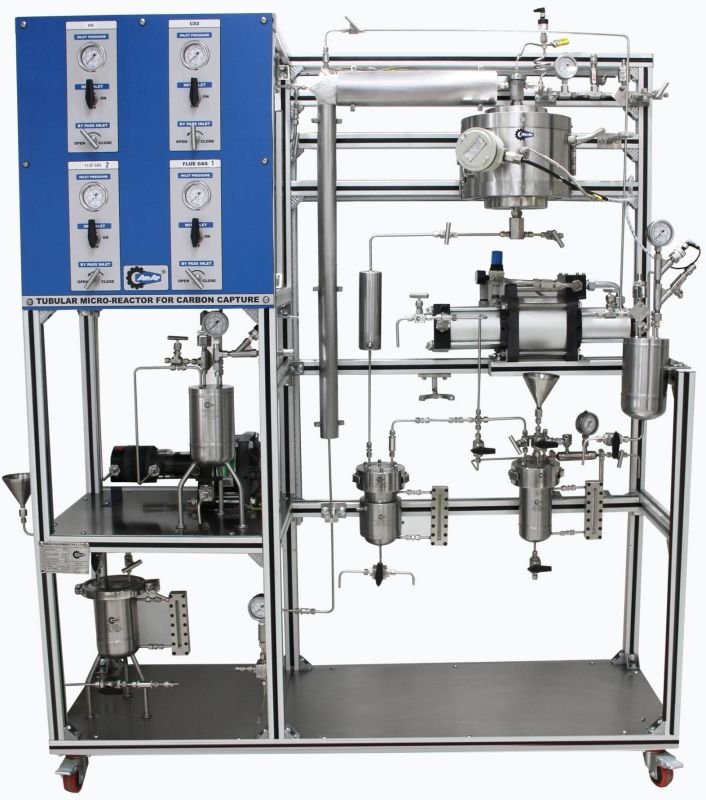

Fixed Bed Reactor/ Packed Bed Reactor / Fluidized Bed Reactor Multi-phase reactor systems are widely used in fine chemicals, oil and gas,petrochemical refineries, pharmaceutical, pesticides and in research centers.With the evolving needs of the industry for enhanced productivity and lowercost of production; Amar offers tubular reactor systems in continuous manner for various applications with system integration and automation which maximizes the efficiency and accuracy of research and production operations Salient Features Fixed Bed Reactor volume from 5cc to 100 ltrs. Higher volumes optional Designed up to 350 bar & 1000 °C. Higher ratings optional Various MOCs such as SS316, Inconel, Hastelloy etc. Explosion proof plants for highly explosive reactions/hazardous area Table top or skid mounted plants Either a standard or customisable unit can be offered for gas liquid feed combinations, product outlets, series or parallel reactors, multi zone heatingfurnaces etc. with integrated controls, high level of safety, automation andSCADA software Fixed bed reactor, fluidized bed reactor, trickle bed reactor designs offered Applications & system of packed bed reactor Catalyst testing, oxidation, reforming, hydrogenation, dehydrogenation,liquefaction, fischer Tropsch process, hydro-cracking, carboxylation, catalystscreening, fluid catalytic cracking (FCC), microreactor system, syngas reactorsystem, pyrolysis reactor system, packed bed reactor system, vapor rig system,biomass gasification system, hydroprocessing catalyst testing system, catalystreduction unit, multi-purpose reactor unit, vapor phase reaction system etc Table Top Reactor System (TTRS) The table top reactor system is very compact & complete semi or fully automated system for vapor phase catalyst evaluation and continuous flow process analysis.The reactor and feed lines are mounted within an isothermal oven. System Specifications: Reactor volume: 5-50 ml System pressure: Upto 200 bar Temperature rating (reactor): Upto 650 °C Temperature rating (oven): Upto 200 °C Description: Feeding section: Feed streams are provided for 4 reactants (2 liquids, 2 gases), the purge gas and the GC carrier gas. Feed lines includes bulk head union connectors, inline filters, metering valve, 3- way ball valve and check valve. Reactor section inside oven: Preheater & vaporizer: This section includes 2 coils for preheating gases and 2 coils for vaporizing liquids. Reactor: volume available from 5 – 50 ml. Reactor status valve: The optional multiport reactor status valve can permit reactor bypass. Sample valve: Sampling valve can be provided for transfer of sample of product to GC unit. Back pressure regulator: Manually operated (standard) with optional automatic control. Product collection section: Gas liquid separator: Volumes upto 250 ml will be placed after reactor and before back pressure regulator. Heated transfer line: It connects the sample valve to the gas chromatograph unit (supplied by client).

• Voltage: 220 to 440 V
• Material: Stainless Steel,Hastelloy,Inconel
• Capacity: 1 g to 100 g
• Max Pressure: 100 Kg
• Frequency: 50 to 60 Hz
• Surface Finishing: Color Coated
• Phase: Single Phase, Three Phase

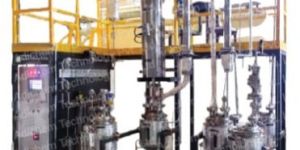

Plant Description: The plant was commissioned in June 2016 and is designed as a compact unit for carrying out catalyst testing unit.

To conduct hydrotreating reactions of petroleum oils (in the range of Naphtha to gas oils). Project Details:Operating Temperature: 370°C,Operating pressure: 100 bar.g,Catalyst capacity: 100 cc, PC-PLC based control System, PC-PLC based control System.

• Material: SS
• Power Source: Electric
• Automation Grade: Automatic
• Voltage: 280 V
• Frequency: 50 Hz
• Brand Name: Pilon Engineering Pvt Ltd
• Country of Origin: Made in India
• Material Grade: SS316
• Application: Industrial
• Phases: 3 Phase
• Max Pressure: 9 kg

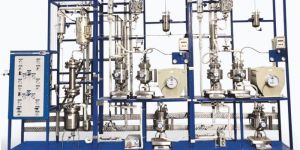

The reactor consists in essence of a container filled with catalyst particles. These particles can be contained within a supporting structure, like tubes or channels, or they can be packed in one single compartment in the reactor. One of the most common reactors in the chemical industry, for use in heterogeneous catalytic processes, is the packed bed reactor. This type of reactor is used both in synthesis as well as in effluent treatment and catalytic combustion.

• Features: Vertical Orientation
• Material of Construction: Stainless Steel
• Tank Capacity: 500 to 1000 L

Volume: 20ml to 10liters. Inner Ø from1/8" to 5" Working temperature:  up to 900°C. Working pressure: 10 to 1000 bar.

Multi-phase reactor systems are widely used in fine chemicals, oil and gas, petrochemical refineries,pharmaceutical, pesticides and in research centers.

Internal Cooling Coil, Sparger, Vent Valve, Liquid Powder Charging Vave, Flush Bottom Valve, Baffles, Light & Sight Glass, Manhol.

Fixed Bed Reactors, Supercritical Fluid Extraction, shaker hydrogenator

Fixed Bed Micro Reactor, Circulators & Cryostat

Submerged Aerobic Fixed Bed Reactors, Pool pumps And Multiport Valves
