Flange Yoke Dealers

 commonly used on small dodge applications applications..

• Material: Metal
• Thickness: 4-6mm
• Weight: 1kg, 2kg
• Finishing: Non Polished
• Feature: Durable, Fine Design, Good Quality
• Head Shape: U Shape

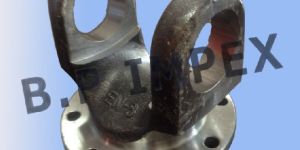

We manufacture and supply Flange Yokes of different types including 1210, 1310, 1410, 1259 Series and from 1710 series 1279, 749, 779, etc. We supply various other types of Flange Yokes manufactured from C. I. Casting and Steel Forgings as per customer’s requirement. The Flange yokes are used for Heavy Duty Vehicles and Trucks Drive Shaft assembly (Ashok Layland, TATA Motors).

• Material: Carbon Steel
• Size: Standard
• Application: Backhoe Loader
• Color: Silver / Black
• Property: Precisely Machined
• Condition: New

Flange Yoke offered by us is widely demanded by the customers due to its rugged design, fine finish and high tensile strength. The name of our company surfaces prominently among the eminent Manufacturers and Suppliers of Flange Yoke from Sonepat, Haryana. The Flange Yoke that we offer are rigorously tested on all the predefined parameters of quality set by the industry.

• Vehicle: 1613

• Power: 20 HP

Single point cutting by a flange facer is not only time consuming, but also it needs a separate machine for drilling the pitch drill holes. Conventionally, this is done by laborious, manual blue-matching, using hand grinders. Conventional flange facers, cannot do the drilling operation. A single flange facer cannot face all the sizes of flanges upto diameter 6.5 meters or even above. Radial Arm Mill, Drill Centre, also called Flange Miller, can radially mill on the diametrical surfaces of dia 6.5 meters flanges and can produce close pitch drills, effortlessly and in considerably less time.Central rotary drive unit of the radial arm mill, drill center consists of extra heavy duty, preloaded pairs of taper roller bearings or slew bearings.It is possible to use the same machine for radially grinding the top flange as well by mounting a cup wheel grinding attachment on the opposite, counter balancing ram, which is meant for counter balancing milling ram. CONSTRUCTION & FEATURE Though popularly named “Flange Miller”, more aptly called “Radial Arm Mill, Drill Center” Flange Miller consists of a Central Post, on which a rotary drive unit is located. Cross axis arm & counter balancing arm are located on the sides of the rotary housing. Cross traverse mechanism in the arm to position the milling head to the varying diameters of the flanges. 20 HP milling head is mounted on a vertical slide unit for setting the depth of cut. Different sizes of detachable center blocks to suit to the varying lengths/heights of the flanges. Central rotary drive unit of the radial arm mill, drill center consists of extra heavy duty, preloaded pairs of taper roller bearings or slew bearings. Common VFD controlled cross feed traverse and vertical feed traverse. Rotary drive through a AC servo motor for repeatedly accurate pitch selection in drilling, after radial milling through HMI (Human Machine Interface). A unique, self-adjusting, self-compensating counter balancing mechanism for continuous balancing for the moving ram. While the rotary drive bearings are lubricated for life, the other rotating and sliding surfaces are continuously lubricated at regular intervals by an automatic or manual lubrication system. It is possible to use the same machine for radially grinding the top flange as well by mounting a cup wheel grinding attachment on the opposite, counter balancing ram, which is meant for counter balancing milling ram.

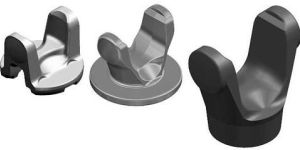

We are renowned as one of the most reliable Flange Yokes Exporters from India. The unmatched quality and inexplicable performance of the Flanged Yoke has played a vital role in the enhancement of the demand. Moreover, the Forged Flange Yokes are also available in varied specifications to meet the requirements of the applications.

We offer high quality carbon & alloy steel forgings in the market. They are exceedingly used in various industries like automotive, earth movers, railway, defense, agriculture and oil field sector. Due to highly advanced methods of their production, our forgings components are not only remarkable for their effectual use but also for their most competitive price Further, we are considered to be one of the most trustworthy suppliers of steel forging in the business. We are also reckoned as a predominant carbon and alloy forgings manufacturer of the country.

• Material: Mild Steel
• Country of Origin: Made in India
• Packaging Type: Box
• Usage/Application: Automotive

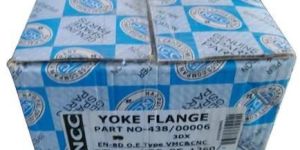

• Part Number: 438/ 00006 3DX

We are offering flange yokes. we offer you highest quality flange yokes that are no where in the market other than us. We serve flange yoke and all other yokes flange yokes that are highly used in industrial appliances. Our flange yokes have been composed of nicest raw materials that founds it interminable durability. Also, we manufacture flange yokes according to your specifications and requirements. We are proud to tell you that we are amongst most cherished adjustable yokes manufacturers and suppliers in india.

• Material: Stainless Steel
• Thickness: 4 Mm
• Type: Flange Yoke
• Usage/Application: Automotive
• Grade: SS 304
• Finish: Polished

• Material: Alloy Steel
• Vehicle Type: Four Wheeler
• Features: Corrosion Resistance
• Finish: Polished

Flange Yoke, Automotive Flanges, Agricultural Equipment, Generator

Flange Yoke, Auto Parts, clutch hub sleeve, stg sector shaft, gear retainer

Flange Yokes, Automotive Components, Ductile Iron Castings

Flange Yokes, Front Wheel Hubs, twin calipers, casting blocks, end yokes

Flange Yoke, Connecting Rods, Crank Shafts, Forks, Rocker Arms, Yoke Shafts
