Flat Lapping Machine Dealers

• Features: Table Top Versions, Pedestal Versions etc.

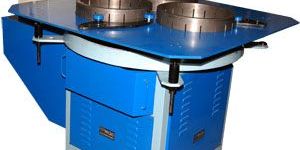

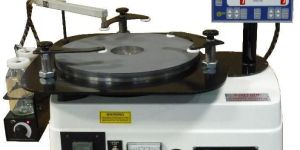

Single side lappingpolishing are versatile precision machines designed to produce lappolish flat surfaces within a flatness of 1 light band (0.3 micron) or less and surface finish of 0.02 Ra with absolute uniformity on almost all types of hard materials. Lappolish plates revolves at slow speed. The conditioning rings held in position on the machine plate also rotate freely. The work pieces are kept freely inside conditioning rings with the surface to be lapped facing the machine plate. The sharp abrasive particles which are continuously fed on the machine plate get charged in the plate and cuts the material from the surface of the work piece transferring the plates flatness on to the work piece surface.The Surface finish produced on the work piece depends upon abrasive particle size used in the process.

We are offering flat lapping machine, our product enjoys good popularity in the market due to our more involvement and skill at different stages of manufacturing of our products and precise study of the needs of our customers. Our lapping & polishing machine has been rigidly constructed and designed and gives clean functional lines, vibrational absorption, stability and easy maintenance. Components and integral items conform to is specifications.

• Condition: New
• Automatic Grade: Automatic
• Motor Spindle Speed: 1440 RPM
• Motor HP: 1/4 HP
• Electric Supply: 220 Volts, 110 Volts
• Height x Width x Depth: 18” X 15.5” X 12”
• Lap size: Up to 8”
• Arbor: ½”

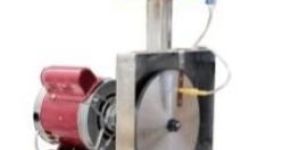

FEATURES This flat lap machine is a full-featured, vertically oriented machine best suited for fine grinding of gemstones. The lap machine is fitted with a high-torque, powerful 1440 RPM direct-drive motor of 1/4 H/P. It is suitable for heavy-duty grinding of all types of gemstones and rocks. It is composed of a steel body, which makes it impact resistant and sturdy. The machine is designed to fit up to 8” grinding lap with 1/2” arbor hole diameter. It utilizes diamond grinding laps, which are easily interchangeable as per the grinding applications, ranging from rough grinding to fine grinding. You may explore the most suitable Diamond grinding laps here. This lap machine comes integrated with a functional drip water system to facilitate a smooth and heat-free grinding process.  The water system of this machine has a flexible valve to regulate and direct the flow of water as per requirements towards the grinding area. The design of the machine allows trouble-free access to the outermost edges of the grinding laps for optimum utilization.   ADVANTAGES The machine is designed in a unique low profile, which can be easily set up on a workbench table. This allows you to grind your stones with ease and perfection. It comes completely set up with all the necessary equipment parts and doesn’t require any assembling. It is a versatile machine as it can accept any other grinding laps, provided the grinding lap has the same dimensions. The water reservoir can hold enough water to allow you to work uninterrupted for several hours. You won’t have to worry about refilling it continuously. Also, the water coolant system means that there will be no oily mess, no heat build-up, and no dust particles while working. This lap machine is characteristic of being durable and light-weight, making it easier to work from anywhere and anytime. The experience of working with this flat lap machine is an easy affair with convenience, uncomplicated functions, and effortless maintenance. This flat lap machine is bound to provide you many years of unfailing quality service.   WHAT’S INCLUDED Complete machine with motor Water system Toolkit   SPECIFICATIONS Height x Width x Depth: 18” X 15.5” X 12” Motor Spindle Speed: 1440 RPM Motor HP: 1/4 HP Lap size: Up to 8” Arbor: ½” Electric Supply: 220 Volts, 110 Volts   USER GUIDE Before you begin working, you should fill in the machine’s water container up to the top. Do not run the water drip until the machine’s started as water may percolate to the motor shaft and ruin it. You should always thoroughly clean your stone and machine after every stage or when changing grits of grinding laps. It avoids contamination of the stones as stray particles may lead to scratches. You must work in clean environment conditions to stay away from dust particles  It is necessary to select the right grit lap for getting the grinding job perfectly done on the machine. Whenever you’re grinding using a lap machine, pressure or force should not be applied on the lap. The process of grinding should be steady and smooth. Otherwise, it may slow down the rotation speed of the lap and as a result may lead to flat spots on the stone. Ensure that the power supply is disconnected before changing to a different grit size grinding lap on the flat lap machine. This flat lap machine accepts laps that need to be run with a dewy thin layer of water to reduce the frictional heat while grinding gemstones. If you’re a beginner, then it is advised to mount the stone onto a dop stick for fine and safe grinding operation. However, if you prefer using your hand then it’s recommended to hold your gemstone with the first four fingers of the dominant hand. This will allow you to have more control while grinding.   WARRANTY & SUPPORT 1-year manufacturer warranty (Does not cover physical damage and consumables). Installation and operation support. Drop us an email at sales@jewelsntools.comor contact us from the website for any assistance. We’d be quick to respond and glad to help.   SHIPPING Time for shipping varies depending on the shipping region but usually, it takes a maximum of 5-7 business days to be delivered anywhere in the world, once it’s dispatched. It is usually dispatched within a week from the date of order. The machine is shipped in a sturdy box packing. The shipping of the flat lap machine is insured.  The machine is manufactured and shipped from India. For International customers, the fees on import duty or customs charges will not be incurred by us. Every country’s customs policies are different and must be considered by the customers on their own.

• Driven Type: Pneumatic, Electric
• Color: Light Green, Sky Bue, White
• Condition: New
• Automatic Grade: Semi Automatic, Manual, Automatic
• Power: 1-3kw, 3-6kw, 6-9kw, 9-12kw
• Certification: CE Certified, ISO 9001:2008
• Voltage: 220V, 380V
• Type: Lapping Machines
• Weight: 1000-2000kg, 100-1000kg,2000-3000kg,3000-4000kg,4000-5000kg
• Country of Origin: India

Indicatives list of Components & Materials that can be Lapped : Automobile ComponentsGas WafersSwitchgear ContactsBearing RollersGlass ComponentsSemiconductorsChemical SealsGlass SealsSewing Machine PartsCeramic ComponentsMetallic ComponentsTools & Die ComponentsE or U CoresMechanical SealsWater Pump SealsFerrite CoresNon-metallic ComponentsValve WedgesFerrite MagnetsSubmersible Pump Bearings components.Valve BodiesWatch Cases, Dials.

• Features: Long functional life.

The support of our adroit professionals, we provide our clients a high quality flat lapping machine that is used for polishing crystal components. Under the vigilance of proficient professionals, offered lapping machine is manufactured using superior quality components and advanced technology. Furthermore, this lapping machine is available in diversified sizes and designs to cater the needs of our clients. We offer this lapping machine to our clients at market leading prices.

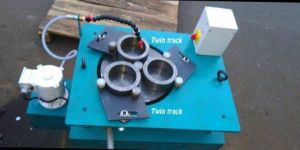

• Brand Name: Twin track
• Country of Origin: Made in India
• Diameters: 300 to 2500 mm
• Usage/Application: Lapping

Spindle, lapping plate, CONDITIONING RINGS, punching press

flat lapping machines, Lapping Machine Spare Parts

flat lapping machines, industrial lapping machines

Extreme Flat Lapping Machines, Single Side Lapping Machines, Training

lapping tools, Double Mechanical Seals, Fabricated Mechanical Seals

Flat Type Lapping Machine
