Flexible Rapier Looms Dealers

• Weight: 2700 Kg
• Voltage: 220 V
• Power: 1.8 Kw
• Application: Textile Industry
• Automation Grade: Automatic
• Brand: Paramountlooms
• Material: Mild Steel
• Machine Speed: 200 RPM
• Loom Dimension: 5700x1827x2100 mm
• Jacquard: Any
• Feeder: 2 Big Feeder
• Frequency: 50 Hz

• Automation Grade: Automatic
• Brand Name: Stark
• Machine Speed: 120
• Shedding: Jacquard Shedding
• Jacquard: 680 Hooks - 2688 Hooks (optional)
• Feeder: 2 Big Feeder & 4 Small Feeder (optional)
• Take-up: Mechanical Take-up / Electronic Take-up / Servo Take -up (optional)
• Beam Dia: 600mm 800mm (optional)
• Read Width: 190cm
• Weft selection: 6 mechanical color selector / 6 or 8 electronic color selector (optional)
• Let-off: Mechanical Let-off / ElectronicLet-off / Servo Let-off (optional)
• Drop Pin: 10000 pcs (optional)
• Main Shaft: 45mm
• Main motor: 2.2Kw
• Display Panel: Action
• Reed: 1 piece reed (as per customer requirement)
• Accessories: Cloth Roll, Half Gear, Gripper, Tapes, Oil Pump, Rapier Tape wheel (as per customer requirement)

• Automatic Grade: Automatic
• Voltage: 380 V
• Brand Name: Palod
• Material: Stainless Steel
• Frequency: 50 Hz
• Phase: Three Phase
• Motor: 2 HP
• Running Speed: 185 RPM

• Power: 2 KW
• Voltage: 220-240V
• Usage/Application: Weaving
• Automation Grade: Automatic
• Brand Name: Baba
• Machine Speed: 180 RPM
• Input Frequency: 50-60 Hz
• Material: MS
• Power Source: Electric

• Power: 2 HP
• Voltage: 415
• Automation Grade: Automatic
• Loom Dimension: 12 x 6 x 5 (LxWxH)
• Brand Name: ALT
• Machine Speed: 200 RPM
• Beam Flange Diameter: 18 INCH
• Input Frequency: 380
• Material: CASTING / M.S.
• Usage/Application: TEXTILE INDUSTRY

• Reed width(cm): 180   200   230   250  280    330   340   360
• Speed (R.P.M):   210-130
• Weft selection: 6 Colors
• Yarn count: Cotton 7-60Ne、Wool 12-100Nm 、Chemical fabric 100-650D
• Dia.of warp bea  (mm): Φ600
• Dia.of rolling-up(mm): Φ400
• Heddle frame: 16pcs
• Insertion rate(m/min): 300-400
• Electrical control: P.L.C
• Motor power(KW): 1.5-1.8KW
• Weight(kg): 1700-2200
• Overall size(mm): 5400x1827x2120mm  (330cm)

• Brand Name: Rapitex

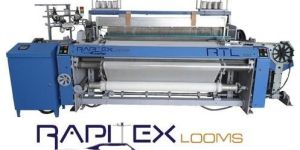

We offer Flexible Rapier Loom. Staying true to the philosophy of �Rapier�, RTL-250 Flexible Rapier Loom offers unparalleled versatility when it comes to yarns. From the finest counts of filament to the thickest Industrial yarns, RTL-250 Rapier Loom can handle anything thrown at its negative rapier head. The soft-pick gear system enables smooth transition of even highly fancy yarns like embroidery and slub. What really separate RTL-250 Rapier Loom's mechanism from others is that it has been well proven to run even the SILK yarns very smoothly. The kinds of fabrics that can be woven on RTL-250 Rapier Loom includes: Shir tings, Sarees & Dress-Materials (Count: 12-120�s , Denier: 20-500) Industrial fabrics: (Ti-record, Bolting Cloth, Denier: 400-1600) Fancy fabrics: (With Slub Yarns, Embroidery Yarns, etc.) Silk Fabrics Technical Specifications of the RTL-250 Rapier Loom: Standard Supply Working Width 165cm :: 170cm :: 190cm Machine Dimension in feet 12 * 5'6' :: 12'2' * 5'6' :: 12'8' * 5'6' Main Device 1.5 kw 6P Electro Magnetic Brake Motor RPM Upto 250 RPM Weft Insertion Speed Upto 450 mmin Shedding Device Positive by Tappet Cam Weft Selection Pick and pick selection by mechanical Weaving Selection Filament yarn 20 to 2000 denier Spun yarn 20 to 120's Controlbrake system Warp : infrared, Weft : Piezoelectric sensor Let off Mechanical Let off beam dia Upto 600 mm Take up Semi positive - 5 roll Take up beam dia Upto 400 mm Selvedge Independent Leno selvedge Selvedge cutter Mechanical Temple Ring type cylinder with pin.

Flexible Rapier Terry Towel Looms, Rapier Looms, Airjet Weaving Machine

Flexible Rapier Loom, Weaving machine, Power Loom Machine

We are remarkable entity, engaged in offering high quality flexible rapier weaving loom that is used to weave the fabric. The offered weaving loom is manufactured by our skilled professionals from premium quality components and sophisticated technology in line with industry norms. So as to ensure the quality, this weaving loom is strictly checked on various parameters. Clients can avail this weaving loom from us at nominal prices.

flexible rapier weaving loom, Sectional Warping Machine, jute loom

flexible rapier weaving loom, Jacquard Terry Towel, towel rapier loom

Flexible Rapier Loom

Flexible Rapier Loom, shuttleless loom, towel rapier loom

GKF 727 Eectronic Dobby Flexible Rapier Loom

Flexible Rapier Looms, towel rapier looms

Flexible Fiberglass Rapier Loom, towel rapier loom

flexible rapier weaving loom, Auton Stop Sarong Weaving Loom

Heavy Duty Flexible Rapier Loom, Electronic Jacquard HEJ11
