Footwear Testing Equipment Dealers

• Flexing Frequency: 140 10 cycles/minute
• Maximum Eccentricity: 80 mm
• Maximum Angle of Flexing of Shoe: 35° to 45°
• Number of Shoes that can be Tested Simultaneously: 2
• Motor: ¼ HP single-phase 230 volts AC
• Counter: Six digit electronic counter

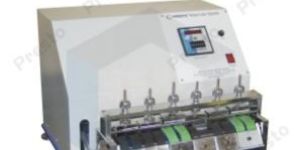

MyQ Shoe Flex Tester is perfect for the determination of full shoe ability to withstand the flexing stresses effects, produced on various parts of the shoe. Also, different parts like soles and uppers of a shoe are tested individually for flexing endurance with the use of Flexometer & Ross flex tester. The shoe flex tester provides results, which are associated to the real performance of the shoe in total.   MYQ Shoe Flex Tester simulates the outcomes of actual walking on the shoe. The specimen of test is held strongly at the toe part using an appropriate toe last and clamp, while the heel part has an individual last on which the shoe is strongly tied as in real use.   Upper-end of the last has an effective system to connect a suitable link mechanism. On a rotating block the mechanism is connected to an eccentric pin so as to provide the link, a to-and-fro movement. Both the length of the link and the eccentricity of the pin in the block are adjustable to offer different angles of deflection of the shoe, with respect to toe's flat portion.   There is a rotating block movement by means of two stage V belt, a motor and pulley arrangement. A digital counter provided with memory backup to record total number of test cycles, and key reset. This standard tester is effectively designed to test one pair of shoes at a time. Also the special models capable of testing two / four / six pairs of shoes are available.

• Flex Frequency: 45 cpm
• Tensile & Pressing Force: 300 N
• Torque: 2 Nm
• Specimen Thickness: ≤2.5mm (Sample clamps are needed for other thickness specimen)
• Flex Angle: 440o / 400o
• Horizontal Stroke: 155 mm / 80 mm
• Number of Stations: 4
• Number of Specimens: 1 ∼ 4
• Specimen Size: 280 mm x 200 mm
• Instrument Dimension: 760 mm (L) x 410mm (W) x 650mm (H)
• Power Supply: 220VAC±10% 50Hz / 120VAC±10% 60Hz
• Net Weight: 85 kg

• Type: Demattia Flex Tester
• Color: Blue and Grey
• Condition: New
• Country of Origin: India

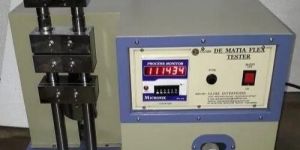

De-Mattia Flex Tester has 6 set of grips to hold test specimens (3 each in two tiers) with their holding faces lying in the same vertical plane. Holding one end of the test specimen in a fixed grip and the other end in a reciprocating grip provides the flexing and unflexing action. Paramount Demattia - Upper Flex Tester i 9™ is an ergonomically designed Equipment with sturdy mechanism to get Accurate & Reliable Results. It is used for the Assessment of flex crack resistance- Assess the overall appearance, considering all visible factors such as wrinkling, cracking, flaking and discoloration

• Flexing frequency: 200 or 140 cycles /minute
• Maximum eccentricity: 80 mm
• Maximum angle of flexing of shoe: 45° Number of shoes that can be tested
• Simultaneously: One pair (two shoes)
• Motor: ½ HP, single-phase, 230 volts, AC
• Counter: Six digit pre-set type electronic counter.

Product Description   The Shoe Flex Tester is used for determination of the ability of the full shoe to withstand the effect of flexing stresses produced on the different parts of the shoe. Although the various parts like uppers and soles of a shoe are tested separately for flexing endurance with the help of flexometer and Ross flex tester, the shoe flex tester gives results, which are more related to the actual performance of the shoe as a whole. The Shoe Flex Tester simulates the effect of actual walking action on the shoe. The test specimen is held rigidly at the toe portion using a suitable toe last and clamp, while the heel portion has a separate last on which the shoe is firmly tied as in actual use. The upper end of the sslast has an arrangement to connect a suitable link mechanism. The link mechanism is connected to an eccentric pin on a rotating block to give the link a to-and-fro movement. Both the eccentricity of the pin in the block and the length of the link are adjustable.

• Country of Origin: India
• Material: Mild Steel
• Application: Industrial
• Color: Grey
• Voltage: 220 V
• Finishing: Coated

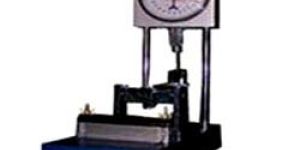

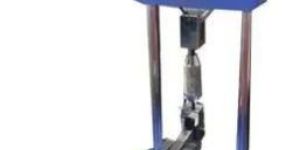

The strength of adhesion of a sole to its upper is determined by measuring the force needed to pull off the sole from the upper. A suitable last is placed inside the shoe, which is then placed on a straight edge acting as a fulcrum for applying load on the joint of the sole and upper. The maximum load the sole can withstand before coming off is determined and reported as the sole adhesion strength. This test can be carried out either at the heel or at the toe of the shoe.

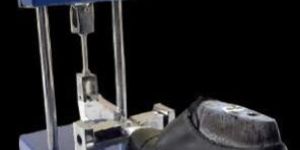

Digitial Sole Adhesion Tester -Digital Sole Adhesion Tester is used to test the strength of adhesion of a sole to its upper is determined by measuring the force needed to pull off the sole from the upper. A suitable last is placed inside the shoe, which is then placed on a straight edge acting as a fulcrum for applying load on the joint of the sole and upper. The maximum load the sole can withstand before coming off is determined and reported as the sole adhesion strength.

• Specifications: FDT-02
• Flex Frequency: 45 /minute
• Tensile : 300 N
• Torque: 2 Nm
• Specimen Thickness: ≤2.5mm (Sample clamps are needed for other thickness specimen)
• Flex Angle: 440° or 400°
• Horizontal Stroke: 155 mm or 80 mm
• Number of Stations: 4
• Number of Specimens: 1
• Specimen Size: 280 mm x 200 mm
• Instrument Dimension: 715 mm (L) x 415 mm (W) x 645 mm (H)
• Power Supply: 220VAC 50Hz / 120VAC 60Hz
• Net Weight: 85 kg

• Brand Name: Asia Vision
• Weight: 500 gm x 0 to 125 kg
• Material: MS or SS

• Unheated Cabinet : 6 Samples
• SE – 6 : 12 Samples
• SE – 12 : 24 Samples
• SE – 24 : 36 Samples

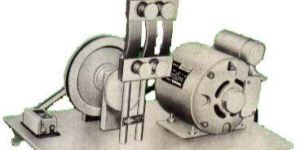

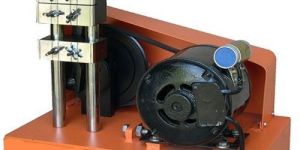

De Mattia Flex Tester, electrically operated with single phase motor provides information about the resistance of vulcanized rubber compounds, coated and treated fabrics to cracking when subject to flexing. Crack development in that part of the surface where stresses are set up during flexing, or if that part of the surface initially containing a crack, causes this crack to extend in the direction perpendicular to stress. This test also assesses the durability of material. The machine tests six specimens at a time.   STECH ENGINEERS Flexing Machines is used to test specially moulded samples for resistance to cracking or cut growth by repeated flexing. Flex testing is recommended when the flexing encountered in service is liable to simulate the action of the test. (e.g. tyre sidewalls). Cracking and cut growth increase with increasing cycles. The tester is stopped at intervals specified and the cracks evaluated. Two sets of grips on either side of the frame are reciprocated at constant frequency for a preset number of cycles controlled by a cycle counter. Samples are loaded so that they are flat when the grip are tightened and flexed but not elongated during tester operation. The range consists of 6 machines capable of handling 12, 24 or 36 samples in either an unheated cabinet or an oven with digital temperature control having a range of 60°C to 150°C.         Features   : Easy access cabinet or oven versions : Cycle counter fitted with 9 - 999,999 cycles allowed/test : Internal illumination fitted : 60oC to 150oC temperature range on oven versions : Motor cut outs fitted to both doors

• Application: Industrial Use
• Application: Industrial
• Features: Long functional life
• Advantage: Easy to Operate
• Speciality: Excellent Result
• Benefit: Excellent Result

• Color: Blue and Gray
• Material: Metal

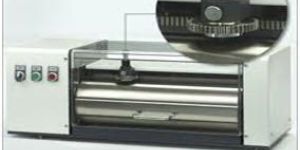

We also manufacture and supply a wide range of Footwear Testing Equipment’s which is extensively used in various footwear industries to test the quality of the leather and footwear. These are available in different dimensions and specifications that meet the individual requirement of our clients in the best possible manner. Furthermore, our range is well known for the quality and longer service life features. We offer these at competitive prices.

Wrist straps and ESD footwears are the first line of defence against electrostatic charge build up on the human body. They are designed to carry away this charge as soon as it is generated. At the same time the wrist strap/footwear must remain electrically safe for the user. Thus, it is important to test every wrist strap/footwear regularly. In order to protect sensitive electronic components, the maximum wrist strap resistance should not be more than 10 meg ohms and footwear resistance should not be more than 35 Mega ohms. On the other hand, the resistance should not be less than 0.75 Mohm as protection to the wearer from dangerous levels of voltage and current flow.  The wrist strap and the footwear tester checks these parameters under actual operating conditions with the strap on the wrist or footwear to the foot. It clearly indicates whether or not the wrist strap/footwear system is safe to use.ALSO AVAILABLE WITH FOOTWEAR RANGE UPTO 100M OHMS

• Power: 220 /110 V 50/60 Hz 110W
• Weight: 25 Kg
• Brand Name: Apple Electroniks
• Country of Origin: Made in India
• Dimensions: 240x180x480 mm (LxWxH)
• Item Code: LCT
