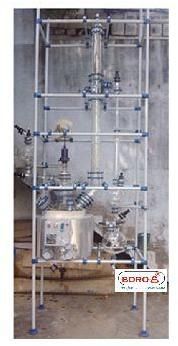

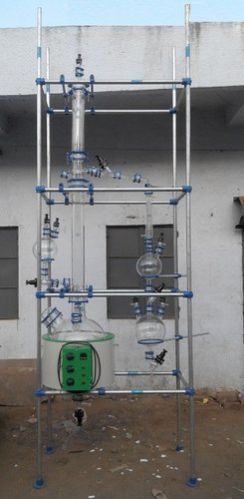

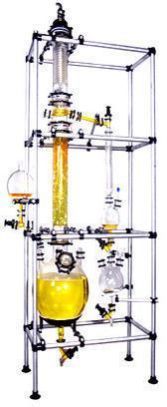

Fractional Distillation Unit
100,000 Per per unit
1 per unit (MOQ)
This is a general purpose batch distillation unit to be operated under vacuum. Heating bath heats and evaporates the content of the vessel. Vapours enter in to the packed column and get fractionated. Vapours of low boiling liquid enter into condenser, get condensed and collected into the twin receivers. From the final receiver distillate can be removed without breaking the vacuum. The unit is complete with a spherical vessel, drain valve, heating bath, thermometer pocket, liquid inlet, packed column, a coil condenser, product cooler, and twin receivers. UnitCat.ref. ReactorCapacity BathKW PackedColumn VapourLine CondenserHTA M² CoolerHTA M² ReceiverSize FDU 20 20 L 4.5 80mmX1m 80 DN 0.35 0.1 2L, 5 L FDU 50 50 L 6 100mmX1m 100 DN 0.5 0.2 5L,10L FDU 100 100 L 9 150mmX1m 150 DN 1.5 0.35 10L,20L FDU 200 200 L 12 150mmX1m 150 DN 1.5 0.35 10L,20L FDU 300 300 L 15 225mmX1m 225 DN 2.5 0.5 20L,50L FDU 500 500 L 18 225mmX1m 225 DN 2.5 x 2 0.5 50L,100L
Fractional Column Laboratory
250 - 385 Per piece
10 piece (MOQ)
Specifications: Sockets Cone Effective Length (mm) B19 B19 360 B19 B19 360 B24 B24 360
Best Deals from Fractional Distillation Unit

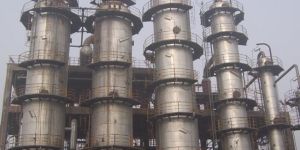

Fraction distillation system
350,000 Per piece
1 Piece (MOQ)
A fractionating column or fractional column is an essential item used in the distillation of liquid mixtures to separate the mixture into its component parts, or fractions, based on the differences in volatilities.VEPL deals in all types of Distillation as per client requirement. All material of construction available in this equipment.
Fractional Distillation System
Get Price Quote
1 Piece (MOQ)
Elevate your distillation processes with K-Jhil’s Fractional Distillation Unit – the pinnacle of precision and efficiency. Our advanced units utilize fractionating columns to meticulously refine liquid mixtures, achieving unparalleled separation even among components with closely aligned boiling points.Available in a range of sizes from 5 to 300 liters, our systems cater to diverse needs, offering both atmospheric pressure and full vacuum operations. Experience superior performance, durability, and cost-effectiveness with K-Jhil’s Fractional Distillation Machines – your trusted partner in distillation excellence.Salient Features : Distillation Flask : The liquid mixture is initially heated in a distillation flask, similar to simple distillation. Fractionating Column : This column is a crucial addition in fractional distillation. It contains a series of fractionating trays or packing material, providing multiple surfaces for vaporization and condensation. Vaporization and Condensation : As the mixture vaporizes and rises through the column, components with higher boiling points condense on the trays and then re-vaporize. This process occurs in stages along the height of the column. Gradual Separation : Components with lower boiling points rise more quickly and are collected at the top, while those with higher boiling points take longer to reach the top, resulting in a finer separation. Reactor 5pto 500 Liter Capacity : Unlock vast potential with our reactor, offering capacities up to 500 liters for expansive operations. ZERO Hold Up with Temperature Sensing Valve :Experience precise control and efficiency with ZERO Hold Up, complemented by Temperature Sensing Valve technology. Wide Range of Operation: -90°C to +250°C : Adapt to diverse needs seamlessly with a wide operational range from -90°C to +250°C, customizable upon request. Applications : Petroleum Refining : Separation of crude oil into fractions like gasoline, diesel, kerosene, and others. Chemical Industry : Purification of chemical substances with closely spaced boiling points. Laboratory Research : Essential for separating and purifying compounds in chemical research and pharmaceutical development. Chemical Purification : Used to obtain pure solvents or separate components of a mixture.
Fractional Distillation Unit
Get Price Quote
Fractional Distillation Unit
Get Price Quote
We are offering Fractional Distillation Unit which is typically used for only Distillation and Fractionation under vacuum or at atmospheric pressure. Typical unit has distillation vessel fitted in a Metal Heating Cooling bath and with a Packed column above Reflux divider and coil condensors are fitted on the packed column. Condensed material is either taken back to the vessel or to the receiver via product cooler.
0.0
View Profile
Fractional Distillation Unit
200,000 - 2,500,000 Per Piece
1 Piece (MOQ)
0.0
View Profile
Fractional Distillation Unit on Assembly
Get Price Quote
A famed name, the company is entrusted with a task of making available high quality lot ofFractional Distillation Unit On Assemblyly. Our organization has worked diligently to create a well-organized supply network. Thus, patrons can order the goods in wholesale and expect timely arrival of consignments. Technical Information : Lower than any other industrial glass Manufactured using the Borosilicate Glass 3.3 Abbreviation for the coefficient of linear expansion - (3.3 ± 0.1) x 10-6 K-1 Maximum working pressure for a given operating temperature is greater Since this glass expands less, the tensile stresses in the glass wall during heating are less High ability to thermal shock Special property of Borosilicate Glass 3.3, complemented by the use of other highly corrosion resistant materials such as PTFE and ceramics Sizes Available - DN25 to DN450 mm Raw Material Used - Borosilicate glass Special Features : Excellent corrosion resistance to very large number of chemicals, unmatched by other material Smooth pore free surface Clear visibility
0.0
View Profile
Fractional Distillation Unit
60,000 - 400,000 Per piece
1 Unit (MOQ)
0.0
View Profile
Fractional Distillation Unit
Get Price Quote
The distillation column designed to separate a homogenous mixture into its respective components. The highly efficient fractional distillation column can be designed in both standard and customized specifications. Fractional distillation is one of the highly efficient and accurate methods of distillation that has been used in industries since long back.
Fractional Distillation Unit
100,000 - 1,000,000 Per
1 Box (MOQ)
Scientific glass Pilot plant for chemical & Pharma Industries. Fraction distillation unit.
0.0
View Profile
Fractional Distillation Unit
Get Price Quote
10 Set(s) (MOQ)
we are offering Fractional Distillation Unit. This is essentially a compact batch-type fractional distillation unit in which the reboiler consists of a vessel mounted in a heating bath and with a packed column above. The vapour from top are condensed and can be refluxed as per requirement. The top product is sub-cooled and collected in receivers. The bottom product is finally drained from the reboiler through a drain valve. The unit is available in vessel sizes of 20, 50,100 & 200L, 300L and is suitable for operation under atmospheric pressure and full vacuum.
0.0
View Profile

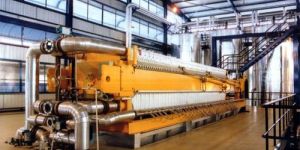

Fractionation Plant
Get Price Quote
To produce high quality olein and stearin Glamptech Dry Fractionation plant is custom designed to allow you to achieve selective crystallisation of different tryglycerides in edible oil. Glamptech Dry Fractionation plant you can count on producing stable and filterable crystals giving you a product to fit your standards and quality requirements. Glamptech Dry Fractionation system is designed to process crude, pre-treated or RBD palm oil. This makes the entire process simpler with no environmentally hazardous waste produced. The process consists of 5 stages. Heating the feed oil Formation of crystal by controlled cooling Crystal growth Maturation of crystals Filtration to separate olein and stearin Crystallizers are fitted with double row of circular cooling coil and a variable speed multi-stage agitator. Crystallizer are designed with a large cooling surface area, this ensures that the build-up of crystals does not occur. The variable speed agitator contributes to gentle agitation, this keeps the oil mass moving without allowing stagnation close to the cooling coil. If you wish, Glamptech can also equip your Dry Fractionation system with a computerized distributed control system tailor-made to your requirements. This combines all operations into a fully automated unit. We can accomplish filtration either with a Rotary Drum Vacuum filter, or a membrane filter press.
0.0
View Profile
Fractionation Plant
Get Price Quote
01 Piece (MOQ)
It separates fats and oils into more solid and more liquid fractions with respect to their different melting points.
0.0
View Profile
Fractional Distillation Unit
Get Price Quote
Description : This is essentially a compact batch-type fractional distillation unit in which the re-boiler consists of a vessel mounted in a heating bath and with a packed column above. The vapors from top is condensed and can be refluxed as per requirement. The top product is sub-cooled and collected in receivers. The bottom product is finally drained from the re-boiler through a drain valve. The units are available in vessel sizes of 20,50,100 & 200L, and 300Ltr. is suitable for operation under atmospheric pressure and full vacuum.
0.0
View Profile
Fractional Distillation Unit
Get Price Quote
Study of packed distillation column system, Study of adverse effects on plant control (distillation control) with,change in operating parameters (loss of reflux, changes to feed rate, loss of vacuum, changes to base temperature, etc). Plant Details:Operating Temperature: 150°C, Operating pressure: 3.5 bar to full vaccum,Unit Included: Feed vessel, preheater, distillation collumn with packing (MOC:SS316), thermosiphon reboiler, reflux drum with reflux pump, cooler, vacuum seal pot and vacuum pump. DCS based control System
0.0
View Profile
Fractional Distillation Unit
Get Price Quote
0.0
View Profile
Fractional Distillation Unit
Get Price Quote
Fractional distillation unit, We also manufacture the equipments and control systems for sugar industries mainly mill automation, boiler instrumentation, prd stations and embibition water control system.
0.0
View Profile
Fractional Distillation Unit
150,000 - 350,000 Per Unit
0.0
View Profile
Fractional Distillation Unit
Get Price Quote
All glass water distillation is a unique & intelligent water distillation unit.The heating element is ceramic bobbin heater with Nichrome heating wire. The distillates of unit have very low conductivity(less than 1 mho).The company has two model viz, 1.5lthr distillation water output for continuous run & 4.5 litershr capacity.The unit has unique feature for automatic water level maintain by solid -state device.It gives audible alarm when the water level is sufficient.Both the unit comes in 3phasesingle phase electrical poer supply model.The whole unit of the system is made of stainless steel. The unit is totally hassle & maintenance free with intelligent & user Friendly.
0.0
View Profile
