FDM (Frequency Division) Multiplexing & Demultiplexing SA-250

Get Price Quote

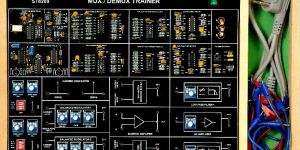

FDM Multiplexing - This has two DSB-SC balanced modulators and two channel OP-AMP based linear multiplexer wired as Frequency Division Multiplexer (FDM). Every DSB-SC Balanced modulator circuit has IC 1496 wired with RC components to provide the DSB-SC Balanced AM output for the applied modulating and carrier input signal. The modulating inputs are processed through two DSB-SC Balanced modulators for the applied respective carrier inputs to provide two DSB-SC outputs which is then applied as an input to linear FDM modulator circuit to output two channel frequency division multiplexed outputs. FDM Demultiplexing - This has two channel FDM Demodulator and two DSB-SC Balanced Demodulators with low pass filter wired as FDM Demultiplexer. Every DSB-SC demodulator has IC 1496 wired with RC components and filter network to provide the demodulated outputs for both channel inputs. The applied two channel FDM input is separated by FDM demodulator and then these signals are processed through DSB-SC balanced demodulators to recover the multiplexed signals. on board Sine wave (modulating & carrier) signal generators (4Nos) with variable  frequency upto 100KHz and amplitude. FDM Channels two analog, facility to control the modulating inputs and carrier inputs of both the channel, maximum modulating frequency 10KHz, maximum carrier frequency 100KHz, Bandwidth 3KHz, Built-in fixed DC ±12V/1A Power supply and maximum test points.  Objectives : To study the concept of Frequency Division Multiplexer (FDM). To study  the operation of two channel  FDM. To study the DSB-SC Balanced Modulation. To observe and note the DSB-SC outputs for the applied modulating and carrier inputs. To observe and note change in FDM output w.r.t. change in channel inputs.  To study the concept of Frequency Division Demultiplexing. To study the operation of FDM Demodulator. To study the DSB-SC Balanced Demodulation. To observe and note the demodulated outputs for the applied FDM inputs. To observe and note the change in demodulated outputs w.r.t. channel modulating inputs. Accessories Included : Set of Patch Cords, Operating Manual.

FREQUENCY DIVISION MUX

Get Price Quote

Features: Two Nos. of Sine Wave generators provided from 200Hz to 10Khz Fixed Carrier Sine Wave Generators of 100 KHz and 200 KHz. On-board features Two Nos. of DSB-SC Modulator & Two Nos. of Balanced De-modulator On board Summing Amplifier & AC Amplifier Provided Two 2nd order Butterworth Low pass filter with cut off frequency of 10 KHz.

Frequency Division Multiplexer

Get Price Quote

• Weight: 1.8 KG.
• No of Channel: 8 separate channel with individual adjustment of delay and gain control.
• Display: LCD Display 16 * 2 Alphanumeric for indication of parameter value.
• Gain: Adjustment from -10dB to 30dB in step of 1db increment for each channel.
• Delay: Adjustment from 0 to 99mm in step of 1mm increment for each channel.
• Memory: 10 calibration set-up can be store/recall.
• Operating Mode: Factory set T+R / T-R internally selected.
• Channel Status Indication: 8 LED's for indication of on/off status of channel.
• Keyboard: Sealed membrane keyboard with direct access key for channel selection.
• Battery: Li-Ion battery pack 14.4VDC, 4Ah, gives 8 hours continuous operation from fully charged battery. Full charging is done within 4.5 hours.
• Operating temperature: 0 to 55 C.
• Dimensions: 152 x 255 x 70(HxWxD).

Frequency Division Multiplexer

Get Price Quote

• Weight: 4.0Kg Approx
• Power requirement: 220 VAC ±10%, 50Hz
• Standard Accessories: PowerChord, Patch Chords & Instruction Manual

Frequency Division Multiplexer

10,250 Per Piece

• Model: ST 8209
• Power Consumption: 3 VA approximately
• Power Supply: 230 V 10 %, 50/60 Hz
• Test points: 30 nos
• Inter connections: 2 mm Banana Sockets
• Audio Output Amplifier: Output Amplifier with a gain of 20
• Low Pass Filters: Second Order Butterworth filters with a cut off frequency of 10 KHz
• Modulator / Demodulator: DSBSC Modulator/Demodulator
• Audio Input Amplifier: Gain of 100 (approx.)
• Features: A self contained Trainer, Functional blocks indicated on board mimic, Input-output and Test Points provided onboard, Built in DC Power Supply
• Warranty: 2 Year

Impulse & Frequency Division Multiplexer

Get Price Quote

Impulse & Frequency Division Multiplexer, Safety Bolts

Frequency Division Multiplexer

Get Price Quote

Frequency Division Multiplexer, 20W Led Tube Light, microprocessor

Frequency Division Multiplexer/Demultiplexer

Get Price Quote

Frequency Division Multiplexer / Demultiplexer

Frequency Division Multiplexer

Get Price Quote

Frequency Division Multiplexer, Wireless Network Antenna

Frequency Division Multiplexer & Demultiplexer

Get Price Quote

Frequency Division Multiplexer & Demultiplexer, DIGITAL LOGIC TRAINER
