Frequency Meter Dealers

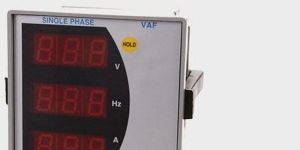

• Supply: 1 Phase 230 V AC, 50 Hz
• Cutout dimensions: 92 (W) X 92 (H) mm
• Over Voltage: Range-210V-270V, Default- 260V.
• Dimension: 96(W) X 96 (H) X 80(D) mm
• Display: 3 digit 0.5 7 sec LED
• Under Voltage: Range-170V-120V, Default- 170V.
• Over Load: Range-1.0A-999.9A, Default- 10.0A.
• Over Voltage Sense Delay: Range- 1 sec-60 sec, Default-2 sec.
• Under Voltage Sense Delay: Range- 1S-60S, Default-2S.
• Over Load Sense Delay: Range- 1 sec-60 sec, Default-2 sec.
• Resolution: 1V For Voltage 0.1 HZ for Frequency , 1A For current >=100& 0.1 A For current < 100.
• CT Ration: Settable 30A/5A to 999A /5A, Default- 50A/5A.

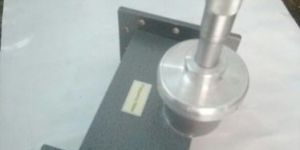

Striving hard to deliver the exceptional product range that includes WR284 Frequency Meter, we are a prominent Supplier in the market. In our warehouse, we store the entire lot under a safe environment and our unit is facilitated with all required amenities ensuring complete safety of the products from different kinds of damages. Features: Precision made User-friendly interface High endurance

• Automatic Grade: Automatic
• Power Source: Electric
• Type: SELF POWERED
• RANGE: 30.0 TO 70.0 Hz,
• DISPLAY: 3 DIGIT , 7 SEGMENT LED DISPLAY,
• POWER SUPPLY: 230 VAC / 50 HZ
• SIZE: 96(w)* 48(h)* 110(d) mm (cutout - 92*46 mm)

• Voltage Range: 300 V / 600 V AC
• Dimension(mm): 96 by 96 ( Front) . 65 ( Depth) & 48 by 96 ( Front) . 110 ( Depth)

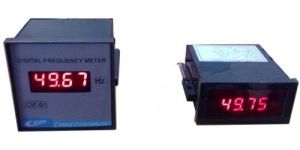

Frequency Meter Display : 4-Digit bright red seven segment display, Measurement : Zero crossing based., Microcontroller Based Accurate and Reliable., Accuracy : + 0.05 Hz, Voltage Range : 300 V 600 V AC, Input voltage may vary from 20 to 120% of nominal voltage. Aux. Supply : 230V + 20% 110V + 20% AC, Dimension(mm) : 96 by 96 ( Front) . 65 ( Depth) & 48 by 96 ( Front) . 110 ( Depth).

MFC - 4 is a new generation of digital panel meters, utilizing the latest microcontroller technology. It computers frequency by very precise cycle width time measurements, also it has an elaborate noise discrimination algorithm. The instrument can be connected by an optional RS-485 (MODBUS - RTU) output. Thus it can be used as a component of a data system. MFC- 4 is precision instrument finding applications in Power Houses, Labs, Test Benches etc. The Instrument uses very high professional grade components offering unsurpassed reliability.

DIGITAL LINE FREQUENCY METER (4 DIGITS WALL MOUNTING), Slide Box

• Feature: Durable, Light Weight
• Color: Back Cover: Black Front Cover: Smoke Grey
• Model: FPM-430
• Measurement Type: Frequency Measuring
• Range: 40 to 65 Hz
• Mounting Type: Panel Connections Terminal Connectors
• Display: 3 X 14.2mm, 7 Segment White Display
• Power Input: 240 VAC, ± 20%, 50/60 HzInput Type
• Input Type: Frequency Signal (AC Type)
• Resolution: 0.1 Hz
• Accuracy: ± 0.3 Hz
• Housing Back Cover: ABS Plastic
• Front Cover: Polycarbonate

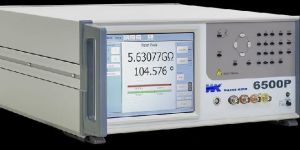

Overview Accuracy and versatility makes the 6500P Series HF LCR Meters the ideal choice for many different tasks and applications in manufacturing and test. The wide range of frequency specifications means that a model can be selected that best meets application requirements and within budget. High measurement accuracy Capacitance, inductance and impedance basic accuracy is an excellent ±0.05%. Dissipation factor accuracy is ±0.0005 and the quality factor accuracy is ±0.05%. Variable drive and bias levels AC drive levels up to 1V or 20mA can be selected to evaluate components in realistic operating environments. The /D1 DC bias option provides 0 to +40V dc bias voltage and 0 to +100mA dc bias current while the /D2 option provides -40V to +40V dc bias voltage. External control The GPIB interface is used to control the instrument and read back measured values for applications such as quality control or for archiving purposes. An Ethernet interface similarly allows the instrument to be controlled and to send out data – allowing it to be integrated into many test environments. Wide range of interfaces An external monitor or projector may be connected to the instrument. The ability to provide a large screen display is invaluable in production environments or for teaching and training. Instrument control from both a keyboard and mouse is available. Any keyboard or mouse, with either PS/2 or USB interfaces, can be simply connected to provide an alternative method of instrument control and operation. Data storage and retrieval All measurement and setup data can be stored using the Ethernet interface or a USB flash memory (supplied as standard). Setup data Up to 20 instrument setups may be stored locally for each mode. Bin handling The /B1 option (non-isolated 5V) or /B2 option (isolated 24V) signals are available through a 25-way D-type connector. 10 bins can be set using absolute or percentage limits. Printer outputs Hard copy printouts can be obtained in a number of ways including direct to an HP-PCL compatible graphics printer or Epson compatible text/ticket printer. A networked HP-PCL compatible printer may also be used via Ethernet connection. Component connections Four front panel BNC connectors permit three or four terminal connections with the screens at ground potential. The 1J1011 component fixture, supplied as standard, ensures optimum performance when measuring a wide range of components of leaded components and devices. 1J1012 (2 Terminal) and 1J1014 (4 Terminal) fixtures allow connection to surface mount devices. Protection against charged capacitors High precision measuring instruments can be damaged by charged capacitors which can cause costly repairs and unacceptable downtime. All the models in the range incorporate protection against charged capacitors. Comprehensive and precise component tests at higher frequencies The 6500P series capabilities are best summarised by “Comprehensive and precise component tests at higher frequencies”. The instruments are the perfect solution for those who have demanding component measurement needs.   Key Features Precise high frequency impedance measurements Characterize components from 20 to 120 MHz Wide range of models with maximum frequencies from 5MHz (6505P) to 120MHz (65120P) 0.05% basic measurement accuracy Comprehensive measurement functions 0 to +40V DC bias voltage and 0 to 100mA DC bias Current (Option) ±40V DC bias voltage (Option) Easy to use with large TFT touch screen Clear graphic displays aids measurements Resonance Search Intuitive user interface Fully programmable over GPIB Keyboard and mouse optional control Competitively priced

• Type: Frequency Meter
• Weight: 100-200gm, 200-300gm
• Color: Brown, Grey, White
• Voltage: 3-6VDC, 6-9VDC
• Application: Frequency Monitor, Indsustrial Usage
• Display Type: Digital
• Frequency: 50Hz-65Hz
• Automatic Grade: Automatic, Fully Automatic, Manual, Semi Automatic
• Body Material: Aluminum, Brass, Cast Iron, Plastic
• Power Source: Electric
• Feature: Accuracy, Durable, Light Weight, Lorawan Compatible, Multi Jet

As a known name, we ensure safe and timely delivery of the orders at any desired Pune(India). We keep a stern quality check on the various stages of designing and manufacturing or be it sourcing of raw material as well. We make certain that the materials used are of high quality and standard.

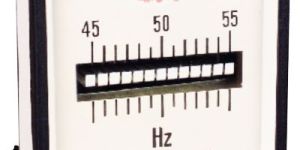

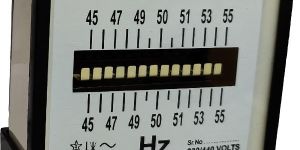

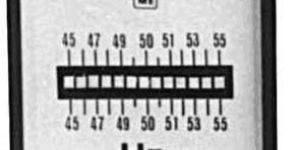

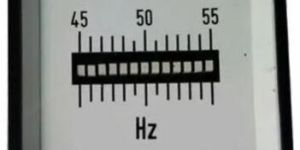

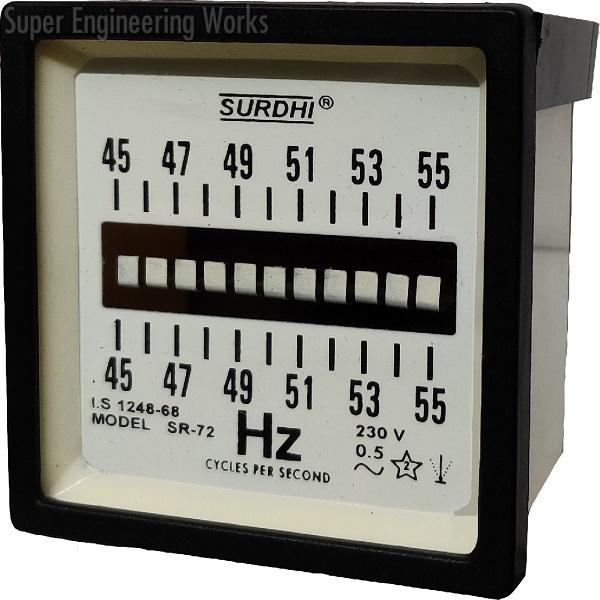

FM48, FM72, FM96 & FM144 Frequency meters measure frequency in the range of 45 to 450Hz. For maximum accuracy, the essential measuring range is obtained by suppressing unwanted frequency span. It is housed in UL 94 V-0 approved polycarbonate case and can be mounted in Mosaic mounting.

we are engaged in manufacturing and supplying a designer range of frequency meters, which are precisely engineered by our expert engineers. We develop these frequency meters from high grade raw materials sourced from our certified vendors. With the availability in various technical specifications these frequency meters are available in various measurements. Our products are widely used in various industrial and electrical purposes. features: flawless range superb quality optimum performance

• Country of Origin: India
• Voltage: 6-9VDC
• Display Type: Digital
• Frequency: 50Hz-65Hz
• Automatic Grade: Automatic
• Power Source: Electric
