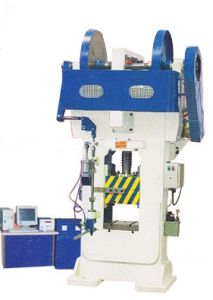

Friction Screw Press Dealers

• Brand Name: PARRYTECH
• Power Source: Hydraulic
• Warranty: 12
• Automation Grade: Automatic
• Model Name/Number: 02
• Phase: 3

• Approx. Shipping Volume (m3): 2.75,3.0,3.50,5.00
• Net Weight (kg.): 1200,1500,2500,3500
• Size of Table (mm): 325 x 350,325 x 400,430 x 470

These Friction Screw Presses are preferred for Hot Forming (Forging) and Cold Coining, Stamping, Embossing, Sizing non-ferrous metal,The press body is of steel welded construction, one piece box type design, The screw is made of high quality alloy steel and is heat treated to give hardness and elasticity, The connected flywheel accelerates at the start of working stroke and is braked to a stand still by the actual forming process. Forging accuracy is greater.

• Material: Mild Steel
• Driven Type: Electric
• Color: Blue
• Condition: New
• Automatic Grade: Manual
• Application: Industrial
• Voltage: 220V

This Screw Press is also known as Forging Presses or Screw Presses. These screw presses are specially designed to make bolt head of any kind of Nuts, Rivets, Motor Parts Axle half shaft, Engine valve and non-ferrous forging. Features Vincent Presses are screw presses with friction drive on which the forging blow takes place in an upward direction, that is, from bottom towards top. On machines employing the Vincent principle, the screw nut is positioned in the top cross head of a frame type ram. Thus Ram is moved upwards in axial direction by rotation of longitudinally fixed screw. The bottom die of the forging tools is secured to the lower crosshead of the Ram while the top die is fitted to a fixed bridge which is the part of the machine frame. The forging forces do not act on the machine frame but are sustained by the Ram. Ejector is provided at the lower part of the Ram.

• Type: Screw Press
• Certification: ISO 9001:2008
• Weight: 700-800kg
• Color: Grey
• Condition: New
• Automatic Grade: Automatic
• Warranty: 1year
• Country of Origin: India
• Brand Name: Basant
• Material: Steel Fabricated
• Name: Friction Screw Press
• Product Name: Downstroke Type

HP Singh Machinery Pvt. LTD is a renowned manufacturer, supplier and exporter of Friction screw presses. The Screw is made of high quality alloy Steel and is heat treated to have great hardness at the same time great elasticity. Commonly used in hot forming (forging) and cold coining, stamping, embossing, sizing non-ferrous metal. We have been providing quality machines to our clients at the most reasonable prices.

• Automatic Grade: Automatic
• Material: MS
• Brand Name: Krishna
• Color: Green
• Capacity: 30-350 Ton
• Usage: Industrial Grade

We are the leading supplier of this products.

• Type: Screw Press
• Voltage: 220V
• Condition: New

Being amongst the foremost Exporters and Suppliers offering Friction Screw Press, our prices are the best in India and overseas. We only source those Friction Screw Presses that comply with the industry guidelines. They are appreciated for efficiently functioning in pressing of various refractory materials. Moreover, we supply them in timely manner owing to our efficient logistics around the globe.

We are offering friction screw press for refractory. 1.cast steel cross beam.\r\n 2. Cast steel fly wheel.\r\n 3. Plunger with replaceable gunmetal liners.\r\n 4. Spindle from tested miled steel is manufactured to perfectly match with the gunmetal nut to ensure smooth operation.

• Features: Easy to operate, Optimum performance , High strength .

Cold forging for thin plate. General warm and hot forging. Finishing process for powder compacting products. Straightening. All steels (incl. stainless steel),aluminum(incl.A4000),titanium,magnesium,brass,copper,brick,tile,etc.Presses: Servo Motor Driven model ZES 100~1600 Ton, High Performance Friction Screw Presses model AF-AB AFB AFC 30 ~500 Tons, Super High Speed Friction Screw Presses model BF 150~400 Tons, Double Screw Type Friction Screw Press model ZFB 150~500 Tons, Vincent Type Friction Screw Press model VF 80~1250, High Forming Energy Friction Screw Press model XF 125~1600 Tons.

We offer birson friction screw presses. Thesescrew presses are designed to serve forging, coining and sizing operation in steel and nonferrous metals subject to tools offering adequate impact surfaces. These presses are ideal high precision forging machines. However, these machines differ in certain respects to suit the additional requirements which have to be satisfied for die forging i.e. Greater blow energy, longer ram guides by securing the nut in the ram optimized, reliable and maintenance free connection has been achieved due to the similarity in function of a screw press fully adopted to the requirement of die forging, and a modern die forging hammer this machine offer the logical solution in those cases where a die forging hammer must not or can not be used for a number of different reasons exactly in the same way as on a die forging hammer or a hydraulic press. The bottom reversing point of the ram is variable and the machine can not therefore, jam subject to adequately dimensioned impact surfaces on the die holder. It is therefore, possible to produce extremely uniform forgings. An ejector is provided at lower part of table.

SHEET METAL & FABRICATION MACHINE, FRICTION SCREW PRESS, Nominal Capasity Tones: 50, Stroke mm inch : 400 15 34, Dia of Screw mminch, 85 3 38, Pieces Hour : 800 - 1200, Machine Length mm inch : 2120 83 12, Slide Table mm inch, 220 8 58, Max. Dia of Bolt Capable Forging mminch, 12dia 2212 , Min.Dia of Bolt Capable Forging mminch: 250 9 78, Base of Machine mminch : 760x510 30"x20" , Center foundation Bolt mminch : 665x370 26 14 x 14 12.

• Dia of Screw: 3-1/4"
• Stroke of Press: 7"
• Table of Slide (Max.): 13"

Our Friction Screw Presses are heavy duty fabricated construction and are suitable for endless variety of Non-Ferrous Stamping, Forgings and Piercing operations depending on the tooling employed on it. Even these are utilized for planership and finishing of articles which has been produced on Power Presses or by castings. These presses are being manufactured from 30 to 500 Tonnes Capacity. Their design beauty is that they can give 12" stroke with full press force. Moreover any type of ejection arrangement can be supplied along with the press against specific requirement.Cost of repairs after years of hard usage is low. Only skilled labor should be employed for its usage.The heat contact time considerably less than it with crank type forging presses & knuckle joint presses.

These machines are specially designed to make bolt head and any kind, forge, rivets, spikes, panaheaded rivets, hub bolt, box xpanner, head refractory and naushadar bricks can also be make on it. Motor Parts machinery parts can also be made on it.The main frame is of cast iron steel body of generous proportion and reinforced with ribs. The main shaft carrying the pulleys runs on roller bearings fixed in cast iron pedestals bolted on the frame in between the pedestals are mounted two cast iron imparting motion to an alloy steel square threaded screw fixed with a key and nut to it. The screw is mounted mild steel slide and ram with replaceable cast iron strips sliding and ram against the guideways of the main frame. To the bottom of screw is fitted a phsphorous bronze insert for carrying the block set. The slide and ram is balance by a counterweight which ensure smooth running.

Make -Z Das Stroke - 650 mm Table Area - 1200x900 Slider Ram Area - 900x900 Screw Diameter - 350 mm Motor - 35 Hp

Friction Screw Press for refractory’s fire bricks with floating table 2 Pillers and 4 Pillers. Capacity: 80, 100, 150 tonnes Efficienty: Motor 15 HP without compressor

Features: These Friction Screw Presses are preferred for Hot Forming (Forging) and Cold Coining, Stamping, Embossing, Sizing non-ferrous metal. The press body is of steel welded construction, one piece box type design. The screw is made of high quality alloy steel and is heat treated to give hardness and elasticity.
