Gas Thermometer Dealers

Following are the special features of gas actuated thermometer (73) : instruments meet the highest standards of measurement technology case and stem material stainless steelfor external mounting on pipes and tanks instruments with inductive contacts for use in hazardous areas with atex approval gauges with electronic contacts for plc applications applications : control and regulation of industrial processes monitoring of plant and switching of electric circuits universally suitable for plant, machinery, tank (vessel) and equipment construction and food industry temperature measurement without any contact to the medium mounting in instrument boards, control cabinets, control panels specifications : nominal size in mm : 100, 160, 144 x 144temperature element : inert gas expansion system (non-toxic)dial : aluminium, white, black lettering panel mounting case and panel frame : galvanised steel click here for more information .

• Temperature Range: -200 to 800 C, minimum span 100 C
• Brand Name: Radix
• Material: SS
• Size: 63, 100, 150 mm
• Shape: Round
• Accuracy: 1% of FSD
• Minimum Order Quantity: 1 Piece(s)

• Temperature Range: 0 to 800 deg C / -10 to 50 deg C / -200 to 50 deg C
• Material: Stainless Steel
• Country of Origin: Made in India
• Brand: Mass
• Weight: 2 Kg approx.
• Filling Liquid: Gas filled.
• Accessories: Thermowells, dual scales, magnet spring- or inductive contacts, calibration certification
• Capillary length: 30 Meters
• Stem or bulb diameter: 6 mm, 8 mm,10 mm, 12mm

• Ref Standard:: ASME B 40.200, EN 13190
• System: Gas (N2) filled, case compensated in accordance with SAMA CI. IIIB
• Dial: 100mm/150mm with bayonet bezel
• Case: SS 304/ SS 316 with bayonet bezel

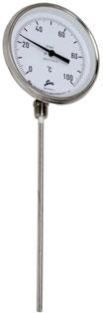

Gas filled temperature gauge overcomes most of the limitations of other members of family. It is offered in a very wide temperature range i.e. (-) 200 to 80°c. Practically any stem length can be offered and capillary length as long as 25 mtr, without any loss of accuracy. Inert, non hazardous, non toxic nature of the filled system makes it virtually ideal choice of cross section of industries. For more details visit our website: www.generalinstruments.co.in

Gas Filled Thermometers have nitrogen as filling media. This makes it possible to use if for hygenic applications also. Available in dial sizes 4", 6", 8" and 10" Dial. Available as both Rigid Stem Type and Capillary Type. Ranges from -50 to max 600 deg C.

• Dial Size:: 100 / 150 mm
• Range:: -80ºC-600ºC
• Sensing Elements:: Gas/Mercury-in-Steel

• Feature: Rugged construction, Bottom/ back entry, every angle construction, Fast response, High repeatability, low hysteresis, Hermetically sealed case . .
• Protection class: IP-67
• Accuracy: 1% FSD

• Dial size: 100/ 150/ 250 mm
• Range: 50ºC - 650ºC (120ºF-1200ºF)
• Mounting: Direct, Bottom Connection
• Stem Size: 12 mm
•  :
• Stem Length: 300 mm

• MODAL NUMBER: MODEL TG2
• Standard Follows: EN 13190
• Nominal Dial Size (mm): 100, 125, 150
• Range: -50°C to 500°C
• Accuracy: Class 1 as per EN 13190
• Sensing Element: Gas
• Connection Size: 1/2"
• Connection Type: NPT, BSP, G, R
• Stem & Connection: AISI 316 SS
• Stem Diameter: 6, 6.35, 8, 10, 12
• Case, Bezel & Clamp: AISI 304 SS
• Pointer: Aluminium, Black
• Capillary (Max 20 Mtrs): AISI 304 SS / AISI 316 SS
• Armor (Max 20 Mtrs): AISI 304 SS / AISI 316 SS
• Mounting Type: Direct Bottom, Direct Back, Every Angle Back
• Options: Dampening Liquid Glycerin Filled Dampening Liquid Silicon Filled Available with Thermowell

• Version: Mercury, Gas, Bi-Metalic.
• Range: 0 to 650 Degree.
• Dial Size: 4", 6".
• Connection: Stem Type & Capillary Type
• Accuracy: +/- 1% of FSD

• dial size: 4", 6", 8" and 10"

Gas Filled Thermometer have nitrogen as filling media. This makes it possible to use if for hygenic applications also. Available in dial sizes 4", 6", 8" and 10" Dial. Available as both Rigid Stem Type and Capillary Type. Ranges from -50 to max 600 deg C.

• Temperature Range: -100 to 800 degree celsius
• Dial size: DN100/DN125/DN150/DN250
• Stem size: 6.0 mm to 12 mm
• Assembly: Direct or Remote
• Process connection type: Fixed / Adjustable connection

• Brand Name: Ajinkya Automation
• Temperature Range: 30-60 Degree C
• Material: Stainless Steel
• Accuracy: Upto 1%
• Display: Analog

• Feature: Use of inert gas - N2,All SS construction,Rigid stem or capillary type,Fast response

Gas filled temperature gauge overcomes most of the limitations of other members of 0 family. It is offered in a very wide temperature range i.e. (-)200 to 800 c. Practically any stem length can be offered and capillary length as long as 25 mtr, without any loss of accuracy. Inert, non hazardous, non toxic nature of the filled system makes it virtually ideal choice of cross section of industries.

• Brand Name: Excel
• Dial Size: 100mm
• Accuracy: 1 of Full Span As per EN 13190
• Case And Bezel: Snap Action Bayonet Type
• Element: Gas Actuated
•  :
• Connection: 3/8 / 1/2 Inch BSP / NPT (M)
• Mounting: Surface / Remote Mounting
• Capillary Extn: 3 Meter Std. upto 10 Meter
• Range: (-)50 to 50 up to 650 Deg C

• Features: Perfect finish, Low maintenance, Sturdiness

Gas filled temperature gauge overcomes most of the limitations of other members of family. It is offered in a very wide temperature range i.e. (-)200 to 800°C. Practically any stem length can be offered and capillary length as long as 25 Mtrs without any loss of accuracy. Inert, non hazardous, non toxic nature of the gas filled system makes it virtually ideal choice of cross section of industries.   Features Use of inert gas – N2Suitable for sanitary applicationAll SS constructionRigid stem or capillary typeFast responseNon-polluting, environment friendlyNon-hazardous for the serviceHigh reliabilityIP-67 protectionAccuracy ± 1% FSD

• Accuracy: Class 1 as per EN 13190
• Ambient Temperature: Maximum 65°C
• Window: Plexi Glass
• Dampening Liquids: Silicon Oil (Option QA)
• Gasket & Filling Plug*: Vi ton
• Other Features: Refer Specification of Standard Version

We are main supplier of this product.

• Feature: Precisely engineered,Easy to use and light weight,Optimum performance,Rust resistant,Long functional life,High accuracy and reliability.
• Brand Name: Adarsh
• Dial Size: dial size 100mm & 150mm (4", 6").
• Product Type: Rigid Stem Type or Capillary Type
• Item Code: ZG
• Condition: New Good
• Place Of Origin: Mumbai
• Approx Price: Rs. 1,500 / Piece
• Min. Order Quantity: 10 Pieces
• Delivery Time: 1 Week Min.
