Geared Brake Motors Dealers

• Type: Electro Magnetic Fil Safe
• Supply Voltage: 230V AC/190V DC/24V DC
• Duty: S1/S3/S5
• Torque: 4Nm to 500Nm
• Service Factor: 1/213
• Suitable For: AC Motors from 0.18KW to 45KW

New Series of Integral Brake Motors offer better performance, light in weight, aesthetically good and reliable. The Motors are highly engineered to cope up with sudden load increase, longer thermal life, higher altitudes and voltage variations. APPLICATIONS Integral Brake Motors are suitable for various industrial application like Textile, MachineTools, Hoists, Cranes, Lifts etc., where instantaneous stopping of the driven equipment isdemanded. Motors are fitted with Electro Mgnetic Normally on brakes. The electro-magnetic DC brake is mounted on the non-driving end of the motor. The coolingfan is mounted after the brake for better thermal dissipation and cooling of the brake also. Motor connection leads and brake coil leads are terminated in a single terminal box foreasy connection, Rectifiers are supplied in loose condition and Manual release is provided WORKING PRINCIPLE When power supply is given to the brake coil, the magnetic field produced by it, pulls thearmature plate against spring force making rotor free to rotate. When power supply to the brake is removed, the armature plate will return to its original position instantly and due to axial force developed on the armature plate by the compression spring will not allow rotor to rotate. This will ensure instant fail safe in case of power failure.

• Weight: 50-60kg
• Speciality: High Efficiency
• Number of Poles: 4 Pole
• Usage: Textile, Food Processing Machineries, Chemical Industry
• Type: Worm Geared Motor
• Material: Mild Steel
• Certification: ISO 9001:2008
• Voltage: 440 V
• Shaft Diameter: AS PER YOUR REQ
• Noise: LESS THAN 70 db
• Protection Class: f

• Brand Name: Navjyot
• Phase: Three
• Color: Azure Blue
• Rated Power: 0.12 TO 22KW
• Efficiency: IE2 / IE3
• Frame Size: 63 TO 180L
• Voltage / Frequency: 415V ±10% / 50 ±5%

We offer all types of Customized Geared and Brake combination motors as per customers requirement. Our products are compliant to IS 12615:2011IE2/IE3 standards.

• Capacitor: 7.5

Continuous Rating with Frequent Start Stop, Load Holding & Minimum Overrun. Electromagnetic Fail Safe Brake (Power Off Activated) fitted at the back. The Gear Boxes are sold Seperately. A coloured background indicates gear shaft rotation in same direction as motor shaft. A white background indicates gear shaft rotation in opposite direction to the motor shaft. The speed of geared motor is calculated by dividing motor's synchronous speed by gear ratio. The actual speed is less than the displayed value, depending upon the load. Characteristics, specifications and dimensions are subject to change without notice.

• Range: 0.25 HP to 7.5 HP
• Electric Motor: 415 V, 50 Hz, 3 Phase AC supply

Speedo Tech offering Geared Brake Motor. Manufactured using world class raw material and advanced technology. Our range of these motors is widely demanded by the clients for their noise-less operations, hassle free performance, easier maintenance, longer serving life and robust structures. These motors are offered in various models and specifications. Gear casing are manufactured from high grade cast iron and designed for maximum heat dissipation. Gear and Pinions are made from special hardening alloys steel and are specially Heat Treated.

We are leading supplier of huge range of Geared Brake Motor.

Our geared motors are configured from a modular range of motors and gearboxes that are designed for a perfect match. Our modular system enables us to implement solutions tailored to meet your needs quickly and cost-effectively using standardised sub-assemblies to create offset geared motors, angular geared motors and helical geared motors.

Geared Brake Motors are used for Cross travel and Long travel in hoists and cranes. These motors are available in a variety of speed and different Horse powers. The Geared brake motor consists of 3 parts i.e. conical squirrel cage motor, gear box & integral brake. The motors have very high efficiency and are very compact. Flange mounted and foot mounting options available.

• Power: 0.25 HP to 5 HP
• Brand Name: PEC
• Power: 0.12 TO 15 HP
• Phase: Three Phase
• Voltage: 415 V
• RATIO: 5:1 to 100:1
• Mounting: Foot, Flange, etc
• Usage/Application: Industrial
• Speed: 180 rpm

Geared brake motors Rigid and precise cast iron single piece housing, Wide range of accessories and non-standard designs.

• speed ranging: 1.5 RPM to 450 RPM

These can be supplied as gear units also, where the flange mounted motors procured by customers can be fitted. We also supply inline gearbox with input shaft to which the customer can connect a standard foot mounted electric motor.

• Country of Origin: Made in India
• Speed: 32 rpm to 400rpm
• Color: BLUE / SILVER
• Power: 0.37 kw To 5.5kw
• Phase: Three Phase
• Brand: SPEEDO GEAR
• Input power: 0.25 HP to 7.5 HP

We ensure superior range of Geared Brake Motors which are known in the market for their superior quality and high reliability. Our products are made of advanced grade components and are completely corrosion resistant. They are easy to install and require no special maintenance. These superior and reliable products are available in the market at leading market price range. Features: Advanced quality Sustainable Highly reliable

Robust and integral case is made of cast iron grade 1520 ISO-2101970. All the gears and pinions are helical only. Design of gears for strength and correction of gears are as per ISO -4460 -1969 and CMTI standards. All gear wheels, pinions and shafts are made of high quality alloy steels as per ISO - 1570 and are hardened and tempered. All the bearings are designed for tough reversible applications and long life. Depending on the out put speeds, the gears are arranged in 123456 stage reduction. The reduction ratio required is uniformly distributed on different stages to ensure that the geared motor will have the optimum strength and rigidity. For very low output speeds below 1 rpm in some applications, Helio drive gearboxes are selected. Chetan Preci Products is the best product Manufactures of Gear Box In Bangalore and fine top Manufactures of Gear Box In Bangalore. It has got a very good well pick up in market for Manufactures of Gear Box In Bangalore. Helio drive gearboxes are a combination of helical and internal gears. The parts are manufactured with high accuracy standards and they are interchangeable. The spares are available at short notice from our works. The gearboxes can be coupled to standard induction motors, hydraulic motors,brake motors, flame proof motors, dual speed motors, DC or PMDC motors, torque motors etc.,

• Type: Geared Brake Motors
• Voltage: 220V
• Power: 40 HP
• Phase: Three Phase
• Speed: 20 To 400 RPM
• Surface treatment: Polished
• Frequency: 50Hz-60Hz

• Type: Inline Gear Motor
• Range: 0.25 HP to 7.5 HP
• Output RPM: 15 Rpm to 200Rpm
• Electric Motor: 415 V, 50 Hz, 3 Phase AC supply

• Brand Name: Atlas

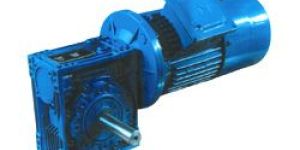

We offer Worm Reeducation Gear Motor Range H.p. : - From 0.18 to 7.5 KW. Ratio : - Range from 7.5/1 up to 100/1 Center: - 30 to 130M.M. Type : - Worm geared motor that our company produce include NMRV and NRV. Mounting: - Universal Mounting Type Applications Conveyors, Packaging, Loading, Automation, material handling lift. . Features: Excellent performance, simply structure, small cubage and high efficiency Easy to mount and maintain. Wide output reduction ratio, large torque and good capability of enduring overloads Running stably, low noise and wearing well Wide applicability and enough and safe dependability.

• Speciality: All Geared Motors are with detachable Mounting (Foot & Flange).

The G-motion gearboxes’ outstanding feature is the way in which they can be ideally adapted to different machines. This is made possible by a well-equipped modular gearboxgeared motor systems which offers options for both the gearbox and the motor. Optimised teeth profiles and ground gears ensure low-noise operation and low backlash. The G-motion gearboxes are primarily used with integrated threephase AC motors as geared motors.

• Type: Electro Magnetic Fil Safe
• Supply Voltage: 230V AC/190V DC/24V DC
• Duty: S1/S3/S5
• Torque: 4Nm to 500Nm
• Service Factor: 1/213
• Suitable For: AC Motors from 0.18KW to 45KW

New Series of Integral Brake Motors offer better performance, light in weight, aesthetically good and reliable. The Motors are highly engineered to cope up with sudden load increase, longer thermal life, higher altitudes and voltage variations. APPLICATIONS Integral Brake Motors are suitable for various industrial application like Textile, MachineTools, Hoists, Cranes, Lifts etc., where instantaneous stopping of the driven equipment isdemanded. Motors are fitted with Electro Mgnetic Normally on brakes. The electro-magnetic DC brake is mounted on the non-driving end of the motor. The coolingfan is mounted after the brake for better thermal dissipation and cooling of the brake also. Motor connection leads and brake coil leads are terminated in a single terminal box foreasy connection, Rectifiers are supplied in loose condition and Manual release is provided WORKING PRINCIPLE When power supply is given to the brake coil, the magnetic field produced by it, pulls thearmature plate against spring force making rotor free to rotate. When power supply to the brake is removed, the armature plate will return to its original position instantly and due to axial force developed on the armature plate by the compression spring will not allow rotor to rotate. This will ensure instant fail safe in case of power failure.
