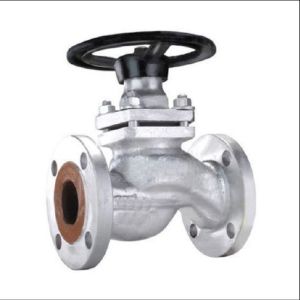

Glandless Piston Valve Dealers

• Material: Carbon Steeel
• Color: White
• Condition: New
• Automatic Grade: Manual
• Pressure: Medium Pressure
• Application: Gas Fitting, Oil Fitting, Water Fitting
• Size: 1.1/2inch, 1.1/4inch, 1/2inch, 1inch
• Type: Glandless Piston Valve
• Country of Origin: India
• Number Of Way: 2way

• Material: UPVC
• Application: Water Fitting
• Feature: Casting Approved, Easy Maintenance., Smooth Finish And Robust Design
• Automatic Grade: Manual
• Pressure: High Pressure, Low Pressure, Medium Pressure
• Number Of Way: 2way

• Country of Origin: India
• Type: Glandless Piston Valve
• Material: Carbon Steeel, Stainless Steel
• Certification: ISO 9001:2008 Certified
• Automatic Grade: Manual
• Pressure: High Pressure, Low Pressure, Medium Pressure
• Number Of Way: 2way

Glandless Piston Valve 1/2" to 8"

• Country of Origin: India
• Size: 1/2inch, 1inch, 2inch, 3/4inch
• Type: Glandless Piston Valve
• Material: Cast Iron
• Certification: ISO 9001:2008 Certified
• Application: Gas Fitting, Oil Fitting, Water Fitting
• Color: Blue
• Feature: Blow-Out-Proof, Durable
• Automatic Grade: Manual
• Pressure: Medium Pressure

• Size: 250 mm
• Material: Cast Steel
• Media: Water
• Brand: Hani Enterprises
• Use: Industrial
• Packaging Type: Box

We have established ourselves as a dependable firm, engaged in manufacturing, distributing and supplying Glandless Piston Valve that is used to control the motion of a fluid along a tube or pipe. Our professionals use utmost-grade material for manufacturing these piston valves in accordance with set norms. Furthermore, these piston valves are tested on well-defined parameters of quality in order to deliver a flawless range.

• Features: Durability,Resistant against corrosion,Accurate dimensions

Piston valve was Innovated by replacing the disk and seat of a conventional globe valve with a cylindrical piston and two resilient, replaceable sealing rings. Constant research and development have resulted in sealing rings that provide the piston valve with an extraordinary ability to seal line pressure and prevent leakage to the atmosphere. Independent testing laboratories have subjected piston valves to API fire tests and Helium leak tests. The piston valve has out-performed other generic valve types in these tests; and these results have been consistently confirmed by extraordinary performance in customer installations.

• Body: ASTM A 216 GR. WCB

Glandless Piston Valve was Innovated by replacing the disk and seat of a conventional globe valve with a cylindrical piston and two resilient, replaceable sealing rings. Constant research and development have resulted in sealing rings that provide the piston valve with an extraordinary ability to seal line pressure and prevent leakage to the atmosphere.Independent testing laboratories have subjected piston valves to API fire tests and Helium leak tests. The piston valve has out-performed other generic valve types in these tests and these results have been consistently confirmed by extraordinary performance in customer installations.

BODY ASTM A 216 Gr WCB | IS 210 Gr FG 200 TRIMS 13 Cr PISTON RING CAF 40 MFG STD MARCK | 018 INSP & TEST STD MARCK | 018 MAX. C.W.P 175 Psig (12.3 KgCm ²) ENDS FLANGED TO DIN 2533 (PN 16) HYD-TEST PRESSURE BODY : 341 Psig (24 KgCm ²) SEAT : 225 Psig (16 KgCm ²) SIZE RANGE 15 MM TO 200 MM

• Feature: Economic, easy to service,Saves energy and does not contaminate the environment, Maintenance free

UKL piston valves are ideally recommended for critical and hazardous media, including Steam, Heat Transfer Oils, Acids, Gases, VACUUM.Manufactured in Forged Carbon Steel Stainless Steels to 800# – Sizes 15mm to 40mm, in SW and Threaded Ends. Cast Carbon Steel Stainless Steels with Flanges to 150#, #300 & DIN standards 50 to 200mm.

• CONSTRUCTION OF MATERIALS: Cast Steels ASTMA 216 WCB, Cast Iron ASTMA A351 CF8/CF8M
• OVER LENTH: FTOF DN:16
• ENDS CONNECTION: Screwed / Flanged
• PISTON: AISI (316)
• HYDRO TEST : BODY: 450 PSIG (30kg / Cm2)

HYDRO TEST : SEAT :  325 PSIG (22kg / Cm2) SIZE : 15mm to 150mm SERVICE: Steam,Hot Air,Hydrulice,Oils,Hot Water Temperature: 385o C

FM PISTON VALVE is a zero leak isolation Piston Valve, in which the seat & gland are replaced by Lower & Upper Sealing rings along with a Piston. This overcomes the difficulties usually associated with the replacement of conventional seats. The FM Piston valve is the name for prevention of inline leakage as well as leakage through glands, making for leakproof isolation in the pipelines. The FM Piston valve is a seat less & gland less Piston Valve. At the heart of the FM piston valve are Piston & sealing rings. A burnished piston seals against SS reinforced graphite rings to achieve a leak proof shutoff. This unique design ensures a long life even at high temperatures up to 427 deg C A Burnished piston is connected to the Piston Valve stem & hand wheel. The piston passes through two sealing rings separated by a lantern bush. Each sealing ring is Stainless steel reinforced graphite, which has both features of sustaining compression exerted by Bonnet & providing soft seal against piston. The upper sealing ring acts as a conventional gland packing and prevents leakage towards atmosphere. The lower sealing ring acts as the seat which prevents in line leakage. The lantern bush is required to maintain separation between the upper & lower rings & to allow flow through the Piston Valve.

Pinch valve is a Seatless and Glandless valve. Pinch valve is a modified version of laboratory pinch cock. A rubber sleeve rubber muff is protected under a cast iron casting. The fluid passing through do not come in contact with either body covering or any other metal parts of the valve except the rubber sleeve rubber muff. Hence the body and other metal parts are almost permanently not subjected to the corrosive action of the fluid. The flow through the valve is straight and full as that of a pipeline, when the valve is fully open. Further, the collar of the sleeve eliminates gasket. The valve is simple hand wheel operated of rising wheel type. Therefore the operation of the valve is just simple as other wheel operated valve. The in-between stoppage will allow the desired throttling. Thus the valve offers positive control over flowing media and gives 100% shut off. Pneumatically operated Pinch valves are also available.

Glandless Piston Valve, Actuator ball valve, Diaphragm Valve, Steam Traps

• temperature: up to 427 deg C

The investment cast piston valve is manufactured to class 800 pressure rating.The PC piston valve is a seatless and glandless valve.The inclined bonnet design results in uniform contours and improve flow characteristics. In PC piston valve, seat and gland are replaced by lower and upper sealing rings.The unique design ensures a long life even at high temperature up to 427 deg C.

Glandless Piston Valve, Ball Float Steam Trap, Thermodynamic Steam Trap
