GPS Antenna Dealers

Being one of the largest companies, we are involved in presenting a wide range of GPS Marine Antennas to meet the necessities of our clients, in very effective price with wide ranges Features: High strength Rigid structure Quality approved design Smooth finish Longer life Less maintenance

• Type: Gps Antenna
• Application: Domestic Use, Industrial Use, Scienticfic Use
• Color: White
• Feature: Fast Signal Stength, Hard Structure
• cetification: ISO 9001:2008
• Brand Name: 3AN TELECOM
• Polarization: Linear

Description:GPS-GLONASS Antenna,28dBi,50Ohm,1575.42MHz,Car positioning, Navigation, Satellite communication,Threaded,PCB screw,BNC,Plug, Straight,Standard,Omnidirectional Antenna,Indoor Antenna,External Antenna,Rubber Duck Antenna,VerticalAntenna,Magnetic Antenna GPS-GLONASS Antenna,28dBi,50Ohm,1575.42MHz,Car positioning, Navigation, Satellite communication,Threaded,PCB screw,BNC,Plug, Straight,Standard,Omnidirectional Antenna,Indoor Antenna,External Antenna,Rubber Duck Antenna,VerticalAntenna,Magnetic Antenna Used to transmit and receive electromagnetic wave in Wireless deverice with stable signal and low loss; Applied to wireless communication, radio, TV, radar, remote control fields; Multi mode and specification for choice; From the OEM Original Factory, same quality with much better price.

We are offering gps active antenna. （i） dielectric antenna center frequency 1575.http://members.indianyellowpages.com/manage-products.php42mhz±3 mhz v.s.w.r 1.5:1 band width ±5 mhz impendence 50 ohm peak gain ＞3dbic based on 7×7cm ground plane gain coverage ＞-4dbic at –90°＜0＜+90°(over 75% volume) polarization rhcp （ii） lna/filter lna gain (without cable) 28db typical noise figure 1.5db filter out band attenuation (f0=1575.42 mhz) 7db ｍin f0+/-20mhz ; 20db ｍin f0+/-50mhz; 30db ｍin f0+/-100mhz v.s.w.r ＜2.0 dc voltage 3.0v to 5.0v dc current 10ma max （iii）mechanical weight ＜120gram size 48x39x14.1mm cable rg174 3meters, connector sma male mounting magnetic base housing black （iv）environmental working temp -40℃~+85℃ storage temp. -45℃~+100℃ vibration sine sweep 1g(0-p)10~50~10hz each axis humidity humidity95%~100%rh weatherproof 100%waterproof

GPS Antenna1561 Mhz, N Connector, F- Connector, Bnc Connector

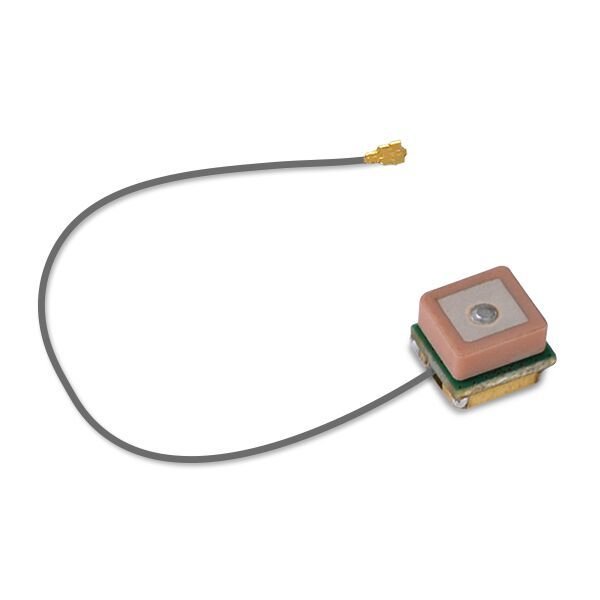

We are leading suppliers and manufacturer of gps internal antennas is using in gps logger, gps trackers & other gps devices. In very effective price . Specifictaion center frequency 1575.42mhz±2 mhz v.s.w.r 1.5:1 band width ±4 mhz impendence 50 ohm peak gain >3dbic based on 7×7cm ground plane gain coverage >-4dbic at –90°

This GPS Module is cost effective, high-performance GPS Module with onboard patch antenna and battery which can be conveniently integrated with variety of microcontrollers or microcontroller boards.   Features: Size: 28*28*8.4mm, cable length 2m Onboard GPS ceramic antenna TTL level output Built-in RTC cystal hot start and EEPROM Support AssistNow Online and AssistNow Offline A-GPS service Main chip: it is based on Ublox Channel: 50 Typical Position resolution : 5m Drift:

• Brand Name: ER
• Material: Metal
• Surface Finishing: Polished
• Shape: Hexagonal
• Color: Black
• Usage: Industrial Use, Wireless Communication
• Size: 2-3 INCHES
• Length: 45-55mm
• Packaging Type: Plastic Bag
• Mounting Type: Magnet Mount
• Packaging Size: 50 Pieces Set
• Specialities: Waterproof, Rust Proof, Heat Resistant, Hard Structure, Fast Signal Stength
• Antenna Type: GPS
• Frequency: 1.575 GHz
• Impedance: 50 Ohm

• Frequency: 1575.42MHz±3 MHz
• Product Names: GPS Magnetic Mount Antenna with 3m RF Cable and SMA Conn
• Dimension: Cable length 3.0M
• Interface: SMA
• Weight: 65g/PCS
• Carton Information: 0.65KG/1pcs/Box

• Type: Portable
• Warranty: 1 Year
• Color: Black
• Material: Metal & Plastic
• Condition: New
• Use with: GPS Modem

• Type: Wired,Wireless
• Usage: Auto,Truck,Car,Bus
• Mobile Access: Yes

• Material: Stainless Steel
• Surface Finishing: Power Coated
• Color: Black
• Usage: Scienticfic Use, Industrial Use, Domestic Use, Wireless Communication
• Mounting Type: Floor Mounted
• Specialities: Waterproof, Rust Proof, High Acurace, Heat Resistant, Hard Structure, Fast Signal Stength
• Warranty: 5 Year
• Connectivity: Wireless Or Wi-Fi
• Corrosion Resistance: Yes
• Rust Proof: Yes
• Cetifications: ISO 9001:2008

• Antenna Type: GPS
• Country of Origin: India
• Frequency: 1575.42Mhz/GPS/IRNSS/GLONASS/L1/L2/L5
• Color: Black
• Connector: SMA Male Straight/CUSTOMISED
• Cable Type: Rg-174
• Input Power: 50W

• Usage: Truck
• Size: 2.5inch
• Type: Wireless
• Color: black
• Range: 900-1800Mhz
• Screen Size: 2.5 inch

We provide both external internal antennas and passive GPS antennas. We provide a leading range of active GPS patch antennas to connect directly to your GPS module. Our antennas incorporate low noise amplifier ( LNA) design in order to suppress noise and deliver to "pure" signal to your module.

• Type: Wired
• Mobile Access: Yes
• Minimum Order Quantity: 100 Piece

We are the exporter and supplier of this products.

We are engaged in supplying of all kind of gps antenna, antenna- parabolic, periodic, magnetic, patch panel, omni, yagi, horn wide band, wipe, ceilling, indoor, outdoor for ism broad band 2.4, 5.8 gc, wifiwimax, vsat, gprs, gps and ltegsmcdma3g,tranking radio in vhfuhfhf. Microwave antenna ,,,,,

• Impedance: 50 Ohm
• Polarization: Right Hand Circular
• Connector: IPEX or Customized
• Radom Color: Black
• Cable: 1 point 13 or Customized 60mm
• Lightning Protection: DC Ground
