Expanded Graphite Packing Rope Dealers

Asbestos Graphite Rope available in round and square shape. Manufacturing and Trading a wide range of Hose Pipe, Rubber Sheet, Transmission Belt, Seals And Gaskets, Solid Tyres, Rubber Strips, Rubber Pad, Rubber Diaphragm and Skirt Rubber.

• Application: Chemical Industry, Refineries etc
• Material: Pure Expanded Flexible Graphite
• Feature: Heat resistant, Chemical resistant
• Length: 500 mm/reel
• Temperature: 815 deg C
• Suitable For: Service with steam, butane and propane

We are Rajkot(India) based entity and have become a primary choice of the buyers owing to our timeliness. We are acknowledged for entertaining voluminous orders at a time as we are supported by streamlined inventory management system and capacious storage facility.

Construction: A high quality combination packing of Graphite bonded PTFE yarn with aramid corners. Application: This packing has good sliding properties and thermal conductivity, making it an excellent packing option for high pressure pumps with sliding velocity. Aramid yarn corners prevent gap extrusion in high pressure & high temperature applications. It is widely used in applications involving abrasive media.   Available Size:   From 3mm to 45mm .

• Diameter: 6 to 50mm
• Color: Black
• Size: 3 to 100mm
• Weight: 1 kg, 2 kg, 5 kg, 10 kg
• Application: Industrial, Home Appliance, Marine
• Temperature: 315 deg C

With features like superior quality and unmatched grade, our product range is the best one available in Mumbai(India). Not only we present excellent products, but we are also flexible enough to make superfast deliveries and within the promised time.

• Thickness: From 6mm to 52mm
• Application: Electrical, Industrial Use
• Color: Black
• Feature: Durable, Easy To Use, Fine Finishing, Fire Resistance
• Temperature: 815 deg C

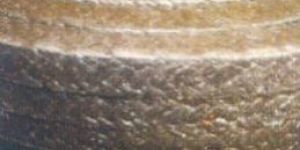

Expanded Graphite Braided Packings are made from pure graphite yarn, braided into packing through modern technology. They can be divided into Expanded Graphite Braided Packings with inconel wire inserted, fiberglass, PTFE dispersion, less weight loss, etc. Our Expanded Graphite Braided Packings have an excellent resistance to thermal shock and high thermal conductivity. They are offered at market leading prices.Specifications : Temperature : 240degree C to + 600degree C (steam pressure) Pressure : Up to 480 bar PH : 0 to 14 Service Media : Superheated and saturated steam, all non-oxidizing liquid and gases, hydrocarbons, dyes and chemicals, fuel oil

• Material: Graphite
• Diameter: 10-20mm
• Thickness: 0-10mm
• Color: Black
• Pattern: Plain
• Application: Binding And Pulling
• Feature: Flame Retardant, High Tensile Strength, Perfect Finish

• Country of Origin: India
• Material: Graphite
• Thickness: 0-5feet, 10-15feet
• Certification: ISI Certified
• Length: 10 meter
• Color: Black
• Feature: Durable, Easy To Use, Fine Finishing, Fire Resistance, High Quality
• Pattern: Plain
• Finishing: Colored Coating

• Brand Name: SIGMA
• Application: Incorporated with white metal wire for low friction and greater mechanical durability. Suitable for

Product Description :Metallic Graphited Gland RopeIncorporated with white metal wire for low friction and greater mechanical durability. Suitable for rotary shafts with peripheral speeds upto 1750 ft/ min. Recommended for steam, hot water, weak acids and alkalies. Temp. 350 Deg C

• Thickness: 10-20mm, 20-30mm
• Outer Diameter: 20mm
• Inner Diameter: 30mm
• Specialities: Heat Resistant, Good Quality, Fine Finish
• Size (Inches): 4Inch, 6Inch
• Pressure (Bar): 15 Bar
• Overall Dimension (LXBXH): 490X270X460mm
• Seal Width: 10mm, 20mm, 30mm
• Seal Length: 100mm
• Type: Graphite Rope
• Material: Graphite
• Shape: D Shape
• Certification: ISI Certified
• Color: Natural
• Condition: New
• Finishing: Colored Coating
• Warranty: 1 Year
• Country of Origin: India
• Material Grade: S316
• Working Temperature: 250-500
• Noise Level: NA
• Shaft Speed in RPM: .4rpm
• Temperature Range Deg C: 500
• Application: Industrial
• Pattern: Plain
• Feature: Durable, Fine Finishing, Fire Resistance

Good chemical resistance, inert to most media Low startup friction Good Dimensional Stability Good Heat dissipation properties Soft & Resilient Self Lubrication Low coefficient of friction Low Shaft wear No Jamming on shaft, lower shaft erosion High Temperature Resistance Excellent volume stability Temp (°C): -240~300 Pressure (kgcm²): 25P, 250R, 250V pH Range: 0-14 Speed (ms): 20P, 3R

PTFE retains its properties after exposure to temperatures beyond the limit of almost all other thermoplastics and elastomer Depending on the end user requirements, PTFE is rated for continuous service at temperatures as high as 500 F. It can also sustain short exposure at higher temperature.

Graphited Mettalic Gland Rope Braided from high grade asbestos yarn suitably lubricated and reinforced with stainless steel wire.

Asbestos Rope Seal with Graphite is Square braided from long asbestos fiber, Finishing braided, It is treated with special lubricant, graphite flakes. A multi-service packings for valves, pumps, reciprocating equipment, sealing against sweet and sea water, steam, concentrated caustic solutions, brine, mild acids, chemicals, oil an petroleum.

• Diameter: 19 mmsq
• Length: 10 mtr
• Packaging Type: Roll
• Density: 500-800 (kg/m3)

We offer an unmatched commercial and technical service for gaskets covering the broadest range of jointings - from rubber sheet through fibrous grades to the highest quality graphite available. We are proud to be a distributor for both Frenzelit graphite jointings and W L Gore PTFE sealing products – both of these companies offer world class sealing products in terms of product performance. Products are made from flexible highly quality natural graphite having no binders and fillers. These products are ideally suited for dynamic and static sealing as they offer a high flexibility, permanent elasticity, high chemical resistance having optimum density and universal applicability and make it the ideal choice in all high temperature applications. Available in Die Moulded Rings Tapes Sheets & Gaskets.

This graphite coatedceramic fiber rope with wire reinforcement is braided from aluminosilicate yarn (ceramic yarn) reinforced with inconel wire & impregnated with special lubricant enriched with high carbon graphite. It is resistant to very high temperature and is intended to be used for movable components as well. Impregnation of every thread before braiding results in a very high performance packing. This packing is available in various sizes from 6mm to 100mm or above on request. Brand: map (mandelia asbestos packing) technical parameters: maximum temperature : 1260oc continuous working temperature : 1200oc pressure : upto 40 bar electrical conductivity : conductive thermal conductivity : 0.18wmok at 1000oc applications: this packing is recommended for low & medium pressure dynamic applications & for static applications. It can be used in steam, saline, acid & alkali solution except for concentrated ones. It is extremely suitable for rotary kiln’s inlets & outlets.

• Minimum working temperature: -50°C
• Maximum temperature (constant): +1000°C

Graphite Coated Ceramic Rope is a compression packing for very high temperature duties. It is manufactured from an exceptionally stable fibre material that is soft, non-irritating, non-hazardous & is not limited by World Health Organisation or European Union restrictions. Ceramic Fiber Rope, Tape, Cloth contains no organic agents or processing additives. It therefore retains its physical and chemical properties at very high temperatures and does not decompose into hazardous substances, as happens with many normal ceramics.
