Ground Penetrating Radar Equipment Dealers

• Brand Name: KS ANALYSIS

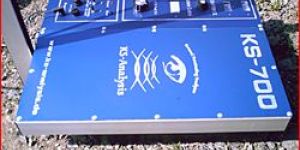

We are offering k-s analysis ground penetrating radar. german technology innovation and performance in ground penetrating radar goeradar - ground radar - underground research - area scanning ground penetrating radar ks-700 description of the device, areas of application: the device has 1 antenna (transmitting and receiving antenna) which is firmly connected with the apparatus and connected to the electronic components. For this radar it is not necessary to change the antenna in order to explore higher depths, because it is based on other physical principles than, for example, the pulse radar. But it is possible to optimize the device for other searching tasks by adjusting the software. The antenna is also shielded to all directions and therefore it only permeates (penetrates) into the ground. The depth is calculated with a formula from radar techniques by the software. Our radar can be completely operated by one person only. areas of application: in searching of problematic archaeological relics and residues, and wastes underground. Preliminary study of the ground for building projects. For danger diagnose of mining secondary damages and landslides. In localization of underground cellars, mining galleries, tunnels etc. In localization of pipes, pipelines, walls etc., and also for cavities, underground waters and water springs. In archaeology and many more underground scanning, searching and exploration. device description: fmcw-ground penetrating radar weight: 5.1 kg (without battery) antenna is firmly assembled, change not possible analysis of measuring profiles via laptop (laptop not included) system software: ms-windows 2d visualization software and areal measurement dimensions: length 44, width 33, height: 12 cm portable by one person only 12v 18ah plumb-acid gel battery (rechargeable by every car battery charger) for radar electronics (not included).

• Warranty: 1 Year
• Depth Of Penetration: Up To 15-Metre (49 ft)
• Radio Waves: 10 MHz to 2.6 GHz
• Fuel Consumption: 1.5 and 2.0 Litters / hr.
• Steering: Mechanical + Power Steering
• Working Speed: 0 to 5 Km/Hr (Variable Speed)
• Body Parts & Covers: Construction Material M.S

• Type: Gprs
• Certification: CE Certified, FCC Certified
• Color: Black
• Feature: Easy To Use, Fast Working, Light Weight, Low Power Consumption, Speedy, Stable Performance
• Condition: New
• Frequency: 0-1000MHz, 1000-2000MHz
• Warranty: 2yrs
• Band: Dual-Band GSM/GPRS/EDGE, LTE-TDD/LTE-FDD

• Dimensions:: 20 x 8 x 3 cm. 330 gm

The GPR Plus provides the basic PIT tag reader function of reading and transmitting the identification code contained within a PIT tag. The black thumb-actuated power On/Read button activates the reader. A message “SEARCHING...” alerts the user that the reader is scanning for a tag within range. Once a tag is detected, an audible beeper along with the ID number in decimal format is displayed on the screen that alerts the user that the tag was successfully scanned. Power is provided to the GPR Plus through 7.2VDC NiMH rechargeable batteries or AAA alkaline batteries. The NiMH rechargeable batteries can be recharged using the detachable USB cable with an external wall adapter. A message "LOW BATTERY" alerts the user that the reader needs to be recharged or batteries replaced. The GPR Plus has a 3000 tag code memory capacity and includes a time/date stamp with each tag read.  The memory is easily downloaded using Biomark Tag Manager™ (see page 7) or BioTerm (see page 8). Wireless communication capability is provided to the GPR Plus through its Bluetooth® module. A Bluetooth visual indicator provides information about the wireless communication status. Once a tag is detected, the tag is automatically transmitted via this channel. The GPR Plus comes with a Windows® based PC utility program called GPR Plus Software which can be used to configure the reader and is available to download on our website. GPR Plus Software. The memory is downloaded using Biomark Tag Manager™ (see page 7) or BioTerm (see page 8). The GPR Plus comes with a combined USB battery charger/communication cable, rechargeable NiMH batteries, test tag and Quick Start Guide. Full user manual is available for download on our website. Note: The GPR Plus is NOT WATERPROOF. Please use the Aquapac provided when in use. Store the reader out of the Aquapac in a dry environment when not in use. Condensation will cause permanent non-warranty covered damage to the circuitry in the reader.

• Warranty: 1 Year
• Fuel Consumption: 1.5 and 2.0 Litters / hr.
• Operating Weight: 1000 Kg.
• Wheels Length: 40 inch
• Overall length: 80 inch
• Overall width: 45 Inch

• Model:: Seeker SPR

USRADAR offers the means to detect buried objects that are not detectable by other methods. In addition to the ability to locate metallic objects, USRADAR is able to detect nonmetallic objects. The system sends radar pulses into the surface, then it receives and processes the reflected energy. Through advanced processing technology the system calibrates to the dielectric constant of the surrounding material. When the signal is reflected from a material having a different dielectric constant, the signal is displayed on the screen as an anomaly. Depth can also be determined by processing the sampling interval and determining anomaly. Depth can also be determined by processing the sampling interval and determining the size and comparing relative data of other objects detected.

• Application: MALA Ground Penetrating Radar, for Laboratory UseMALA Ground Penetrating Radar, for Laboratory Use A
• Dimensions: 670x470x190 mm
• Weight: 18 kg (shallower antenna) 19 kg (mid-depth antenna)Middle deep
• Shallow: 500 MHz. Small
• Dispaly Depths Scale: 1m-8m (3'-30')
• Touch Screen Display: 21cm (8") diagonal

Aimil Ltd. is an acclaimed Manufacturer, Exporter, and Supplier of Ground Penetrating Radar. We manufacture hi-tech Ground Penetrating Radar for concrete inspection and analysis. Application Location of metallic and non-metallic targets, Structure inspection like bridges, tunnels etc., Condition Assessment, Slab Thickness, Location of voids We provide complete range of instruments and software for Geophysics, Geology, Environmental and Geotechnical Monitoring, Non-Destructive Testing, Structural Controls, Seismograph, Magnetotelluric (MT), Induced Polarization (IP) instrumentation, Ground penetrating radar solutions and many more covering a range of applications from archaeology, geology and environmental, utility detection, concrete inspection and bridge and road condition assessment.

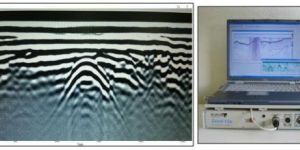

We are offering ground penetrating radar (gpr) is a totally non-destructive technique to produce a cross section profile of subsurface without any drilling, trenching or ground disturbances. The profiles are used for detecting buried utilities, such as, pipes, cables, etc in totally non-destructive manner. Additionally, subject to requirements, we also use cable & pipe locators, and for precise definition of locations, we use dgps and electronic total stations. The system operates by detecting subsurface changes in em properties (dielectric permittivity, conductivity, and magnetic permeability) which in a geological setting are functions of soil and rock material, water content, and bulk density. Data is acquired by transmitting high frequency electromagnetic (em) signals into the ground which are reflected from various boundaries possessing em property contrasts. The equipment receives the reflected waves over a selectable time range and displays them in real time on screen. The reflected wave data is also saved in appropriate memory for later processing and interpretation. Gpr measurements are used in geologic, engineering, hydrologic, and environmental applications. The company provides the following services using gpr: (a) mapping geologic conditions, such as, depth to bedrock, depth to water table, depth and thickness of soil strata on land and under fresh water bodies, location of subsurface cavities and fractures in bedrock. Mapping landfills and trench boundaries, and contaminants (b) location of buried utilities, such as, pipes (metallic and non-metallic), electric cables (induction locator is further used to identify live cables), drums, tanks, sewers, and boulders. (c) conducting investigations for archaeological and forensic applications. (d) conducting studies, such as, roads and railroad track-bed studies, and highway bridge scour studies. (e) inspection of brick, masonry, and concrete structures.

• Model Name/Number: Cobra Plug-In
• Usage/Application: Field Investigation
• Service Duration: Any time
• Brand Name: Intellitest
• Start Date / Month: Any time
• Site Location: Any where
• Area / Size: No Limit
• Material: ABS Plastic
• Antenna Footprint: Up to 120 meters depth

• Usage/Application: Utility Survey, Road Pavement Evaluation, Underground Water Survey, Mineral Exploration etc.
• Data Bit: 16
• Communication Speed: 100 Mbit/s
• Power: 5.5 Watt
• Weight: 15 - 25 Kg
• Frequency Range: 1 to 1000 MHz

• Automatic Grade: Automatic
• Application: Infrastructure

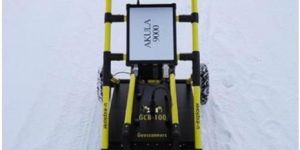

• Model Name/Number: AKULA 9000
• Usage/Application: Utility Survey, Road Pavement Evaluation, Underground water Survey, Mineral Exploration
• Antenna Footprint: 100MHs, 200MHz, 300Mz, 400MHz, 500MHz, 700MHz, 1000MHz,1500MHz, 2000MHz
• Features: Electromagnetic waves
• Max Number Of Channels: 4-16
• Max. Scan Rate: 420
• Brand Name: Geoscanner,Sweden
• Repairing and installation Service: Yes

The RD1000™ is an exciting and powerful addition to the utility surveyor’s toolkit. Using radar technology, the RD1000™ displays an image map of underground features. With the RD1000™, the technician can see a pipe or cable in its topographical context making it ideal for locating and excavating utilities. The advantage over a traditional, electromagnetic locator is that the RD1000™ can see non-conductive materials including plastic pipes.

• Application: Industrial Use
• Item Code: RD1500
• Model: RD1500
• Brand Name: Radio Detection

• Warranty: 2 Years
• Usage: Ground Penetrating Radar
• Port: India , UK
• Product name: RD1100 Utility r Ground Penetrating Rada( GPR )
• Supply Ability: 10 Unit/Units per Month

• Power Supply: +10.8 to 14 V
• Power Consumption: 5.5 Watt
• Survey Range: 6.4-32768 ns
• PRF: 12.5 - 200 kHz (adjustable)
• Analogue Bandwidth: 5-4000 MHz
• Sample Traces: 128-8192 (adjustable)
• Number of Channels: 1-16
• Traces Second: 1-330
• Software Gain: -20 to +80 dB, manual and auto setting
• Hardware Gain: 0-20 dB
• Offset: +/-128 ns, manual and auto setting
• Vertical Filters: LP and HP IIR and FIR, manual and auto setting
• Horizontal Filters: Stacking, Background removal, Dewow, DC
• Operating Modes: Time, Distance, One Shot
• Data Storage: Hard disk, USB Memory Stick, Flash card
• Data Format: 16-bit data in proprietary GSF Format
• Interface: USB 2.0
• Control Software: GAS XP

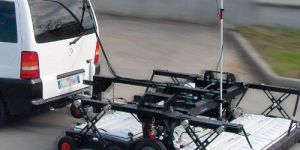

• Automatic Grade: Automatic
• Weight: 228 Kg
• Max Number Of Channels: 40
• Brand Name: IDS
• Radar Control Unit: 3 DAD MCH Fast Wave synchronized
• Antenna Frequency: 200 and 600 MHz
• Antenna Polarization: Horizontal (HH) and Vertical (VV)
• Transversal Sampling: Full configuration (2 DML + 1 DCL) 6 cm
• Positioning: Survey wheel GPS or Total Station (not included)
• Data Logger: Panasonic CF30 PC or similar
• Collection Speed: Up to 15 Km/h in full configuration
• Power Consumption: 100 Watt
• Battery Operating Time: Greater than 8.0 h
• DAD - Connection to Data Logger: Ethernet LAN
• Size On Ground Length: 2.02 m, 2.10 m (Width)
• Survey Path Width: 1.84 meter
• Environment: Rain proof

We offer ground penetrating radar, the viy series ground penetrating radar (gpr) is used for location and analysis of underground anomalies using electromagnetic pulse radiation. Operation principle of the gpr is based on surveying media illumination by electromagnetic impulses with following echoes analysis because of impulse reflection or scattering by various discontinuities. The gpr is suitable for searching of both metal and dielectric targets (stratiform structures, pipes, voids, building constructions etc.). For more detail visit us: http:www.cablelocator.in

Ground penetrating radar is a nondestructive geophysical method that produces a continuous cross-sectional profile or record of subsurface features, without drilling, probing, or digging. Ground penetrating radar (GPR) profiles are used for evaluating the location and depth of buried objects and to investigate the presence and continuity of natural subsurface conditions and features.

We are offering gepard gpr ground penetrating radar with android. The gepard gpr is a very flexible, transportable and powerful ground penetrating radar for detecting underground items like pipelines, cavities, cables, conduits, tunnels, bunkers, foundations and the like. The gepard ground penetrating radar uses an omnidirectional unshielded transmission system to reach maximum depths up to 40 meters deep. This light, agile and compact unit can be easily operated by a single operator. The radar (radio detection and ranging) sends a signal into the ground and awaits the reflection or echo of the signal to detect sub-surface anomalies, like the following: underground walls, basements and concrete reinforcements hidden cavities, graves and sepulchers water level and underground rivers and aquifers buried pipelines, conduits and cable harnesses backfilled wells, galleries, trenches and dugouts septic tanks, distribution boxes and drainage pipes secret tunnels, bunkers and shelters buried treasure chests, statues and caches

• Antenna frequency: 125 MHz
• Analogue: Digital
• Converter range: 18 bit
• Dynamic range: At least 135 dB
• Measuring rate: up to 55 traces per second
• Survey window: 120, 180, 240, 300 ns
• Maximum number of samples per trace: 1000
• Trace stacking number: Upto 128
• Depth of sounding: Upto 15 m
• Spatial resolution: Better than 1.0 m
• Maximum size of a profile: Up 1,000,000 traces
• Interface: USB2
• Dimensions: 1105x580x232 mm
• Weight: 25 kg
• Operating temperature range: minus 20 deg C to 40 deg C
• Operating time: At least 8 hours
