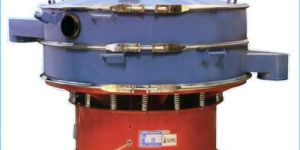

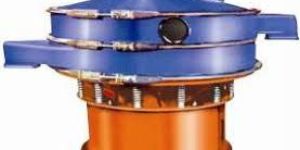

Gyro Screen Machine Dealers

• Brand Name: Laxmi Group
• Condition: Good
• Product Type: Gyro Screen
• Feature: Built to perform unsurpassable for a long life
• Place Of Origin: Ahmedabad,Gujrat
• Min. Order Quantity: As per client requirement

the gyratory screen incorporates the advance technology in screening machine. This machine is useful to screen the dry powder or wet medium. It is useful in solid-solid separation, solid classification or solid -liquid separation. Three components of mechanical vibration like horizontal, vertical and circular give an edge over conventional screen. Gyratory motion is produced by rigid screening device that vibrates with screen above its center of mass. Machine consists of a circular table, which is an assembly of the number of decks with screens, and spacing frames equipped with discharge spout. Screen held in uniform tension in all direction by a center support. These wholes mass suspended on coil springs allow unit to vibrate freely and also give thrust to screening unit by its own compression and decompression. At the same time it also prevents transmission of vibration to the floor. Vibration is motivated by specially designed vertical vibrating motor, beneath the whole assembly and inside the rigid housing. Motor has extended shaft on both side on which eccentric weights are mounted. As shaft rotates it also rotate eccentric weights and this eccentricity gives vibration to whole unit.   principle: material required to be classified is charged as thin bed into the upper deck over the screen. Coarser particles remain over screen, while fines pass through the screen and enter into lower deck. Particles over each screen in each deck are discharged automatically from individual discharge spout of each deck. Rotation of top eccentric mass causes vibration in horizontal plane and if it is increased, it will increase horizontal throw on screen will cause the over size material to discharge at faster rate. The lower weight causes vibration in vertical plane and tangential plane. It is desirable to promote maximum vertical vibration in order to dislodge material and to clean the screen. The tangential component of vibration and hence circular motion of particles in the screen are controlled by the angular position of the top and bottom eccentric weights to give better screening efficiency.

We use packaging materials that are industrial grade, and non-toxic. The labels on packages are tamper and smudge proof. We have stringent packaging related policies. Our payment procedures are well documented, legal, and safe. We provide our clients with numerous online and offline options for making purchases and make sure they are protected.   Advantages : Low power consumption Varied range of application High processing rate per unit area of screen Accurate separation Minimum screen building

• Features: Innovative designs, Optimum performance, Dependable output

- The Gyro Screens works on the principal of the gyratory motion, so its called gyro screen. - It is also called circular vibrating screen. Vibratory motion is the most effective method for screening. - Vibro screen are driven by special type of vertically mounted vibrating electric motor, having eccentric at the upper & lower end of the shaft. Rotation of out of balance top weight causes vibration in horizontal plane, the rotation of lower weight causes vibration in vertical plane - The heart of the screen is its special heavy duty vibrating motor, having out of balance weight at top & bottom.   Features of Vibro Screen (Gyro Screen/VIBRO SIFTER)

• APPLICATIONS: Food Industry Chemical industry
• ADVANTAGES: Low power consumption Varied range of application

working principle gyratory motion is the most effective method for screening. It causes 100% rotary motion and causes dispersion stirring & stratification of material to be sifted. Feed material constantly flows in horizontal motion along a loop pattern on vibro screen surface."vijimech" vibro screen provides optimum screening & assures maximum feed-rate & efficiency. features gyro screen are driven by a special type of vertically mounted motor having eccentric at the upper & lower end of the shaft. Rotation of out of balance top weight causes vibration in horizontal plane whereas the rotation of lower weight causes tilt & vibrations in vertical plane. principles of multiplane motion the heart of the gyro screen is its special heavy duty, robust motor, having out of balance weight at top & bottom. By changing their lead angle, various spiral-screening patterns are obtained to suit different application. applications food industry chemical industry pharmaceuticals ceramics abrasives plastics advantages   low power consumption varied range of application high processing rate per unit area of screen accurate separation minimum screen building

• Gyrotary Screen: Vibro Shifter
• Vibrating Screen: Gyro Screen
• Gyroatary shifter: Vibro Shifter

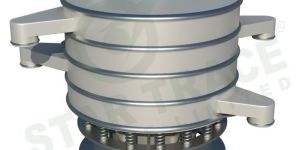

We are offering gyratory screen. specification: crushtech, vibro screen (gyratory screen) are driven by a special type of vertically mounted motor having eccentric at the upper & lower end of the shaft. Rotation of out of balance top weight causes vibration in horizontal plane whereas the rotation of lower weight causes tilt & vibrations in vertical plane. working principal: the motivation is through vibrating motor with extended shaft, fitted at both ends with eccentric weights .the top weight on the motor shaft rotates in a plane close to the center of the mass of assembly. Rotation of the top eccentric weights creates vibration in the horizontal plane, which causes material to move across the screen cloth to periphery increasing the horizontal throw, causing oversize material to discharge at a faster rate. The bottom eccentric weight rotates below the center of mass creating tilt on the screen giving vibration in vertical and tangential plane. Increasing the vertical component of motion, this promotes turn over of material on the screen surface helping maximum quantity of undersize material to pass through the screen. Heavy springs placed over the circular motor base amplifies the vibration of the screen advantage: - specially design in round shape for the better screening - heavy loaded springs adjust the vibration - have stable vibration, reliable work, long life, adjustable exciting force, casual adjustment and control of screening quantity - convenient and stable adjustment; using vibration generator as exciting source - low noise, low power consumption, reliable operation, easy adjustment and assembly - light weight, convenient maintenance and dust prevention when in closed body application: screening of spices, wheat flour, maida, besan, chemicals, minerals & pre cleaning for spices.

We are offering gyro screen. bhalani industries gyro screen is vibratory or gyratory sieving machine designed on the principle of gyratory motion generated by vibro motor. Bhalani's gyro screen provides optimum screening & assures maximum feed-rate & efficiency. Gyro screen is also known as vibro screen, vibrating screen, vibro sifter, vibro grader, rotary screen, and others. applications: bhalani vibro screen is used in solid-solid & solid-liquid separation in different types of industries. · food industry, agro products, oil industries, chemical industry · pharmaceuticals, metal powder, bulk foods, refractory · minerals, ceramics, plastics, spices, paper, sugar

• Material: Metal
• Condition: New
• Usage: Industrial
• Use: To handle all screening problems such as sieving, grading, separating, screening or scalping
• Resistivity: Corrosion & Chemical resistant
• Applications: Food Industry, Pharmaceuticals, Abrasives, Chemical industry, Ceramics, Plastics

We are a fast growing provider of the finest product range, functioning from our base in Ahmedabad(India). Our material handling procedure is very well managed by a team of experts and thus we ensure zero damage of the stored products stocked in our capacious warehousing unit.

• Capacity: 150-400 Kg/hr
• Material : Stainless Steel
• Driven Type: Electric
• Color: Silver
• Condition: New
• Automatic Grade: Automatic
• Application: Industrial
• Type: Gyro Screen Machine
• Country of Origin: India
• Voltage: 220-400 V

• Driven Type: Electric
• Vibratory Motor: SS 304
• SS 316L: Magnetic Grill
• Mesh Deblinding Kit: Dust Cover

Vibro Screen Separators

• Capacity: 1000 KG/Hour
• Brand Name: Sivtek
• Material: SS
• Applications Areas: Food & Pharma, Chemicals, Building Materials, Polymers & Plastics, FMCG / Consumer Care Products Others
• Body Material: Aluminium
• Motor Power: 2 Hp
• Automation Grade: Automatic
• Usage/Application: Industrial
• Material Grade: SS-316, 304

Graded among the top suppliers of Gyro Screen, we can deliver the product at inexpensive prices. From marketplaces of Thane(India) to all the others, our organization is capable of providing the product to purchasers as per requirement.

• Body Material: SS
• Type Of Machine: Gyro Screen Machine
• Automation Grade: Semi-Automatic
• Usage: Grading of Powders / granular material
• Diameter: 18'' to 72"

We offer Gyro Screen.

• Automatic Grade: Automatic
• Driven Type: Electric
• Warranty: 1year
• Gross Weight: 10-100kg
• Warranty: 1 Year

Gyratory motion is the most effective method for screening. It causes 100% rotary motion and causes dispersion stirring & stratification of material to be sifted. Feed material constantly flows in Horizontal motion along a loop pattern on Vibro screen surface. GREENFIELD Vibro screen provides optimum screening & assures maximum feed-rate & efficiency.   Vibro screen are driven by a special type of vertically mounted motor having eccentric at the upper & lower end of the shaft. Rotation of out of balance top weight causes vibration in Horizontal plane whereas the rotation of lower weight causes tilt & vibrations in vertical plane.   The heart of the Vibro screen is its special heavy duty, Robust Motor, having out of balance weight at top & bottom. By changing their lead angle, various spiral-creening patterns are obtained to suit different application.GREENFIELD

• Capacity: 500-1500 kg/hr
• Body Material: ms
• Type Of Machine: vibrating sifter
• Motor Power: 5hp
• Automation Grade: Semi-Automatic
• Usage: sieving
• sieving: Screen Area
• 36 sqft:

Assuring minimum damage of seeds. used in Grading plants where breakage & quality of seed is a big issue. Rubberized belt and PVC buckets.

The D.P. Vibro Sifter is a circular highly efficient gyratory screen with adjustable multiplane three component mechanical vibration. The heart of Vibro Sifter is the robust specially made vibrator motor which is designed for long trouble free continuous operation. The vibrator motor has double extended shaft fitted at each end with variable eccentric weight. Motor is rigidly mounted on circular vibrating table on rugged springs. Number of interchangeable spacing frames having discharge outlets along with tensions rings fitted with screens cloth can be mounted one on top of the other, on the Vibrating table with the help of clamp rings. D.P. Vibro Sifter is the most efficient screening machine for any dry and wet sieving application.

• Vibro Screen Machine’s Diameter Inch: 24”
• Motor HP: 0.5

Gyro Screen is fed on to the center of top screen. The undersize material passes rapidly though the screen during its travel to the periphery. The oversize material is continuously discharged through a tangential outlet. Vibro sifters are equipped to handle multiple screens one on top of the other with feed trays in between to give several precise sized fractions in a single screening operation. Special designs with up to seven screens are also available for grading.

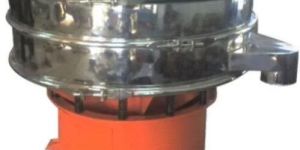

Gyratory Screen is especially designed for material of unique particle size. Gyratory Screen has better capacity per meter square of screening area and oversize material discharge with relatively much less percentage fines. Gyratory Screen is greatly appreciated for heavy-duty performance, low operating cost, and longer service life. Working Principle The motivation is through a unbalanced motor with a double extended shaft, fitted at both ends with eccentric weights .The top weight on the motor shaft rotates in a plane close to the center of the mass of assembly. Rotation of the top eccentric weights creates vibration in the horizontal plane, which causes material to move across the screen cloth to periphery increasing the horizontal throw, causing oversize material to discharge at a faster rate. The bottom eccentric weight rotates below the center of mass creating tilt on the screen giving vibration in vertical and tangential plane. Increasing the vertical component of motion, this promotes turnover of material on the screen surface helping maximum quantity of undersize material to pass through the screen. Rugged Springs placed over the circular motor base amplifies the vibration. The top weight on the motor shaft rotates in a plane close to the centre of the mass of assembly. Rotation of the top eccentric weight creates vibration in the horizontal plane which causes material to move across the screen cloth to periphery. Increasing the top eccentric mass, increases the horizontal throw, causing oversize material to discharge at a faster rate. The bottom eccentric weight rotates below the centre of mass, creating tilt on the screen, giving vibration in vertical & tangential planes. Increasing the vertical component of motion, this promotes turnover of material on the screen surface helping maximum quantity of undersize material to pass through the screen. The vertical motion also minimizes blinding of screen by "near size" particles. The tangential component of motion is controlled by the angle of lead given to bottom weights with relation to top weight. Variation in lead angle controlled the spiral pattern of material travel over the screen cloth. Speed & flow pattern of material travel over the screen cloth can be set by the operator for maximum throughout & screening efficiency for any screen able product, wet or dry, coarse or fine, heavy or light, hot or cold. Typical material passes rapidly through the screen during its travel to the periphery. The over size material get continuously discharged through a tangential outlet. Applications Mineral processing Ceramic Food & Beverages Abrasive Industries Chemical Pulp & Paper Rubber Industry Pharmaceutical Animal Feed Effluent & Waste water treatment Paint & Pigments Sand & Gravel Petroleum Sugar & syrup Benefits Low power consumption Varied range of applications High processing rate per unit area of screen Accurate separation Minimum screen building Screening up to 200 mesh Ball tray for anti blinding Modular design to yield up to 8 predetermined fractions Dust-free and noiseless processing within closed circuit can be achieved

Umatech Gyro Screen is circular in shape highly efficient and robust in construction, which is available in multiple decks for screening the various particle size materials at a time. It is applicable for any dry and wet sieving application. The critical component of the machine is Vibrator motor and is designed and manufactured for long trouble free operation. Available in MS, SS-304, SS-316 or in GMP material of Construction. Easy replacement of Screen Frame Very tightly given Screen cloth gives smooth operation. Perfectly designed so that floor vibration is very less. No clogging of the material into screen. Compact design and easy for carrying. Easy cleaning arrangement. Easy Maintenance.

We are a frontrunner, when it comes to manufacture, supply and export quality Gyro Screen for Ceramic Industries. Gyro Screens are used in Ceramic Industries to screen Ceramic powder, Ceramic Slip, Insulator slip, Silica Slurry, Glaze tile etc. Our Gyro Screen Machine requires very less amount of maintenance because they are made of premium raw materials under the strict supervision of experienced specialists. Quality is maintained throughout the process of production. We have in our store Cucolini type vibroscreen as well.
