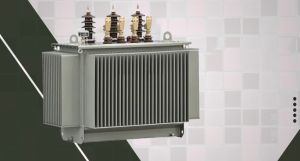

Hermetically Sealed Transformer Dealers

We manufacture a high performing range of hermetically sealed transformers that are extensively used in various power applications for interconnecting the systems functioning at different voltage classes.

• Certification: ISI certified
• Automatic Grade: Automatic
• Applicable Standards: IS, IEC, ANSI, JIS, BS, DIN
• Testing Standards: Tested as per IS: 2026, BS - 171, IEC - 76 & IEC - 726
• Vector Group: Transformers will be connected as per vector group reference Dyn 11
• Warranty: 1 year

Distribution & Power Transformer: Upto 150 kVA Single Phase both 11 & 33 kV class Upto 40 MVA, 66 kV class Upto 20 MVA OLTC 33 kV class   Transformer Options: Cooling tubes, radiators and corrugated tanks Pole mounted or ground mounted Free breathing or hermetically sealed CSP and Non CSP Winding-copper/aluminum (foil/rectangular wire/round wire) Fittings and accessories, cable Terminations: As required   Terminal Arrangement: H. V - bare bushings or cable box L. V. - bare bushings cable box Disconnecting chambers can also be provided on both HV and LV cable boxes   Temperature Rise: Transformers are designed for a maximum temperature rise 40/50ºC of oil and winding Lower temperature rise can be offered on request   Standard Fittings: Rating and diagram plate Earthing terminals - 2 nos Lifting lugs Oil level indicator (plain) Drain-cum bottom filter valve with plug Oil filling hole with plug on conservator Oil conservator with drain plug Air release plug Silica gel air breather Bi-directional flat rollers HV terminals-outdoor bushings LV terminals-outdoor bushings Radiators Filter valve with plug Thermometer pocket Oil temperature indicator Externally operated off circuit tap changing switch Explosion vent Sampling value (for 2000 Kva & above transformers only)   Accessories on Request: LV and HV cable boxes Winding temperature indicator (WTI) Buchholz relay Magnetic oil level gauge Marshalling box Disconnecting chamber Oil temperature indicator with electrical contacts (OTI) Pressure relief valve

• FEATURES: Longer Life of the Transformer, No Dehydrating Breather, No need to Oil Filtration, Improve the reliability of the operation
• Capacity: From 50 KVA to 5000 KVA.
• Voltage Class: 1.1kV, 2.2kV, 3.3kV, 6.6kV, 6.9kV, 11kV, 12.47kV, 13.2kV, 13.8kV, 15kV 22kV, 25kV, 33kV, 34.5kV, 66kV, 69kV
• Low Voltage Class: 380 V, 400 V, 415 V, 433 V, 440 V & 600 V, 690 V

Specification 3 Phase, 50Hz, oil immersed transformer with corrugated fins & voltage class upto 33KV. Continuous duty. Winding material – CopperAluminum. Terminal arrangement on HV & LV- Bushings. Tapping arrangement – Off circuit arrangement. Insulation – Class A. Painting – As per customer requirementsAs per standards Fittings & accessories – As per customer requirements.

• Range: 25 kVA - 3150 kVA

A wide range of distribution and medium power transformers. These transformers can be free breathing or hermetically sealed. Conventional transformers are fitted with a conservator with breather for free breathing while hermetically sealed are without breathing with bolted cover. Wide range of transformers in accordance to above standards with different combinations can be manufactured. The transformers are generally designed and manufactured to comply with the IEC publications 60076.

The company is counted amidst the leading Hermetically Sealed Transformer Manufacturers and Suppliers in Rajasthan. The Hermetically Sealed Transformer is equipped with oil- conservator, for better performance. Known for their excellent efficiency and other features, the Hermetically Sealed Transformer is high on demand amidst the clients. Our Hermetically Sealed Transformer is available at affordable prices. Performance Features Core & coil design for and optimum loss evaluated priceCore step lap for increased efficiency and lower noise levelsCompact design for occupying minimum spacePainting system to withstand harsh environmental conditionsAll necessary safety features Standard Fittings & Accessories BreatherConnectorsPressure AlarmTemperature GaugeLiquid Level GaugeDrain / Sampling valveLightning / Surge ArrestorLoad / Off load Tap ChangerOil / Winding temperature AlarmUnder base arrangement with rollers for ground mountingMounting brackets for Ring Main Unit / LV Switchgear

• Cooling Type: Oil Cooled
• Phase: Three Phase

  Muskaan Power Infrastructure Ltd. is one of the renowned organisations in the business for manufacturing, exporting and supplying a wide range of Corrugated Type Transformer. Get more info about transformers, visit our website.Get Best Price and Full Specification of Corrugated Type Transformer Manufacturers

Hermetically sealed transformer best performance. They are available in both stack core as well as wound core. The ratings available in these types of transformers is 10 KVA to 3000 KVA.

• Brand Name: Hi-Tech
• Color: Green, Grey, Light Green, Sky Blue, White
• Output Type: AC Three Phase
• Cooling System: Air Cooling, Oil Cooling
• Warrenty: 1year
• Winding Material: New

We are the main supplier of this product.

In Hermetically Sealed Transformers, the dielectric insulating fluid in the transformer tank is completely sealed and not connected to atmospheric air. This type of transformer is used in applications where the transformer is to be installed in harsh climatic conditions (moist, smoke, polluted, dusty environment, etc.) or where the user prefers a low maintenance transformer. The design avoids air in the transformer tank, thereby avoiding sludge formation and oxidation of the dielectric fluid. Product Feature These Transformers are used in highly humid environment.Perfect for areas with limitation of maintenance service  and confined space conditions.Excellent for compact substation units.Excellent for Highly Polluted Atmosphere.

Hermetically sealed transformer is a transformer design which has no conservator. Here the dielectric insulating fluid in the transformer tank is completely sealed and is in zero contact to the atmosphere. The design avoids air in the transformer tank thereby avoiding sludging and oxidation of the dielectric fluid. Hermetically sealed transformers are totally maintenance free and are particularly suited for use in exposed outdoor environments such as moisture, salt or dust laden atmospheres. They are used extensively in chemical plants, oil and gas terminals where poor accessibility makes regular maintenance impracticable. Transformers immersed in synthetic coolants are suitable for use indoors with adequate ventilation or near to the load center where oil would not be considered environmentally acceptable. Normally these type of transformers are accommodated by devices that measure heat related volume variations. Gas cushion is used to compensate the volume variation due to heat. Normally the gas is nitrogen. This gas is thermally uncoupled from the dielectric liquid

  3 Phase, 50Hz, oil immersed transformer with corrugated fins & voltage class upto 33KV.     Continuous duty.     Winding material – Copper/Aluminum.     Terminal arrangement on HV & LV- Bushings.     Tapping arrangement – Off circuit arrangement.     Insulation – Class A.     Painting – As per customer requirements/As per standards     Fittings & accessories – As per customer requirements.     Completely oil filled/Partially oil filled.   Special Features     Simple & robust in design and construction     Less maintenance.     Suitable where the place plays a major role     Design consistent with IS 2026 / IEC 60076     Sludge free & oxidation free.     Aesthetic look.     Zero contact to atmosphere.   Suitable for renewable energy applications

We are offering hermetically sealed transformers 3 phase, 50hz, oil immersed transformer with corrugated fins & voltage class upto 33kv. continuous duty. winding material – copperaluminum. terminal arrangement on hv & lv- bushings. tapping arrangement – off circuit arrangement. insulation – class a. painting – as per customer requirementsas per standards fittings & accessories – as per customer requirements. completely oil filledpartially oil filled.

Hermetically sealed oil filled Transformers are widely used these day all over the world for this compactness, excellent heat dissipating properties and longer life. Vardhaman make Hermetically Sealed Transformer is most commonly installed inside Package Sub-stations in India. Salient Feature : Step up and step down transformers. Sealed type Bottled Top With dry air inside. No conservator, so expansion of oil takes place through flexible corrugated walls or compression of dry air. Maintenance free as oil has no contact with external air thus no contamination of oil. Suitable for installation inside package Sub-stations. Compact in size as compared to normal tank with PSR radiators. Excellent heat dissipation properties through corrugated fin walls. Can be with corrugated fins walls or press steel radiators. DGPT2/DMCR relay for multiple Protections is optional. Tailor made designs to meet customer requirement.

We are the prominent Manufacturer, Exporter, and Supplier of Hermetically Sealed Transformers. Our range of Hermetically Sealed Transformers are completely sealed against air and water, hence protecting it from oxidation, humidity and other harmful effects of any leakage in the transformer. Our Hermetically Sealed Transformers require less maintenance, as they are naturally protected. Attributes Optimum designUnmatched PerformanceZero Defect qualityLow lossesCompact and Robust designLow maintenance

We offer quality range of transformer corrugated type (export). All muskaan’s transformers undergo rigorous quality control checks and are routine tested as per in our fully equipped laboratory. Any specific test required by the customer can also be arranged. Tapping: off circuit tap changing switch tapping from 5% to - 5% in steps of 2. 5% for hv variation or as per customer’s requirement on load tap changer- 16 steps oltc for hv variation from 5% to-15% in steps of 1. 25% or as per specific requirements oltc for remoteautoparallel operation can also be offered

Hermetically sealed transformer is a transformer design which has no conservator. Here the dielectric insulating fluid in the transformer tank is completely sealed and is in zero contact to the atmosphere. The design avoids air in the transformer tank thereby avoiding sludging and oxidation of the dielectric fluid. Hermetically sealed transformers are totally maintenance free and are particularly suited for use in exposed outdoor environments such as moisture, salt or dust laden atmospheres. They are used extensively in chemical plants, oil and gas terminals where poor accessibility makes regular maintenance impracticable. Transformers immersed in synthetic coolants are suitable for use indoors with adequate ventilation or near to the load center where oil would not be considered environmentally acceptable. Normally these type of transformers are accommodated by devices that measure heat related volume variations. Gas cushion is used to compensate the volume variation due to heat. Normally the gas is nitrogen. This gas is thermally uncoupled from the dielectric liquid. Application in following industries : Chemical, Pharmaceuticals, Steel, Textile, Engineering, Plastic, Cement, Refineries, Mining, Captive Power Projects, Hydro Power Projects, Wind Mill Farms, Construction Houses, Pharma, Electrical, Electronics, Renewable Energy, Automobile.

Hermetically Sealed Transformer, Distribution Transformers
