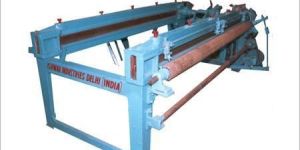

Hexagonal Wire Netting Machine Dealers

Features: - Machine produces TRIPLE TWIST type of mesh. - Machine produces netting from spiral coil and pre-coiled bobbins. - Both a Bobbin Winding and a Spiral Winding machine are required to make the spiral coil and pre-coiled bobbins required to make the mesh on these machines. - Machine supplied with toolings to make any one size of mesh in different gauge thickness. Other mesh sizes can be made with additional main rack and parts supplied as optional equipment at additional cost.   Hexagonal Wire Netting Machine has a circular pinion holder on the front and rear of the machine. The wires fed from the bobbins and the spiral coils (prepared in spiral coiling machine) placed on the front and rear rack of the machine produces the netting. The net is pulled out by the take-up roller with stands on the surface of the machine and wound automatically on the winding roller. When the required length of netting is produced, the net is cut and removed from the roller manually

• Color: Blue, Green, Grey, White
• Voltage: 220V, 380V, 440V
• Condition: New, Used
• Automatic Grade: Automatic, Manual, Semi Automatic
• Power: 0-5Kw, 10-15Kw, 15-20Kw, 20-25Kw, 5-10Kw
• Driven Type: Electric
• Warranty: 1yrs, 2yrs
• Features: Highly Durable,Good quality,Purity,Eco Friendly,Long Lasting

FEATURES   Machine produces netting from spring coil and pre-coiled bobbins.   Machine supplied with toolings to make any one size of mesh in different gauge thickness. Other mesh sizes can be made with additional main rack and parts supplied as optional equipment at additional cost.   Both a Bobbin Winding and a Spiral Winding machine are required to run the main machine.   Machine produces TRIPLE TWIST type of mesh.   OPERATIONS Hexagonal Wire Netting Machine has a circular pinion holder on the front and rear of the machine.   The wires which are fed from the bobbins and also from the spiral coil (prepared in spiral coiling machine) placed on the front and rear rack of the machine produces the netting.   The net is pulled out by the take-up roller with stands on the surface of the machine and wound automatically on the winding roller.   When the length of netting reaches the predetermined length, the same is cut and removed from the roller.   The complete operation is then repeated.

The Hexagonal Wire Netting Machine offered by us is manufactured using high grade raw materials. This machine is highly in demand in the market, owing to its high efficiency and optimum performance. Besides, this machine can be availed at the most reasonable price Specifcations : ModelNECO HWN 19.5Mesh19.5mm (3/4")Max. Wire Dia.0.7mm (22 SWG.)Max. Netting Width2000 mm (78")No. of Strokes70Wire MaterialG.I./ M.S.Type of TwistStandard TwistedPower Required2.2 KW (3 HP)Production Capacity450 m2Floor Space RequiredLengthWidthMachine3300mm2035 mm Auxiliary MachineSpares RequiredBobbin Winding MachineFiber - Wooden BobbinsSpiral Coiling MachinePinions & Spiral Rods Note : Technical Specification are Subject to Change Without Notice
