High Pressure Gauge Dealers

PRESSURE GAUGE Our team of dedicated professionals offers PRESSURE GAUGE of fine quality. It is used to measure pressure and is appreciated for its accurate readings. This gauge is precisely manufactured using high grade raw by the manufacturers and it is properly tested on its various parameters before its delivery. They are easy to use and are portable in nature. In addition to this, it can be customized as per the requirement of the clients.

• Accuracy class: 1,0 % of fs standard
• Overload capacity: 1.3 times of FS

The SP model process pressure gauges are ideal for the hard conditions and the resulting high demand on pressure measuring in production facilities in chemical industry and other comparable branches.Resistance to aggressive media and environments is achieved by using high grade material such as stainless steel both for measuring system and the casing. The glycerin filling on these gauges ensure smooth pointer movement and thus good readability even in extreme load and strong vibration conditions. The lubricating effect of the glycerin also provide protection against increase wear. The modem modular construction system with welded construction sealing system, tried and tested for many years, ensures a high level of functional safety and strong long services life.

We are reputed names for manufacturing wide variety of pressure gauges such as glycerin-filled pressure gauge, diaphragm sealed pressure gauge and electric contact gauges. The entire range of pressure gauges are designed to withstand the hazardous effects of aggressive, abrasive, heterogeneous, corrosive , highly viscous and crystalizing gas and liquid. Our seamlessly constructed gauges make or break an electronic control cycle as per the position of the instrument pointer.

Rex gauges feature bold high – visibility dials with colored temperature scales for easy reading. Rex technology surge protector minimizes the needle pulsation for improved accuracy. 1/8” NPT male connection. 3-2-3% accuracy. For refrigerants – R410a. A Quality product from Rex, Japan.

By keeping records of the clients' requirements, we have developed a system that offers several options for transferring money from one end to another. Well-established name in the domain, you can count on us for presenting extensive array of High Pressure Gauge.

High accuracy digital pressure gauge ve100 model : ve100 temperature : 0 to 50°c range : -1 to 700 bar battery life : 1000 hours accuracy : ± 0.075% of f.s output : optional description : ve100 is a micro-processor controlled, accurate and versatile digital pressure measuring instrument with integrated max.-min.-function for calibration and testing purposes. The pressure is measured twice per second and displayed. The top display indicates the actual pressure, the bottom display shows the max.- or min.-pressure since the last reset. Ve100 has three operating keys. The left key is to turn the instrument on, to select the functions and the pressure units. The right key executes the selected function resp. Unit or serves to display the max.- and min.-value. specifications : pressure range : -1…700 bar resolution : 0,1 mbar overpressure : 2x number of digits : 4 12 digit accuracy (10…30 °c) * : 0.075 %fs precision * : 0.075 %fs precision optional (≥ 20 bar) * : 0.05 %fs 0.01 %fs storage- operating temperature -10…60 °c 0…50 °c compensated temperature range : 0…50 °c supply : 1.5 v battery * 5 battery life : 1000 hours continuous operation pressure connection : g14” protection : ip65 diameter x height x depth : 76 x 118 x 42 mm weight : 210 g

We are a high-flying name in this arena and thus, strive hard to deliver the best in class products to the clients. Also, we source the basic material from the reliable places. We have efficiently utilized our storehouse space in the most efficient way as we have segregated units to keep the products sorted for quick and urgent deliveries. Features : High grade material Best quality Cost effective

Working pressure: steady: 75% of full scale value, Working temperature range : ambient: -25°C a 65°C, Overpressure: 25% 100bar, Casing body: liquid filled in stainless steel case with safety vent. Band ring: stainless steel AISI 304, Fissing flange: stainless steel AISI 304 with 3 holes, Dial: white painted aluminium with indelible black and red graduation MCS green mark, Needle: black painted aluminium, Transparent cover: polycarbonat, Connection: brass for pressure up to 600bar

Steel Diaphragm with Teflon foil protection, Refer below, Aluminum, Weatherproof, Painted Stove Enameled Black with Screwed Inner Bezel of ABS Plastic.Direct Bottom Entry, Non Ferrous.

• Dial Size: 3" / 4"

HIGH ACCURACY DIGITAL PRESSURE GAUGE High Accuracy, High Resolution, High Precision, Selectable Units: kgcm2, bar, psi, mmhg, mmwc, kpa, mbar. Accessories: Pulsation Dampner, Syphons, Diaphragm Seals, Gauge Cocks, Gauge Savers.

Ideal for Calibration and High Accuracy Applications   Features 3" / 4" dial size High Accuracy, High Resolution, High Precision 0.1%, 0.075%, 0.05% F.S. Accuracy Selectable Units: kg/cm2, bar, psi, mmhg, mmwc, kpa, mbar Wetted parts SS316 Ranges from 0-1 bar upto 700 bar, vacuum & compound Customized Pressure Ranges Accessories: Pulsation Dampner, Syphons, Diaphragm Seals, Gauge Cocks, Gauge Savers   Pressure Ranges 0-1, 0-2, 0-7, 0-10, 0-20, 0-35, 0-70, 0-100, 0-200, 0-350, 0-400, 700 kg/cm2 or bar -1x0 (vacuum) & compound ranges -1x7, -1x20, -1x35 bar / kg/cm2   Or any custom range as required. Also available in mmwc ranges

• Application: Industrial
• Brand Name: Hydmark
• Range: 0 to 21kg

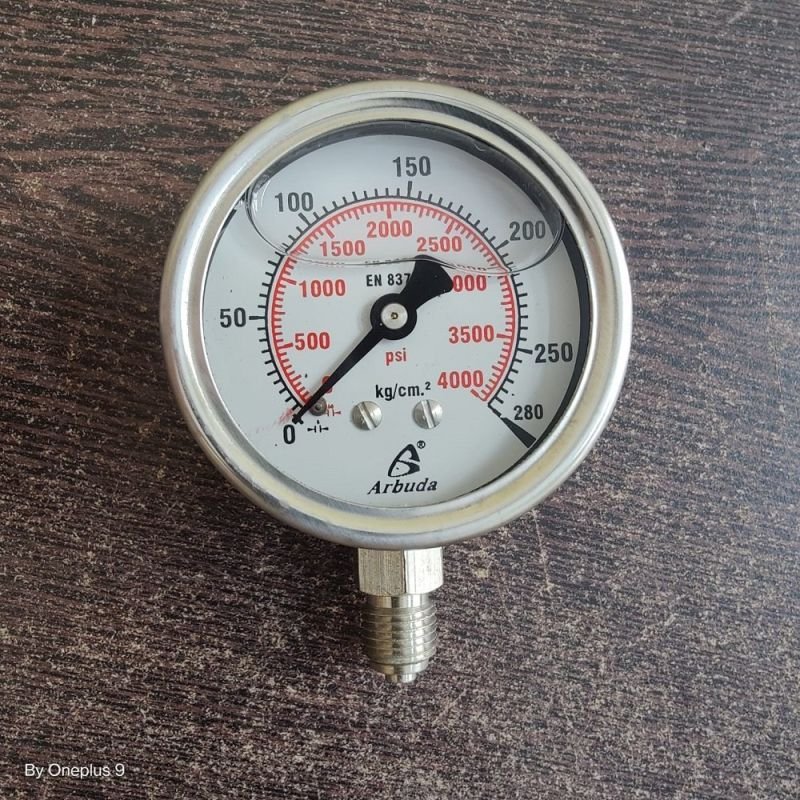

GOMA provides complete range of glycerin-filled pressure gauges specially designed for high pressure applications. Glycerin absorbs the vibration and pressure spikes. The dampening action of the glycerin enables the operator to take reading during conditions of rapid dynamic loading and vibration. The liquid lubricates all moving elements, dramatically reducing wear in the movement. Because most liquid-filled gauges are filled with non-aqueous liquid and hermetically sealed, they perform in corrosive environments and are immune to moisture penetration and icing. These gauges are easy to read, face sizes from 2-12″ to 6″ and pressures up to 60000 psi

deals as the difference in pressure between two points means it make rotation of two shafts at different points the difference between two or more pressures introduced as inputs to the sensing unit, for example, measuring the pressure drop across an oil filter. Differential pressure is also used to measure flow or level in pressurized vessels. These gauges are intended for measuring the pressure differential existing across two media or two parts of a system. The pressure element separates the two pressurized media, and deflects proportional to the difference in pressures between the media, irrespective of the absolute pressures applied. This deflection is converted into the rotation of a concentric pointer on a dial, similar to regular pressure gauges. The absolute value of either of the pressures is not usually indicated.

•  Model:  : VE100
•  Temperature:  : 0 to 50°C
•  Range:  : -1 to 700 bar
•  Battery Life:  : 1000 Hours
•  Accuracy:  : ± 0.075% of F.S
•  Output:  : Optional
•  Pressure Range:  : -1…700 bar
•  Resolution:  : 0,1 mbar
•  Overpressure:  : 2X
•  Number of Digits:  : 4 1/2 Digit
•  Accuracy (10…30 °C) *:  : 0.075 %FS
•  Precision *:  : 0.075 %FS
•  Precision optional (≥ 20 bar) *:  : 0.05 %FS / 0.01 %FS
•  Storage- / Operating Temperature:  -10…60 °C / 0…50 °C
•  Compensated Temperature Range:  : 0…50 °C
• Supply:  : 1.5 V battery * 5
•  Battery Life:  : 1000 hours continuous operation
•  Pressure Connection:  : G1/4”
•  Protection:  : IP65
•  Diameter x Height x Depth:  : 76 x 118 x 42 mm
•  Weight:  : 210 g

• Dial Size: 2"
• Scale Range: 0-30 to 0-4000psi
• Connection: 1/4" NPT
• Usage: High pressure gas systems, cylinders charged with any oxygen, Acetylene, Nitrogen, nytrous oxide gases
• Accuracy / Class as per Indian Standards: +/- 2% of FSD
• Mounting: Direct bottom
• Case: Drawn Aluminium Powder coated in standard colour shade for specific gases
• Pressure element: Bourdon tube
• Wetted parts: Brass or 316 Stainless Steel
• Movement: Brass or 316 Stainless Steel
• Dial: Aluminum with White background and black markings & numbering are printed along with "OXYGEN", "ACETYLENE, "NITROGEN" as per standard
• Pointer: Non adjustable
• Window: Molded Acrylic
• Feature: Aluminum solid baffle wall at front part of case between bourdon tube and dial and aluminum blow-out back provides safety for gauge viewer from rupture
