Hopper Wagon Dealers

• Track Gauge: 1676 mm
• Length (Hd/Stock to Hd/ Stock): 12580 mm
• Height (From – R.L.): 3735 mm
• Width: 3196 mm
• Bogie Centre: 9710 mm
• Tare Weight: 26.00 t
• Carrying Capacity: 60.00- 2.0 t
• Coupler Type: CBC – Non Transition
• Bogie Type: 2 Axle Cast Steel Bogie with long travel (Amested Type Ride Control Bogie)
• Brake System: Air Brake
• Used For: Carrying Coal

• Features: High tensile strength, Free from defects , Corrosion resistant.

BOBRN Hopper Coal Wagon DESCRIPTION MEASURES LENGTH OVER COUPLER FACES 10600 MM DISTANCE BETWEEN BOGIES CENTRE 6790 MM OVERALL HEIGHT FROM RAIL LEVEL 3735 MM OVERALL WIDTH 3500 MM WHEEL CENTRES 2000 MM WHEEL DIAMETERS 1000 MM TARE WEIGHT 25.60 TONS PAY LOAD 55.68 TONS GROSS LOAD 81.28 TONS AXLE LOAD 20.32 TONS RATIO PAY LOAD TO TARE 2.18 TONS TRACK LOADING DENSITY 7.67 TONS/METER VOLUMETRIC CAPACITY 156.78 CUBIC METER

• Towing speed: upto 80 km/h.

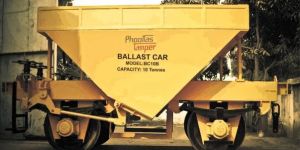

Hopper wagon Facilitates controlled spreading of ballast on the railway track & track shoulders. Available in different Gauges Speeds Vehicle Configuration.Build to order custom machines to suit the client job site’s specific requirement.Manualpowered gates for controlled discharge of aggregate.

• Total Weight: 81.28 M.T.
• Load Capacity: 58.38 M.T.
• Track Gauge: 1676 mm

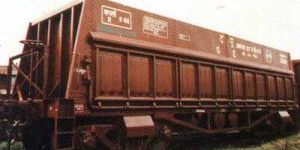

These Wagons are also known as Rapid Discharge Coal Hopper Wagons. The type used by Railways is BOBRN type having 8 underside doors and the one used by Thermal Power Stations has 12 underside doors.These Wagons can carry 60 tonnes graded coal and can ply in merry-go-round system. The loading is done from the top and unloading is done automatically from the bottom through Pneumatic Door Operating Mechanism activated by Rail Side Devices mounted on the track. The electro-pneumatic system is actuated from 24 to 32 Volt DC operated Line Side Equipment at the desired place. The Door Operating Mechanism has been successfully developed and are in wide use. The wagons have the same features as other 8 wheeler bogie type wagons used for carrying bulk load.
