Horizontal Steam Boiler Dealers

• Material: Mild Steel, Stainless Steel
• Application: Liquid Boiling
• Voltage: 220V
• Driven Type: Electric
• Brand Name: Shama Global

Located at Delhi(India), we are reckoned for providing excellent array of products throughout the country. Courtesy a state-of-the-art warehousing unit and an ultramodern inventory control system, we take care of product storage related work with ease. Our warehouse and system empowers us to maintain year round products' availability.

• Brand Name: ALANKAR
• Material: Mild Steel
• Color: Blue, Grey
• Power: 9-12kw
• Pressure: High, Low
• Application: Liquid Boiling
• Certification: CE Certified, ISI Certified
• Voltage: 440V.540V
• Capacity: 0-2Tph, 6-8Tph
• Type: Horizontal Steam Boiler
• Fuel: WOOD
• Country of Origin: India
• Output: STEAM

• Item Code: SB-04

Being a prevalent entity, we are highly engrossed in offering a premium grade Non-IBR Horizontal Steam Boiler. Our offered boiler is precisely manufactured by the industry experts, who use the optimal grade materials and modern techniques. It is burdened with numerous attributes like seamless finish, great performance, robust structure, hassle-free operations, and long working life. We offer it at a highly reasonable rate.   Specifications : Capacity : 50 kg/hr to 400 kg/hr Working Pressure : 10.54 kg cm² (g) Hydraulic Test Pressure : 15 kgcm² (g) Output Temperature : 180oC Fuel to be Fired- HSD, coal wood & gas

• Fuel: LPG, CNG, Natural Gas, Bio Gas, Diesel, HSD, LDO
• Brand Name: JSON BOILER
• Working Pressure (kg/Square.cm.g): 5-15
• IBR Approved: No
• Capacity (Kg/Hr): 100kg/hr-900 kg/hr

We are leading manufacturers, trader and suppliers of Horizontal Smoke Tube Type Steam Boiler. JSON BOILERS is a trusted name in the field that brings forth Industrial Steam Boilers that are welcomed for fully automatic instant steaming. Based on the reverse flow principle of combustion, these boilers do not require trained boiler attendant, during operation.   FEATURES - HORIZONTAL SMOKE TUBE TYPE STEAM BOILERS High workmanship. Ease of maintenance. Optimum heat transfer. Great operational safety. Space saving compact design. Regular after sales service. Horizontal Packaged Three Passes.

• Type: Wet Back Jacketed 3 pass Horizontal & Water wall Membaren Type Of Steam Boiler
• Fuel: Solid Flued Fired
• Application: Steam Coal, Lignite, wood
• Pressure: up to 17.58 kg/cm2

Three pass design ensures more travel of flue gases to allow maximum heat transfer. Wet back design prevents uneven thermal stresses on rear tube plate and obviates need for refractory work. Manufactured as per indian boiler regulations with updated amendments. Compact and sturdy design. Minimum space requirement. Maximum boiler efficiency with better steam quality. Can be easily converted into oilgas firing system.

The boiler units indicated in the above table are as per our current manufacturing range. We also manufacture and supply customized boilers.

• Capacity :: 50 Kg/Hr to 800 Kg/Hr
• Pressure :: Up to 15 Kg/Cm2

Horizontal Type Non IBR Steam Boiler high grade raw materials, these products are highly recommended for premium quality and durability. we have the most experienced team of professionals who ensures that these products are with accordance to the international standard, respecting all the required parameters. In addition, they are available in attractive prices.

• temperature: 750 - 900° C

FBC boilers can be operated efficiently with a variety of fuels. Even fuels like Coal , Husk , agro waste can be burnt efficiently. These can be fed either independently or in combination with coal into the same furnace. Coal containing fines below 6 mm can be burnt efficiently in FBC boiler, which is a very difficult to achieve in conventional firing system. Since the temperature of the furnace is in the range of 750 - 900° C in FBC boilers, even coal of low ash fusion temperature can be burnt without clinker formation. Ash removal is easier as the ash flows like liquid from the combustion chamber. Hence less manpower is required for ash handling.

• Capacity: 500-1000 (kg/hr)
• Fuel: GAS, WOOD AND COAL
• Material: Mild Steel
• Brand Name: RAJESH DESIGNERS & FABRICATORS
• Usage/Application: Industrial
• Generation Capacity: 1000-2000,2000-3000,Up to 25000

We offer a wide range of Horizontal Steam Boiler which has fully automatic operations. Due to its larger heating areas & efficient burner with high CO2 content, it maintains clean combustion. Its thermal efficiency is 88%. There is no explosion hazard in horizontal steam boiler due to its coil design & maximum safety incorporated.

• Capacity: Kcal/Hr.
• Temperature: °C.
• Type of Fuel: Light Diesel Oil / Furnace Oil / L.P.G. / Natural Gas

Product Description :   Three-pass oil/gas/coal fired Smoke Tube Horizontal Package Steam Boiler (Non-IBR).   Key Attributes:    » Smoke Tube/Water Tube.  » Thermal Efficiency 86 ± 2% on NCV. Coil from Seamless ASTMA 106 GR-B Pipes.  » Easy & Economical Operation.

• Capacity: 300 KGS

Fully automatic for easy operation & maintenance. Relaible high coverage efficiency of 88±2 [NCV]. Fitted with all safety and indigenies accessories.Can be designed to meet customer specific requiremts.

The hottest selling packaged oilgasdiesel fired boilers are undoubtedly the SPD -series MBPL. The boiler is packed with a host of features such as the unique ‘Circlo Flame’ burner. This fourth generation burner delivers a combustion efficiency of over 99.99% & can be handled & maintained by any operator.

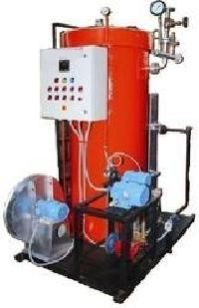

Non IBR Horizontal Steam Boiler, Oil Fired Three Pass Thermic Fluid Heater

horizontal steam boilers, automatic steam boilers, coil steam boilers

horizontal steam boilers, Namkeen Plant, Chasni kettle

Horizontal Packaged Steam Boiler, Electrostatic Precipitator

Horizontal Steam Boiler, Industrial Chimney, Air Preheaters

Horizontal Steam Boiler, Industrial Steam Boiler, Pressure Vessels

Horizontal Steam Boiler, Vertical Steam Boiler

Horizontal Steam Boiler, Hot Water Boiler, Thermic Fluid Oil

Wood Fired Horizontal Type Steam Boiler, Diesel Fired Thermic Fluid Heater
