Hot Plate Welder Dealers

• Size: Customised
• Type: Plastic Welder
• Shape: Standard
• Application: Industrial Use
• Finishing: Polished
• Packaging Type: Wooden Box
• Feature: Durable, Fine Finishing

Our team members are well aware about the payment procedures and they ensure that the clients are completely satisfied with the transactions made. We accept payment through all offline and online mediums. The well-structured warehouse is the reason behind the safety and year around availability of the products we offer. Besides, we have installed modern amenities necessary for the safe storage of the lot.

We are a prominent Manufacturer, Supplier and Exporter of Hot Plate Welding Machine which is mainly used for sealing application in car bumper, car-light, filter, pallet, vacuum cleaner etc. Hot plate welding utilizes a temperature controlled heat platen assembly with is introduced between the two parts to be assembled. The hot plate is typically flat, but can be shaped to match the profile of the components being welded. Hot plates are usually manufactured in aluminum or aluminum bronze. The component-holding fixtures are mounted on to the machine slides. The slides are designed to support the holding fixtures of the axial load without distorting the machine frame.

• Type: Special Purpose Machine
• Condition: New
• Automatic Grade: Automatic
• Driven Type: Electric
• usage: industrial

From catering to seasonal demand to a continuous one, we can do it, as we have an ultramodern storage facility, which is equipped with the latest inventory control and management system. We have strong tie-ups with the leading e-commerce merchants who provide us a secure payment gateway that helps us in avoiding physical movement of money.

• Automatic Grade: Semi-Automatic
• Voltage: 230 V
• Output Current: 0-100 A
• Brand Name: Marck
• Frequency: 50 Hz
• Power Source: Electric

Hot Plate Welding Machine

• Voltage: 110V, 220V, 450V, etc
• Power: 1-5kw, 10-15kw, etc
• Driven Type: Electric
• Weight: 100-1000kg, etc
• Advantage: Easy to Operate
• Performance: Excellent Result

1. plc hmi controlled machine. 2. safety screen for operator safety. 3. digital pressure controlled 4. safety interlock ( pressure , temperature) � pid temperature controller to maintain the correct temperature of the heating elements � pneumatically operated machine with festo make cylinder � replaceable teflon sheets will be provided on top & bottom of the heater block to avoid sticking of the component to the heater � teflon coating hot plates. �� sturdy ms frame with powder coating. � the cycle starts by pressing the 2 hand push buttons � logic controls will be through plc ( fuji electric make) � mcb will be provided for input supply � acrylic sheet framework will provide for machine. � temperature interlock and all possible interlock will be provided to machine. ��timer and relay logic control operation ��leak proof joining all machined parts in general will be blackenednickel plated ��fabricated parts will be powder coated as per your color scheme ��relays will be provided for all output from plc. ��all actuators & indicating lamp will be of technic idec make

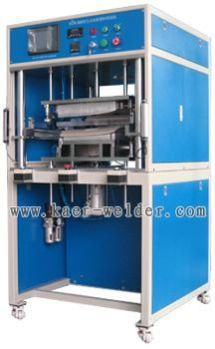

• Product Name: Hot Plate Welder For Auto Tool-box
• Working Voltage: AC220V±10%
• Working Current: <17A
• Size: 1340mm*870mm*1650mm

Product Introduction :    This hot plate welder is specially designed for auto tool-box. The hot melt mold is made through profiling carving aided by computer, ensuring the close fit between the mold and work-piece. The identical welding size of the product provides a neat and orderly appearance.

Features:1. PLC HMI Controlled Machine.2. Safety Screen for operator safety.3. Digital Pressure controlled4. Safety Interlock ( Pressure , Temperature)   • PLC and HMI Controlled Machine • Safety Screen provided for operator Safety • PID Temperature controller to maintain the correct temperature of the heating elements • Pneumatically operated machine with Festo make Cylinder • Replaceable Teflon sheets will be provided on top & bottom of the heater block to avoid  sticking of the component to the heater • Teflon Coating Hot Plates.• Sturdy MS frame with powder coating. • The cycle starts by pressing the 2 hand push buttons • Logic controls will be through PLC ( Fuji Electric Make) • MCB will be provided for input supply • Acrylic sheet framework will provide for machine. • Temperature Interlock and All possible Interlock will be provided to Machine.• Electrical Input Voltage: 230VAC + 2V Single Phase • Pneumatic: Air Supply: 4 to 6 CFM @ 3bar pressure. • Timer and relay logic control operation • Leak proof joining All machined parts in general will be Blackened/Nickel plated • Fabricated parts will be powder coated as per your color scheme • Relays will be provided for all output from PLC. • All actuators & indicating lamp will be of TECHNIC / IDEC make

Infinity Automation counted as one of the leading manufacturers of Hot Plate Welding Machine. Ideal of different welding applications.

Hot plate welding is possibly the simplest plastic joining technique, used for various applications ranging from small automotive fluid reservoir vessels to pipelines in excess of 1000 mm in diameter.

• Phase: Single Phase
• Capacity: 1 Ton
• Voltage: 230 V
• Power Source: Electrical
• Operation Type: Automatic
• Motor Power: 10 HP
• Usage/Application: Used For Welding Injection Moulded Components
• Pneumatic Pressure: 3 bar
• Features: Leak proof joining
• Material: Mild Steel
• Output Current: 150 A

• Phase: Customized
• Features: Compact design, Interlocked safety doors with full guarding, Heavy duty construction, Single zone temperature controller, Digital temperature controller
• Power Source: Customized
• Rectifier Type: Customized
• Operation Type: Customized
• Power: Customized
• Brand Name: Branson

• Dimension: W120xL130xH220 cm
• Line Source: 1P 220V 40A
• Mode No: KH-33
• Welding Area Max: W450 x L350 x H250 or dia.510mm
• Air Source: 6kg/cm23-5HP user compressor
• Net Weight: 600 Kg
• Features: Suits particularly assembly of parts either large size or irregular shape, Suits poor ultrasonic transmission material.

• Automatic Grade: Semi-Automatic
• Voltage: 220 V
• Output Current (Ampere): 100-200
• Brand Name: KEBER
• Frequency: 50 Hz

• Feature: Temperature controller with Indication, Variable welding time, Variable heating time, Variable welding pressure, For Brake fluid reservoir welding
• Brand Name: Sam

• Model: Welding Area
•  : BHP-01
• 300mm x 200mm: BHP-02

suitable for automotive side indicator, rear lamp, battery, coolant tank of auto vehicle, washer rotator of balancer ring, pallet and big size none regulation of plastic products. hot plate welding utilizes a temperature controlled heat platen assembly, which is introduced between the two parts to be assembled. All items are brought together, and the melting cycle is started. Both halves of the holding fixtures are brought together against stops for the proper amount of seal time and seal depth.   features:   distance adjustable for upper and lower plate. fastest changeable mold.

4m Automation offered Hotplate Welding Machine.   4m Automation offered Hotplate Welding Machine. Welding table Size – Width 400mm X Length 600mm Day Light – 400mm SSR Heater control PLC control Part sensors for fool proof production Light curtain for safety MS pipe structure with powder coating Air Pressure interlock Quick change fixtures Servo option with HMI height adjustment

• Voltage: AC 380 V
• Weight: 1600 Kg
• Control: Siemens PLC
• Temperature: Max. 40 Degree C
• Control Voltage: DC 24V
• Ambient Humidity: 81% PH
• Hot Mould Plate Size: 642 x 400 mm
• Max Load of The Upper and Lower Slide Plate: 550 Kg
• Frequency: 50 Hz
• Hot Mould Slide Plate Stroke: 450 mm
• Safe Light Curtain Protect Height: 440 mm
• Raster Check Area: 38 mm
• Upper Slide Plate Stroke: 350 mm
• Lower Slide Plate Stroke: 300mm
• Size: 1635 x 1640 x 2400 mm
• Max Power: 14 kW
• Air Tube Diameter: 12 mm
• Air Collector Volume: 10L
• Air Pressure: 0.7MPa

• Automatic Grade: Automatic
• Capacity (products per hours): 200
• System Architecture: PLC synchronized
•  :

Hot Plate Welder, Ultrasonic Plastic Welding Machine

Hot plate welding system use for plastics components joining / sealing or welding  specially used in Automotive sectors. This is also commandeered for the big size plastic products where customer need leak proof welding and also where Ultrasonic welding having its limitation in terms of product size and plastic material like Nylon - 6 or 66 or GFN etc. Hot plate technology is economical in comparison of Vibration and IR welding.    If any clarification or assistance require, please contact us.
