Hydraulic Oil Cleaning Machine Dealers

Electrostatic oil cleaner systems use electrostatic precipitation to remove sub-micron particle of insoluble material, without affecting soluble oil additives. Tiny particles are electrostatically driven to and captured on positively or negatively charged walls of electrodes. Large particles are trapped in the resin impregnated cellulose filter. Coalescing filter in dehydration cell is used for removal of moisturewater up to 5000 PPM. Modern additives-treated oil is highly resistant to deterioration; it can continue service indefinitely if kept clean and contamination free.

• Automatic Grade: Semi- Automatic
• Material: Mild Steel
• Brand Name: Ace Hydraulic
• Capacity: 5000 litre per hour
• Features ': Removes varnish and moisture to keep oil super clean
• Motor Power: 1 hp
• Purifiers Type: Hydraulic

• Type: Hydraulic Oil Cleaning Machine
• Certification: ISO 9001:2008
• Weight: 100-1000kg
• Color: Black
• Voltage: 110V, 220V, 440V
• Condition: New
• Automatic Grade: Automatic, Fully Automatic, Semi Automatic
• Power: 1-3kw, 3-6kw
• Driven Type: Electric
• Warranty: 1year
• Country of Origin: India
• Brand Name: OM LOGISTICS
• Application: Oil Cleaning
• After-Sales Service Provided: Yes
• Flow: 15lpm
• Working Pressure: 1

• Automatic Grade: Automatic
• Weight: Up To 25 Kg

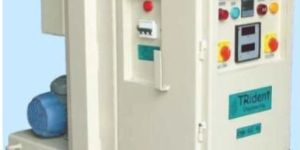

• Brand Name: Trident
• Features: Removes free particulates and moisture employing a coalescing rule, Easy handling and portable .
• Capacity (l): 10-20Lpm (600LPH-1200LPH)
• Gear type: Up to 10 IPM
• Electric Motor: Up to 0.37 KW

Clean Oil is necessary to get good performance from your machines equipments. Contaminations in oil are responsible for breakdown, losses and replacement of the oil. Conventional methods of oil purification, viz: filtration, centrifuge and straining, are incapable of adequately cleaning oil, as they remove particles only above 5 microns in size. These remaining small size particles cause high contamination and therefore require regular changing of oil. The electrostatic cleaning presents a far superior and highly effective method of purifying hydraulic oil. Contaminants caused due to dust, abrasive metallic particles, oxidation, sludge and fine water are removed by this method. Oil cleaned by this method meets NAS class 45 requirements. (National Aerospace Standards 1638)

Contaminants in oil are either positively or negatively charged due to the contact potential difference with oil. When oil is passed through an electric field, positively charged particles are drawn to the negative pole and vice versa.Neutral contaminants are drawn and deposited by gradient force to the edge of the die electric media where the intensity of the deformed electric field is highest.When corrugated die electric media (collectors) are inserted between electrodes, the electric field is deformed and die electric polarisation occurs at the tips of the corrugation. The electric field is the strongest at the tips and particles are drawn and deposited on opposite electric poles and removed from oil.

The lube oil filtration machine is used for purifying the various types of turbine and hydraulic oil used in the machines of the power plant viz Turbine, Generators etc. This machine conditions Lube oil of grade ISO – VG – 46 & ISO –VG – 68 and enhance the parameters of water content from 2000 ppm to 5 ppm and separates (removes) the free water, sludge and carbon from Lube oil. This machine mainly consists of two parts. Centrifuge Degassing and vacuum system This lube oil filtration machine is used for purifying the hydraulic oil grade ISO – VG - 46 used to clean the power packs. For testing power packs fresh hydraulic oil is required in every cycle with particle cleanliness level as NAS 1638 class 5 ISO 4406 1411 and water content less than 50 ppm. This machine consists of 3 stage filtration of 50, 5 and 1 micron filters with heating and degassing vacuum system.

• Features: Prevents corrosion of components , End to the need to change hydraulic fluids

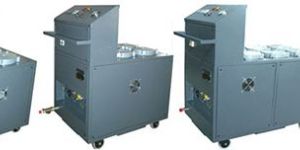

The Kleenoil Filtration System is a multi-purpose fluid cleaning and transfer rig, which is available in different models. The system can be used to clean most mineral oils such as hydraulic, gear and transmission oils, diesel type fuels and many soluble oils and fluids. In its static form, it can be permanently connected to large fluid reservoirs where the machines and engines are in constant use. As a mobile trolley it has a wide variety of applications, such as oil and fuel transfer and rotational cleaning of factory machinery.

• Models: HOFP-005-D HOFP-010-D

Hydraulic system contaminants can be either solid particles or liquids (Moisture) Solid particles contaminate by chemically reacting with the fluid, or fouling the system through accumulation.The filtration system is capable of removing the solid contamination as well as moisture. System can achieve desired NAS (National Aerospace Standard) level.

hydraulic oil cleaning machine Maintain oil cleanliness level below NAS 4 Maintain moisture level below 200 ppm Higher dirt holding capacity media works for mineral oil & glycol-water

Hydraulic Oil Cleaning Machine, Hydraulic Power Packs, Lubrication Equipment

For efficient hydraulic oil cooling solution, These Hydraulic Oil Cleaning Machines serve the best. These Hydraulic Oil Cleaning Machines are sourced from reliable vendors and are manufactured using the latest American Technology. Hydraulic Oil Cleaning Machine, offered by us, has 5 micron special features and is used for diverse applications. We make available Hydraulic Oil Cleaning Machine in different customized specifications. Demanded For All types of hydraulic accumulator servicing workBladder changeGas charging dry nitrogen
