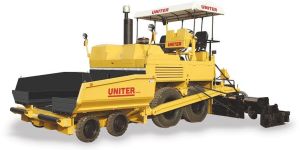

VP-05 OVERVIEW : Paver machines with electronic sensor for grade and slope control giving accurate level of laid surface and quality output.Material Laying Capacity : 300 TPHEngine Power : 125 hpScreed size : 2.5m to 5.5mWheels on rear axle : Two on each side WORKING APPLICABILITY: Option 1: Bituminous materialOption 2: Bituminous, Wet mix, GSB, DLC, DBM material(Dual Purpose). FEATURES PRIME MOVER: VP-05 is powered by Kirloskar make water-cooled electric start diesel engine, Model 6R 1080 TA1, 125 hp @ 2300 rpm or equivalent. Engine has sufficient space on all the sides for air draft and cooling of engine. Engine is easily accessible for daily maintenance like checking engine oil, coolant water level, engine suction filter etc. Engine starter, alternator can be easily removed for periodic maintenance. Gauges like engine temperature, oil pressure and ampere meter are on sliding panel and are easily visible from operator’s seat. POWER DISTRIBUTION GEAR BOX: It is coupled with the engine for coupling three pump sets. The gearbox is in oil bath; all the gears are of proper alloy steel material and hardened for greater life. Bearings used in gearbox are of reputed make for greater life. Gearbox is provided with oil level indicator, air breather, oil drain plug for better operation and maintenance. Special care has been taken for long trouble free life of Gearbox. HYDRAULICS: All hydraulic pumps, motors and hose pipes are of reputed make. Utmost care has been taken in selection of joints so as to minimize chances of hydraulic oil leakage. All ‘0’ rings, grooves are of proper match so that it gives greater life of ‘0’ ring. SPEED REDUCTION GEAR BOX: Two speed reduction gearbox to achieve low speed for paving and high speed for traveling. All the gearbox are in oil bath and are of proper alloy steel material hardened to get greater life. Gearbox is provided with oil level indicator and oil drain plug for better operation and maintenance. THICKNESS / LEVEL CONTROL: Auto and Manual mode compatible In Auto mode, Electronic Sensors controls the grade and slope of laid surface. It can be accurately controlled as per job requirements. Electronic Sensor of MOBA, Germany (imported) is used. MOBA, Germany is a major supplier of sensors for paver all over the world In manual mode, thickness can be controlled by switches provided on screed. BRAKES: Brakes can be operated by pushing pedals provided near both the operator’s seat. The safety brakes are acting on the speed shaft, which are coupled to the drive wheels. FRONT WHEEL: Four solid rubber tyre of size 550 mm x 175 mm are mounted on front bogie (two on left and two on right) with equalizer beam to ensure maximum floatation and equal weight distribution. Hydraulic steering is fitted for effortless operation. CONTROL PANEL: Sliding type operator panel with traveling functions on left and right side. Operating functions on left and right side. Double operator seat. Machine is controlled by means of simple switches on operator panel. Hydraulic steering is fitted for effortless operation. REAR BOGIE: Four Nos. pneumatic tyre size 10.00 x 20, two mounted on either side on equalizer beam to ensure maximum floatation and equal weight distribution. Double wheel on rear axle gives more traction force which reduces chances for tyre slippage. specially working on wet mix and higher width. Wheels are with equalizer beam which reduces undulations of the lay surface. HOPPER: Movement of the two hoppers is obtained by means of hydraulic cylinder operated independently by simple switches of control panel. Hopper Capacity: 4.25 CM. CONVEYOR SYSTEM: Two pallet conveyors with hardened steel chain provide the material to two sets of augers which spreads material on both sides. Hydraulic drive for conveyor and auger Each of the pallet conveyors can be controlled independently from the operator’s seat. WORM ASSEMBLY: Worm spreads material in front of screed in total width of pavement. Hydraulic drive for conveyor and auger Properly sealed bearings are used for greater life as they are always covered with the laying material while paving. Special arrangement for greasing is provided as greasing is required daily for greater life of bearing. Worm is of Ni-Hard / Hi Chromium steel material, properly heat treated for greater service life. Proper covers for chain are provided for greater service life of chain. SCREED: Basic screed width of 2.5 meter, hydraulically extendable up to 4.5 meter and further extendable up to 5.5 / 6.0 meter by bolt on extension. Main screed is pivoted at the center point of the machine to assure a constant flatness or work on uneven grounds. Lateral mobile plates are hydraulically operated, sliding on chromium plated telescopic cylindrical guides for wear resistance to achieve paving width up to extendable limit. Screed plate is 360 mm width, 16 mm thick with provision for heating by 8 LPG burners two on each mobile plate and four nos. on main screed plate. Vibration is provided for complete width of screed with infinitely variable frequency from zero to 3000 rpm (50 Hz). Tamping is provided for complete width of screed with infinitely variable frequency from zero to 2000 rpm (33.3 Hz). SHUTTERS AND HYDRAULIC PIPING: Shutters are provided on three side of machine which can easily be opened for easy inspection and maintenance of the machine. Special care has been taken to keep maintenance parts on left side of machine so that maintenance on road can be safe. Filters are kept on outer side of machine for maintenance. Maximum use of MS pipe is done as MS pipes occupy less space; they can be easily clamped and reduces chances of leakage. THRUST ROLLER: Two thrust rollers are fixed on heavy oscillating beam provided on front part of the machine. SPECIFICATIONS POWER UNIT Engine:Kirloskar make water-cooled electric start diesel engine, Model 6R 1080 TA1, 125 hp (93 kW) @ 2200 rpm or equivalent Electrical System: 12 VDC Emission Standard: BS-III Speed Reduction Gear Box:Two speed reduction gearbox to achieve low speed for paving and high speed for traveling. PERFOMANCE Laying Suitability: Option 1: Bituminous material Option 2: Bituminous, Wet mix, GSB,DLC,DBM material (Dual Purpose) Laying Capacity: 300 TPH Laying Thickness: 300 mm (Max) to 10 mm (Min) 12″ (Max) to 3/8″ (Min) Transmission: Hydrostatic Working Speed: 0 to 30 m/min (Max.) Traveling Speed: 0 to 16 km/hr (Max) Slope An Grade Control:MOBA, Germany make electronic sensor(Auto & Manual mode available) Maintanance Shutters:On three side of machine Traction & Conveyor Pump Motor: Sauer Danfoss, Germany or equivalent SCREED Screed Width: 2.5 m (8′ 2½”) basic width, Hydraulically extendable up to 4.5 m (14′ 91/8″), bolt on extension up to 5.5 m (18′ ½”) Option: Attachment up to 6.0m (19′ 8¼” Crown(Manual): -1° / +4° Screed Heating: Yes, with 8 LPG burner facility Screed Vibration:Yes, infinitely variable (0 to 50.00 Hz ) Screed Tamping:Yes, infinitely variable ( 0 to 33.33 Hz ) UNDER CARRIAGE Rear Wheel: Four no. Pneumatic Tyre Size: 10.00 x 20 Front Wheel: Four no. Solid Rubber Tyre 550 Dia. x 175 mm wide REFILL CAPACITIES Fuel:156 L (34.4 gal) Hydraulic Oil: 282 L (62.1 gal) Cooling System:6.5 L (1.4 gal) Engine Oil:14 L (3.0 gal) OPERATOR STATION Control Panel Type: Sliding Operator Seat: Double Operator Seat Travelling Function: Left & Right Side Operating Function:Left & Right Side Steering:Hydraulic Brake:Caliper disc brake on both the sides CONVEYOR AND AUGER SYSTEM Conveyor And Auger System:2 Sets, one on each side Conveyor Drive: Hydraulic Conveyor And Control: On / off switch Auger Screw Size: Dia 300 mm (12″). Auger Material: Ni-Hard / High Chromium Steel Material HOPPER AND FEEDING SYSTEM Hopper & Feeding System:Hydraulic Hopper Capacity: 4.25 m3 (151 ft3) Hopper Width: Working: 3.22 m (10′ 6 3⁄4″) Closed: 2.44 m (8′) Feed Tunnel Width:1.268 m (4′ 1 5⁄8″ ) DIMENSIONS Operating Height:3.47 m (11′ 4 5⁄8″) Shipping Height(Canopy tilted): 2.90 m (9′ 6 1⁄4″) (w / o canopy & exhaust):2.68 m (8′ 9 1⁄2″) Shipping Width:2.57 m (8′ 5 1⁄4″) Length(Tractor Unit + Screed):6.67 m (21′ 10 1⁄2″) Wheel Base:2.61 m (8′ 6 7⁄8″) Dump Height:0.70 m (2′ 3 1⁄2″) Thrust Roller:0.54 m (1′ 9 1⁄4″) MACHINERY ACCESSORIES Canvas Canopy; Working & Traveling Lights; Tool Kit with Jack; Horn OTHER FEATURES All operating levers including panel switch board are handy and within easy reach; All gears and shafts of gear box are made from alloy steel and are hardened and ground for efficient working; Screed is vibrated with hydraulic motor to compact laid layer; All jacks are having same kind of seal kit (Piston seal and rod seal of PU material)
Hydrostatic Sensor Paver Finishers
Get Price Quote
1 Piece(s) (MOQ)
Sensor Paver Finisher Supplier Ganesh Equipment are Supplier Of Sensor Paver Finisher Supplier Of Sensor Paver Finisher Supplier In Gurgaon, Shimla, Gandhinagar, Surat & Thane. Ganesh equipment Are Supplier Of sensor Paver Finisher Supplier Of Sensor Paver Finisher Supplier In Himachal Pradesh, Haryana & Gujarat.
Best Deals from Hydrostatic Sensor Paver Finishers
Hydrostatic Sensor Paver Finishers
Get Price Quote

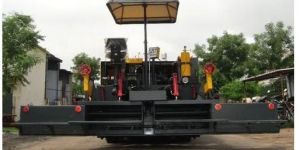

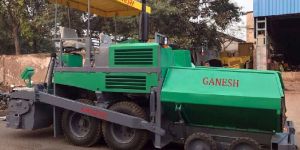

We are recognized as a prominent Hydrostatic Sensor Paver Finisher Manufacturer and Exporter, offering machinery that is synonymous with efficient performance. A distinctive feature of the QPF 550 Wheeled Paver Finisher is its Double Axle Design that offers remarkable stability on the toughest terrains. The flexing remains zero even when paving width is the widest due to the advanced designing of the Hydrostatic Sensor Paver Finishers. Components Hydrostatic driveFinger tip controlsSwinging consoleHydraulically extendable screed (with vibration and tamping)World-class sensors Details Basic screed width : 2.5 mHydraulic extension : up to 4.5 mGrade control : +/- 1 mmSlope control : + 0.1%Paving width : 5.75m (due to bolted mechanical extensions on the sides of screed) Sensors Available MOBA - Germany make string sensorsUltrasonic sensors Features Accurate grade and slope controlImpressive paving performanceRemarkable compaction valuesEasy operationEasy maintenanceHigh efficiencyQualitative output
Hydrostatic Sensor Paver Finishers
Get Price Quote
Hydrostatic Sensor Paver Finishers
Get Price Quote
Hydrostatic Sensor Paver Finishers
Get Price Quote
Universal offers mechanical paver finisher for paving laying the hotmix material on the constructed surface. The hotmix material from the truck is dumped into the paver hopper which is then conveyed to the spreading screw by chain conveyor. The left & right hand screw spreads the hotmix material equally along the paving width. The floating screed then paves this hotmix material to the desired preset thickness.
Hydrostatic Sensor Paver Finishers
4,600,000 Per Piece
Hydrostatic Sensor Wet Mix Paver Finisher
Get Price Quote
We design and provide Hydrostatic Sensor Wet Mix Paver Finisher to clients to serve their industrial needs. The Hydrostatic Sensor Wet Mix Paver Finisher that we offer is strong and durable as it is manufactured using premium quality raw materials. These Hydrostatic Sensor Wet Mix Paver Finishers are highly effective and are used in highways, main roads, rural roads, airport, motorways etc.
