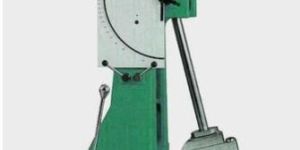

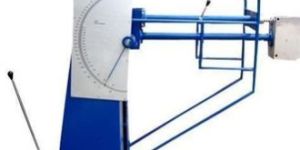

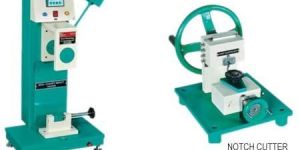

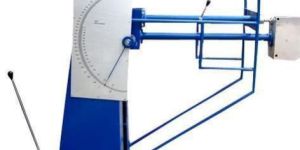

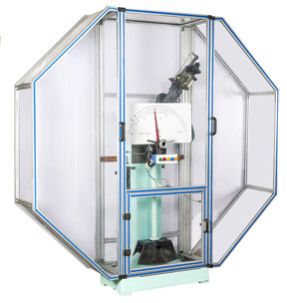

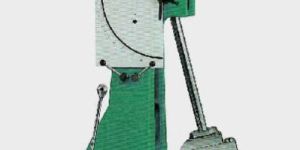

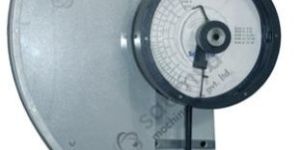

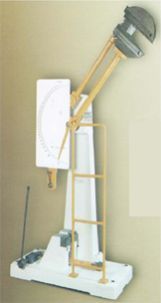

Charpy Impact Testing Machine
Get Price Quote
1 Piece (MOQ)
Owing to the knowledge of this domain, we are offering to our patrons a broad spectrum of Charpy Impact Testing Machine. Features: Caliper gauge for checking V notch both for izod & Charpy as per BS: 131: Part, 1, 2 & 3 Template for checking 10x10 mm cross section of izod / Charpy test specimen Depth notch gauge including V & U notch gauges for checking depth below V/U notch, angle and radius Izod support for 0.450 dia Izod round specimen Self-centering tong for quick and accurate setting of Charpy test specimen V notch milling cutter 22 mm bore U notch milling cutter 22 mm bore Additional Information: Item Code: RI-30-ASTM Production Capacity: 100 PA Delivery Time: 9 Packaging Details: WOODEN PACK

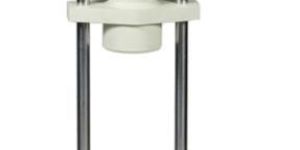

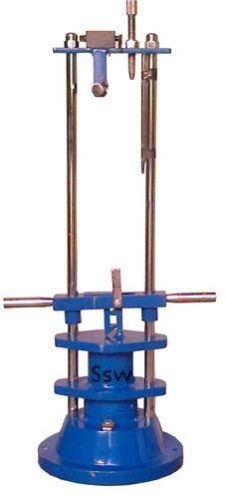

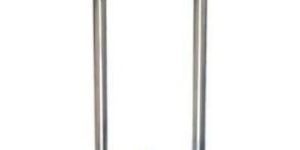

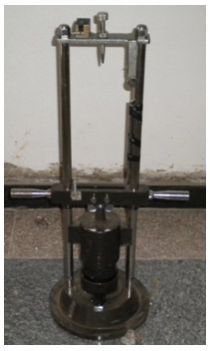

Aggregate Impact Value Apparatus
5,500 Per Piece
The apparatus of the aggregate impact value test consists of: A testing machine weighing 45 to 60 kg and having a metal base with a plane lower surface of not less than 30 cm in diameter. Level and plane concrete floor of minimum 45 cm thickness are used to support it. The base of the machine should also have provisions for fixing its base. A cylindrical steel cup of internal diameter 102 mm, depth 50 mm and minimum thickness 6.3 mm. A metal hammer or tup weighting 13.5 to 14.0 kg the lower end is cylindrical in shape, is 50 mm long, 100.0 mm in diameter, with a 2 mm chamfer at the lower edge and case hardened. The hammer is arranged in such a way that it should slide freely between vertical guides and be concentric with the cup. It is arranged that the free fall of the hammer should be within 380±5 mm. A cylindrical metal measure having an internal diameter of 75 mm and depth 50 mm for measuring aggregates. One end rounded tamping rod 10 mm in diameter and 230 mm long. A balance of capacity not less than 500 g, and readable and accurate up to 0.1 g.
Best Deals from Impact Testers

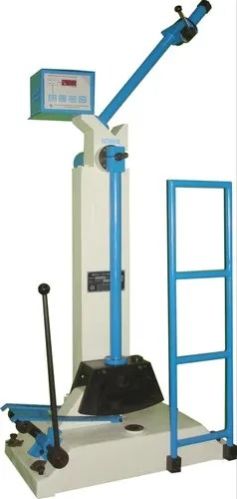

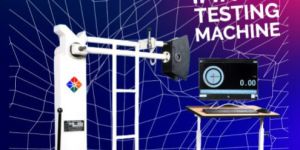

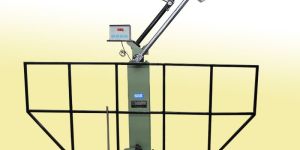

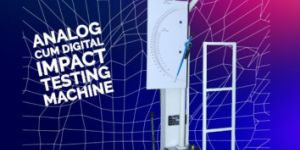

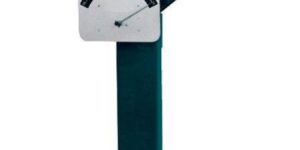

Digital Impact Testing Machine
150,000 - 450,000 Per
1 Set(s) (MOQ)
Buyers can avail themselves of high-performance Digital Impact Testing Machine at best prices from us! We are one of the eminent Manufacturers and Suppliers of Digital Impact Testing Machine in Maharashtra. We fabricate these machines to perform Izod and Charpy tests. The methodologies adopted to conduct these tests adhere to BS : 131 : Part 4-1972 (Amended 15 Aug. 1993) BSEN : 10045-2 : 1993. Working :The Pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for Charpy & the lower one for Izod testing. On release, the pendulum swings down to break the specimen and the energy absorbed in doing so, is measured as the difference between the heights of drop before the rupture of the test specimen and is read from the maximum pointer position on the dial scale.(It is read on the digital readout in case of electronic machines.)There are two strikers and one combined support available for fitting in to the pendulum and onto the base of the machine for the Izod, Charpy test respectively. Changing from one striker to another is achieved simply by fixing the new striker into its position. Optional Accessories : Caliper gauge for checking V notch for Izod & Charpy.Templates for checking 10 x 10 mm cross section of Izod / Charpy test specimen Depth notch gauge including V & U notch gauges for checking depth blow V/U notch, angle and radius. Self centering tong for quick and accurate setting of Charpy test specimen. 'V' notch milling cutter 'U' notch milling cutter NOTE : DUE TO CONSTANT R&D SPECIFICATION AND FEATURES ARE SUBJECT TO CHANGE WITHOUT NOTICE.

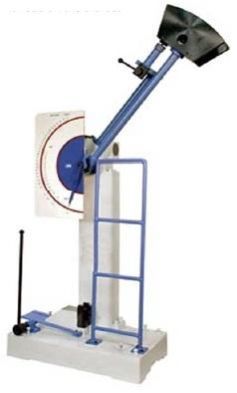

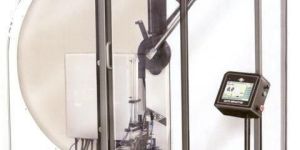

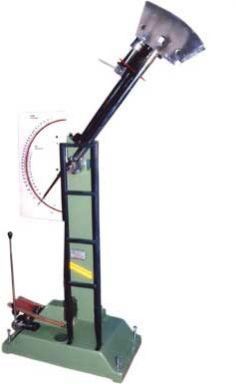

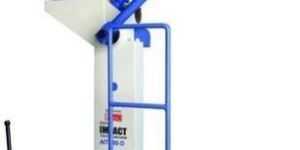

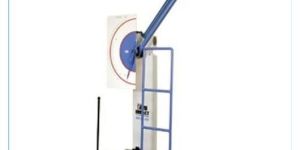

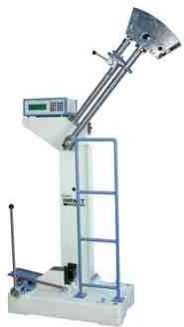

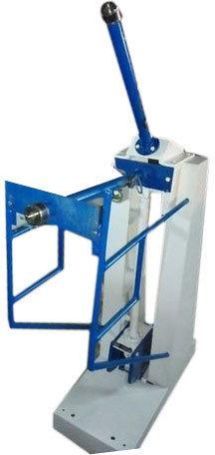

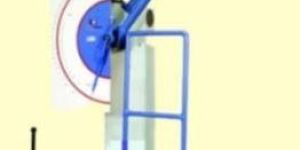

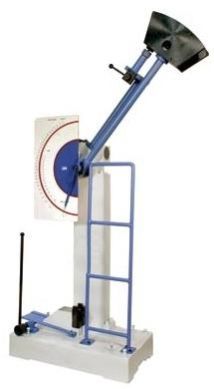

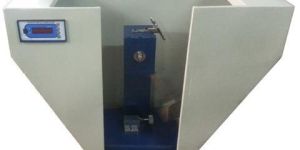

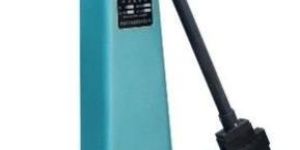

Impact Testing Machine
210,000 - 270,000 Per Piece
1 piece (MOQ)
We are engaged in making available Automatic Impact Testing Machine. The Impact Testing Machine that we offer is precisely designed and stands in complete compliance with industrial standards. Impact Testing Machine, provided by us, is considered suitable for Izod & Charpy tests. Further, we are a famed Supplier of Impact Testing Machine.Highlights: Premium range Digital Facility Optional PC Interface High Efficiency

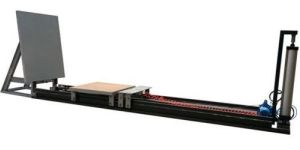

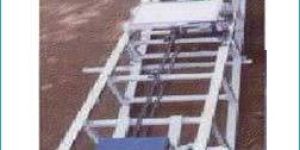

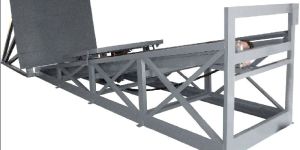

Inclined Impact Tester
Get Price Quote
Impact Testing Machine
Get Price Quote
We make available Impact Testing Machine Model SE-IT 30, which is specifically designed for conducting Izod & Charpy Test. The test methods in the machine conform to BS: 131: PART 4-1972 (Amended 15 Aug. 1993) & BSEN: 10045 - 2: 1993. Impact Testing Machine is suitable for testing raw material specimen as well as finished components. Avail from us the Impact Testing Machine at market leading prices. Components & Working Of Impact Testing Machine Pendulum of the machine is mounted on antifriction bearings Contains two starting positions, the upper one for Charpy and the lower one for Izod testing The Pendulum on release swings down to break the specimen and the power absorbed in doing so is calculated as the variation between the height of drop before rupture & height of raise after rupture of the test specimen The output is read from the maximum pointer on the dial scale Offered With Self centering tong V - notch milling cutter U - notch milling cutter Caliper gauge for checking V notch for Izod & Charpy as per BS: 131 :PART 1, 2, 3 Depth notch gauge including V & U notch, angle & radius Controls of Pendulum The Pendulum supported in the starting positions is by a self resetting latch. The release mechanism is operated by lever. The Pendulum release latch is operated only when this lever is operated.

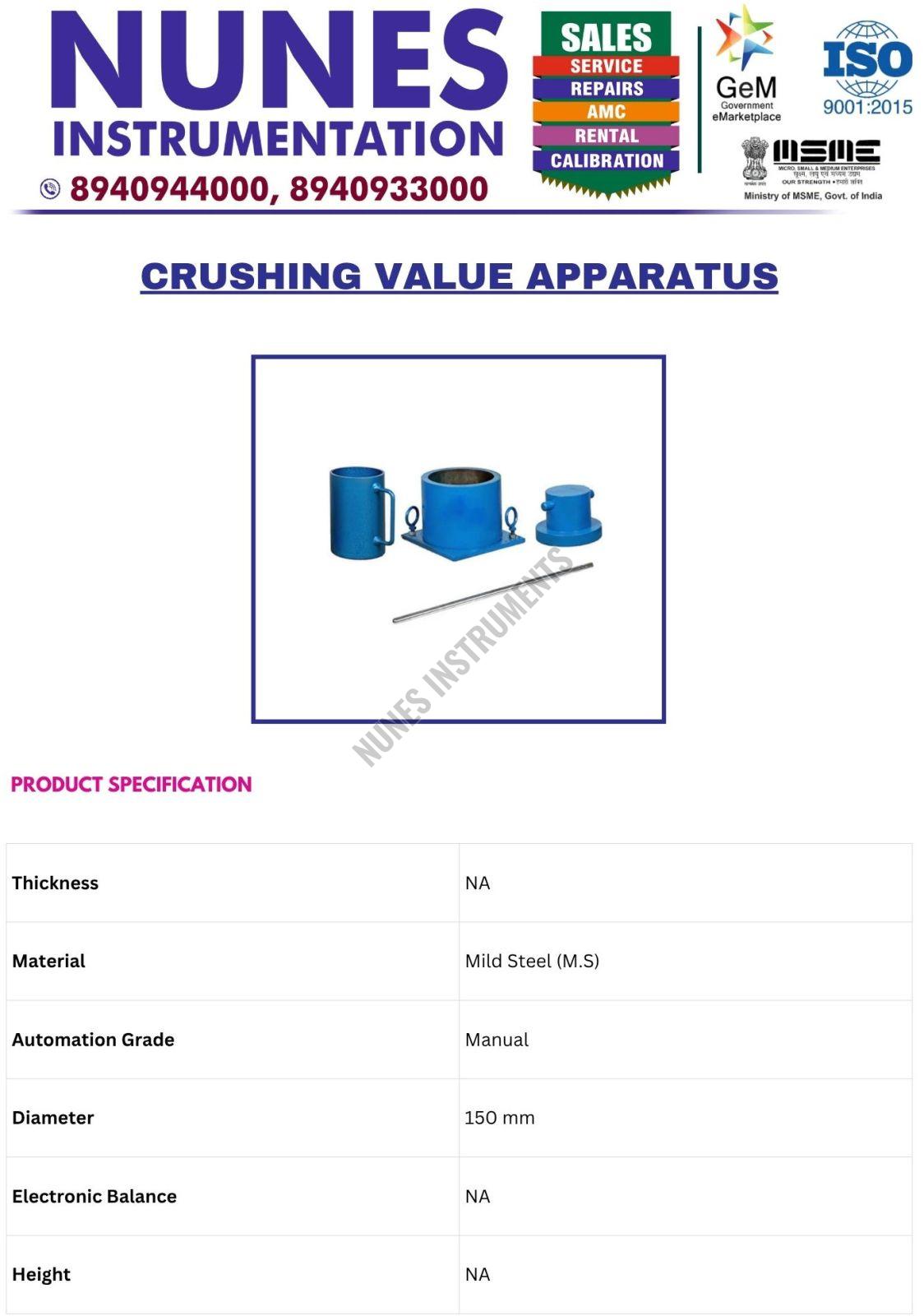

Crushing Value Testing Apparatus
Get Price Quote
1 Piece (MOQ)

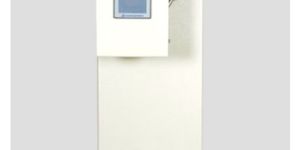

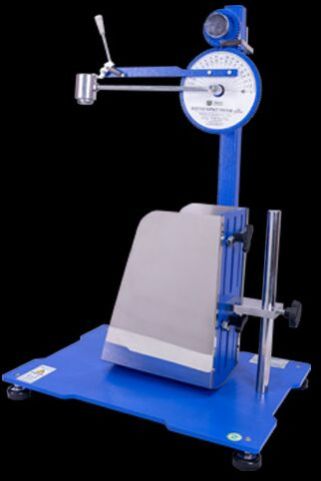

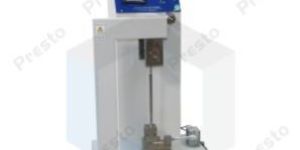

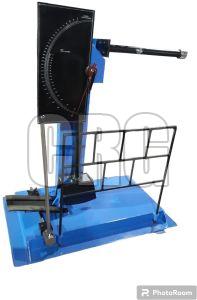

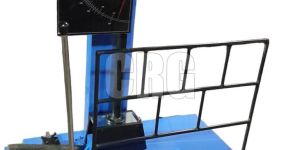

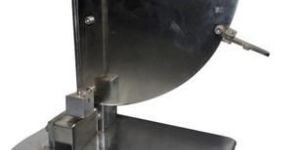

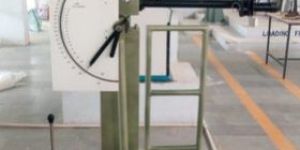

Izod Charpy Impact Tester
1 Per piece
1 Piece (MOQ)
As per ASTM D - 256 to test impact resistance of plastics. The test indicates the energy required to break standard test specimen.
Mechanical Impact Testing Machine
Get Price Quote
Impact Testing Machine
Get Price Quote
1 Piece (MOQ)

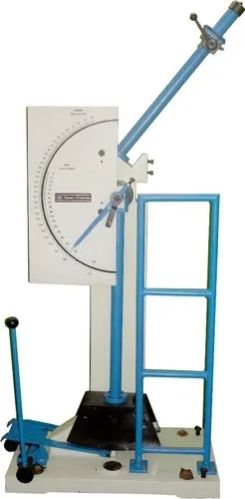

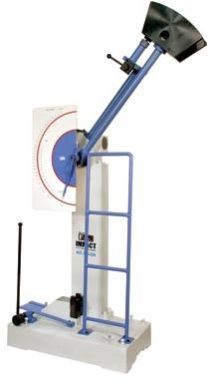

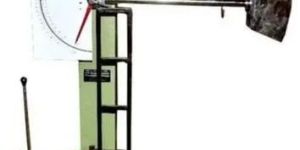

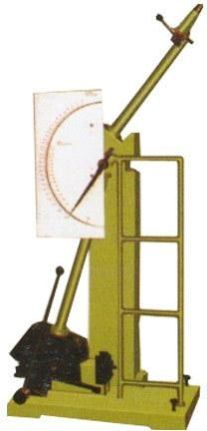

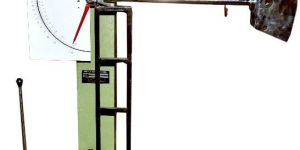

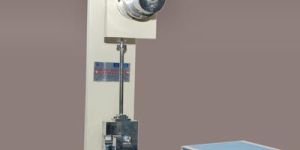

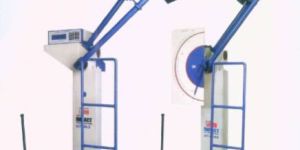

Pendulum Impact Tester (Model - IT 30 )
Get Price Quote
1 Piece (MOQ)
The pendulum Impact Tester, Model IT-30 is designed for conducting Izod, Charpy test. The test methods confirm to BS:131:PART 4-1972 (Amended 15 Aug. 1993) BSEN:10045-2:1993. The pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for Charpy the lower one for Izod testing. On release, the pendulum swings down to break the specimen & the energy absorbed in doing so is measured as the difference between the height of drop before rupture of the test specimen and is read from the maximum pointer position on the dial scale. (It is read on digital readout in case of electronic machines). There are two strikers and one combined support anvil available for fitting in to the pendulum and on the base of machine for the Izod, Charpy test respectively. Changing from one striker to another is achieved simply by fixing the new striker into it’s position. CHARPY TEST The Charpy test piece rests on alloy steel support anvils, fitted on the base of the machine rigidly held in position by Allen screws. End stopper is provided for quickly and accurately locating the test piece centrally between the supports. IZOD TEST The Izod Test piece is clamped vertically in Izod support fitted on the base of the machine. The support is provided with a machined vertical groove to suit the test piece size. The front clamp piece and the Allen screw enable clamping of the test piece in correct height with the help of Izod setting gauge supplied. Optional accessories Self centering tong for quick and accurate setting of Charpy test specimen ‘V’ notch milling cutter. Caliper gauge checking V notch for Izod & Charpy. ‘U’ notch milling cutter. Templates for checking 10x10mm. Cross section of Izod/Charpy test specimen. Depth notch gauge including V & U notch gauges for checking depth below V/U notch, angle and radius. Standard Accessories Izod Striker Charpy Striker Anvil Spanner Set Manual

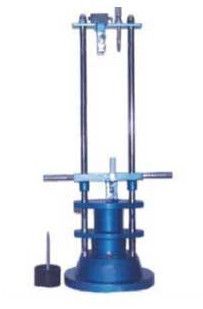

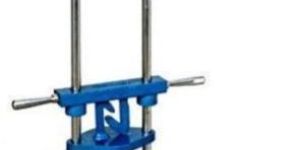

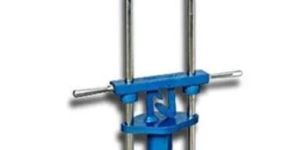

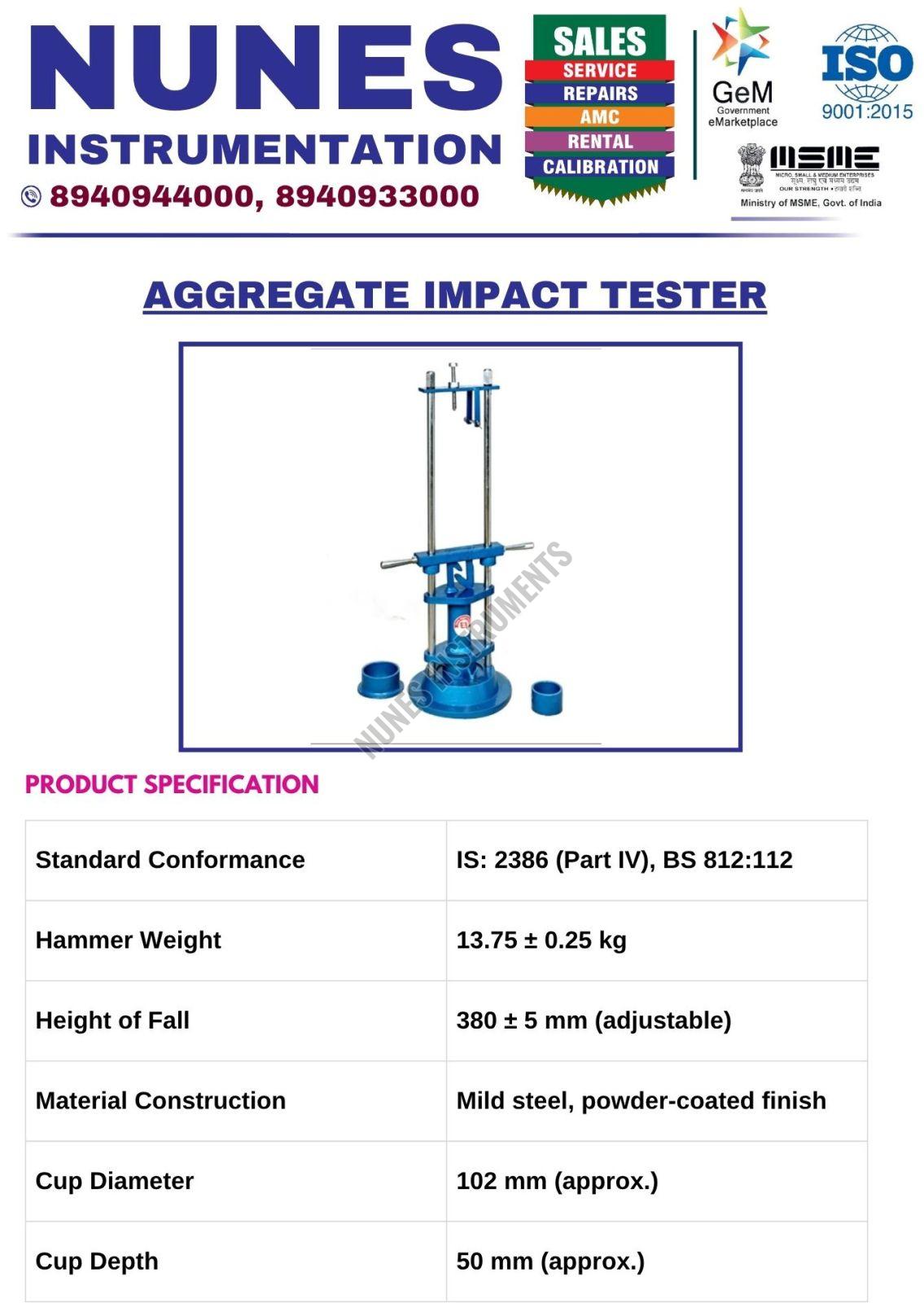

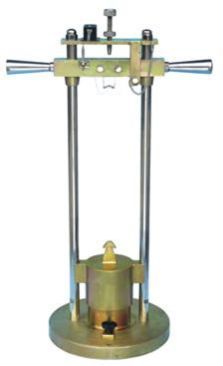

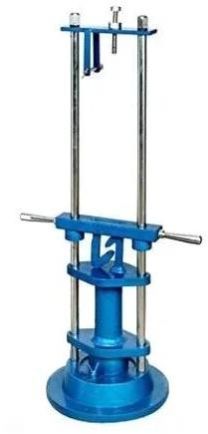

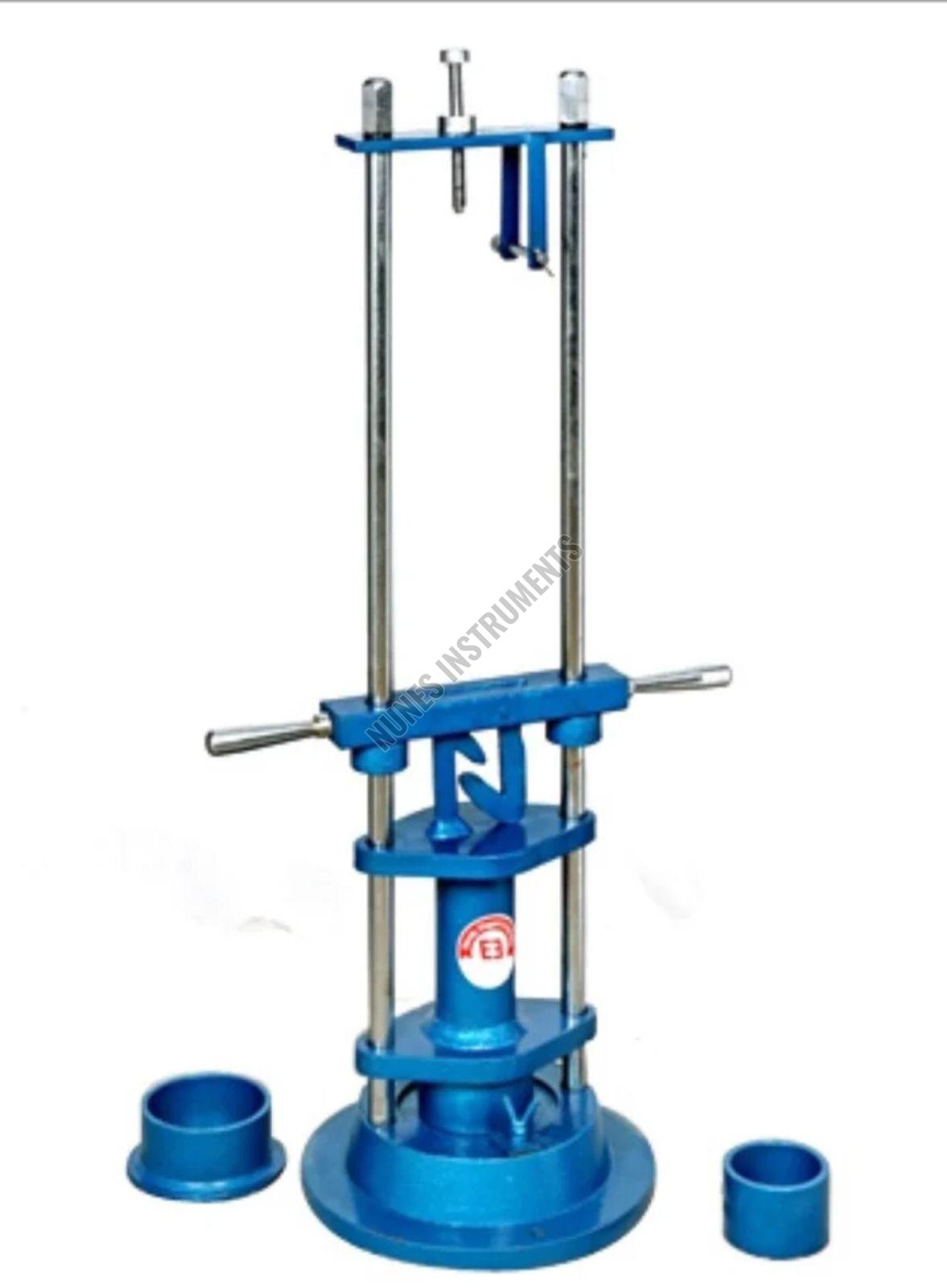

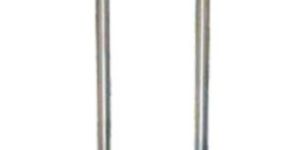

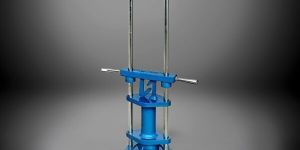

Aggregate Impact Tester
10,000 Per Piece
1 Piece(s) (MOQ)
Features: for determining the aggregate impact value the instrument consists of a circular base with two vertical guides the height of fall can be adjusted the hammer is provided with a locking arrangement the hammer falls freely to the base and is removable for emptying supplied complete with metal measure 75 mm dia x 50 mm height tamping rod as per standard supplied complete with automatic blow counter keyword aggregate impact tester with counter meter distributor in chennai, supplier of aggregate impact tester with counter meter in chennai, manufacture of aggregate impact tester with counter meter in tamilnadu.

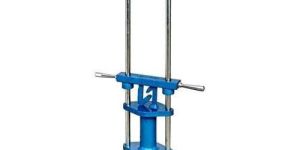

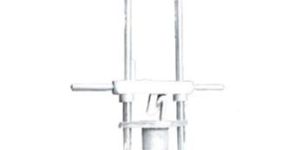

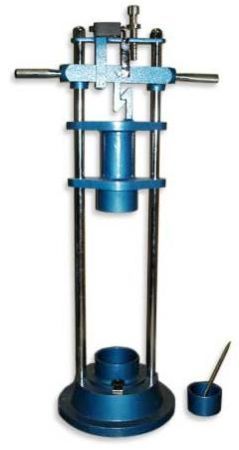

Aggregate Impact Testing Machine
6,500 - 7,500 Per piece
1 Piece (MOQ)

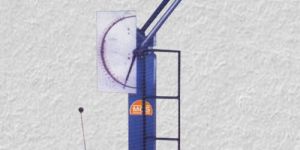

Impact Testing Machine
300,000 Per Piece

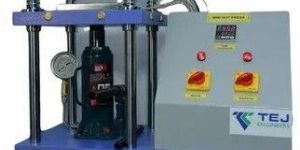

Impact Tester
1 - 10,000 Per Piece
1 Unit (MOQ)

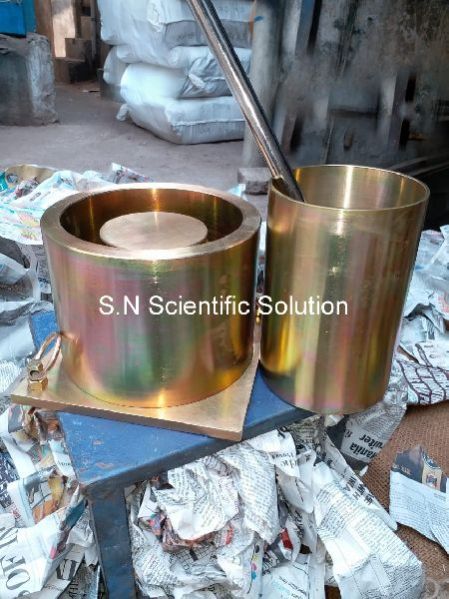

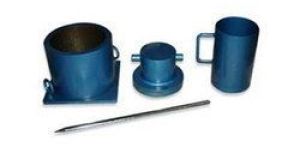

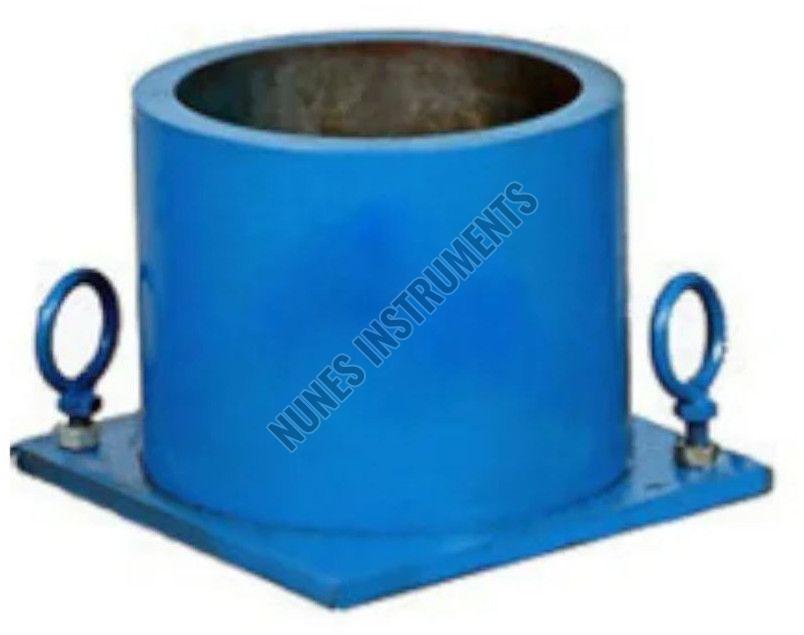

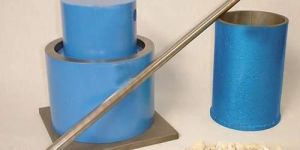

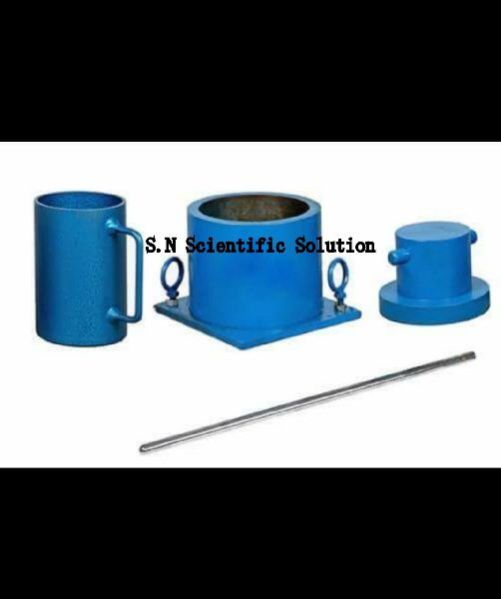

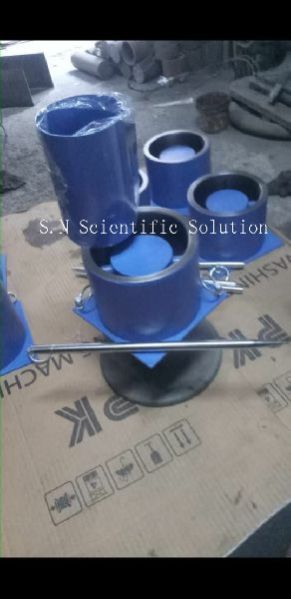

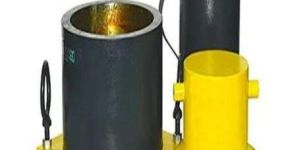

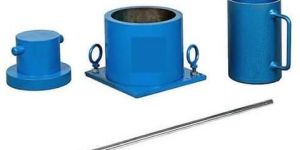

Aggregate Crushing Value Test Apparatus
Get Price Quote
We have high-tech and spacious storage unit that is incorporated with all required amenities vital for a safe storage of the products till the final send off. Supervised by efficient personnel, they ensure zero damage to the items to keep up the standards. The offered lot is reckoned for its quality and reliability as it is prepared using the best available resources. Also, we make sure that the material is sourced from the certified places.Details : Cylindrical Cell, 150mm internal dia x 130 to 140mm height. Plunger, 148mm dia x 100 to 115mm height. Base Plate, 200 to 230mm square x 6mm thickness. Tamping Rod, 16mm dia x 450 to 600mm length. Metal Measure, 110mm internal dia x 180mm height. Specification : Metal Color - Black Metal Size - 100x200 mm Material - Steel Mold Material - Metal Mold

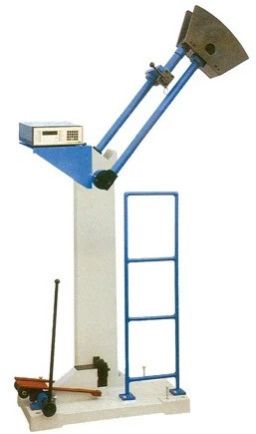

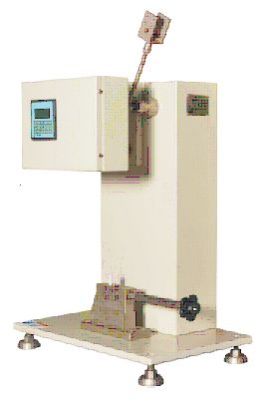

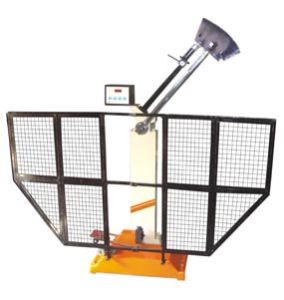

Digital Impact Testing Machine
90,000 - 400,000 Per Piece
1 Piece (MOQ)
We offer Digital Impact Testing Machine. SHRI RAM INDUSTRIES The Pendulum Impact Tester Model SRI - IT 30 (E) is designed for conduction Izod & Charpy Test. The test methods confirm to BS:131:PART 4-1972 (Amended 15 Aug. 1993) & BSEN: 10045 - 2 :1993. The Pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for Charpy and the lower one for Izod testing. On release, the Pendulum swing down to break the specimen and the energy absorbed in doing so is measured as the difference between the height of drop before rupture & height of raise after repture of the test specimenn and is read from Digital Panel.
Impact Testing Machine
Get Price Quote
1 Piece (MOQ)
The pendulum Impact Tester of all the above models are designed for conducting Izod, Charpy test. The test methods confirm to BS : 131 : part 4-1972 (amended 15 Aug. 1993)BSEN : 10045-2 : 1993 & ASTM : E-23-94a. The Pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for Charpy & the lower one for Izod testing. On release, the pendulum swings down to brake the specimen, and the energy absorbed in doing so is measured as the difference between the height of drop before rupture and the height of rise after rupture of the test specimen and is read from the maximum pointer position on the dial scale. (It is read on Digital Panel in case of digital models) Controls of Pendulum: The Pendulum supports in the starting positions are by a self-resetting latch. The release mechanism is operated by a lever. The pendulum release latch is operated only when this lever is operated Strikers & Supports: There are two strikers and one combined support available for lifting into the pendulum and on to the base of the machine for Izod., Charpy test, changing from one striker to another is achieved simply by fixing the new striker into its position. CHARPY TEST: The Charpy test piece rests on alloy support anvils, fitted on the base of the machine rigidly held in position by Allen screws. The end stopper is provided for quickly and accurately locating the test piece centrally between the supports. IZOD TEST: The Izod test is clamped vertically in Izod support fitted on the base of the machine. The support is provided with a machined vertical groove to suit the test piece size. The front clamp piece and the Allen screw enable clamping of the test piece at an incorrect height with the help of the Izod setting gauge supplied. MODEL ME-ASTM-E-23 This impact tester offered with 300J energy exclusively for the Charpy test confirming to ASTM- E-23. This machine is geometrically checked in the works to the more stringent requirements of the American standard. The accuracy of the machine is then verified by PROOF TEST by testing standard test specimens supplied by the NIST, USA. All two sets of the five specimens must agree with the normal values within certain tolerance specified. OPTIONAL ACCESSORIES Caliper gauge for checking V notch for Izod & Charpy. Templates for checking 10 x 10 mm cross-section of Izod / Charpy test specimen Depth notch gauge including V & U notch gauges for checking depth blow V/U notch, angle, and radius. Self-centering tong for quick and accurate setting of Charpy test specimen. ‘V’ notch milling cutter ‘U’ notch milling cutter

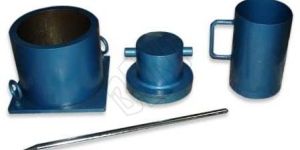

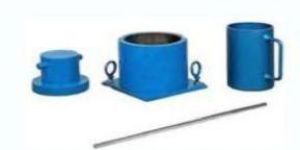

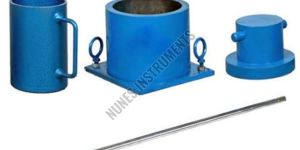

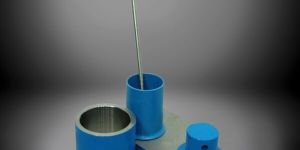

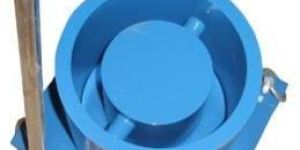

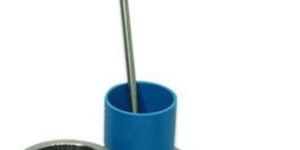

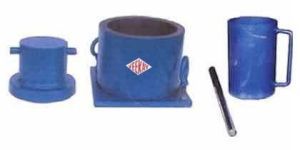

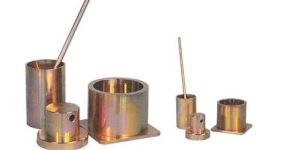

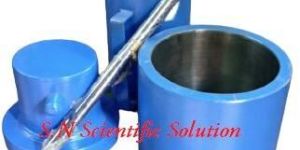

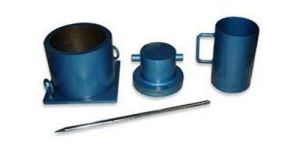

Aggregate Crushing Value Apparatus
Get Price Quote
1 Set(s) (MOQ)
We are offering aggregate crushing value apparatus for measuring of resistance of aggregate to crushing. Dia of m.s. Cylindrical container 150mm ± 0.5mm

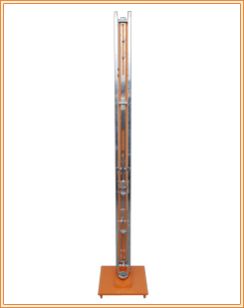

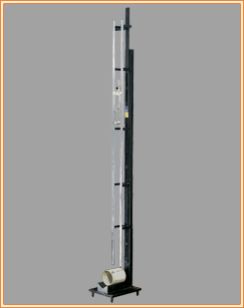

impact testers
50,000 - 60,000 Per Piece

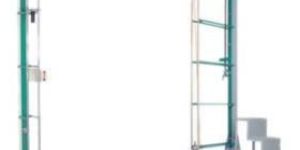

Impact Tester is used for PVC pipes, UPVC pipes CPVC pipes Ect
