Impregnated Diamond Dressers Dealers

• Brand Name: PARAS DIAMOND CO
• Material: Stainless Steel
• Color: Silver
• Application: Industrial
• Size: As Per Your Requirement
• Type: As Per Your Requirement
• Country of Origin: India
• Thickness: 80-100mm, 60-80mm, 40-60mm, 20-40mm, 10-20mm, 0-10mm
• Weight: 400-500gm, 300-400gm, 200-300gm, 100-200gm
• Coating: Powder Coated, Chemical Coated
• Minimum grain pullout: Longer wheel life
• Highly Durable: Reliability
• Dobule feed rate: lower Dressing time
• High Precision: Highly Robust
• Last long: Cost effective Dressing

• Material: Mild Steel
• Color: Metalic
• Application: Industrial Use
• Feature: Strong Structure
• Country of Origin: India,India

Instructions for Use : Normal dressing speeds are used. A plentiful supply of coolant should be provided both before and during dressing to prolong dresser life. The diamond grit impregnated cutting face of the dresser should be set at an angle of 90° to the grinding wheel to be dressed, so that all the cutting edges of the diamonds grit are able to make contact with the wheel face.

• Type: Multi Point Diamond Dressers
• Application: Dresser Tools
• Country of Origin: India
• Brand Name: Crosstalk

""All radius & dimensions mentioned above are standard, any other radius or customer drawings can also be made as per order"

Impregnated Diamond dressers are manufactured form crushed Diamond grit with Natural & Synthetic grades. They are set in predefine random pattern. These dressers are more suitable for fine and sensitive grinding wheels where a lower surface finish is required. Dressing time is reduced and higher feed rates can be used. According to the dressing it comes with three different Grit sizes i.e. Fine, Medium & Coarse.

• Material: Stainless Steel
• Finishing: Polished
• Shape: Round
• Thickness: 0.5-2.0 mm

These are recommended for use on applications preferably where single point diamonds are exposed to operational risks and also where frequent heavy stock removal is contemplated. these tools are intended for total use and no resetting is necessary.

Avail from us an immaculate gamut of Impregnated Diamond Dressers that is used for sensitive grinding wheels where lower surface finish is required. While using Impregnated Diamond Dressers, higher feed rates can be used, thereby reducing the dressing time. Raw Materials Used : Crushed Diamond GritNatural & Synthetic Grades

• Depth: 0.01-0.04 mm.

impregnated diamond dresser is quite similar to that of multipoint diamond dresser. In the dresser the crushed diamond grit in both natural & synthetic grades are set in a several layers in random pattern. With this type of tool, the dressing work is carried out by several small diamonds which together result in excellent performance. To achieve good results, the diamond particles must have at least double the grinding wheel grain to be dressed. Tools with higher diamond content are more efficient in this case. These tools are more suitable for fine and sensitive grinding wheels where a lower surface finish is required. advantages of impregnated tool: dressing time is reduced as higher feed rates can be used. they are tougher and more resistance. these tools can be used completely without any requirement of maintenance. extend wheel life by less stock removal per dressing. no resetting or re-lapping required. these tools are inexpensive and easy to use.

• Feature: Long tool life,Higher dressing speed because of the large tool surface etc.

   Impregnated dressers are generally used to straight dress larger wider grinding wheels. These tools have a large concentration of diamond grit held together buy a strong metal matrix that will allow new fresh diamond grains to present themselves as the tool wears. Some important advantages are: Lower cost compared to larger carat diamonds. Higher dressing speed because of the large tool surface. Convenience because there is no need to rotate this dresser. Long tool life.

The diamond grit impregnated dressers offered by Comet are designed on lines similar to the multi-point diamond dressers. However, the diamond grit dressers are manufactured using crushed diamond grit instead of small natural diamonds. The grit utilised is obtained not only from natural diamonds, but also synthetic ones. It is because of the sharpness of these tools that they have been used all over the world and mainly because they are truly effective when it comes to restoring the roughness of the surface of the machine wheel. There are plenty of reasons why the diamond grit impregnated dressers are preferred over others and these include: These tools do not require any resetting, hence reducing the inventory levels. The initial cost is low, as is the cost of maintenance. The resistance towards shock as well as impact ensures that the diamond grit impregnated dressers are extremely durable. Since these diamond dressers are so adaptable, they are utilised for not only dressing the outside diameters but also the sides of grinding wheels, irrespective of them being coarse or fine. The range of diamond dressers offered by Comet finds use in areas such as: Grinding machines Tool grinders Dressing resin Rubber and vitreous bond Fine grit grinding wheels Boron carbide grinding wheels Dressing V-profile grinding wheels Dressing single profile threaded grinding wheels

• Diameter MM: 12.5
• Length MM: 160

The diamond grain, concentration and bond are appropriately inter adjusted, Restores the required effective roughness of the wheel surface. It is adapted to the machining operation by varying the traverse dressing feed, Complete use without maintenance, The dressing of acute angled wheel profiles presents no problems.

In Impregnated Diamond Dressers, fine diamond grains are fixed into the required shape and dimensions using a metallic bonding material, and attached to a shank. Soft bond dresser is for adjusting the surface and the form of the abrasive grinding wheel for cylindrical applications and it can cleanly adjust the grinding wheels with sharp shapes. Hard bond dresser is suited to center-less grinding of large size grinding wheels and works evenly on the grinding wheel with great cost-performance. These dressers are more convenient than others as there is no need to rotate these dressers periodically. As the diamond powder is spread evenly throughout a supper hard alloy, powerful Impregnated Diamond Dresser is applied for center less grinding wheels and other large size grinding wheels in surface & cylindrical grinding machines, as compared with traditional single point diamond dressers. Customized Impregnated Diamond Dresser as per customer specifications are also manufactured by us.

Impregnated Diamond Dressers is quite similar to that of Multipoint diamond dresser. In this dresser the crushed diamond grit in both Natural & Synthetic grades are set in a several layers in random pattern. With this type of tool, the dressing work is carried out by several small diamonds which together result in excellent performance. To achieve good results, the diamond particles must have at least double the grinding wheel grain to be dressed. Tools with higher diamond content are more efficient in this case. These tools are more suitable for fine and sensitive grinding wheels where a lower surface finish is required.   Advantages Dressing time is reduced as higher feed rates can be used.    They are tougher & more wear resistance.    These tools can be used completely without any requirement of maintenance.    Extend wheel life by less stock removal per dressing.    No resetting or re-lapping required.    These tools are inexpensive and easy to use.   Bruted Diamond .   'A', 'B', 'C': These Stones are Bruted Type Commercial Quality diamonds.   'AA' Class: These Stones are natural polished stones.   'AAA' Class: These are premium grade Gem quality natural diamonds with 2-3 workable points. APPLICATION    Depth of cut should not exceed more than 0.02-0.04 mm.   Use plenty of coolant to increase the tool life.   The mounting must be vibration free, with the clamping length as short as possible.   Multi-point dressers must be used with higher crossfeed velocity rates than single point or blade dressing tools as their effective width is generally much greater.

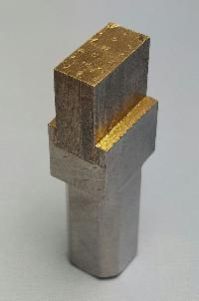

Diamond Grit Impregnated Dressers have been developed from multi-point dressers. In contrast to the latter they are manufactured from crushed diamond grit rather than a larger number of small natural diamonds. The advantages of the diamond impregnated dresser lie in its exceptional sharpness, which results from sharp edges and points of the broken diamond grit.

Diamond Grit Impregnated Dressers have been developed from Multi-Point Dressers. In contrast to the latter they are Manufactured from Diamond Grit rather than a larger number of Small Natural Diamonds. The advantages of the diamond impregnated dresser lie in its exceptional sharpness, which results from sharp edges and points of the diamond grit. Diamond Grit Impregnated Dressers are ideally suited to the following applications, dressing resin, vitreous and rubber bond, fine grit and even "grit free" grinding wheels, as well as boron carbide grinding wheels, dressing single profile threaded and V-profile grinding wheels, for general dressing operations on centreless, cylindrical and surface grinding machines. Diamond grit impregnated dressers are more economical because of their low initial cost and their resistance to shock and impact which prevents shattering. Dressing times are reduced as higher feed rates can be used. There is an unlimited number of sharp pull-out-free cutting edges contained in the crushed diamond grit.

JPT manufacture Impregnated Diamond Dressers that is available with diamond mounted points. These are used for small diameter machining & high speed grinding and thus diamonds can be deposited in every possible shape. Further, these are also used for internal grinding of carbide dies and wear parts. Impregnated Diamond Dressers is suitable for machining material which can not be economically grounded with the metal or resin bonded diamond tools. Our range of Impregnated Diamond Dressers is known for superior cutting quality and shapes stability.

Diamond Dressers are made of Diamonds that have Supreme Hardness and High Wear Resistance. Types that are manufactured are Single Point Diamond Dressers Multi Point Diamond Dressers Impregnated Diamond Dressers Blade Type Diamond Dressers Chisel Point Diamond Dressers Cone Point Diamond Dressers

• Feature: Good strength, Rigid design , Premium quality.

Impregnated Diamond Dressers is quite similar to that of Multipoint diamond dresser. In this dresser the crushed diamond grit in both Natural & Synthetic grades are set in a several layers in random pattern. With this type of tool, the dressing work is carried out by several small diamonds which together result in excellent performance. To achieve good results, the diamond particles must have at least double the grinding wheel grain to be dressed. Tools with higher diamond content are more efficient in this case. These tools are more suitable for fine and sensitive grinding wheels where a lower surface finish is required. Dressing time is reduced as higher feed rates can be used, They are tougher & more wear resistanc, These tools can be used completely without any requirement of maintenance, Extend wheel life by less stock removal per dressin, These tools are inexpensive and easy to use.

We are offering Impregnated Dressers and Diamond Tools.
