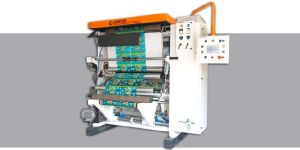

Inspection Rewinding Machine Dealers

• Speed: 300 Mpm
• Width: 1300 to 1600mm
• Unwind Diameter: 600mm
• Rewind Diameter: 600mm
• Core Id: 76mm
• Materials Can Be Processed: All Kind of Laminates, Ldpe, Bopp, Pp, Cpp

Inspection Slitting Rewinding Machine is used majorly for checking of badly printed materials on Roto Gravure Printing, Flexo Printing Machine, Batch Printing on Doctoring Rewinding Machine, etc. In Inspection slitting rewinding process we allow optional parts like Line Guide System for Electronic Edge Sensing for Perfect Winding, Air Shaft at Unwinder & Rewinder, Tension Control System for Auto Tension at Unwinder, Stroboscopic Equipment for Inspection with quick drying of Ink Slitting Arrangement and much more. STANDARD FEATURES   Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner). Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation. It is great substitute to online coding / batching operation Convenient height for operation Compact Design Variable speed drive Double drive

• Maximum Working Speed: 250 Mpm
• Maximum Re-winder Diameter: 1000 mm
• Materials to be processed: Printed PET, BOPP
• Maximum Un-winder Diameter: 1000 mm
• Maximum Working Width: 1200 mm

Inspection Rewinding Machine for quality control of printed and converted substrates. The Machine also performs the function of Batch Printing, Inspection System, Label Counting and many more.

• Weight: 3300 kg
• Voltage: 220V
• Condition: New
• Automatic Grade: Automatic
• Slitting speed: 160 m / min
• Maximum winding diameter: 600 mm
• Maximum raw material diameter: 800 mm
• Weight:: 75KG

Inspection rewinding technical specifications basic specification substrate web width machine speed film, al. Foil & paper upto 1100 m. M. max. 300 m / min. unwinder real. Dia tension control edge guide max. 800 m. M. by powder brake automatic control rewinder real dia tension control max. 600 m

Inspection Doctoring Rewinding Machine - Webflex Machines is one of the best Rewinding Machine manufacturer in India. We are also successfully exporting Inspection Doctoring Rewinding Machine. This machine is used to ensure quality control of printed and converted substrates. Specifications and Features of Inspection Doctoring Rewinding Machine: • Single valve cantilevered construction, trolley type unwind with hydro-pneumatic Edge Position Control.PC • Centre Slitting & Side Trimming Arrangement with razor blade system. • Inspection area with stroboscope for standstill viewing. • Trim collection attachment with blower ,etc. • Duplex function rewind system. • DC Drive and controls Dimension: L80" x W66" x H40: (Weight Approx 800 kgs) Connected Load: 3HP 440V/50Hz. We look forward to your enquiry for Inspection Doctoring Rewinding Machine.

• Maximum web width: 1300 mm (1650 mm)
•  : Maximum unwind diameter
• 800 mm (1000 mm):
• Unwind core inner diameter: 76 mm and 152 mm
•  : Maximum rewind diameter
• 800 mm (1000 mm):
• Rewind core inner diameter: 76 mm and 152 mm
•  : Maximum machine speed
• 600 m/min:
• Materials handled: Plastic films, flexible packaging laminates, paper and Aluminum foil based laminates

• Speed: 150 to 300 mtr/min
• Width: 1000 to 1300 mm
• Unwind dia: 800 mm
• Rewind dia: 800 mm
• Materials to process: HDPE, LDPE, BOPP, P.P, Laminates

Available in Different Models :  RHI – 4000 / RHI – 5000  Web width available: 1100mm, 1300mm, 1500mm  Rotational HMI to ease of operation.  Memorize position stop.  Reduce wastage of final product. Options :  100% defect detection system  Edge trimming section  Web VideoWeb Video The inspection Rewinding machine is used extensivelyfor the inspection and editing of printed substrate. Shaft less unwinder and rewinder for easy loading & unloading of reels.Machine runs in both directions forward and reverse.  User to stop and bring back the defect. Salvage rewind station to discard the waste material. Manual inspection through a full width stroboscope with colour mark sensor.

The extra feature that the customer gets in the machine is the inspection sections which analyses the slit object. GK Rototech offers a great range of inspection slitter rewinder machine having compact shape and efficient observation of the final object. The machine has great capacity to analyze the product accurately that is wrapped after passing through the slitting part. The slitter machines we present have great features that make them the first choice of customers in the domestic and international industries. Our machine has an inspection zone, tension control system, functional control panel, unwinder and rewinder section. They are prepared in the standard dimensions and features that are approved and presented by the government and international standards to effectively suit the area of application where it is to be used.

We manufactures Inspection Rewinding Machine.

Specifications: web widths:800 mm to 1200 mm machine speed :up to 250 mtr.min. Core dia :76 mm 152 mm max. Unwind dia :1000 mm max. Rewind dia :1000 mm

• Mechanical Speed: 400 Meter/Min*
• Maximum Web Width: 1300 mm / 1650 mm
• Unwinder Diameter: 1000 mm
• Parent Roll Weight: 1000 Kg.

The WIR REV web inspection rewinding machine is used extensively for the inspection and editing of printed substrates beforeonward lamination. Besides keeping converting wastages low, the inspection process enables full utilization of dual turretslitter rewinders which are fast replacing lesser efficient duplex machines.
