Instrument Transformers Dealers

By keeping records of the clients' requirements, we have developed a system that offers several options for transferring money from one end to another. We make sure that all our products are in compliance with the industry standards and thus cross checked at all stages including manufacturing, warehousing, packaging and final dispatch.

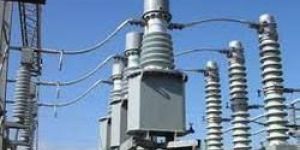

A transformer intended to supply to measuring instrument, meters, relays, and other similar apparatus. These provide isolation and a measurable (standardize) signal at safe voltage levels. Various Types : Oil cooled for out door type Resin cast for indoor application Combined CTPT metering set Features : Feasible desing for low tension and high tension appliation Any customized ratio can also be done Higher accuracy class and high protection class Less maintenance

• Cooling Type: Oil Cooled
• Country of Origin: Made in India
• Power: 33 W
• Usage/Application: Industrial
• Brand: ALFA

CG range of instrument transformers includes Current Transformers, Inductive Voltage Transformers and Capacitive Voltage Transformers. Our Instrument transformers have significantly contributed to the electricity boards and utilities across the globe. Several thousands of EHV Instrument Transformers have been put into service in various environments in over 60 countries since 1984 and operating satisfactorily.

Our products are the best in the industry, as they are specially manufactured as per international and national quality managements standards. Established as a dignified name, we are the celebrated organization in the market offering quality Instrument Transformers.

• Brand Name: Electricfield
• Current transformer: Potential transformer

We are offering Instrument transformers like current transformers and potential transformers of voltage level 145 KV, 66 KV, 33 KV, 22 KV & 11 KV are type tested at CPRI & ERDA for different ratios and class of accuracy.

We Offer Instrument Transformer. Precise and highly accurate results are indeed in measuring and protection purposes. Our CT & PT fulfill customer?s specifications and maintain high accuracy.

instrument transformers Achieving Reliability & Accuracy with RRL’s customized Medium Voltage CT’s & PT’s for every application:Current voltage classes of 3.3 kV up to 33kV with window, bar and wound primary designs are manufactured at RRL as per IS IECBS specifications.

• Voltage Ratio: 11 kV

Current Transformer   Gemini’s range of OIP Insulated Instrument Transformers use Oil Impregnated Paper  Insulation and are designed for serving in Outdoor applications,  with several unique features with one aim – TOTAL RELIABILITY. Our present range of OIP Current Transformers  include CTs from 12 kV to 145 kV as per International Standards (IEC).     Design     Gemini’s OIP insulated outdoor products are subjected to extreme climatic conditions at Customer Sites and hence Quality and Reliability have been built into the Product, right from the design stage and are followed up through established manufacturing processes, rigorous In-process Quality checks and the designs validated by exhaustive type testing and satisfactory field performance.   Gemini’s design philosophy aims at the following  aspects :   True Hermetic Sealing ensures that the OIP Insulation retains the original properties even after several years of field operations; Our products are well engineered, our processes are well established. These factors ensure high reliability of our products whilst in service. Our products are truly maintenance-free; hence, only periodical cleaning of the products is required. Our products are designed to be user-friendly - right from unpacking, handling, erection, testing, commissioning and day to day operations in the field.  Safety has been built into our products.  Even in the unlikely event of an internal failure, the Instrument Transformer DOES NOT SHATTER or explode. A corrugated Stainless Steel Diaphragm has been provided, which, besides lending compensating volume for oil expansions during normal operations, acts as a proven pressure relief device, by peeling off from the tank from the weld    and  thus  averts any explosion of the porcelain insulator.

We are widely appreciated for offering significant instrument transformer. Developed using optimum-quality basic material, these offered products hold incomparable attributes. Furthermore, these transformers are designed with high precision so as to meet expectations of the clients. some of the features of instrument transformer are as follows: high voltage current & potential transformer (oil cooled and dry type) precision current transformer - 1a & 5 a secondary precision potential transformer - 110 3v & 110v secondary potential transformer type high voltage measuring system consultancy & prototype development for ct & pt manufacturing

Everest Electricals Limited (Formally - Everest Electric Works) is the name to trust for the availability of Instrument Transformer. The array includes Current Transformer and Voltage Transformer, to meet the specific requirements of the industrial applications. The Instrument Current Transformers are manufactured using premium grade components and advance manufacturing techniques that ensure notable features like high durability, robust construction, easy operation and low maintenance cost. The buyers are also eased with the availability of the Instrument Transformers at market leading prices and within the stipulated timeframe. Moreover, we are reckoned as one of the staggering High Voltage Transformer Manufacturers, Suppliers and Exporters from India The company is looking forward to establish and maintain long-term relationship with the buyers, suppliers and wholesalers from the Gulf and African Countries like Iran, United Arab Emirates, Oman, Bahrain, Qatar, Saudi Arabia, Kuwait, Algeria, Angola, Benin, Botswana, Burkina Faso, Burundi, Cameroon, Cape Verde, etc.

M.V. OUTDOOR OIL-COOLED VOLTAGE TRANSFORMER which is available in various specifications to cater to the varied requirements of clients. These are developed using innovative techniques of production to ensure international quality standards, widely known for high efficiency, low maintenance, durability and low power consumption. These can be used in Metering& protection purposes. Our range of M.V. OUTDOOR OIL-COOLED VOLTAGE TRANSFORMER includes following: System voltage: 3.36.6112233 KV OUTDOOR OIL-COOLED VOLTAGE Transformer

Rish Protection class CTs are square & round type encapsulated with UL94V-0 approved polycarbonate.These CTs used for protection purpose (acc class 5P10, 10P10 etc)& features wide range of primary current ratings, Busbar sizes,case widths,having wall, cable, bus bar & DIN rail mountings

• Phase: Single
• Application: Metering And Relay Protection
• Coil Number: 1-6
• Coil Structure: Winding Type

CAPACITOR VOLTAGE TRANSFORMER • Available with standardheavyvery heavy creepage distance • All external components are made by aluminum • In ox steel bellows • High earthquake strength capability • Suitable for ambient temperature -60 +70 Degree C (extended range upon request) • Available for Line Traps mounting on the top

We are committed towards providing the world-class lot of products thus, check each and every product on different levels. Our facility in Andhra Pradesh(India) is well connected by a variety of modes of transportation. Thus, we are able to reach customer anywhere.

Features Designed and Verified according to IEC 61869-2 Various standard product line Suitable for tariff metering Specialised in customised products Compact and light weight Convenient installation and replacement High electrical and mechanical performance No partial discharge at operating voltage Reliable quality and long lasting durability Casting epoxy resin body ensures high mechanical strength and insulation performance Transparent and sealable secondary terminal cover as an option Specification Highest system voltage: 660V to 36kV Rated primary current: 5A to 5000A Rated secondary current: 1A / 5A Rated accuracy class - Metering: 0.2s, 0.2, 0.5, 1.0 - Protection: 5P, 10P Rated short time thermal current: 75In to 50kA/ 1s to 3s Rated frequency: 50Hz Rated continuous thermal current: 120%, 150%, 200%

• Phase: Single Phase
• Mounting Type: With Mounting Base Plate ( One to One As per Customer Required )
• Frequency: 50 Hz
• Country of Origin: Made in India
• Maximum System Voltage: up to 33 kV
• Maximum Insulation Level: 170 kV
• Rated Continuous Thermal Current: 200%

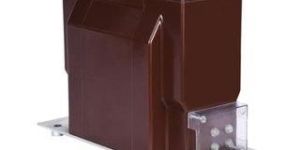

• Model Name: Wound CT

We are involved in offering a wide array of Instrument Transformers with utmost functionality. We are a stop-destination where one gets Current Transformer and Potential Transformer at the best prices. Our Instrument Transformers’ electromagnetic design is computerized while insulation design is made in a manner to keep electrostatic stress uniform. Used to provide accurate inputs to protection, control and metering systems, our Transformers are designed as per predefined industry standards. We can make Instrument Transformers available in different specifications to meet diverse needs of buyers’.    Technical Specifications : Type : Resin Cast Indoor C.T. & P.T. Resin Cast (cycloaliphatic) outdoor C.T. & P.T. (Can withstand U.V. Rays in the sun light) Capacity : 3.3 KV, 6.6 KV, 11KV, 22KV, 33KV Availability : Out Door single Pole C.T. : Available in live tank type or dead tank type version These are available in multi core and multi ratio configuration as well Outdoor Oil Cooled P.T. : Available with dual secondary configurations

We are offering reliable Instrument Transformers which are used for the measurement of electric currents. Current Transformers (CT) and Potential Transformers (PT) together are known as Instrument Transformers. When current in a circuit is too high to directly apply to measuring instruments, a CT produces a reduced current accurately proportional to the current in the circuit, which can be conveniently connected to measuring and recording instruments. A CT also isolates the measuring instruments from what may be very high voltage in the monitored circuit. A CT is commonly used in metering & protective relays in electrical power industry. CT is used for protection, measurement and control in high voltage electrical substations and the electrical Grid. CT may be installed inside switchgear or in apparatus bushings, but very often free-standing outdoor CT'S are used. A high-voltage CT may contain several cores with multiple secondary windings for different purposes (such as metering circuits, control, or protection). PT is used in electrical power system for stepping down the system voltage to a safe value which can be fed to low ratings meters and relays. Commercially available relays and meters used for protection and metering, are designed for low voltage. PT has lower turns winding at its secondary. The system voltage is applied across the terminals of primary winding of that transformer, and then proportionate secondary voltage appears across the secondary terminals of the PT. We are well known in the field of supplying Instrument Transformers and we have the ability to provide CT PT of any ratio & voltage.Highlight Robust construction Less consumption of energy Precision Functioning

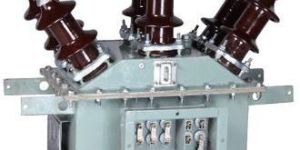

The combined instrument transformer (CTVT) offers the station designer the ability of being able to accommodate the current transformer and the voltage transformer in one free-standing unit. This allows optimum use of substation space while yielding cost savings by elimination of one set of mounting pads and support structures. In addition, installation time is greatly reduced. Features : Meets all latest IEC and IS metering and protection classes, including special core classes (other standards available on request) Low weight & minimum oil volume design. Available in both single phase and three phase design High accuracy up to 0.1 and 0.2s class. Rated primary currents up to 3000 A Rated secondary current 1 A or 5 A. Rated short circuit withstand up to 40 kA for 3 secs Highly refined and processed oil/paper insulation system. True hermetical sealing Uniformly distributed secondary windings guarantee accurate transformation at both rated and high currents Stable accuracy over a long period of time Successful field experience since the manufacture of the first CTVT in 2001 CTs are virtually maintenance free during a long lifetime Only one foundation required in the switchyard as a consequence of combining the voltage and current sensing functions in one transformer

An instrument transformer’s role is to provide accurate inputs to protection, control and metering systems including revenue metering. To transform currents or voltages from a usually high value to a value easy to handle for relays and instruments. To insulate the metering circuit from the primary high voltage system. To provide possibilities of standardizing the instruments and relays to a few rated currents and voltages.

TBEA has ability design, manufacturing, sales and service of oil-immersed high-voltage current transformer, inductive voltage transformer, combination transformer, current transformer with SF6 gas insulation, and capacity voltage transformer. The voltage scope of products is from 35KV up to 765KV. The total annual production capacity of products of various voltage grades is up to 5,000 sets.

An instrument transformer’s role is to provide accurate inputs to protection, control and metering systems including revenue metering. The main tasks of instrument transformers are: To transform currents or voltages from a usually high value to a value easy to handle for relays and instruments. To insulate the metering circuit from the primary high voltage system. To provide possibilities of standardizing the instruments and relays to a few rated currents and voltages. Our offerings: Current Transformers Voltage Transformers Combined Current/Voltage Transformers

We are a prime Manufacturer and Supplier of Instrument Transformers. We are instrumental in offering a wide range of Instrument Transformers to our esteemed clients. This Instrument Transformer is responsible for transforming voltage from high value and is easy to handle for instruments and relays. Instrument Transformer, offered by us also transforms primary high voltage system to insulate the metering circuit. Our Instrument Transformer provides standardization of the instruments as well as to relay to a few rated voltages and currents.Highlights Easy to handle Excellent performance Longer life Market leading price

Our contribution constitutes the design, manufacture and supply of Current Transformers, Voltage Transformers and combined CTPT units for use in both Indoor switchgear panel and Outdoor applications. We are meeting all the specific requirements of electricity boards and utilities across the country.

Instrument transformers Long lasting, can be designed in tape insulated varnished type and resin moulded as per customers requirements in different shapes and sizes. the leading manufacturers of HT CTs.PTs. indoor dry type as well as outdoor oil cooled type.

• Phase: Single Phase
• Cooling Type: Oil Cooled
• Features: Reliable, Efficient, Safe to use
• Rated Voltage: 11kV / 33Kv
• Accuracy Class: 0.02

• Phase: 3 Phase
• Power: 30 Kv
• Warranty: 1 year
• Voltage: 110-220 V, 220-440 V
• Supply: AC
• Frequency: 50 Hz

We are the main supplier of this product.
