Line Post Insulators Dealers

• Dry: Min. 50 kVrms, Max. As per Requirement
• Wet: Min. 35kVrms, Max. As per Requirement
• Positive: Min. 70 kVpeak, Max. As per Requirement
• Negative: Min. 70 kVpeak, Max. As per Requirement
• Creepage Distance: As per Requirement
• Cantilever Load: 2kN, 3kN, 5kN, 10kN, 20kN

  Prime Insulators Pvt. Ltd. reckoned in the markets for the manufacturing and exporting of Line Post Insulators, which are designed, keeping the varied requirements of clients in mind. We are pleased to serve against the parallel demand of clients, which we are catering up to their desires. Thus, we are regarded as one of the trusted suppliers of Solid Post Insulators in the market. Used for : Polluted zones and areas prone to vandal damages Applications : Substation and electrical lin

1. Pollution proof, Maintenance Free. It has hydrophobicity transfer, the special characteristic of silicon rubber, which makes the surface of dusty insulator has good hydrophobicity and can operate without cleaning. 2. High mechanical load. It’s inside FRP rod, whose tensile load is 2 times of common steel and 8-10 times of high strength ceramic material. It keeps the reliability of electric net effectively. 3. Compact size and light in weight (only 110 – 17 of ceramic insulator), hard to damage and convenient installation and transportation. 4. Anti-Puncture, zero value is not required to measure. 5. Good Ability on anti-aging and corrosion. It can operate long time under various outdoor environments. 6. Changed mutually with ceramic insulator with the same load.

• Application: Industrial Use
• Color: Brown
• Feature: Sturdy Construction, Superior Finish
• Rating: Up to 66 kV
• Creepage Distance: 25 & 31mm /kV
• Applicable Standards: IEC, ANSI

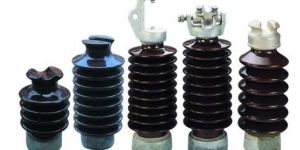

Solid Core Line Post Insulators can be used as support for conductors on cross-arms of transmission and distribution line poles. These Solid Core Line Post Insulators are recommended for polluted zones and areas prone to vandal damages. Even if the insulator shed is damaged, there will be little decrease in flashover voltage and power supply will not be disturbed. The damaged insulator can be left in service and replaced conveniently. No change in cross arm is necessary, if pin type insulators are replaced by line post insulators during maintenance. Specifications Solid Core Line Post Insulators have stream line feature with symmetrical upper and lower electrodes which prevent accumulation of stall and dust and therefore have an excellent antipollution performances. These Solid Core Line Post Insulators have high arc resistibility similar to solid core long road insulators. There will be little decrease in flash over voltage should be shed gets damaged sufficient distance between electrode makes these Solid Core Line Post Insulators puncture proof.

Our Composite line post insulators are designed for applications up to a system voltage of 52kV, suitable for overhead distribution lines. We provide a cost effective, lightweight, reliable solution for power utilities. Our Line post composite insulators are designed for applications up to system voltages of 52 kV.

• Application: Control Panels
• Condition: New
• Tensile Strength: 0-25Mpa, 125-150Mpa, 175-200Mpa
• Feature: Easy To Install, Four Times Stronger, Proper Working, Sturdy Construction, Superior Finish
• Warranty: 5years
• Temperature: High Temperature
• Puncture Voltage: 0-50Kw, 100-250Kw, 250-500Kw, 50-100Kw, 500-1000Kw

support the “line” mechanically & maintains an Air Gap ARC PROTECTION DEVICES The atmospheric over voltages caused by lightning and, in some cases, network overloads may cause conductor breaks, particularly in the case of covered conductors and these are protected by arc protection devices.

Post Insulators, which are finished with high quality electrical grade material, which provides admirable electrical and mechanical properties to the insulators. These post insulators present utmost efficiency in their function. They have the additional benefit of utility in substations to protect switch gears and transformers. These can be modified as per the specifications, detailed by our esteemed clients.

• voltages: 52 kV

Composite line Post Insulators (RLP design) Our Line post composite insulators are designed for applications up to system voltages of 46 kV. Polymeric Line Post Insulators Our Composite line post insulators are designed for applications up to a system voltage of 52kV, suitable for overhead distribution lines. We provide a cost effective, lightweight, reliable solution for power utilities.

• voltages: 46 kV.

Line post insulators Our Line post composite insulators are designed for applications up to system voltages of 46 kV.Our Composite line post insulators are designed for applications up to a system voltage of 52kV,

• Color: Silver
• Material: Polymer
• Tensile Strength: More than 12.5 kN
• Usage/Application: Transmission and distribution Line
• Power: 33KV
• Power Frequency: 50-60 HZ

• Rating: 66 kV
• Creepage distance: 25 & 31mm /kV

Solid core line post insulators can be used as support for conductors on cross-arms of transmission and distribution line poles. These insulators are recommended for polluted zones and areas prone to vandal damages. Even if the insulator shed is damaged, there will be little decrease in flashover voltage and power supply will not be disturbed. The damaged insulator can be left in service and replaced conveniently.

• Application: Industrial
• Weight: 100-150g
• Voltage: 110V
• Condition: New
• Operating Temperature: -25 +85deg C, -40 +70deg C, -45 +55deg C, -70 +40deg C
• Feature: Durable, Stable Performance
• Warranty: 1Year

The plastic insulators are all UV stabilized for external use and only virgin materials are used in their manufacture which is designed for a long life. These bobbins have quick fit clips on the top and bottom for faster installation. They are designed with longer tracking distance for less arcing and no water collection. They are easy to change and maintain.

Avail from us high quality Solid Core Line Post Insulator at competitive price range to suit the pockets of all our customers. Our range of Solid Core Line Post Insulator is well acclaimed by the clients owing to its high efficiency. Its high performance has led to its increase demand in the market. Attributes : Highly durable and reliableLong service lifeIt meets different specifications like ANSI: C 29.8 & C 29.1

Polymer Line Post Insulator

• Features: Accurate dimension, Long functional life, Reliable
