Internal Tube Cutter Dealers

Located in Navi Mumbai(India), ours is the name trusted for meeting the exact requirements of the clients. Our capacious warehouse is installed with all required amenities essential for safe storage of the products. Furthermore, our warehousing system is efficiently managed by our team of experts. Our ATP Series Internal Tube Cutter is suitable for Tube having Outer Diameter From (15.88mm) 5/83 To (38.1mm) 1.1/23.

• Material: Metal
• Application: Tube Cutting
• Color: Metallic
• Automatic Grade: Manual
• Blade Thickness: 0-15micron
• Blade Finishing: Coated

Available in sizes ranging from 5/8" O.D. TO 1 1/2" O.D, our ATP Series Internal Tube Cutters are used to cut the tube from inside. We are a trusted Manufacturer, Supplier and Exporter of ATP Series Internal Tube Cutters from Maharashtra. The Internal Tube Cutters come with a complete set of pilots covering the entire range of tube thickness.Features of Push Type Internal Tube Cutters - ATP Series DBX “Push Type” Internal Tube Cutters quickly cuts through the walls of ferrous tubes in Condensers and Heat Exchangers as a step in their removal from the tube sheet. This sturdy “Push Type” Internal Tube Cutters can be used with a portable Electric or Air Drill Motor “Push Type” Cutters are simple to operate. Merely insert it into the tube, apply power, press inward and the tube can be cut in a few seconds. Releasing of inward pressure automatically retracts the Cutter Bit. These Tube Cutters are equipped with an adjustable collar suitable for reaching into tubes at various depths The replaceable cutting bit can be interchanged in a few seconds. Standard adjustable reach is 4”(101.6mm) and they are available in optional increments of 2”(50.8mm). “A” reach = 6”(152.4mm). “B” reach = 8”(203.2mm). “C” reach = 10”(254.0mm) etc All Tube Cutters come with a complete set of pilots covering the entire range of tube thickness for a particular tube O.D. (ATP-625 tube cutters come with a built in pilot suitable for one tube ID only.) All Tube Cutters are available for MM tube sizes also. Please enquire Sizes Available of ATP Series Tube Cutters    5/8" O.D. TO 1 1/2" O.D Models Available of ATP Series Tube Cutters    ATP-625 TO ATP-1500

• Size available: 3/4”, 1”, 11/4, 2”

We are a quality-centric company and thus, we make sure that the packaging is done under the strict supervision of experts and professional. We make use of the finest packaging material and thus, keep our products safe from the external factors. Our payment procedure is not only easy but also safe ensuring your long-term reliance upon us. Whether it is online payment procedure, cash, bank deposits or others, we are here to guide you throughout the process.   Features : Corrosion resistant Rugged Perfect finish Durable Accurate dimension Smooth surface

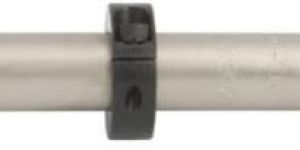

Cuts tube in one turn with less efforts so cutting time is saved.   Features of One Revolution Internal Tube Cutter - OTC Series POWERMASTER “One Revolution” Internal Tube Cutter pierces and cuts off non-ferrous and thin walled ferrous tubes in one revolution. This “One Revolution” Internal Tube Cutter is designed for hand operation using a ratchet handle. The Cutter Tool Bit operates on an eccentric principle. The Tube Cutter is entered in the tube with the Tool Bit in closed position , ratchet is applied and turned in clockwise direction. The Tool Bit contacts the tube during the One Revolution and pierces the tube wall and as turning is continued the Tool Bit shears through the tube along its circumference. This Cutter is fitted with an adjustable collar enabling it to reach into tubes at various distances and they are available in optional increments of 2”(50.8mm). Standard adjustable reach is 6”(152.4mm). ”A” reach = 8”(203.2). “B” reach = 10”(254.0mm). “C” reach = 12”(304.8mm) etc. All Cutters are available for MM tube sizes also.

• Material: Black Metal, Metal, Stainless Steel
• Grade: AISI
• Color: Black-grey, Metallic
• Automatic Grade: Manual
• Surface Finishing: 10inch
• Blade Thickness: 0-15micron
• Shpe: Round
• Blade Finishing: Non Coated
• Brand Name: Samarth
• Length: 4 inch long
• Voltage: -
• Rated Power: 230 V
• After-Sales Service Provided: Yes
• Cutting Speed: Standard
• Graphic Format Supported: -
• Laser Type: -

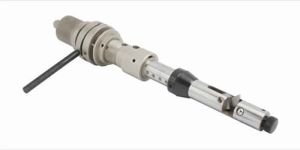

Internal Boiler Tube Cutter offered deliver functionality as internal tube cutters which provide vital process assistance in smoothly as well as quickly cutting through walls of ferrous tubes in condensers and heat exchanger in their removal from tube sheet. These cutters can be used with portable electric/air drill motor and are simple to operate. Features : The internal boiler tube cutter PR-68 is driven via the square in a clockwise direction using either an electric, pneumatic, or hydraulic driving machine. PR-68 tube cutters are ideal for cutting thick walled boiler tubes of 2" O.D. & higher. PR-68 type tube cutters are available in standard reach of 4" (100mm). Additional reaches in increments of 4" are available up to 16" (400mm)

This is the ideal tube cutter when it comes to cutting thick walled boiler tube. The cutter slices through thick carbon steel with ease in the removal of tubes when retubing.   Features of the PR-68 Series Internal Tube Cutter: PR-68 tube cutters are ideal for tube cutting thick walled boiler tube of 2” O.D. and higher. The Internal Tube Cutters PR-68 is driven via the square in a clockwise direction using either an electric, pneumatic or hydraulic driving machine. PR-68 type tube cutters are available in standard reach of 4” (101.6mm). Additional reaches in increments of 4” up to 16” (406.4mm) are available as well.   Sizes Available: 1/2" O.D. to 4 1/2" O.D.   Models Available: 0680951 to 0689301

• Features: PR-68 tube cutters are ideal for cutting thick walled boiler tubes of 2" O.D. & higher.

Internal Boiler Tube Cutter offered deliver functionality as internal tube cutters which provide vital process assistance in smoothly as well as quickly cutting through walls of ferrous tubes in condensers and heat exchanger in their removal from tube sheet. These cutters can be used with portable electricair drill motor and are simple to operate. The internal boiler tube cutter PR-68 is driven via the square in a clockwise direction using either an electric, pneumatic, or hydraulic driving machine. PR-68 type tube cutters are available in standard reach of 4" (100mm). Additional reaches in increments of 4" are available up to 16" (400mm)

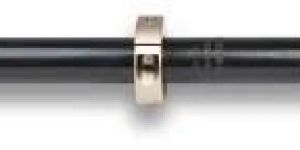

• NIKSU "One Revolution" Internal Tube Cutter pierces and cuts off non-ferrous and thin walled ferrous tubes in one revolution.• This "One Revolution" Internal Tube Cutter is designed for hand operation using a ratchet handle.• The Cutter Tool Bit operates on an eccentric principle. The TubeCutter is entered in the with the Tool Bit in closed position, ratcher is applied and turned in clockwise direction. The tool Bit contacts the tube during the One Revolution and poerces the tube wall and as turning is continued the Tool Bit shears through the tube along its circumference. This Cutter is fitted with an adjustable collar enabling it to reach into tubes at various distances and they are available in optional increments of 2" (50.8mm). Standard adjustable reach is 6" (152.4mm). "A" reach = 8" (203.2). "B" reach = 10" (254.0mm). "C" reach = 12" (304.8mm) etc.• All Cutters are available for MM tube sizes also.

It is designed to cut thick tubes. The clutch mechanism and bevel spring housed in the cutter body provides self feed positive cutting force. This eliminates operator fatigue. This design also increases the life of the cutter blade. Piloting steel balls cover the range of tube I.D. and offer easy replacement and regrinding of tool bit. Depth of cut can also be adjusted.

• Brand Name: Subzero
• Adjustment Reach: 4 inch
• Tube Outside Diameter: 5/8 - 2.1/2 inch
• Item Weight: 500 grams

Internal Tube Cutter, Grooving Tools, tube cleaners, Tube End Facer

Internal Tube Cutter, Tube Expander, Manual Tube Puller, Tube Removal Tools

Push Type Internal Tube Cutter- BATP Series, Tube Removal Tools

Boiler Tube Internal Tube Cutter, Grinding Contact Wheel, Bar Guide Pad
