Joint Meter Dealers

• Operating Temperature: -10 to 60°C
• Standard Ranges: 50mm, 100 mm , 150mm.
• Non-linearity %fs: 1%fs
• Material (outer body): Stainless steel
• Coil Resistance: 140 – 160 Ohm @ 25°C
• Thermistor: YSI 44005 or equivalent(3k Ohm @ 25°C)
• Surge Arrestor: Citel 90V Gas Discharge tube
• Dimension: 20 mm dia
• Cable: 1m , 4 core shielded.

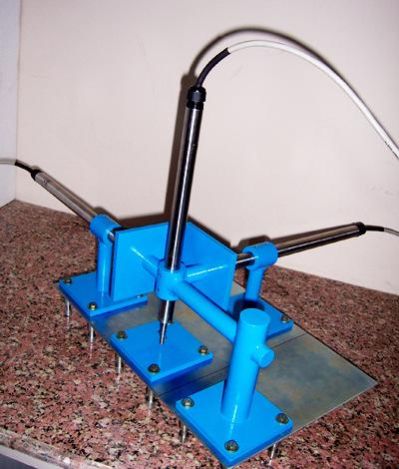

Push-In type Displacement Transducer/ Crack meter Model IG-2002 & Perimetric Joint meter Model IG-2002 XYZ The model IG2002 crackmeter consists of a spring loaded, compression type vibrating wire displacement transducer and two installation brackets. One mounting bracket supports the displacement transducer while the other is anchored across the joint on to the reference surface. The springloaded shaft of the displacement transducer is always in contact with the reference surface at the other side of the crack. The sliding rod senses the movement between the two anchors and gives a frequency output which is read by the indicator.   For measurement in three orthogonal directions IG2002XYZ or perimetric joint meter is used. This version has three sets of displacement transducer assemblies installed across the crack in three mutually perpendicular directions. Free movement of the sliding shaft in all directions ensures accuracy of measurement.

• Type: Joint Meter
• Material: Stainless Steel
• Application: Industrial
• Feature: Durable
• Warranty: 1 Year
• Finishing: Polished

Model SIS -120 Jointmeter are used to measure movements across surface cracks or joints in structures, concrete or rock. The Jointmeter incorporates vibrating wire sensor with the resonant frequency of vibration of a tensioned steel wire is proportional to the strain or tension in the wire. This fundamental relationship is utilized in a variety of configurations for the measurement of load.  The design contributes to the outstanding features and performances over conventional Vibrating Wire Jointmeter. The Model SIS -120 Vibrating Wire  Jointmeter offers:

The Model 4400 Embedment Jointmeter is designed for use across construction joints, such as those between adjacent blocks in a concrete dam. It is normally embedded across the joint to monitor the expansion or contraction of the joint. The use of internal universal joints allows for a degree of shearing motion.

• Range: ±10mm, ±25mm, ± 50mm
• Accuracy: ±0.2%FS,
• Operating Temperature: -10 to +70°C
• Reading Tool: Digital Depth Gauge

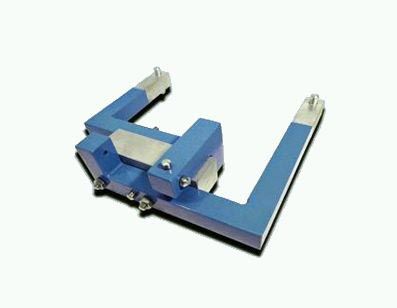

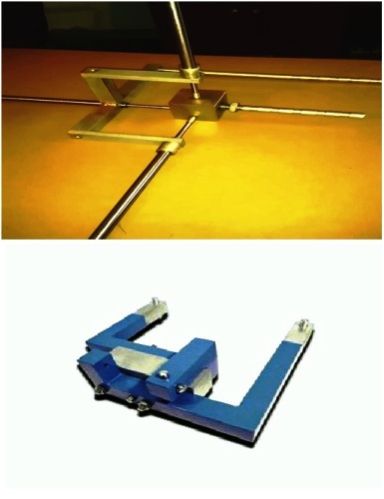

Mechanical triaxial jointmeter is used to monitor the relative displacement of two adjacent surfaces in three orthogonal directions. The data is being recorded using digital depth gauge manually.

• Brand Name: Innovative Geotechnical Instrumentation
• Model: IG 1002

• Material: Stainless Steel
• Operating Temperature: -10 to +70 Degree C
• Wire Length: 5-25 Inch
• Diameter: 5-15 mm
• Shape: Round
